Industrial 48 Inch Bar Type Monitor Display with Metal Frame

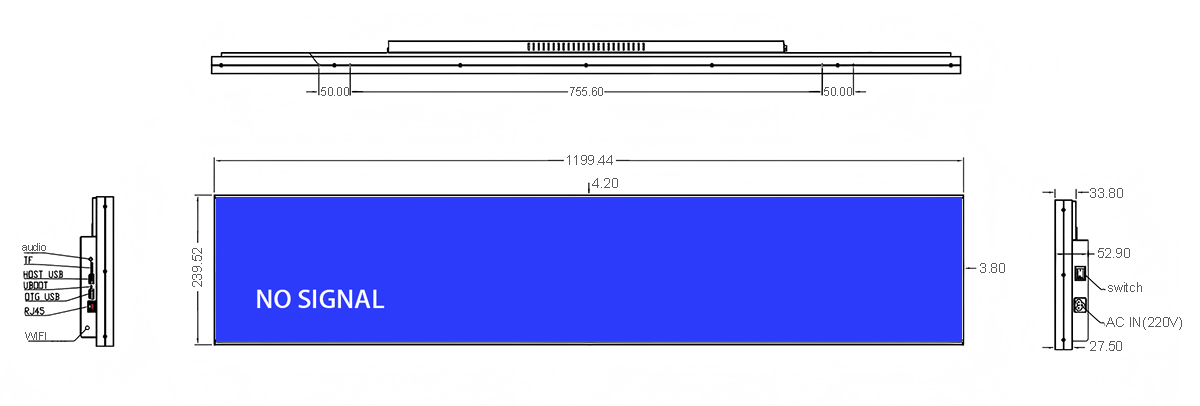

Source manufacturer supply of 48 inch standard ultra-wide bar display with 1920*360 resolution and 400 cd/㎡ brightness. High-durability commercial display engineered for 24/7 public service. Complete 2D/3D CAD mounting blueprints upon request.
Specifications
- Screen Size
- 48 Inch
- Resolution
- 1920*360
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
48 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 48 inch | |
Resolution | 1920*360 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Eliminating Structural Redesigns: Direct Integration into Linear Fascias
Linear visual communication is fundamentally transforming how brands and public operators engage with audiences. Where conventional displays dominate vertical walls and desktops, narrow architectural perimeters require an entirely different form factor. Standard monitors are simply too tall, obstructing customer views and complicating mechanical mounting. The 48-inch panoramic stretched bar LCD monitor meets these demands by packaging native 1920*360 resolution into an elongated 48-inch display profile, turning neglected architectural boundaries into dynamic customer touchpoints.
Modern grocery and department store merchandising demands dynamic storytelling right at the shelf edge. Panoramic digital screens capture shopper dwell time and drive impulse purchases by pairing high-definition video loops with clear pricing.
Retailers deploying digital shelf strips experience a significant reduction in pricing errors and promotional lag. Automated cloud updates ensure that promotional campaigns and regulatory price labels remain synchronized across entire store networks.
Engineered Optics: High Pixel Density and Glare Suppression for Public Spaces
Equipped with an industrial-grade liquid crystal matrix, the 48-inch stretched monitor delivers native 1920*360 resolution and a luminous output of 400 cd/㎡. It provides crisp, high-contrast imagery backed by a 1200:1 contrast ratio, ensuring text and graphics remain readable under intense interior lighting. True IPS technology provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, while the backlight system is rated for over 60,000 hours of continuous 24/7 commercial duty of dependable operation.
Optical bonding technology minimizes internal air gaps between the cover glass and liquid crystal cell, virtually eliminating internal light refraction and delivering crisp, surface-printed visual clarity.
Fast liquid crystal transition times prevent image blurring and ghosting during high-speed promotional video animations, ensuring that fast-moving product footage appears fluid and natural.
Fanless Heat Spreading: Extending Electronic Lifespan Through Solid-State Cooling
Housed in a sturdy, low-profile metal chassis, the 48-inch display combines commercial elegance with industrial strength. Its resilient finish protects against scratches, fingerprints, and daily commercial cleaning.

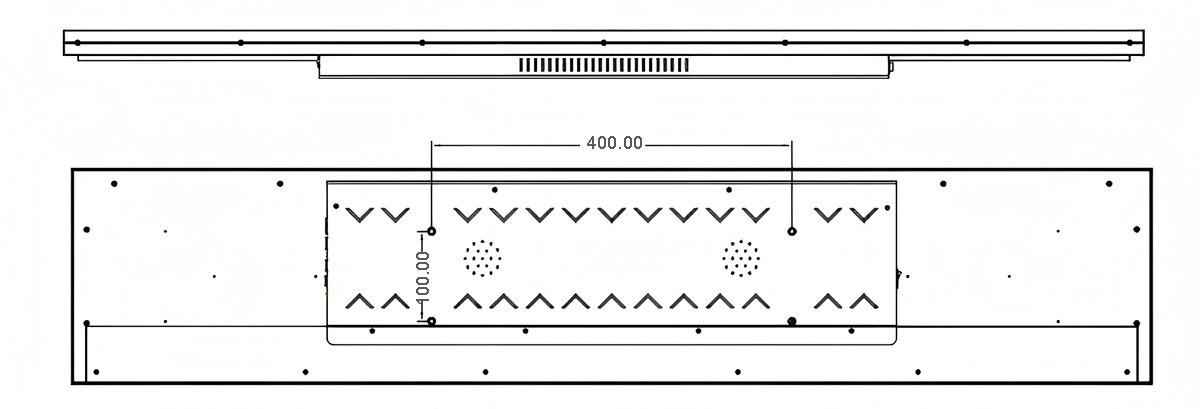

Built without mechanical cooling fans, the display relies on efficient conductive thermal paths through its metallic housing to maintain optimal operating temperatures. This silent, dust-free design maximizes operational longevity, while standardized rear VESA patterns and lateral slide channels support versatile installation.
Designed with multi-axis mounting versatility, the rear housing accommodates custom ceiling drop-poles, articulated wall brackets, and desktop tilt-stands. Heavy-duty internal mounting studs prevent thread stripping during repeated installation cycles.
Electronics Hardening: Conformal Coating Protection Against Humidity and Dust
Built with standard HDMI, VGA ports, the monitor interfaces smoothly with commercial media players, PCs, and video controllers. Audio integration is enabled via a Audio Socket (3.5mm). The internal power supply operates from AC 100V~240V (50/60Hz), drawing ≤ 90w during active operation. The hardware is certified for continuous operation across below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Energy-efficient backlight drivers regulate power flow dynamically based on content brightness, trimming power consumption while maintaining peak visual punch for advertising assets.
Energy-conserving standby modes reduce power consumption to less than one watt during off-hours, allowing automated facility management systems to power down screens overnight effortlessly.
Decoupled Open-Architecture Display for Multi-OS Environments
Experience complete operational freedom with a display engineered for universal HDMI video integration. Unencumbered by proprietary player restrictions, it interfaces smoothly with external Windows computers, Android network players, and Linux automation devices. This architecture allows venues to easily upgrade media player hardware or switch digital signage CMS software over time without replacing the display itself.
Commercial Viability: Case Studies in High-Throughput Public Infrastructure
Across commercial and industrial environments, the 48-inch stretched display provides versatile visual communication. In retail stores, it drives sales through dynamic point-of-purchase messaging. In transit fleets, it displays real-time route progress. In industrial control rooms, it delivers live equipment telemetry, and in corporate buildings, it functions as a modern architectural directory.
Airport concourses and baggage reclaim zones use this panoramic screen above luggage carousels and customs inspection lanes. Clear, multi-lingual passenger guidance and arrival notifications reduce traveler congestion during international peak arrival banks.
Automated parcel locker networks and interactive retail kiosks benefit from the intuitive guidance provided by horizontal header screens. Step-by-step transaction prompts guide users smoothly through drop-off and pickup procedures.
Supply Chain Flexibility: Assembled Displays, Open-Frame Units, and SKD Packs
Partnering with ZXT gives hardware integrators access to verified manufacturing expertise and factory-direct pricing. With extensive in-stock casing tooling, we eliminate mold fees and dispatch samples in three days, offering turnkey displays or SKD kits to optimize international logistics.
Our extensive library of proven extrusion dies and stamping tooling allows clients to deploy customized stretched bar hardware without incurring the high costs and lengthy delays of new tooling development.
Display Sourcing & Engineering FAQ
**Q1: Does the display produce electromagnetic interference with nearby equipment?**
No. Internal electronics are enclosed within a grounded metallic chassis with integrated EMI filtering circuitry, complying with commercial Class A and Class B electromagnetic compatibility standards.
**Q2: Can we test sample units before placing a volume project order?**
Yes. We strongly encourage evaluation testing and provide sample units complete with power supplies, video cables, and CAD mounting guides, ready for dispatch within three working days.
**Q3: What optical surface treatments are applied to the screen?**
The display panel features an industrial-grade anti-glare (AG) polarized surface treatment with hard-coat scratch resistance, minimizing reflections while repelling dust and environmental smudges.
Engineering Sales Contact and Factory Direct Pricing
Request an evaluation sample or volume price schedule for the 48-inch panoramic stretched bar display by contacting our technical team. Provide your installation details for a tailored commercial quotation within two hours.
