Non-touchscreen
Custom Ratio Bar Monitor (48.8 Inch) with Standard HDMI Video Input
Wholesale 48.8 inch aluminum profile stretched display featuring native 1920*360/3840*720 resolution and 200~400 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 48.8 Inch
- Resolution
- 1920*360/3840*720
- Brightness
- 200~400 cd/㎡
- Interface
- HDMI / VGA
48.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 48.8 inch | |
Resolution | 1920*360/3840*720 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Maximizing Visual Sightlines: Re-Engineering Display Ratios for Linear Margins
Modern public infrastructure demands streamlined visual integration. The 48.8-inch panoramic display is engineered to overcome vertical mounting constraints, delivering 1920*360/3840*720 resolution across an elongated 48.8-inch viewing area. It offers system integrators a reliable way to deploy dynamic digital content in tight architectural slots without visual compromise.
In smart retail environments, dynamic price changes and seasonal campaigns can be scheduled automatically. This operational flexibility eliminates manual re-labeling labor and ensures pricing accuracy across multi-store chains.
In public service environments such as healthcare intake desks and civic service counters, compact horizontal displays keep waiting citizens informed while preserving clear verbal and visual communication with desk staff.
Image Reproduction: Wide Aspect Pixel Mapping and Accurate Color Rendering
The optical system of the 48.8-inch panoramic display features 1920*360/3840*720 resolution, 200~400 cd/㎡ brightness, and a 1200:1 contrast ratio. True IPS technology guarantees true IPS 178-degree wide visual cone viewing angles without color distortion, while the industrial LED backlight ensures an industrial service life exceeding 60,000 hours of continuous commercial operation.
The liquid crystal panel is engineered for rapid pixel response times, eliminating ghosting and motion blur during fast-scrolling advertising text and high-frame-rate video playback.
The protective front glass surface combines high optical transparency with oil-resistant surface properties, repelling accidental fingerprint smudges and preserving pristine screen clarity in public environments.

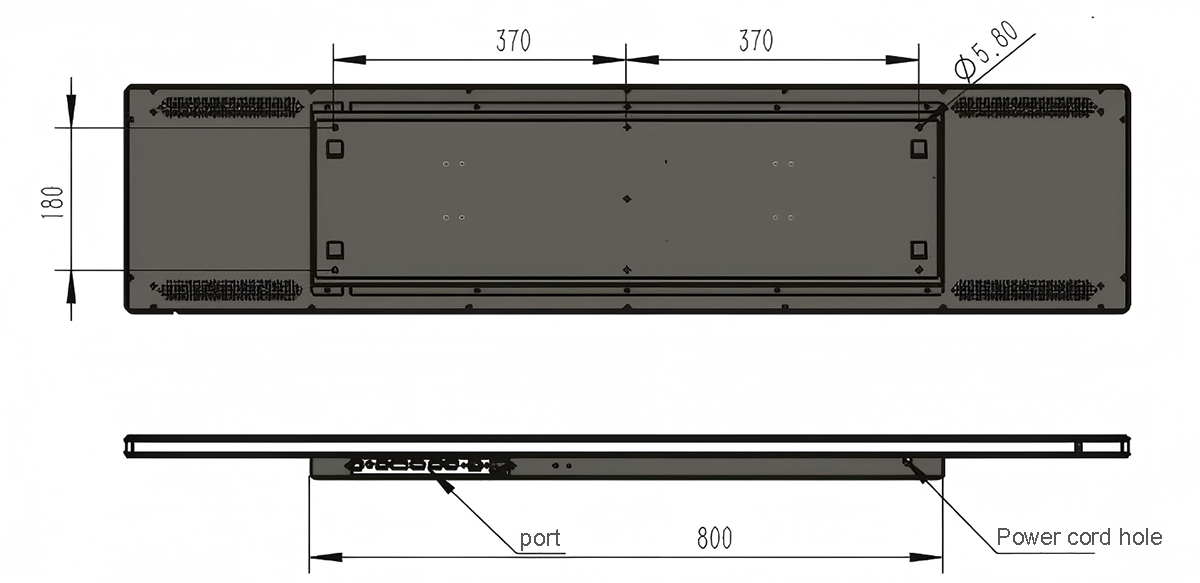

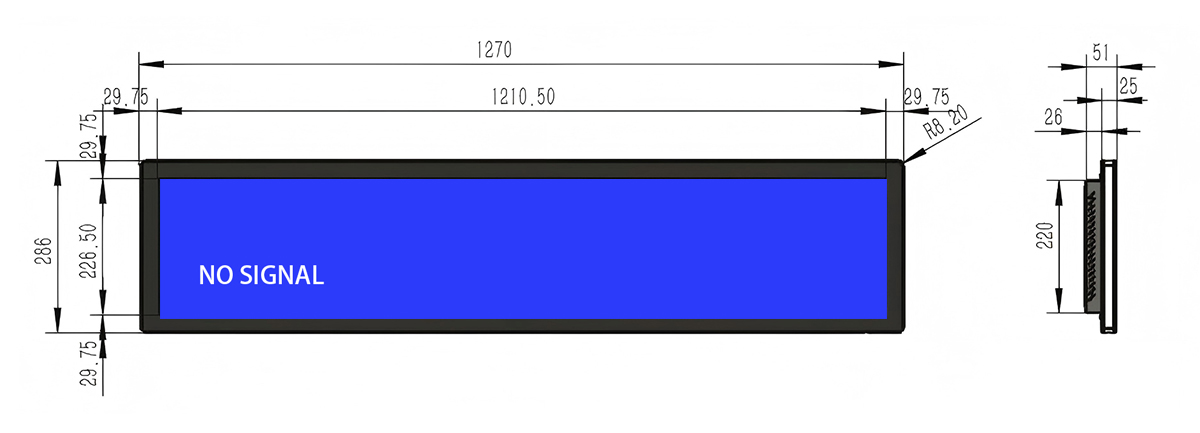

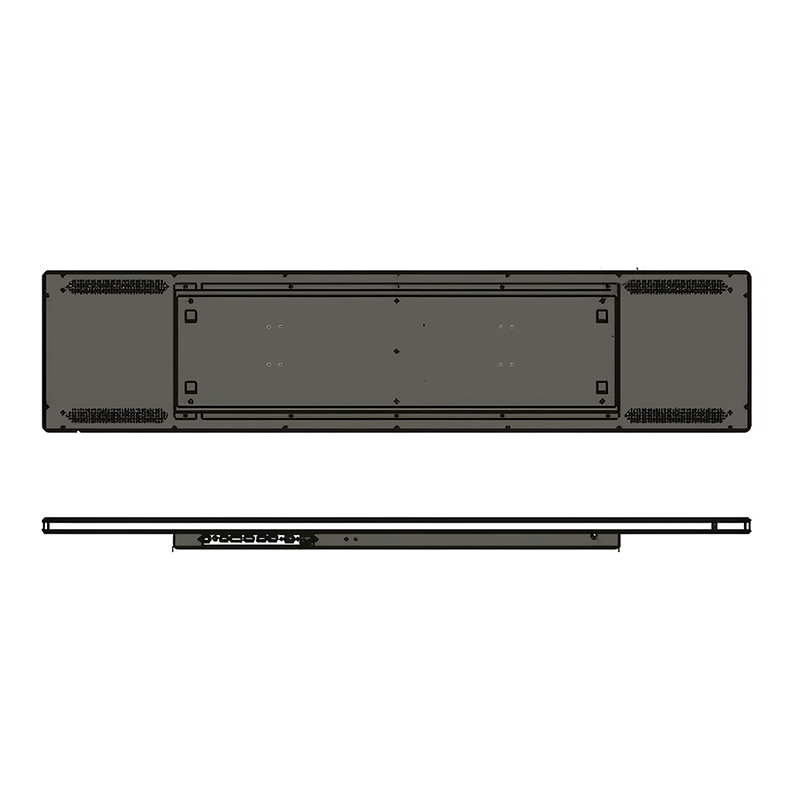

Installation Engineering: Lateral Slide-Tracks and Universal Mounting Provisions
With an ultra-narrow aluminum perimeter frame, the 48.8-inch profile display integrates smoothly into commercial retail fixtures. The lightweight extruded alloy housing enables rapid clip-in installation with high structural stability.
Passive thermal dissipation through the metallic housing ensures stable operating temperatures without the need for mechanical cooling fans. The enclosure includes standardized VESA mounting provisions and lateral slide channels for straightforward installation.
Flexible mounting hardware options include top-suspension hanging brackets, recessed cabinet clips, and articulated wall mounts. All structural fasteners are fabricated from stainless steel to resist atmospheric corrosion in semi-outdoor venues.
Hardware Connectivity: HDMI, VGA, and Audio Distribution Provisions
Equipped with comprehensive input connectivity, the display integrates HDMI, VGA video ports to ensure straightforward interfacing with commercial computing systems. Whether driven by an Android media player, a Windows industrial PC, or an embedded Linux box, the internal video processor scales incoming signals smoothly, maintaining correct aspect ratio geometry without edge cropping or horizontal stretching. An integrated 3.5mm Audio Socket delivers clear audio output, making it simple to add auxiliary sound reinforcement for interactive promotions, queue call-outs, and transit transfer alerts. Power efficiency is a hallmark of this design. Built to run on universal standard 110V to 240V AC power input mains power, the monitor draws no more than ≤ 100w during active operation. The hardware is built to operate under demanding environmental conditions, rated for continuous performance from below10℃ ~ +50℃ with non-condensing humidity up to ≤ 85%RH.
Low overall operational power consumption keeps thermal emissions minimal, reducing the air-conditioning load in enclosed retail kiosks, transit carriages, and server room equipment racks.
Low total power draw minimizes operational utility expenses across multi-screen commercial rollouts, helping enterprise clients achieve energy conservation targets and reduce overall operating expenditure.

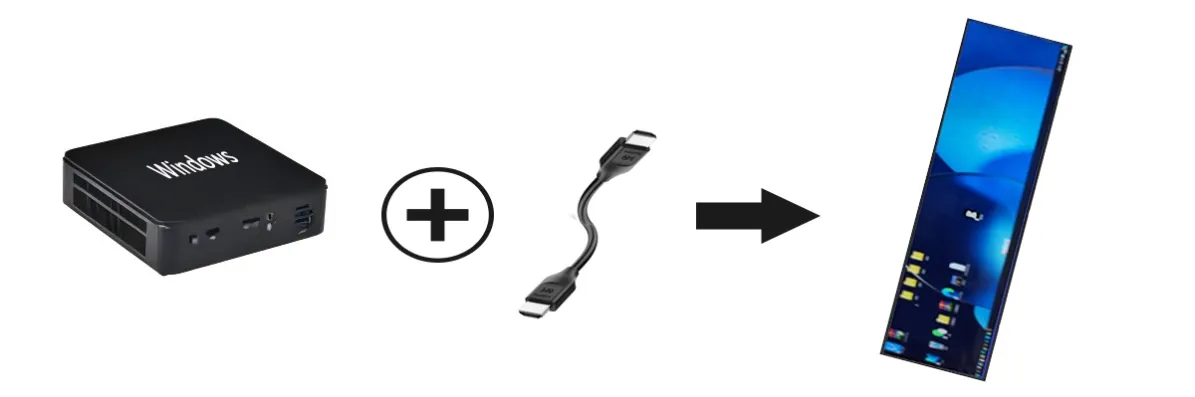

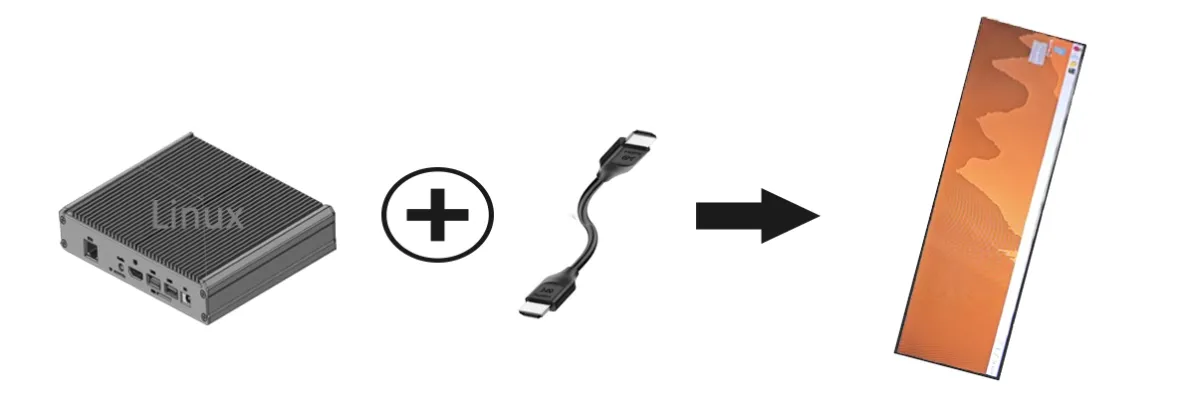

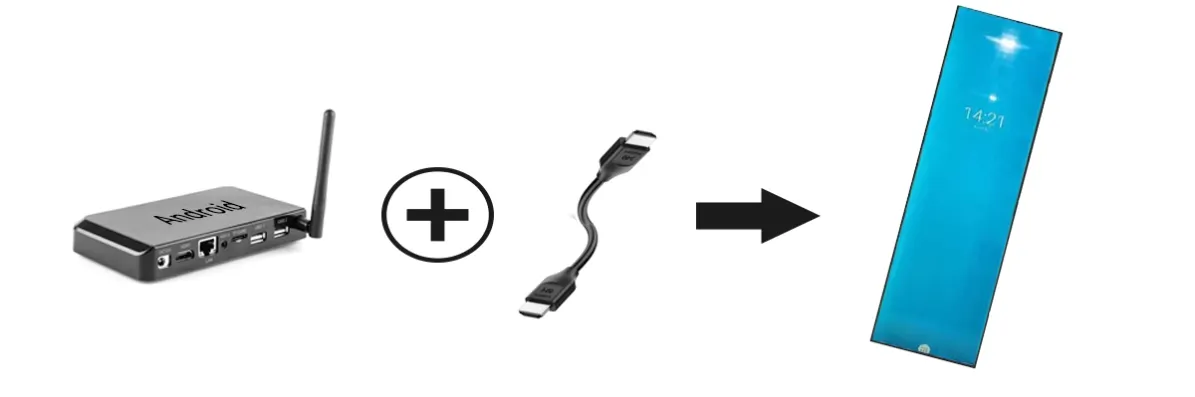

Hardware-Agnostic Display Architecture via High-Definition Video
Designed with an uncompromised open-platform philosophy, this commercial screen avoids embedded operating system obsolescence. Through universal HDMI signal linking, installers can interface any external computing unit—whether powered by Windows, Android OS, or embedded Linux kernels. This freedom empowers network administrators to run custom touch kiosk interfaces, web-based digital menu boards, or PLC automation software with zero compatibility friction.
Target Environments: Commercial Display Strategies for Space-Limited Fixtures
Engineered for space-limited commercial installations, the 48.8-inch stretched bar screen delivers dynamic visual impact across diverse sectors. Supermarket chains deploy it along gondola shelf rails for real-time digital merchandising. Public transit operators utilize it for interior passenger route mapping. Financial institutions install it at teller counters for queue calling, and manufacturing plants use it for continuous assembly line status monitoring.
Municipal bus fleets deploy this low-profile screen along ceiling bulkheads to broadcast next-stop alerts, GPS route progress, and municipal announcements. The wide viewing angles ensure passengers seated throughout the vehicle can read journey details clearly without neck strain.
Hospitality venues report enhanced guest satisfaction when using panoramic displays for lobby wayfinding and conference schedules. The elegant linear form factor complements modern hotel interior architecture while delivering clear guest directions.
Factory-Direct Supply Lines: Turnkey Monitors and Modular Hardware Kits
By procuring from ZXT, international clients benefit from direct engineering support, competitive factory pricing, and fast fulfillment. With over nine years of manufacturing experience, we provide in-stock tooling, rapid 3-day sample delivery, and flexible supply formats including turnkey monitors and SKD component kits.
We support client-specified firmware customizations, including custom boot logos, fixed EDID resolution timings, and customized default input channel preferences for turnkey field rollouts.
Hardware Deployment & Specification FAQ
**Q1: Can multiple displays be mounted side-by-side to form a continuous visual ribbon?**
Yes. The ultra-narrow bezel design and lateral slide-channel grooves allow multiple units to be installed horizontally in tight alignment, creating seamless digital merchandising ribbons along store shelf rows.
**Q2: Is audio output supported on this monitor?**
Yes. The motherboard includes an integrated 3.5mm stereo audio output jack, enabling direct connection to shelf-edge sound bars, directional speakers, or external public address amplification equipment.
**Q3: What is ZXT's minimum order quantity (MOQ) for standard models?**
Because we maintain permanent in-stock tooling and extrusion profiles, standard models have flexible, low MOQ requirements, allowing enterprise clients to begin with small evaluation batches before volume rollouts.
Engineering Sales Contact and Factory Direct Pricing
Request an evaluation sample or volume price schedule for the 48.8-inch panoramic stretched bar display by contacting our technical team. Provide your installation details for a tailored commercial quotation within two hours.
