Non-touchscreen

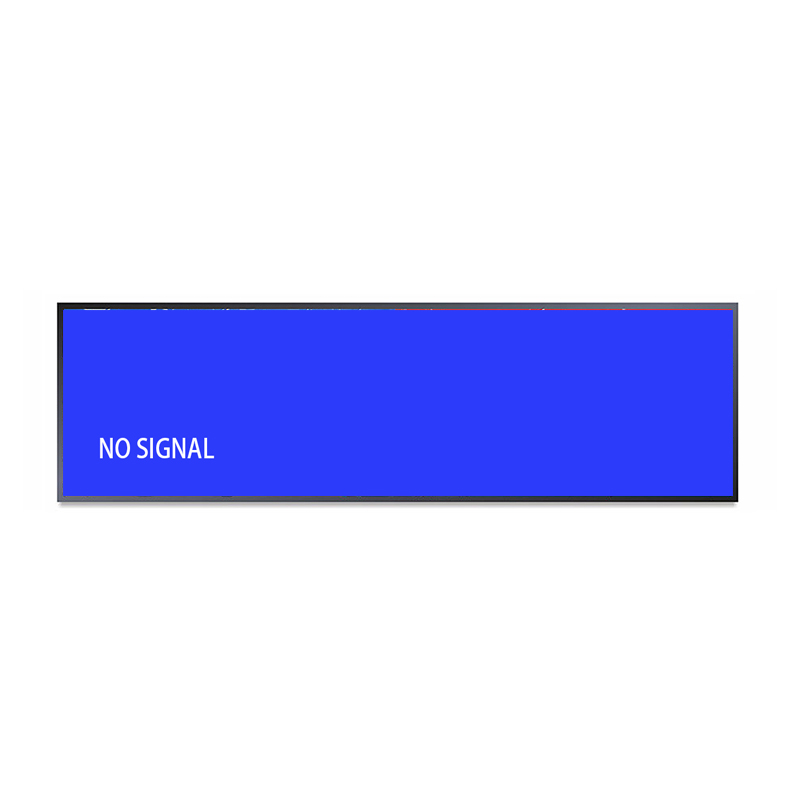

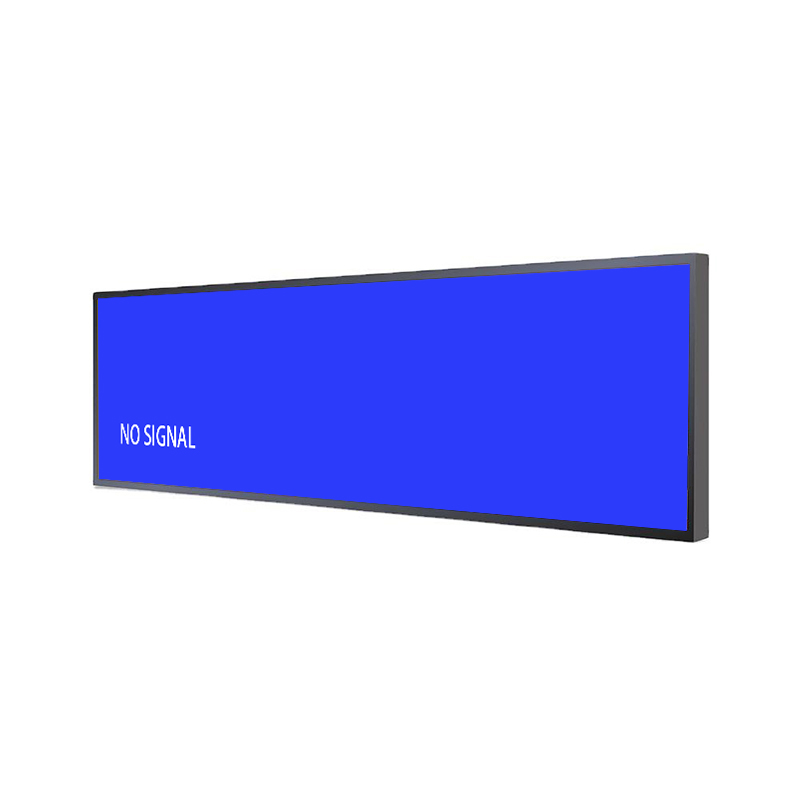

Commercial Display Signage: 48.8 Inch Ultra-Wide Bar LCD Monitor
Industrial-grade 48.8 inch industrial sheet metal bar monitor delivering 1920*360/3840*720 native resolution and 200~400 cd/㎡ brightness. Fanless passive thermal design engineered for 24/7 commercial operation. Factory-direct pricing with complete 2D/3D CAD technical support.
Specifications
- Screen Size
- 48.8 Inch
- Resolution
- 1920*443/3840*886
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
48.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 48.8 inch | |
Resolution | 1920*443/3840*886 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Solving The Height Limitation: Engineering Custom Aspect Ratio Displays
The 48.8-inch ultra-wide bar monitor is designed specifically for environments where vertical space is tightly constrained. Delivering 1920*360/3840*720 native resolution across its active 48.8-inch diagonal, it enables operators to present continuous promotional video loops, pricing updates, and transit announcements along narrow architectural surfaces.
Transportation authorities can broadcast synchronized route announcements and public service alerts in real time. The clear horizontal layout allows commuters to track their journey progress at a glance.
Replacing printed vinyl banners with dynamic digital strips allows shopping mall operators to monetize linear architectural surfaces, creating new advertising revenue streams across corridors and escalator bulkheads.
Visual Precision: Eliminating Distortion Across Ultra-Wide Active Areas
Engineered for commercial visibility, the 48.8-inch stretched bar screen delivers 1920*360/3840*720 resolution and 200~400 cd/㎡ calibrated luminance. A 1200:1 contrast ratio ensures rich image depth, supported by symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours commercial backlight service rating.
Solid-state LED illumination provides instantaneous full-brightness startup, ensuring that commercial displays resume vivid visual operation immediately following scheduled power cycles.
Instantaneous solid-state power-on response ensures that display networks resume vibrant visual broadcasting immediately following automated overnight power cycles or utility power restoration.
Chassis Architecture: Shock Absorption, Shielding, and Mounting Versatility

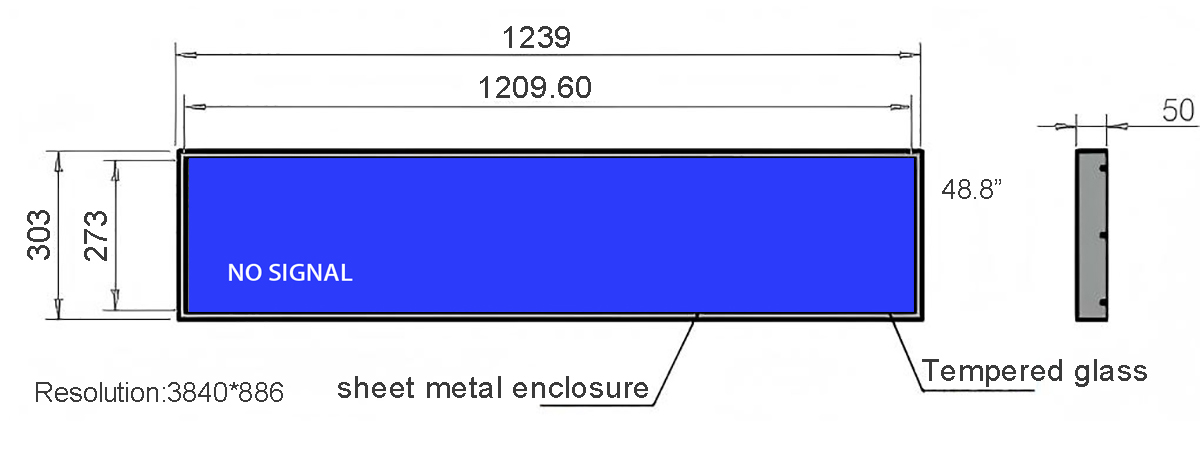

Housed in an industrial cold-rolled steel enclosure, the 48.8-inch monitor delivers high structural durability for demanding plant and transit environments. The corrosion-treated steel casing provides robust impact protection, shielding internal A/D boards and power converters from workshop debris and mechanical shocks.
The mechanical enclosure incorporates solid-state passive thermal dissipation, transferring heat away from internal components through high-conductivity internal heat spreaders. By eliminating mechanical fans, the unit operates in complete silence and prevents dust buildup inside the chassis. The rear casing includes standard VESA mounting points and adjustable side mounting channels for flexible installation on walls, poles, or custom fixtures.
Engineered for rapid field deployment, the chassis includes adjustable side-mounting flange ears that secure the display into custom metal cabinetry or wooden millwork. Vibration-damped rubber grommets isolate the display structure from external mechanical shocks in heavy machinery setups.
Electrical Reliability: Transient Surge Defense and Clean Signal Routing
Connecting the display into enterprise IT and AV networks is completely frictionless thanks to onboard HDMI, VGA video ports. The display interfaces smoothly with commercial media players, industrial embedded controllers, and split-screen video processors, supporting native resolution mapping without image distortion. An integrated 3.5mm Audio Socket simplifies connection to external speakers, allowing venues to combine panoramic promotional visuals with directional sound reinforcement. Designed for global commercial deployment, the power converter accepts universal universal 100-240V commercial electrical mains electrical mains. Operating power is capped at an efficient ≤ 100w, delivering significant energy savings. The display delivers robust environmental resilience, operating reliably across ambient temperatures of below10℃ ~ +50℃ and humidity ranges up to ≤ 85%RH.
Conformal protective varnishing applied across printed circuit boards protects copper traces and solder joints against airborne moisture condensation, oil vapors, and conductive dust particles.
Conformal protective varnishing applied across the printed circuit boards forms a durable barrier against ambient humidity condensation, airborne grease vapors, and fine industrial dust particulates.
Effortless OS Migration Across Windows, Android, and Linux
Modern enterprise signage networks demand agile software transitions. Built without closed proprietary system locks, this display accepts direct video feeds from any Windows micro-PC, Android network signage player, or Linux industrial box via standard HDMI cabling. This universal connectivity guarantees that your hardware remains fully compatible whenever you upgrade digital signage CMS platforms or change underlying operating systems.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 48.8-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
The ZXT Manufacturing Advantage: 9+ Years of Industrial Display Leadership
ZXT offers direct factory sourcing for commercial stretched bar displays, supported by nearly a decade of manufacturing experience. We provide zero-tooling-fee deployments on standard sizes, 3-day sample turnaround, and complete OEM/ODM engineering support including CAD files and custom bracket design.
We provide comprehensive sample evaluation packages complete with power supplies, video cables, and mounting hardware, allowing technical teams to conduct thorough bench testing prior to volume commitment.
Product Engineering & Architecture FAQ
**Q1: Can this screen be used as an ultrawide PC secondary monitor or telemetry panel?**
Yes. Many professional workstation users, gamers, and control room operators connect this display beneath main monitors via HDMI as a dedicated sensor panel for hardware metrics, timelines, or communication feeds.
**Q2: How does the passive thermal design protect against dust?**
By utilizing a fanless solid-state cooling layout that transfers heat conductively through the metallic housing, the display eliminates air intake vents and motorized fans, preventing internal dust and grease buildup.
**Q3: Are protective glass options available for public installations?**
Yes. We offer chemically toughened Morse scale magnitude 7 impact-resistant front glass with anti-glare etching, providing robust protection against public scratches and accidental physical impacts.
Schedule Sample Dispatch and Review Technical Specs
To evaluate the 48.8-inch stretched bar display for your next deployment, contact our Shenzhen engineering team today. We offer full CAD support, 3-day sample dispatch, and volume-tiered commercial pricing.
