Non-touchscreen

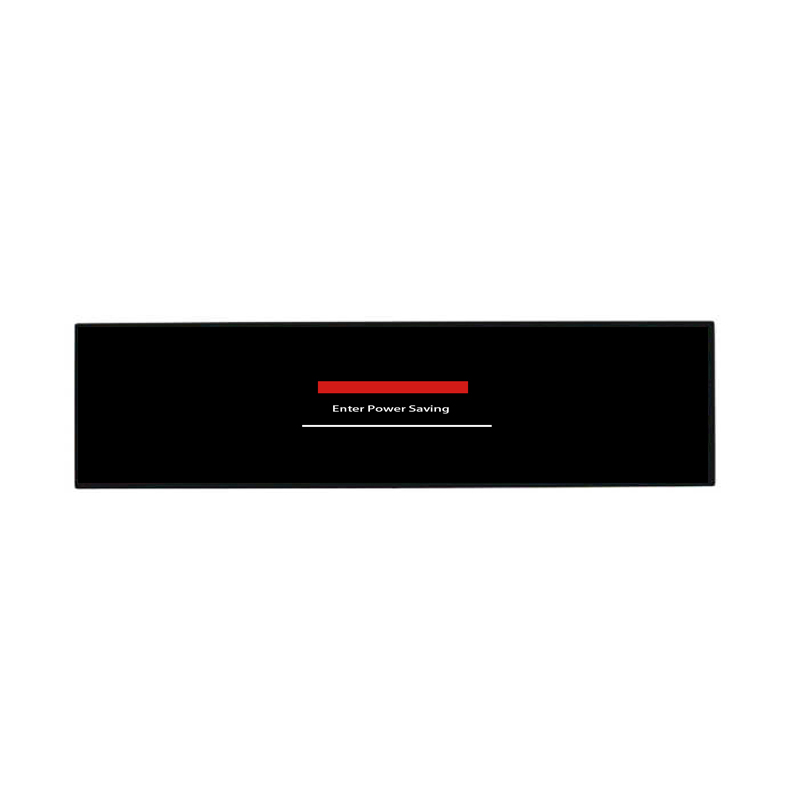

Stretched Bar LCD Monitor – 48.5 Inch High-Definition Commercial Screen
Source-factory 48.5 inch industrial sheet metal bar monitor delivering native 3840*720/1920*360 resolution and 400 cd/㎡ commercial brightness. Complete with HDMI/VGA inputs and fanless thermal architecture. Fast sampling and volume OEM/ODM fulfillment.
Specifications
- Screen Size
- 48.5 Inch
- Resolution
- 1920*360/3840*720
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
48.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 48.5 inch | |
Resolution | 1920*360/3840*720 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Architectural Geometry: Resolving Horizontal Constraints in Commercial Architecture
In modern commercial retail and transportation hubs, standard 16:9 displays consistently create severe installation conflicts. Their excessive vertical height obstructs customer sightlines, intrudes into pedestrian aisles, and requires costly alterations to architectural shelving and vehicle bulkheads. The 48.5-inch stretched bar LCD monitor resolves these spatial bottlenecks by delivering native 3840*720/1920*360 resolution across an elongated panoramic diagonal. Occupying virtually zero vertical height, it converts dormant horizontal margins into dynamic visual corridors for continuous advertising, live pricing, and passenger information without disrupting surrounding fixtures.
By replacing static cardboard signs and bulky poster frames with dynamic panoramic video loops, retail and transportation operators unlock real-time promotional agility. Content management platforms can instantly update merchandise promotions or emergency transit notices across hundreds of distributed displays, reducing maintenance overhead and maximizing visual engagement.
From an engineering standpoint, preserving structural sightlines directly correlates with higher customer retention in commercial spaces. Rather than obstructing surrounding merchandising displays or passenger pathways, the low-profile chassis sits flush against linear surfaces, creating an uncluttered, modern visual environment.
Visual Physics: Maintaining Sharp Image Definition Under Ambient Lighting
At the heart of this display is an industrial-grade A-grade liquid crystal cell engineered for continuous commercial duty. Featuring a native 3840*720/1920*360 resolution, the 48.5-inch screen provides high-definition clarity that ensures intricate graphic assets, dynamic video commercials, and multi-line transit schedules remain razor-sharp from standard viewing distances. Boasting an engineered luminous output of 400 cd/㎡, the panel overcomes the visual washout typical of consumer screens in bright commercial lighting. Paired with a 1200:1 native contrast ratio, the optical stack produces deep black levels and vibrant chromatic saturation. The display's IPS panel structure ensures wide optical visibility with CR≥10 wide-angle IPS optical alignment viewing angles, while the solid-state LED backlight is rated for a continuous operational life of more than 60,000 hours of maintenance-free illumination.
An optimized polarising matrix prevents color inversion and contrast degradation when the screen is viewed from steep vertical or lateral perspectives, preserving image fidelity in tight corridor passages.
High static contrast performance ensures that deep blacks remain rich and text characters stand out sharply, maximizing legibility in low-light transit tunnels as well as brightly illuminated department stores.
Chassis Robustness: Built to Endure High-Footfall Public and Industrial Wear
The 48.5-inch industrial monitor utilizes a reinforced sheet steel enclosure engineered to endure harsh shopfloor conditions. The electro-galvanized casing provides high impact resistance and structural integrity, protecting display electronics from mechanical vibration and physical abuse.

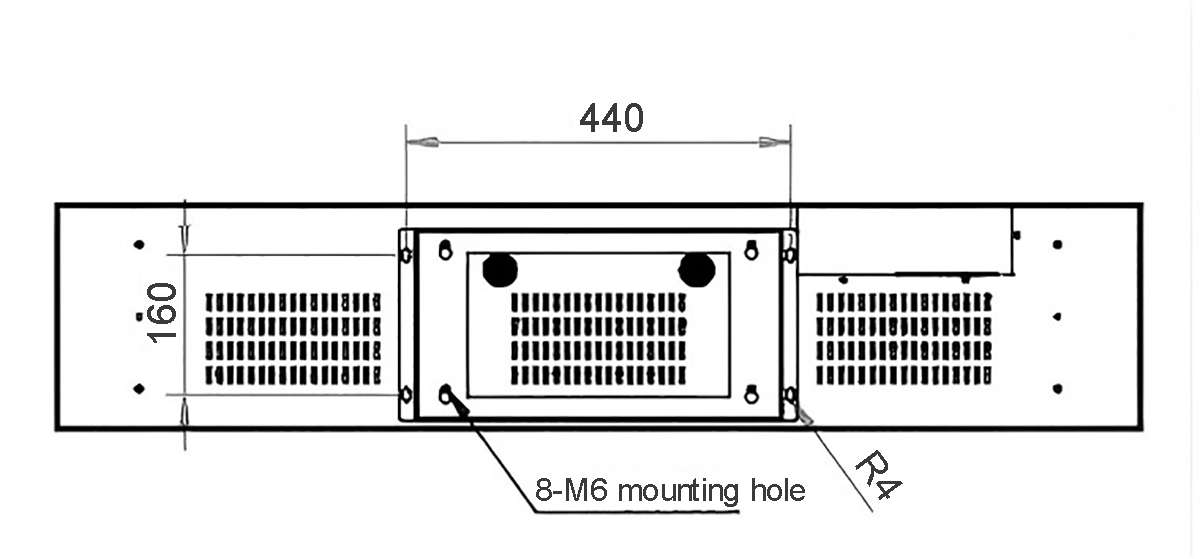

Passive thermal engineering ensures dependable heat dissipation without noisy mechanical fans, preventing airborne contaminants from entering the chassis. The enclosure includes standard VESA mounting patterns and lateral adjustment tracks to facilitate quick, secure mechanical integration into commercial cabinetry or transit headers.
Precision-stamped mounting ears allow the unit to drop directly into standard 19-inch equipment racks and instrument control panels. Secure front-fastening screws ensure the monitor remains firmly locked in place during transport and factory operation.
Input Versatility: Connecting to Industrial IPCs, Android Boxes, and Controllers
The display provides HDMI, VGA video connectivity for straightforward integration with digital signage systems and industrial computers. An integrated 3.5mm Audio Socket enables external sound connectivity. Power is supplied via universal universal 100-240V commercial electrical mains mains, with energy consumption rated at ≤ 100w. Reliable operation is maintained across temperatures of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
Robust input connector soldering and reinforced chassis anchor points prevent loose cable connections caused by mechanical vibration in mobile transit vehicles and vibrating factory machinery.
High-reliability solid-state capacitors and premium inductors prevent power supply failure, ensuring dependable continuous operation across multi-year commercial deployment schedules.
Open-Platform Display Flexibility: Zero Vendor Entanglement
Built specifically for professional system integrators who demand flexibility, this monitor operates without proprietary software locks or mandatory subscription ecosystems. By linking any standard Windows industrial PC, Android signage appliance, or Linux embedded computer through an HDMI connection, clients gain immediate access to an open-canvas display ready to run any specialized commercial or industrial software suite.
Realized Applications: Corporate Entrances, Transit Cabins, and Control Rooms
The 48.5-inch stretched bar LCD monitor meets the demands of high-traffic commercial environments. It is deployed along retail shelving for dynamic promotional pricing, within transit vehicles for passenger route alerts, in data centers for equipment telemetry, and in commercial lobbies for building directories.
Museums and interactive exhibition pavilions utilize this linear display on exhibit pedestals and showcase fascias. Curators deliver rich multimedia storytelling, historical timelines, and artifact context alongside delicate physical exhibits.
Sports arenas and entertainment venues deploy the display above concession stands to showcase live score feeds and food specials simultaneously, keeping fans engaged while driving food and beverage revenue.
Manufacturing Scale: In-House Stamping, Extrusion Tooling, and Rapid Sampling
Choosing ZXT connects your project team directly to our manufacturing facility. We maintain permanent tooling inventories, provide evaluation samples in three days, and support overseas partners with turnkey displays, open-frame kits, and custom engineering assistance.
From prototype validation through high-volume mass production, ZXT delivers consistent manufacturing quality that has earned the trust of over 1,000 commercial display clients in more than 50 countries.
Technical Consultation FAQ
**Q1: Does this display support Linux industrial distributions?**
Yes. The display works seamlessly with Ubuntu, Debian, RedHat, and embedded Linux kernels via standard HDMI video interfacing, with zero need for specialized proprietary display driver packages.
**Q2: What measures prevent image sticking during static content display?**
The industrial-grade liquid crystal cell features advanced pixel anti-burn-in properties, allowing continuous display of static price tags and route maps without visual retention or ghosting artifacts.
**Q3: Can ZXT customize the front bezel thickness or shape?**
Yes. Our in-house engineering and tooling department can modify bezel dimensions, add custom mounting flanges, or integrate flush-mount bezels to match specialized architectural and fixture requirements.
Request Technical Blueprints and Factory Direct Quotation
Ready to deploy the 48.5-inch panoramic stretched bar monitor in your next commercial project? Contact our engineering sales team today to request comprehensive 3D CAD drawings, verify connector pinouts, or arrange a 3-day evaluation sample. Send us your project specifications and delivery timelines, and our technical staff will return an official factory-direct proposal within two hours.
