Non-touchscreen

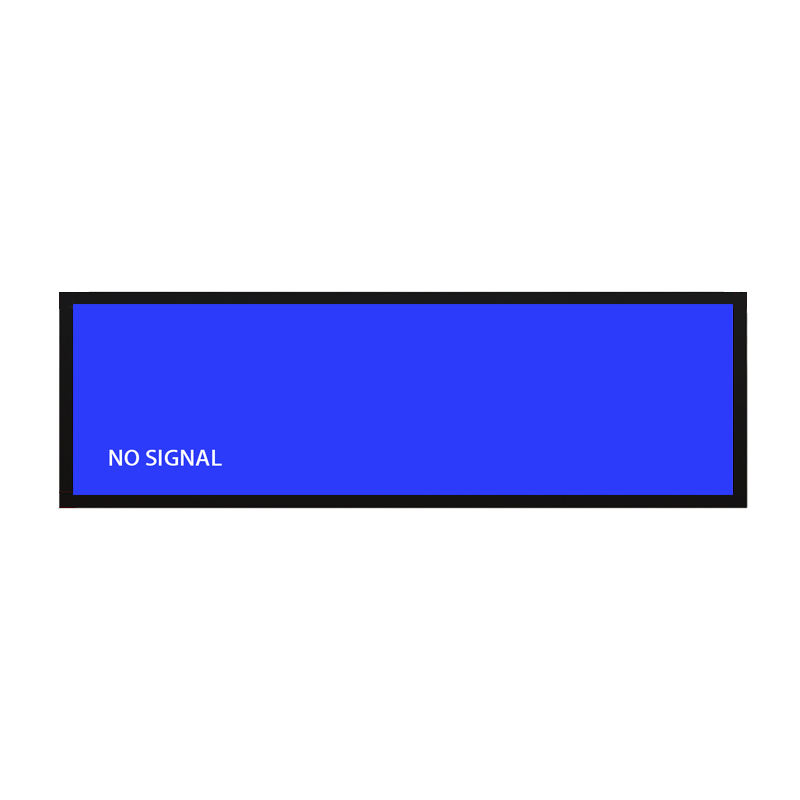

Custom Ratio Bar Monitor (48.5 Inch) with Standard HDMI Video Input
High-resolution 48.5 inch industrial sheet metal bar monitor with 1920*360/3840*720 active matrix and 400 cd/㎡ brightness. Designed for smart retail, rolling stock transit, and industrial server racks. Backed by 9+ years of specialized display manufacturing.
Specifications
- Screen Size
- 48.5 Inch
- Resolution
- 3840*720/1920*360
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
48.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 48.5 inch | |
Resolution | 3840*720/1920*360 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Engineering: Unlocking Underutilized Architectural Perimeters
Retail merchandising and passenger transit environments demand specialized displays designed for narrow linear perimeters. The 48.5-inch stretched LCD monitor satisfies this requirement by providing 1920*360/3840*720 native resolution across an active 48.5-inch diagonal, maximizing horizontal display area while preserving valuable vertical clearance.
The specialized cut-bar aspect ratio allows software developers to design multi-zone split-screen layouts. Static brand banners can run alongside animated promotional videos, maximizing screen utility within a single fixture.
The horizontal display geometry aligns naturally with human horizontal glance paths, ensuring that dynamic price callouts and route stops catch attention without requiring shoppers or commuters to look away from their primary path.
Optical Metrics: Resolution Density, Color Saturation, and Panel Uniformity
Visual excellence is anchored by an industrial-grade A-grade liquid crystal panel delivering a native resolution of 1920*360/3840*720 across the 48.5-inch active diagonal. This fine pixel pitch ensures that fine pricing fonts, multi-lingual transit schedules, and high-definition video loops render with razor-sharp definition. Calibrated to a luminous intensity of 400 cd/㎡, the display delivers bright, legible visuals under harsh commercial lighting conditions. Paired with a static contrast ratio of 1200:1, it actively disperses ambient reflections while preserving high color saturation and deep blacks. True IPS wide-angle technology provides symmetrical viewing angles of symmetrical 89°/89°/89°/89° IPS full viewing angles, ensuring uniform color temperature and sharpness across wide vantage points. The solid-state LED backlight system is rated for an operational service lifetime exceeding 60,000+ operational hours, ensuring consistent brightness throughout continuous 24/7 commercial operation.
Advanced optical coatings actively suppress external glare, ensuring that vibrant content remains readable even when mounted directly beneath intense commercial ceiling spotlights or adjacent to glass storefronts exposed to natural ambient daylight.
Sub-pixel rendering algorithms optimized within the display controller ensure that micro-fine typography, numerical price codes, and barcode symbols remain crisply defined without jagged pixelation or chromatic fringing.
Chassis Robustness: Built to Endure High-Footfall Public and Industrial Wear
The 48.5-inch industrial monitor utilizes a reinforced sheet steel enclosure engineered to endure harsh shopfloor conditions. The electro-galvanized casing provides high impact resistance and structural integrity, protecting display electronics from mechanical vibration and physical abuse.
Passive thermal engineering ensures dependable heat dissipation without noisy mechanical fans, preventing airborne contaminants from entering the chassis. The enclosure includes standard VESA mounting patterns and lateral adjustment tracks to facilitate quick, secure mechanical integration into commercial cabinetry or transit headers.
Precision-stamped mounting ears allow the unit to drop directly into standard 19-inch equipment racks and instrument control panels. Secure front-fastening screws ensure the monitor remains firmly locked in place during transport and factory operation.
Controller Architecture: Seamless Audio-Video Synchronization and Native Scaling
The monitor features HDMI, VGA video inputs compatible with standard commercial and industrial video sources. Audio playback is supported through a Audio Socket (3.5mm). Operating on AC 100V~240V (50/60Hz) power with an efficient consumption of ≤ 100w, the unit functions dependably across temperatures from below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
High-efficiency switch-mode power supplies minimize wasted heat generation, allowing the display to operate comfortably within tight architectural cavities with restricted ventilation.
Dual video input provisions allow technicians to connect a primary media player alongside a secondary backup feed, providing redundant visual broadcasting capability for mission-critical transit wayfinding.
Decoupled Open-Architecture Display for Multi-OS Environments

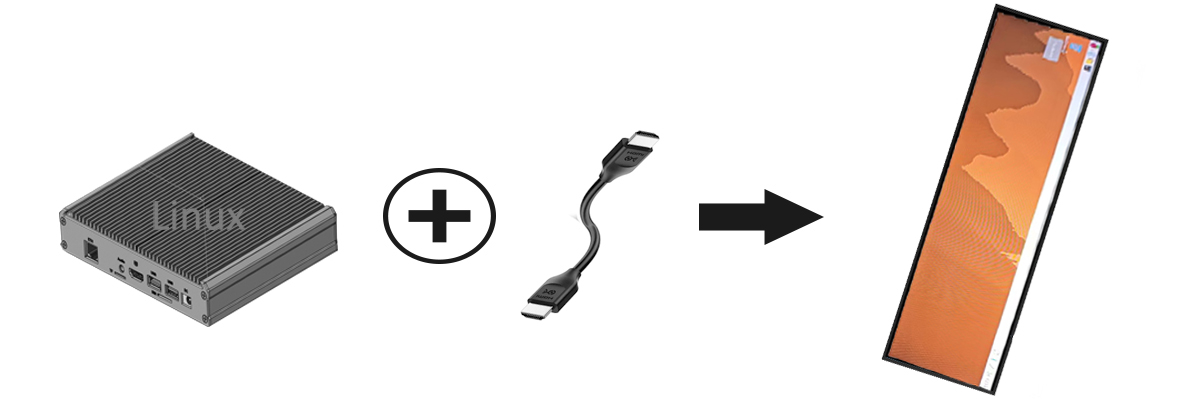

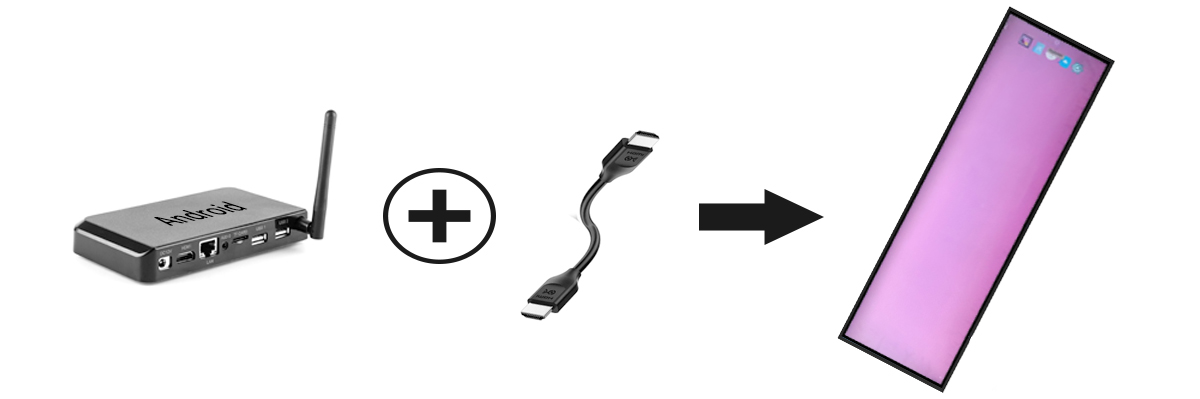

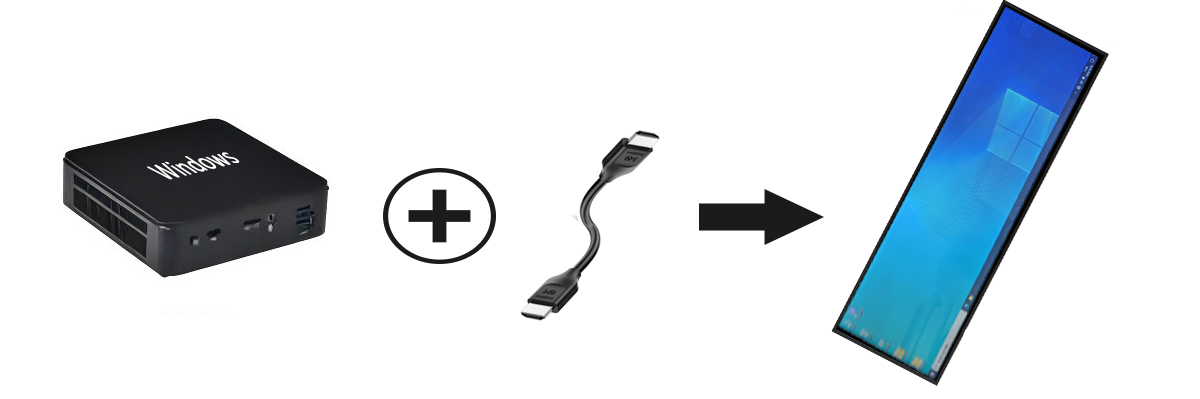

Experience complete operational freedom with a display engineered for universal HDMI video integration. Unencumbered by proprietary player restrictions, it interfaces smoothly with external Windows computers, Android network players, and Linux automation devices. This architecture allows venues to easily upgrade media player hardware or switch digital signage CMS software over time without replacing the display itself.
Application Spectrum: From Smart Supermarkets to Public Transportation
The panoramic geometry of the 48.5-inch stretched display delivers outstanding visual utility across high-traffic commercial environments: 1. Supermarket Shelf-Edge Merchandising: Installed along grocery gondola headers to present eye-level video ads, brand storytelling, and dynamic sales banners at the point of purchase. 2. Quick-Service Restaurant Menu Boards: Mounted above order counters in fast-food chains and coffee shops to display panoramic combo menus and pricing in narrow horizontal bands. 3. Public Bus & Tram Passenger Information: Installed on interior vehicle ceiling ribs to deliver real-time stop updates, route progress bars, and transfer alerts. 4. Elevator Transom & Lobby Signage: Positioned horizontally across elevator door headers for building tenant directories, commercial notices, and property updates.
For passenger railway and metro operators, installing this display format inside train carriages improves route comprehension and transit safety. Dynamic graphic route maps display real-time line progress, upcoming interchange connections, and bilingual station advisories, ensuring daily commuters and tourists navigate complex transit networks with ease.
In municipal transit deployments, overhead route mapping displays significantly reduce passenger boarding confusion. Commuters boarding crowded subway cars can immediately verify their direction of travel and upcoming transfer hubs, improving passenger boarding efficiency during rush hours.
Manufacturer Agility: Permanent Tooling Inventories and Custom Bracket Finishing
ZXT delivers source-factory reliability for global display integrators. Our in-house manufacturing facilities maintain extensive tooling inventories, eliminating NRE mold charges and enabling 3-day sample shipping. We support overseas clients with fully assembled monitors or modular SKD kits designed to lower import duties and freight costs.
Strict quality management systems govern every stage of production, from incoming optical inspection of open-cell panels to computerized colorimeter calibration and vibration table testing.
Technical Selection & System Integration FAQ
**Q1: How do we switch between different operating systems on this display?**
Switching operating systems is frictionless: simply connect your chosen host computer (Windows PC, Android box, or Linux controller) via HDMI. The display adapts instantly without requiring internal firmware reconfiguration.
**Q2: What is the expected backlight service lifespan?**
The industrial-grade solid-state LED backlight is rated for an operational lifespan exceeding 60,000 hours, ensuring consistent chromatic performance and high luminance across multi-year commercial deployments.
**Q3: Does ZXT provide 2D and 3D CAD models for pre-engineering?**

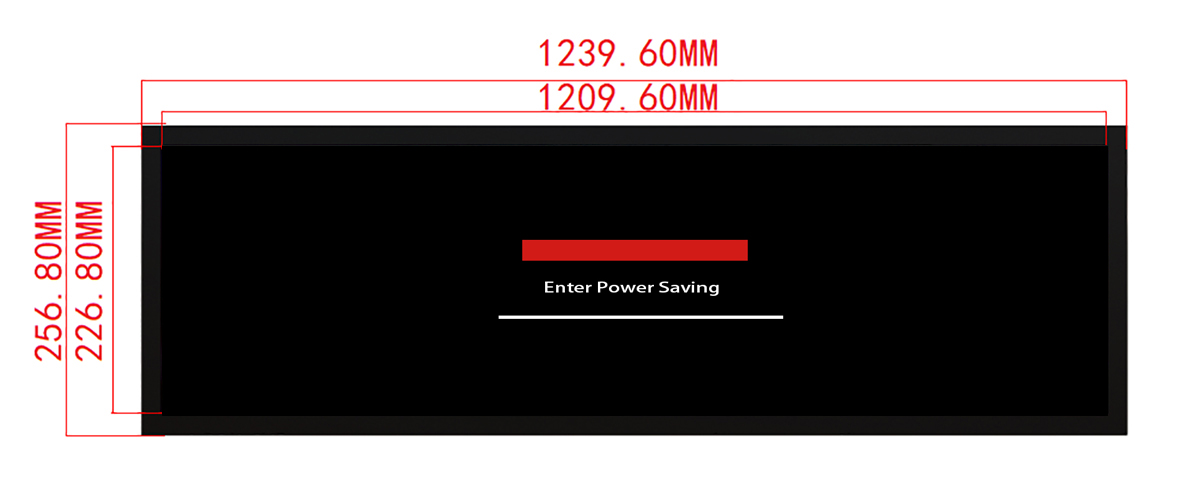

Yes. Our engineering department supplies comprehensive 2D dimensional PDF drawings and 3D STEP CAD files to assist your mechanical team with structural fixture and cabinet integration.
Connect with ZXT Technical Sales Specialists
Contact our technical sales group to receive 2D dimensional drawings, 3D CAD files, and competitive factory-direct pricing for the 48.5-inch stretched bar LCD monitor. We provide rapid responses within two business hours.
