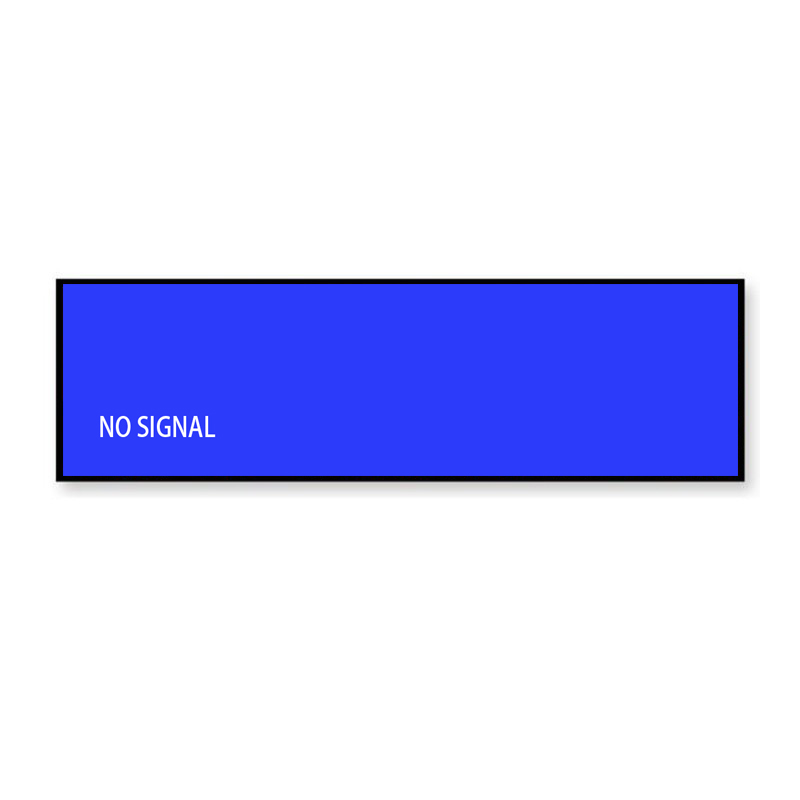

46.1 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Wholesale commercial 46.1 inch industrial sheet metal bar monitor (1920*808/3840*1616, 400 cd/㎡). Engineered for high-traffic public infrastructure and space-constrained architectural fixtures. Direct engineering collaboration and transparent factory pricing.
Specifications
- Screen Size
- 46.1 Inch
- Resolution
- 1920*808/3840*1616
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
46.1 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 46.1 inch | |
Resolution | 1920*808/3840*1616 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Overcoming Installation Bottlenecks Along Linear Commercial Surface Headers
When installation height is restricted to narrow horizontal strips, standard monitors waste space and disrupt interior design. The 46.1-inch stretched bar LCD monitor provides a compact, purpose-built solution, presenting 1920*808/3840*1616 resolution across an active 46.1-inch diagonal. It allows retailers, transit authorities, and industrial plants to broadcast high-definition media without sacrificing clearance.
Passenger transport operators require displays that deliver clear information without obstructing carriage sightlines. These low-profile monitors fit neatly above doorways, ensuring passengers stay informed throughout their journeys.
Store fixture builders benefit from standardized mounting dimensions that speed up initial assembly. The display drops cleanly into pre-formed cabinet openings, reducing workshop labor and speeding up store opening schedules.
Optical Clarity at Scale: Active Matrix Performance in Panoramic Ratios
The 46.1-inch display features an industrial LCD panel offering 1920*808/3840*1616 resolution, 400 cd/㎡ brightness, and a 1200:1 contrast ratio. IPS wide-angle technology ensures CR≥10 wide-angle IPS optical alignment visibility, while the energy-efficient LED backlight provides an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
The anti-reflective surface treatment diffuses harsh ambient light sources, enabling viewers to comfortably read detailed pricing and route information without squinting or shifting positions.
Constant-current driving topology guarantees zero perceptible high-frequency flicker, providing a comfortable viewing experience for retail cashiers, office workers, and transit passengers alike.
Industrial Housing Design: Resisting Ambient Dust, Moisture, and Vibration
The 46.1-inch monitor features a ruggedized cold-rolled steel body designed for mission-critical deployments. Its electro-galvanized metal framework resists physical impact, protects sensitive liquid crystal layers from torsional strain, and ensures long-term structural alignment in mobile and stationary industrial installations.
Thermal efficiency is maintained through an advanced fanless heat dissipation layout that uses the external metal body as a heat sink. This eliminates fan noise and prevents dust and grease accumulation within the housing, supporting long-term commercial reliability. The chassis provides standard VESA mounting provisions and side-channel grooves for secure installation.
For overhead corridor and transit concourse deployments, the housing features reinforced steel eyelet anchor points rated for heavy-duty aircraft suspension wires. Safety cables lock directly into internal structural gussets, ensuring complete public safety in seismic or high-vibration zones.
Electrical Efficiency: Low-Ripple DC Regulation and Thermal Load Reduction
Engineered with HDMI, VGA inputs, the monitor connects effortlessly to commercial media players and industrial computing devices. Audio output is routed through a Audio Socket (3.5mm). The power module supports universal standard 110V to 240V AC power input inputs with an efficient power draw of ≤ 90w, while environmental resilience is rated for below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
The internal power regulation subsystem maintains steady direct current output even during sudden commercial utility voltage fluctuations, ensuring uninterrupted screen operation during peak hours.
The motherboard includes native EDID emulation that automatically communicates the display's custom panoramic resolution to connected PCs, simplifying operating system display setup and driver configuration.
Open Architecture HDMI Connectivity: Freedom to Choose Your OS

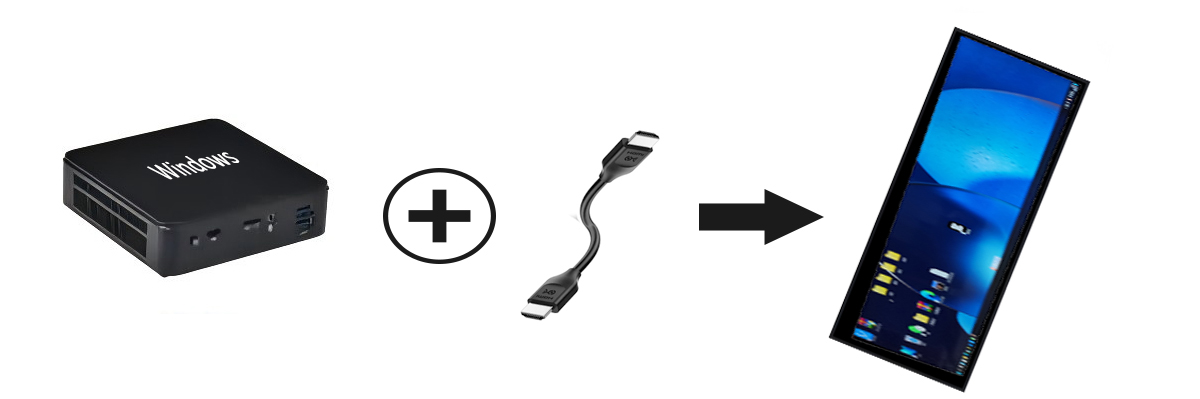

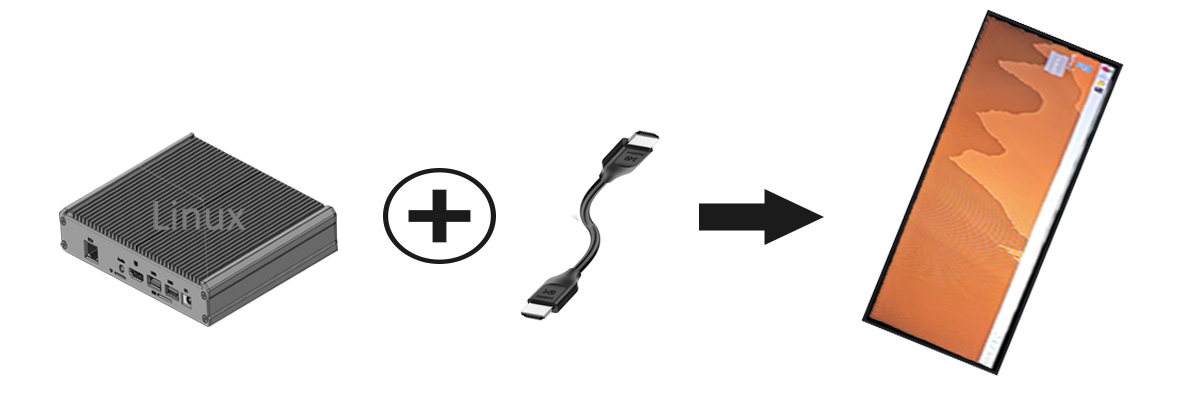

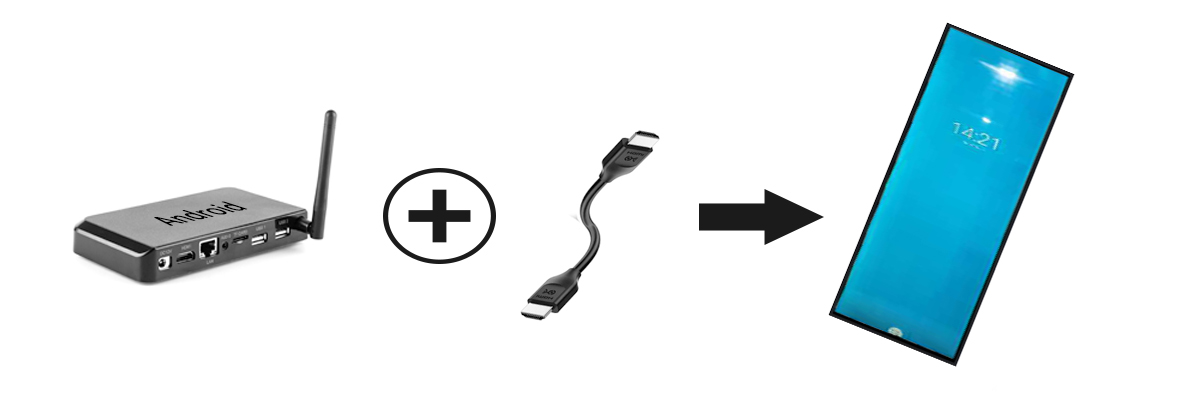

Safeguard your digital signage rollout from proprietary obsolescence with an open-architecture commercial display. Supporting direct HDMI video feeds from external Windows boxes, Android media sticks, and Linux industrial controllers, this monitor provides instant compatibility with your target content management software, interactive point-of-sale applications, and network telemetry utilities.
Application Blueprints: Deploying Stretched Bar Displays for Maximum Return
The 46.1-inch stretched bar monitor is optimized for linear architectural installations. It provides dynamic shelf-edge pricing in retail stores, route progress alerts in public transit vehicles, equipment status feeds in control centers, and directory listings in commercial office buildings.
High-speed commuter rail platform gates utilize this display as an overhead platform indicator. Passengers waiting along boarding zones can check real-time train arrival times, car carriage layouts, and safety instructions at a single glance.
Financial trading desks and professional creative workstations benefit from the display's ultrawide auxiliary utility. Traders and video editors keep critical communications and timeline trackers visible without sacrificing main desktop workspace.

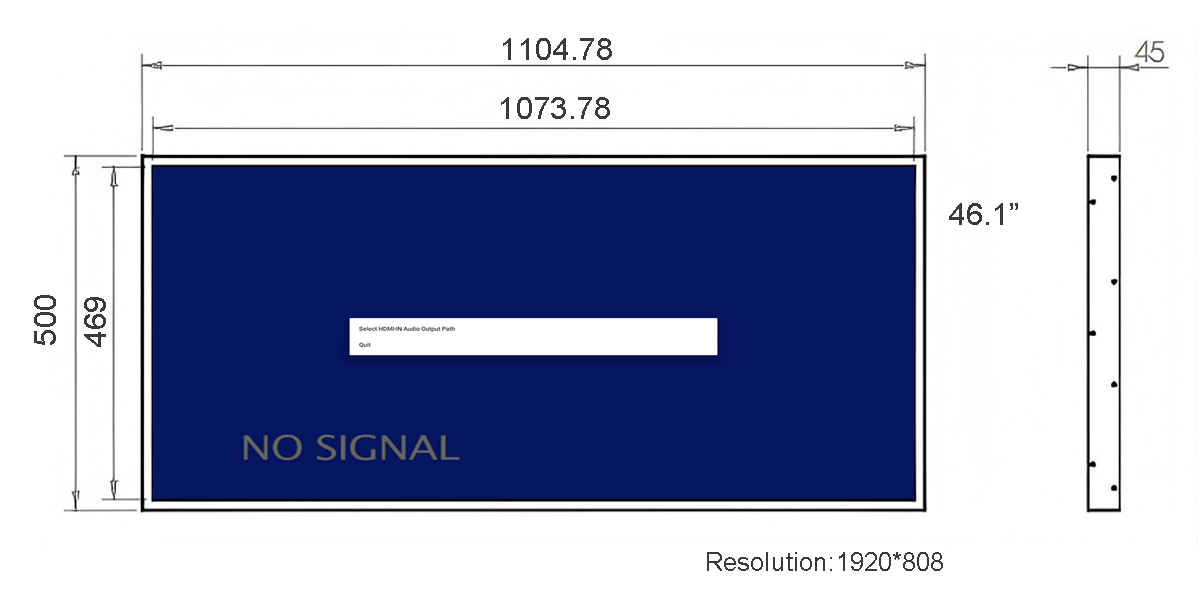

In-House Engineering Support: 2D/3D CAD Models and Technical Collaboration
Direct sourcing from ZXT gives your enterprise a competitive advantage in display hardware quality, cost efficiency, and lead-time reliability. With over nine years of specialized R&D and hundreds of commercial implementations worldwide, we maintain a complete catalog of in-stock profile tooling. This allows system integrators to deploy customized stretched bar hardware without incurring custom mold fees, with evaluation samples dispatched in as little as three days. We offer adaptable fulfillment options to streamline international logistics. Clients can order fully certified finished monitors, open-frame assemblies ready for enclosure drop-in, or complete SKD/CKD component shipments that allow overseas partners to assemble locally and minimize import duties. Our in-house R&D staff collaborates directly with client engineers, providing full 2D and 3D CAD modeling data and custom firmware support.
Dedicated international sales engineers provide prompt technical support, returning detailed commercial proposals, dimensional drawings, and technical feasibility reviews within two business hours.
Commercial Buyer FAQ & Technical Inquiries
**Q1: How does the display handle custom ultra-wide resolution timings?**
The onboard industrial A/D scalar automatically locks onto native ultra-wide timings via standard EDID handshakes, ensuring uncompressed pixel-for-pixel rendering without horizontal stretching or letterbox bars.
**Q2: What is the sample dispatch lead time for evaluation units?**
Because ZXT maintains in-stock inventories of standard aluminum extrusion profiles and stamping tooling, evaluation samples can be fully calibrated, burned-in, and dispatched within three working days.
**Q3: What video input interfaces are provided on this monitor?**
The standard configuration includes industrial HDMI and VGA video ports alongside a 3.5mm independent audio socket, allowing immediate plug-and-play connection to PCs, media sticks, and sound systems.
Engineering Sales Contact and Factory Direct Pricing
Request an evaluation sample or volume price schedule for the 46.1-inch panoramic stretched bar display by contacting our technical team. Provide your installation details for a tailored commercial quotation within two hours.
