Industrial 43 Inch Bar Type Monitor Display with Rugged Sheet Metal
Direct manufacturer of 43 inch ultra-wide industrial sheet metal bar monitor (1920*360/3840*720, 200~400 cd/㎡). High-definition commercial display delivering 60,000-hour backlight longevity for public transit and retail signage. Zero tooling fees on standard sizes.
Specifications
- Screen Size
- 43 Inch
- Resolution
- 1920*360/3840*720
- Brightness
- 200~400 cd/㎡
- Interface
- HDMI / VGA
43 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 43 inch | |
Resolution | 1920*360/3840*720 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89(U/D/L/R) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Compact Geometry: Transforming Narrow Overhead Lintels into Information Corridors
Installing dynamic video signage in space-constrained commercial settings requires hardware engineered for narrow margins. The 43-inch stretched bar monitor delivers 1920*360/3840*720 resolution across an active 43-inch diagonal, allowing enterprise clients to deploy high-impact digital messaging in locations where standard displays cannot be mounted.
Modern architectural interiors prioritize minimalist, uncluttered design. Panoramic stretched monitors align perfectly with contemporary linear aesthetics, providing high-tech visual delivery in an understated package.
Industrial automation facilities require high-density status visualization that does not block machine operators' view of the production floor. This low-profile monitor delivers comprehensive line telemetry in an unobtrusive format.
Optical Clarity at Scale: Active Matrix Performance in Panoramic Ratios
The 43-inch display features an industrial LCD panel offering 1920*360/3840*720 resolution, 200~400 cd/㎡ brightness, and a 1200:1 contrast ratio. IPS wide-angle technology ensures CR≥10 wide-angle IPS optical alignment visibility, while the energy-efficient LED backlight provides an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
The anti-reflective surface treatment diffuses harsh ambient light sources, enabling viewers to comfortably read detailed pricing and route information without squinting or shifting positions.
Constant-current driving topology guarantees zero perceptible high-frequency flicker, providing a comfortable viewing experience for retail cashiers, office workers, and transit passengers alike.
Enclosure Craftsmanship: Aerospace Aluminum and Galvanized Sheet Steel Options
The 43-inch sheet metal chassis utilizes precision-bent electro-galvanized cold-rolled steel plates engineered to withstand severe physical impacts and continuous mechanical stresses. Its heavy-duty framework provides high torsional rigidity, internal vibration isolation, and superior RF noise attenuation in automated manufacturing and transit installations.
To achieve maximum operational lifespan, the monitor utilizes a convection-optimized fanless thermal layout. Heat generated by the LED backlight and power conversion circuitry is dissipated evenly across the external metal body, preventing internal localized hotspots. This solid-state passive design completely prevents airborne grease, moisture, and dust particles from being sucked into the display casing, ensuring uninterrupted reliability in busy commercial settings. Versatile installation is facilitated through standardized rear VESA hole patterns as well as lateral slide-nut mounting channels.

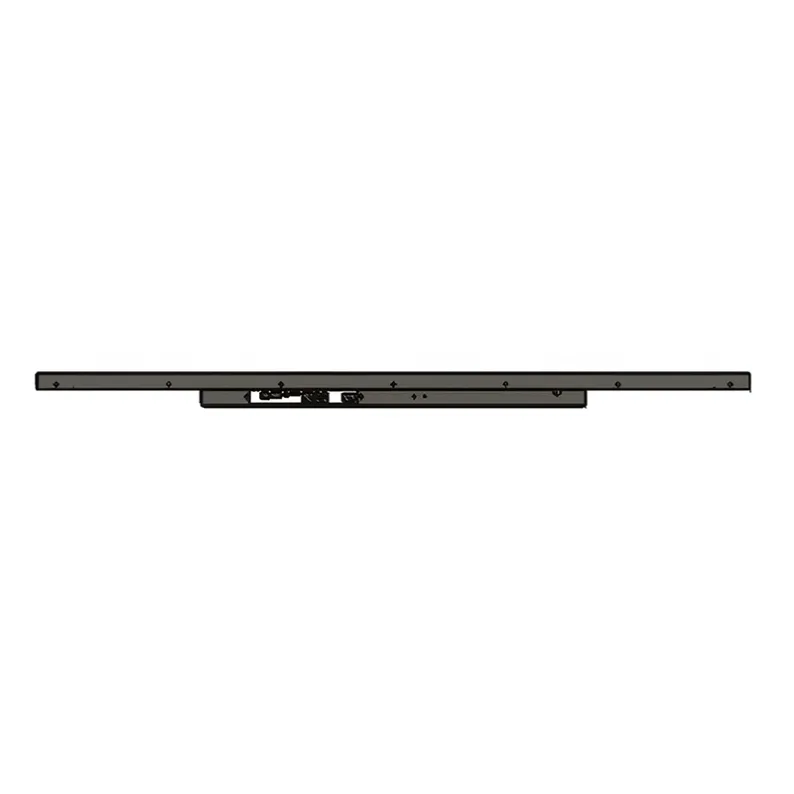

The rear enclosure features dual-plane mounting points that support both direct wall-bracket hanging and articulated arm anchoring. Recessed cable entry ports allow wiring harnesses to exit flush against mounting surfaces, preventing pinched wires and maintaining a clean architectural appearance.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated 3.5mm Audio Socket provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 90w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.
Open Signal Integration for Multi-Platform Computing
This commercial monitor operates on a strictly non-proprietary hardware baseline, ensuring seamless compatibility with global computing standards. Whether your project utilizes x86 Windows PCs for high-performance interactive 3D media, compact Android boxes for lightweight cloud signage, or Linux controllers for hardened industrial telemetry, a single HDMI link delivers pristine native-resolution rendering across your chosen operating environment.
Industry Solutions: Retail Gondola Headers, Metro Doorways, and 19-Inch Racks
Designed to maximize linear visual space, the 43-inch display delivers clear commercial benefits across several industries. Retailers install it on shelf fascias to boost brand engagement. Transit authorities mount it in rail carriages for dynamic passenger route guidance. Control rooms use it as an auxiliary telemetry monitor, and corporate facilities integrate it into reception headers.
In banking branches and public administrative centers, the display streamlines customer queue flow. Mounted above service windows or teller partitions, it displays clear ticket calling numbers, teller status indicators, and financial service advisories in a space-saving linear footprint.
Automated manufacturing plants utilize this monitor along assembly lines to broadcast real-time production quotas and machine alerts. The wide horizontal format allows line supervisors and operators to monitor factory floor status from across large plant bays.
Supply Chain Flexibility: Assembled Displays, Open-Frame Units, and SKD Packs
Partnering with ZXT gives hardware integrators access to verified manufacturing expertise and factory-direct pricing. With extensive in-stock casing tooling, we eliminate mold fees and dispatch samples in three days, offering turnkey displays or SKD kits to optimize international logistics.
Our extensive library of proven extrusion dies and stamping tooling allows clients to deploy customized stretched bar hardware without incurring the high costs and lengthy delays of new tooling development.
Field Application & Installation FAQ
**Q1: How does this monitor connect to external audio systems?**
The display extracts audio from the incoming HDMI stream and routes it through an onboard 3.5mm audio socket, allowing installers to link external sound systems for synchronized promotional announcements.
**Q2: What mounting standards are supported on the rear chassis?**
The rear casing incorporates industry-standard VESA mounting patterns alongside adjustable lateral slide-nut tracks, supporting wall brackets, ceiling drop-poles, articulated arms, and custom cabinet cutouts.
**Q3: Can ZXT adjust panel brightness for semi-outdoor or sunlit storefronts?**
Yes. In addition to standard commercial luminance ratings, we offer custom high-brightness LED backlight configurations reaching up to 1000+ nits, equipped with automatic ambient light dimming sensors.
Connect with ZXT Technical Sales Specialists

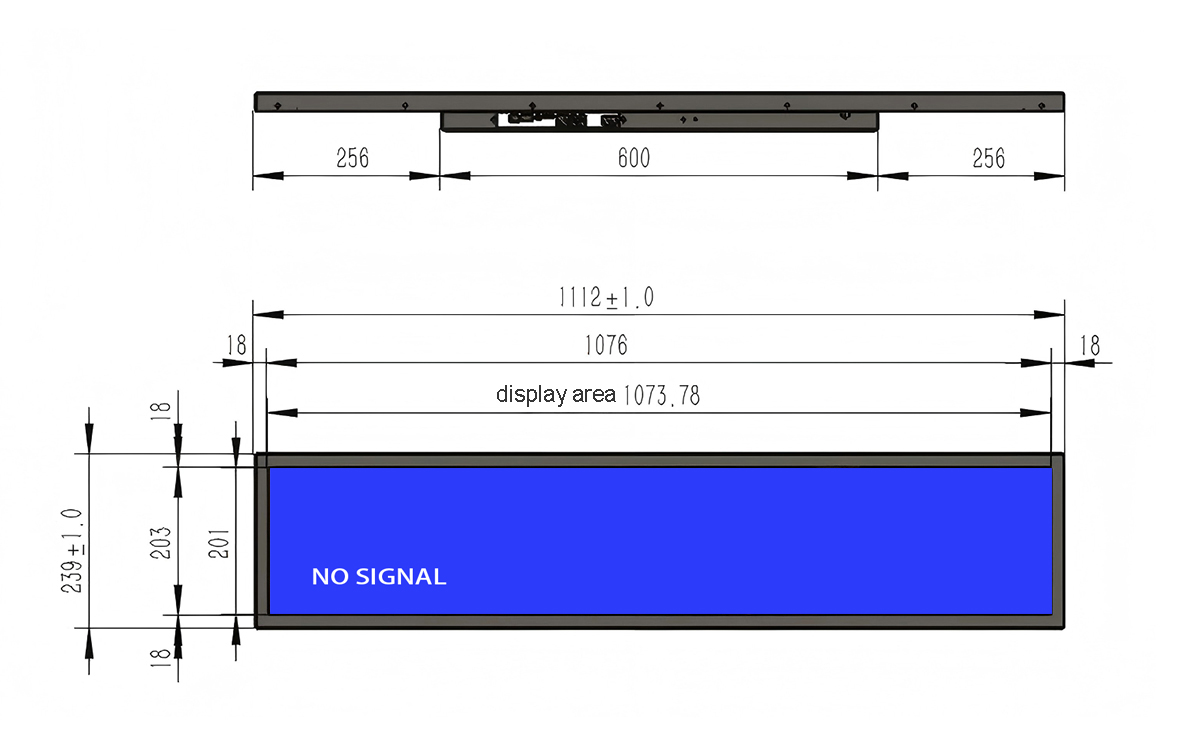

Contact our technical sales group to receive 2D dimensional drawings, 3D CAD files, and competitive factory-direct pricing for the 43-inch stretched bar LCD monitor. We provide rapid responses within two business hours.
