Non-touchscreen

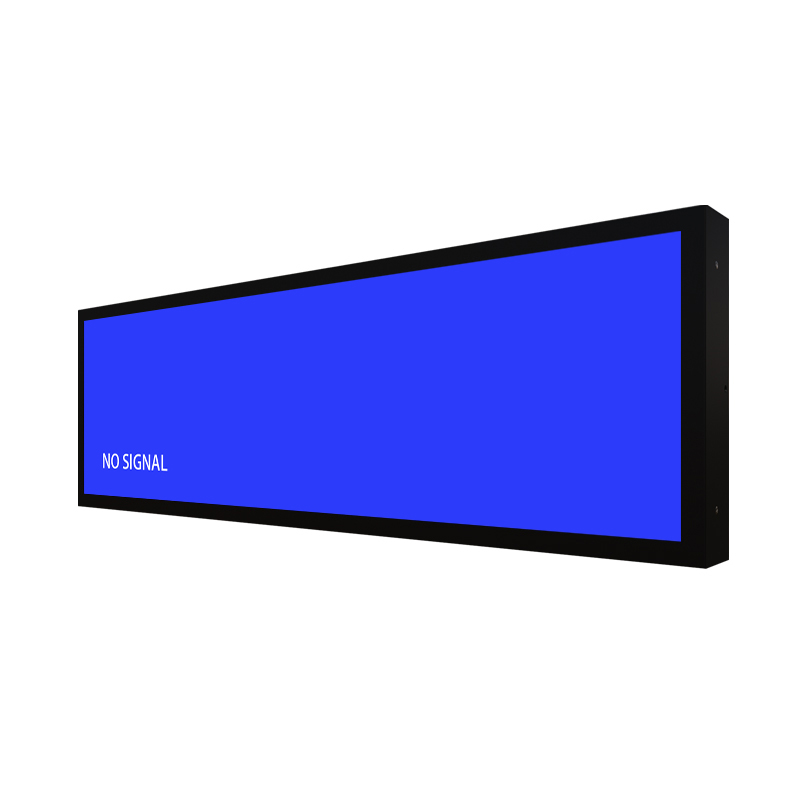

Commercial Display Signage: 43 Inch Ultra-Wide Bar LCD Monitor
Industrial-grade 43 inch industrial sheet metal bar monitor delivering 1920*350/3840*700 native resolution and 400 cd/㎡ brightness. Fanless passive thermal design engineered for 24/7 commercial operation. Factory-direct pricing with complete 2D/3D CAD technical support.
Specifications
- Screen Size
- 43 Inch
- Resolution
- 3840*720/1920*360
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
43 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 43 inch | |
Resolution | 3840*720/1920*360 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Space Challenges: Overcoming Vertical Clearances with Panoramic Displays
Store fixture designers and transit architects frequently encounter spaces where traditional 16:9 displays cannot be accommodated. The 43-inch ultra-wide bar monitor resolves this challenge by providing a low-profile panoramic viewing format. Displaying 1920*350/3840*700 native pixels across its 43-inch diagonal, it delivers continuous brand messaging, dynamic pricing, and route guidance along narrow architectural borders that would otherwise remain inactive.
Integrating panoramic hardware into commercial fixtures eliminates the visual clutter associated with standard monitors. The display becomes an organic part of the fixture, enhancing interior aesthetics while delivering essential information.
In busy transportation terminals, passengers require instant, intuitive visual cues. Overhead horizontal displays provide continuous sightline guidance that travelers can scan effortlessly while walking through crowded concourses.
Optical Performance Under Harsh Commercial and Ambient Lighting Conditions
With an active display area delivering 1920*350/3840*700 resolution, the 43-inch stretched monitor provides crisp panoramic visuals. Calibrated to 400 cd/㎡ with a 1200:1 contrast ratio, it ensures strong visual impact in well-lit retail and transit spaces. Symmetrical symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours backlight rating provide reliable long-term performance.
High static contrast ensures that fine text fonts stand out distinctly against dark backgrounds, maximizing information legibility for dynamic route maps and transportation schedules.
Even luminance distribution across the elongated horizontal raster prevents localized hot spots, ensuring that scrolling promotional text and flight arrival lists maintain uniform visual intensity from end to end.
Enclosure Craftsmanship: Aerospace Aluminum and Galvanized Sheet Steel Options
The 43-inch sheet metal chassis utilizes precision-bent electro-galvanized cold-rolled steel plates engineered to withstand severe physical impacts and continuous mechanical stresses. Its heavy-duty framework provides high torsional rigidity, internal vibration isolation, and superior RF noise attenuation in automated manufacturing and transit installations.
To achieve maximum operational lifespan, the monitor utilizes a convection-optimized fanless thermal layout. Heat generated by the LED backlight and power conversion circuitry is dissipated evenly across the external metal body, preventing internal localized hotspots. This solid-state passive design completely prevents airborne grease, moisture, and dust particles from being sucked into the display casing, ensuring uninterrupted reliability in busy commercial settings. Versatile installation is facilitated through standardized rear VESA hole patterns as well as lateral slide-nut mounting channels.
The rear enclosure features dual-plane mounting points that support both direct wall-bracket hanging and articulated arm anchoring. Recessed cable entry ports allow wiring harnesses to exit flush against mounting surfaces, preventing pinched wires and maintaining a clean architectural appearance.
Power Management: Minimizing Wattage Draw Across Multi-Screen Deployments
The display incorporates HDMI, VGA video inputs for immediate compatibility with external digital signage players and embedded PCs. Video signals are scaled accurately without distortion. Audio output is provided via a Audio Socket (3.5mm), while the universal power supply supports global 100~240V line voltage at 50/60Hz with an energy-efficient draw of ≤ 90w. Environmental ratings cover temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
The video processing engine features adaptive edge-smoothing algorithms that scale standard video resolutions cleanly across the ultra-wide aspect ratio without introducing pixel distortion or visual artifacts.
Automatic video signal recovery firmware monitors input signal integrity continuously, instantly re-establishing video synchronization following external player reboots or signal switching events.
Unrestricted Cross-OS Compatibility for Enterprise Signage
Designed to serve as a versatile visual terminal, the display features native HDMI compatibility with all major operating systems, including Microsoft Windows, Google Android, and enterprise Linux distributions. IT departments can pair the screen with their preferred hardware platform to broadcast cloud-managed digital signage, execute custom interactive scripts, or display mission-critical telemetry without proprietary software licensing hurdles.
Venue Integration: Enhancing Customer Navigation and Merchandise Turnover
Engineered for versatile commercial use, the 43-inch stretched display provides panoramic visual delivery in space-constrained settings. Retailers utilize it for shelf-edge advertising, transit operators install it for passenger wayfinding, and industrial engineers use it for equipment monitoring.
In sports arenas and stadium concourse passages, the display functions as a continuous digital ribbon above concession stands. Live match scores, sponsor logos, and beverage menu specials keep spectators engaged throughout tournament games.
Cleanroom pharmaceutical facilities rely on the display's sealed, wipe-clean housing to monitor batch processing parameters. Quality control operators verify real-time environmental data without compromising sterile room protocols.
Factory Direct Capabilities: Rapid Prototyping and Modular Assembly Formats
ZXT operates as an authentic source manufacturer of industrial commercial displays, eliminating third-party trading intermediaries to provide direct engineering collaboration and transparent factory pricing. Over nine years of research, development, and production have yielded an extensive library of proven tooling designs. For our clients, this means zero tooling costs on standard sizes and expedited sample delivery within three business days. To accommodate diverse global import regulations and assembly preferences, we deliver hardware in turnkey finished packages or modular SKD/CKD formats. Supplying matched panel cells, pre-configured driver motherboards, wiring harnesses, and chassis components allows international partners to assemble locally, dramatically cutting air freight expenses and tariff burdens. Our design engineers work directly with your technical personnel, providing 3D CAD modeling files, structural tolerance consultations, and customized interface configurations.
Maintaining extensive raw glass cell inventories and pre-machined aluminum extrusions enables our factory to fulfill volume orders with rapid turnaround, minimizing project schedule risks for international contractors.
Display Sourcing & Engineering FAQ
**Q1: Does the display produce electromagnetic interference with nearby equipment?**
No. Internal electronics are enclosed within a grounded metallic chassis with integrated EMI filtering circuitry, complying with commercial Class A and Class B electromagnetic compatibility standards.
**Q2: Can we test sample units before placing a volume project order?**
Yes. We strongly encourage evaluation testing and provide sample units complete with power supplies, video cables, and CAD mounting guides, ready for dispatch within three working days.
**Q3: What optical surface treatments are applied to the screen?**
The display panel features an industrial-grade anti-glare (AG) polarized surface treatment with hard-coat scratch resistance, minimizing reflections while repelling dust and environmental smudges.
Technical Consultation and Custom Bracket Inquiries
Inquire today for factory-direct pricing, 3D STEP CAD models, or evaluation sample units of the 43-inch commercial stretched bar display. Our engineering staff is ready to assist with custom hardware scoping within two hours.
