Non-touchscreen

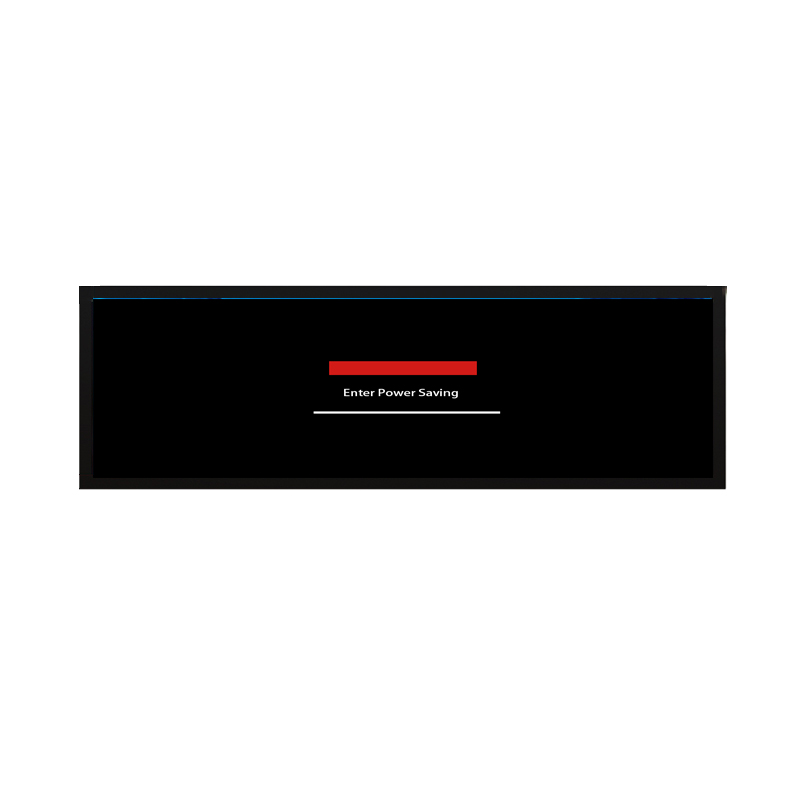

Stretched Bar LCD Monitor – 43.8 Inch High-Definition Commercial Screen
Factory-direct 43.8 inch industrial sheet metal bar monitor delivering 3840/1080/1920*540 panoramic display resolution and 400 cd/㎡ brightness. Fanless solid-state cooling for silent, dust-free operation in demanding commercial environments.
Specifications
- Screen Size
- 43.8 Inch
- Resolution
- 3840/1080/1920*540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
43.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 43.8 inch | |
Resolution | 3840/1080/1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Space-Constrained Visual Architecture: Engineering Displays for Narrow Margins
In modern commercial architecture, horizontal margins represent prime visual real estate that traditional monitors cannot utilize. The 43.8-inch stretched bar LCD monitor unlocks these spaces, delivering native 3840/1080/1920*540 resolution across an elongated 43.8-inch active diagonal to provide continuous digital messaging without consuming vertical room.
Enterprise IT managers appreciate the straightforward integration into centralized digital signage networks. The display links seamlessly with existing media players, supporting automated scheduling and remote device monitoring.
Modern supermarket merchandising strategies rely on dynamic motion graphics to stimulate shopper curiosity. Eye-level digital shelf headers deliver brand storytelling right where purchasing decisions are finalized.
Optical Metrics: Resolution Density, Color Saturation, and Panel Uniformity
Visual excellence is anchored by an industrial-grade A-grade liquid crystal panel delivering a native resolution of 3840/1080/1920*540 across the 43.8-inch active diagonal. This fine pixel pitch ensures that fine pricing fonts, multi-lingual transit schedules, and high-definition video loops render with razor-sharp definition. Calibrated to a luminous intensity of 400 cd/㎡, the display delivers bright, legible visuals under harsh commercial lighting conditions. Paired with a static contrast ratio of 1200:1, it actively disperses ambient reflections while preserving high color saturation and deep blacks. True IPS wide-angle technology provides symmetrical viewing angles of symmetrical 89°/89°/89°/89° IPS full viewing angles, ensuring uniform color temperature and sharpness across wide vantage points. The solid-state LED backlight system is rated for an operational service lifetime exceeding 60,000+ operational hours, ensuring consistent brightness throughout continuous 24/7 commercial operation.
Advanced optical coatings actively suppress external glare, ensuring that vibrant content remains readable even when mounted directly beneath intense commercial ceiling spotlights or adjacent to glass storefronts exposed to natural ambient daylight.
Sub-pixel rendering algorithms optimized within the display controller ensure that micro-fine typography, numerical price codes, and barcode symbols remain crisply defined without jagged pixelation or chromatic fringing.
Chassis Architecture: Shock Absorption, Shielding, and Mounting Versatility
Housed in an industrial cold-rolled steel enclosure, the 43.8-inch monitor delivers high structural durability for demanding plant and transit environments. The corrosion-treated steel casing provides robust impact protection, shielding internal A/D boards and power converters from workshop debris and mechanical shocks.
The mechanical enclosure incorporates solid-state passive thermal dissipation, transferring heat away from internal components through high-conductivity internal heat spreaders. By eliminating mechanical fans, the unit operates in complete silence and prevents dust buildup inside the chassis. The rear casing includes standard VESA mounting points and adjustable side mounting channels for flexible installation on walls, poles, or custom fixtures.
Engineered for rapid field deployment, the chassis includes adjustable side-mounting flange ears that secure the display into custom metal cabinetry or wooden millwork. Vibration-damped rubber grommets isolate the display structure from external mechanical shocks in heavy machinery setups.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated 3.5mm Audio Socket provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 90w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.
Open Hardware Standards: Seamless Windows, Android, and Linux Support
By adhering strictly to open commercial hardware standards, this monitor ensures effortless multi-OS synchronization via standard HDMI connections. System architects can freely pair the screen with external Windows computing hardware, cost-effective Android digital signage units, or robust Linux industrial microcontrollers, ensuring seamless compatibility with any enterprise software platform.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 43.8-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
Factory-Direct Supply Lines: Turnkey Monitors and Modular Hardware Kits
By procuring from ZXT, international clients benefit from direct engineering support, competitive factory pricing, and fast fulfillment. With over nine years of manufacturing experience, we provide in-stock tooling, rapid 3-day sample delivery, and flexible supply formats including turnkey monitors and SKD component kits.
We support client-specified firmware customizations, including custom boot logos, fixed EDID resolution timings, and customized default input channel preferences for turnkey field rollouts.
Commercial Buyer FAQ & Technical Inquiries
**Q1: How does the display handle custom ultra-wide resolution timings?**
The onboard industrial A/D scalar automatically locks onto native ultra-wide timings via standard EDID handshakes, ensuring uncompressed pixel-for-pixel rendering without horizontal stretching or letterbox bars.
**Q2: What is the sample dispatch lead time for evaluation units?**
Because ZXT maintains in-stock inventories of standard aluminum extrusion profiles and stamping tooling, evaluation samples can be fully calibrated, burned-in, and dispatched within three working days.
**Q3: What video input interfaces are provided on this monitor?**
The standard configuration includes industrial HDMI and VGA video ports alongside a 3.5mm independent audio socket, allowing immediate plug-and-play connection to PCs, media sticks, and sound systems.
Request 2D/3D CAD Blueprints and Sample Testing
Contact ZXT today to request CAD mounting blueprints, verify electrical interfaces, or order a 3-day evaluation sample of the 43.8-inch stretched bar monitor. Our sales engineers deliver detailed proposals within two hours.
