Non-touchscreen
Bar Type Monitor (43.8 Inch) with High Resolution & HDMI/VGA Inputs
Wholesale 43.8 inch standard ultra-wide bar display featuring 1920*1540 resolution and 400 cd/㎡ calibrated luminance. True IPS full-viewing optics and low-power electrical design for large retail and transit deployments. Factory direct terms.
Specifications
- Screen Size
- 43.8 Inch
- Resolution
- 1920*1540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
43.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 43.8 inch | |
Resolution | 1920*1540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Horizontal Form Factors: Purpose-Built Solutions for Narrow Physical Footprints
Maximizing spatial productivity is essential in high-density retail aisles, airport passenger corridors, and vehicle passenger cabins. Standard desktop-format screens obstruct customer views and complicate mechanical mounting due to their bulky vertical proportions. The 43.8-inch stretched commercial display addresses this spatial conflict through an ultra-wide form factor delivering native 1920*1540 resolution across an active 43.8-inch diagonal. This specialized geometry fits flush into horizontal headers, narrow shelving channels, and compact control desks, delivering vibrant graphics without demanding vertical headroom.
In high-traffic transit corridors, clear visual hierarchy is essential for passenger comfort. Panoramic displays mounted overhead deliver critical wayfinding data in an intuitive linear format that commuters can digest in seconds.
Commercial interiors increasingly emphasize clean, unobtrusive architectural lines. The slender profile of this display integrates organically into modern store designs, avoiding the bulky industrial look of conventional commercial monitors.
Panel Specifications: Industrial-Grade Backlight Reliability and Luminous Stability
Delivering high visual fidelity across an ultra-wide active area, the 43.8-inch stretched display features an industrial LCD panel with native 1920*1540 resolution. This elongated aspect ratio provides ample screen real estate for split-screen layouts, dynamic tickers, and multi-media video banners without graphical distortion or letterboxing. With a factory-calibrated luminance output of 400 cd/㎡, the display ensures consistent optical clarity in bright interior commercial environments. Supported by a native contrast ratio of 1200:1, it renders crisp text, rich graphics, and deep blacks. Equipped with IPS wide-viewing technology, the display delivers a symmetrical true IPS 178-degree wide visual cone viewing cone, while the LED backlight module is rated for more than an industrial service life exceeding 60,000 hours of continuous operation.
The active matrix substrate features uniform pixel pitch alignment that eliminates distracting moiré patterns and visual banding, ensuring smooth photographic gradients in commercial advertising loops.
Precision factory color profiling guarantees that multi-screen video ribbon installations display identical color temperatures and white points, presenting a seamless visual narrative across extended architectural runs.
Chassis Robustness: Built to Endure High-Footfall Public and Industrial Wear
The 43.8-inch monitor features a rigid metallic body engineered for commercial reliability. Precision mounting provisions and an anti-scratch matte coating support clean, professional installations across diverse architectural spaces.

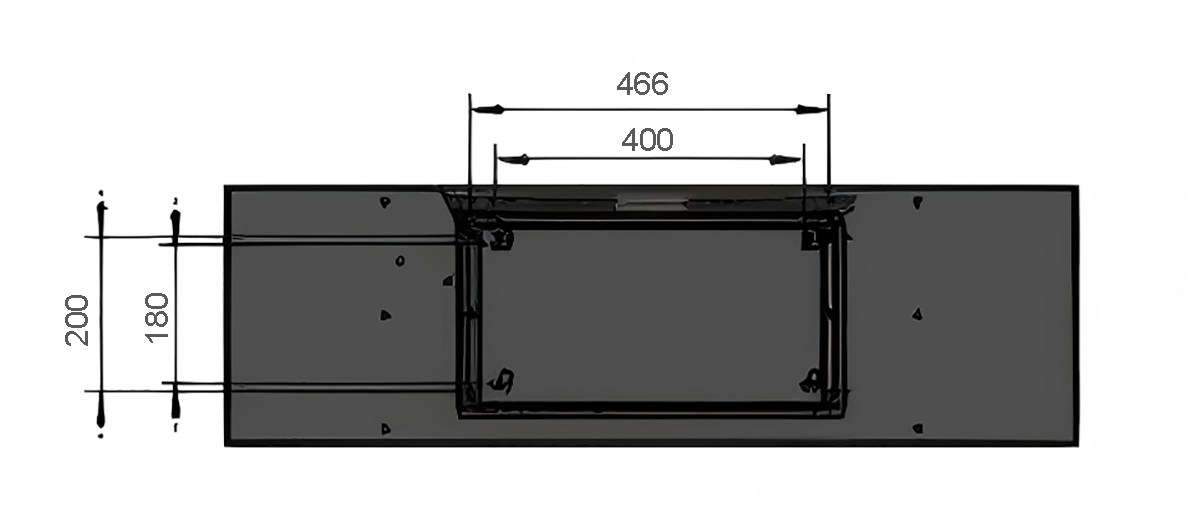

Passive thermal engineering ensures dependable heat dissipation without noisy mechanical fans, preventing airborne contaminants from entering the chassis. The enclosure includes standard VESA mounting patterns and lateral adjustment tracks to facilitate quick, secure mechanical integration into commercial cabinetry or transit headers.
Precision-stamped mounting ears allow the unit to drop directly into standard 19-inch equipment racks and instrument control panels. Secure front-fastening screws ensure the monitor remains firmly locked in place during transport and factory operation.
Power Management: Minimizing Wattage Draw Across Multi-Screen Deployments
The display incorporates HDMI, VGA video inputs for immediate compatibility with external digital signage players and embedded PCs. Video signals are scaled accurately without distortion. Audio output is provided via a Audio Socket (3.5mm), while the universal power supply supports global 100~240V line voltage at 50/60Hz with an energy-efficient draw of ≤ 90w. Environmental ratings cover temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
The video processing engine features adaptive edge-smoothing algorithms that scale standard video resolutions cleanly across the ultra-wide aspect ratio without introducing pixel distortion or visual artifacts.
Automatic video signal recovery firmware monitors input signal integrity continuously, instantly re-establishing video synchronization following external player reboots or signal switching events.
Plug-and-Play Multi-OS Freedom via Standard HDMI Input
Rather than forcing users into a proprietary, non-upgradeable smart OS, this display serves as a pure, high-performance visual surface ready for any external compute platform. Connect a Windows PC, Android media box, or Linux controller via HDMI to immediately drive dynamic promotional banners, automated menu boards, or plant monitoring telemetry with complete operating system freedom.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 43.8-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
Engineering Consultation: Firmware Tuning, Pinout Schemes, and CAD Blueprints
ZXT provides direct factory manufacturing of commercial stretched bar displays, eliminating middleman costs. We maintain in-stock tooling for standard sizes, deliver evaluation samples within three business days, and provide complete 2D/3D CAD models and modular SKD/CKD shipping options to support overseas assembly.
Direct factory communication eliminates the misunderstandings common with trading intermediaries, giving project managers clear visibility into production milestones and shipping schedules.
Commercial Rollout FAQ
**Q1: What cable lengths are supported for HDMI video feeds?**
Standard passive high-speed HDMI cables support connections up to 10 meters, while active optical HDMI cables or standard HDMI-over-CAT6 extenders can be utilized for long-distance media player placement.
**Q2: How does the display handle unexpected power outages?**
The monitor features automatic power-recovery logic. Once electrical power is restored, the display powers on instantly and resumes active video broadcasting without requiring manual button intervention.
**Q3: Can we schedule a factory technical video consultation with ZXT engineers?**
Yes. Our international technical sales team can coordinate direct video conferences with our hardware design engineers to review CAD drawings, project requirements, and customized production timelines.
Request 2D/3D CAD Blueprints and Sample Testing
Contact ZXT today to request CAD mounting blueprints, verify electrical interfaces, or order a 3-day evaluation sample of the 43.8-inch stretched bar monitor. Our sales engineers deliver detailed proposals within two hours.
