Non-touchscreen

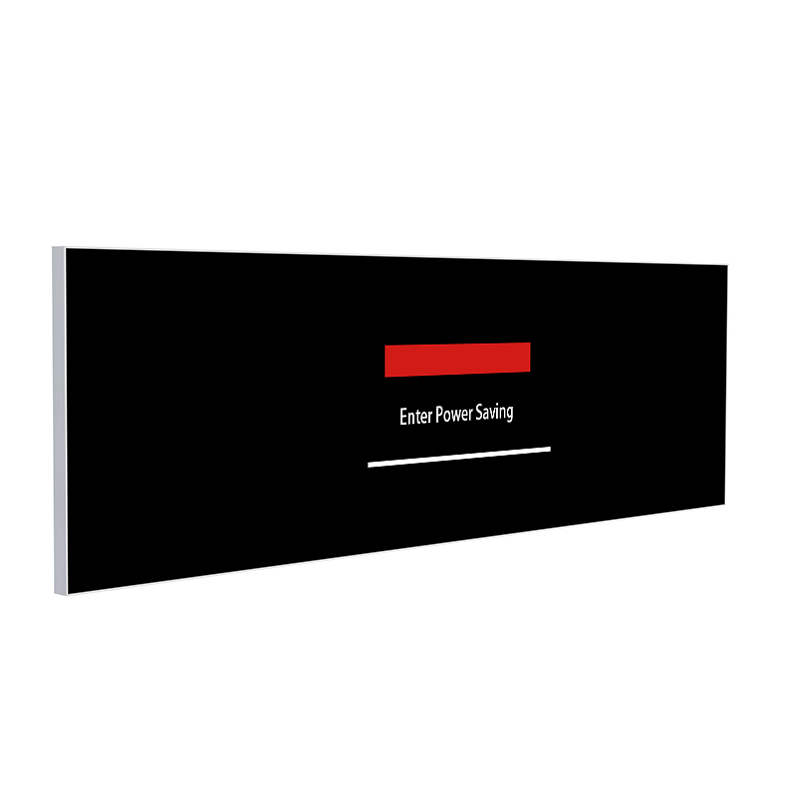

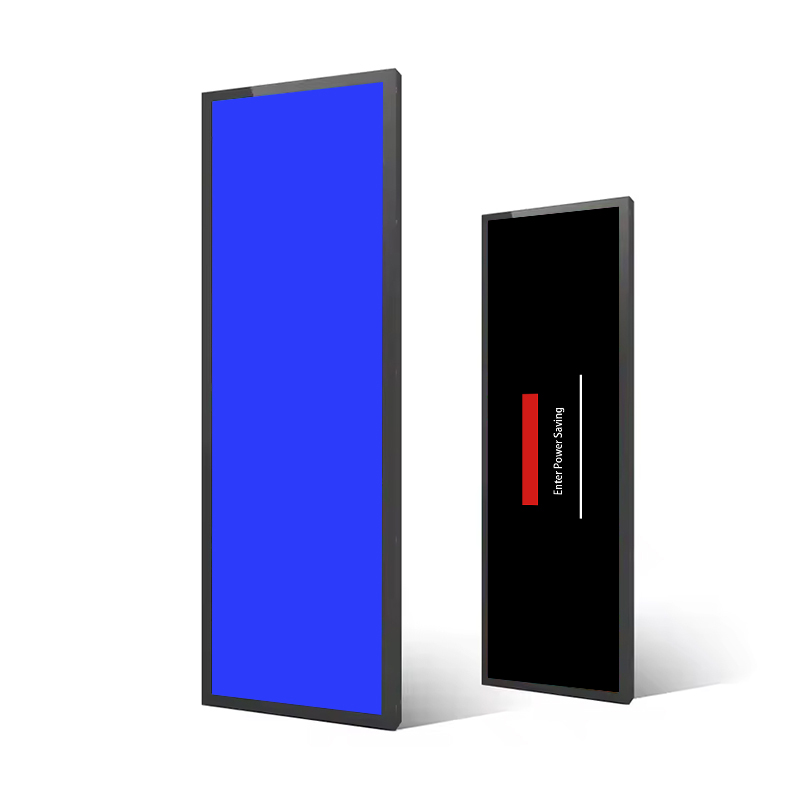

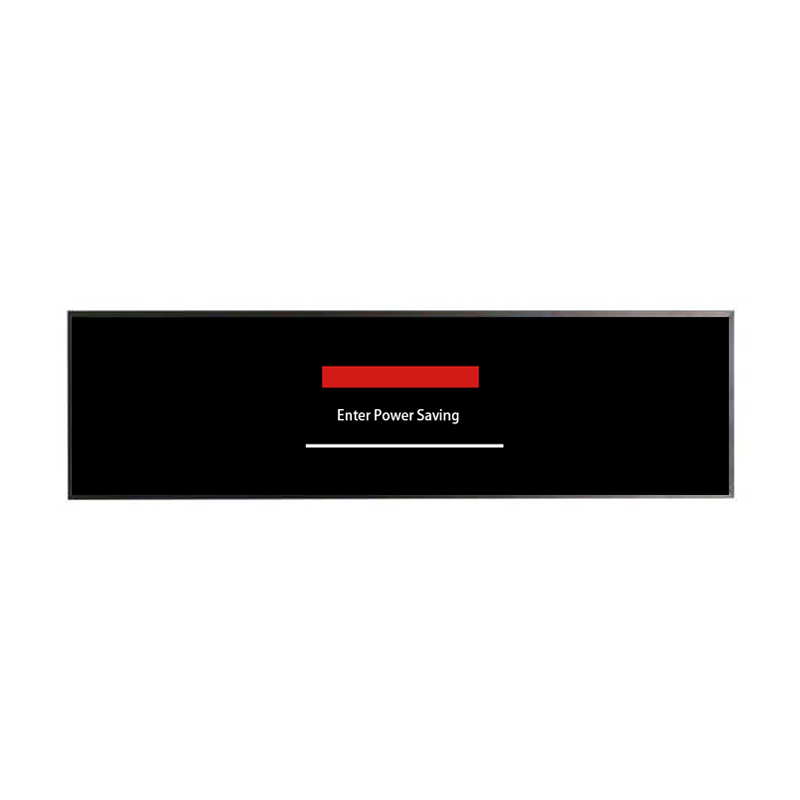

Custom Ratio Bar Monitor (42 Inch) with Standard HDMI Video Input
Wholesale 42 inch aluminum profile stretched display featuring native 1920*478 resolution and 400 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 42 Inch
- Resolution
- 1920*478
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA

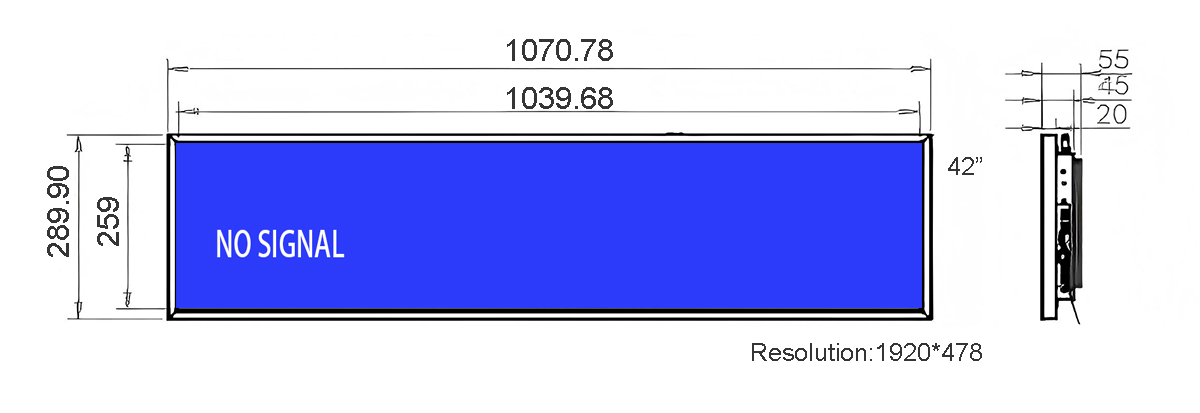

42 Inch Stretched LCD（Aluminum） | ||
Display Specifications | ||
Screen Size | 42 inch | |
Resolution | 1920*478 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Perimeter Optimization: Converting Dormant Edge Margins into Dynamic Visuals
A common challenge in digital signage deployment is the inability to install dynamic video displays in narrow horizontal margins. Conventional 16:9 monitors demand substantial vertical clearance, making them unusable along supermarket gondola edges, bus door headers, and industrial machine consoles. The 42-inch cut-bar LCD screen bypasses these physical limits by adopting a specialized panoramic form factor delivering native 1920*478 resolution across an elongated 42-inch active diagonal. Venues can now present synchronized multi-zone promotional animations, dynamic price feeds, and essential directional signage right at the point of decision.
Commercial operators benefit from significant cost reductions in fixture fabrication. Because these stretched units install directly into standard shelving channels and door bulkheads, enterprise clients avoid expensive structural custom cabinet work.
The ultra-wide panoramic aspect ratio allows graphic designers to separate high-priority navigational alerts from continuous background advertising loops, ensuring that viewers immediately register essential updates without information overload.
Long-Term Optical Durability: Solid-State LED Backlight Lifespan Engineering
Featuring an industrial A-grade LCD panel, the 42-inch stretched monitor delivers 1920*478 resolution and 400 cd/㎡ brightness. The optical stack achieves a 1200:1 contrast ratio for sharp text and vibrant color saturation. Wide-angle IPS technology ensures true IPS 178-degree wide visual cone visibility, supported by an energy-efficient LED backlight system rated for an industrial service life exceeding 60,000 hours of continuous service.
A durable surface polariser repels static dust accumulation and resists surface scratches, preserving pristine optical transparency in busy public environments with heavy foot traffic.
Solid-state LED backlights utilize efficient thermal conductive substrates, keeping diode junction temperatures low to prevent premature luminous decay and chromatic drift over extended commercial service.
Enclosure Dynamics: Balancing Sleek Commercial Styling with Factory Hardening
The 42-inch display features an elegant aluminum extrusion profile with minimalist borders. Designed for retail shelf headers, the lightweight alloy chassis provides durable, sag-free performance across long shelf spans.
The fanless mechanical design ensures silent operation and prevents dust and airborne particles from accumulating inside the casing. Heat is transferred naturally through the metal enclosure, while standard VESA patterns and lateral channels support flexible mounting.

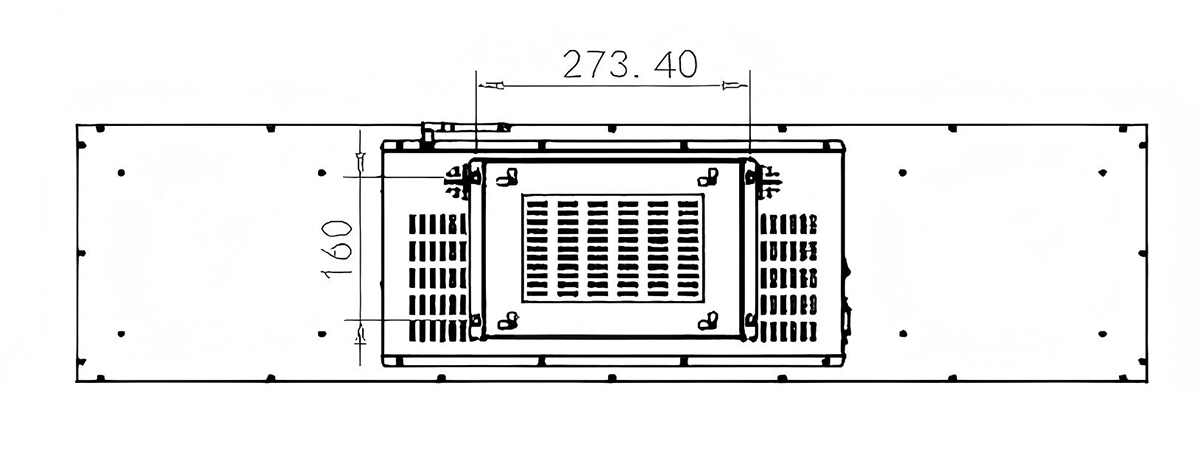

The mechanical frame incorporates internal structural stiffeners that prevent panel warping across wide temperature fluctuations. Standardized rear VESA mounting patterns provide instant compatibility with commercial display brackets.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated Audio Socket (3.5mm) provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 90w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.
Effortless OS Migration Across Windows, Android, and Linux
Modern enterprise signage networks demand agile software transitions. Built without closed proprietary system locks, this display accepts direct video feeds from any Windows micro-PC, Android network signage player, or Linux industrial box via standard HDMI cabling. This universal connectivity guarantees that your hardware remains fully compatible whenever you upgrade digital signage CMS platforms or change underlying operating systems.
Sector Implementation: Passenger Route Displays and Shelf-Edge Video Banners
The 42-inch stretched monitor delivers high visual authority in narrow mounting footprints. It is widely utilized for supermarket shelf-edge branding, rail transit passenger information systems, server room equipment monitoring, and QSR restaurant menu displays, providing reliable performance across demanding commercial settings.
Interactive self-service kiosks and automated parcel lockers embed this horizontal display in top fascias. Intuitive visual prompts and animated status bars guide users through transaction steps, speeding up user checkout and package pickup cycles.
Commercial office towers utilizing panoramic displays above elevator transoms report positive tenant feedback. Dynamic building notices, public transit alerts, and local weather updates are broadcast in an unobtrusive, contemporary format.
Turnkey and Modular Supply: Helping International Partners Scale Deployments
ZXT delivers factory-direct manufacturing for commercial stretched bar displays, offering competitive pricing, in-stock tooling, and 3-day sample turnaround. We provide complete technical support, including 2D/3D CAD models and modular SKD delivery to optimize international tariffs.
We partner with system integrators to build long-term commercial relationships, offering transparent volume-tiered pricing structures and dedicated account management for enterprise digital signage initiatives.
Buyer & Integrator FAQ
**Q1: Does the display support multi-zone content splitting?**
Yes. The native panoramic resolution provides ample horizontal canvas for digital signage software to partition the display into multiple discrete zones, such as simultaneous video playback, static prices, and tickers.
**Q2: How quickly can replacement parts or expansion units be provided?**
Because ZXT maintains active tooling and standardized component inventories, spare parts, replacement driver boards, and expansion units can be prepared and dispatched with industry-leading lead times.
**Q3: Can we obtain customized packaging for retail distribution?**
Yes. We offer custom-branded master export cartons, individualized retail packaging, and reinforced high-density palletization engineered to survive long-distance international ocean and air freight.
Contact Our International Display Engineering Desk
Connect directly with ZXT's display engineering specialists to review specifications, request 2D/3D CAD blueprints, or schedule a sample dispatch for the 42-inch stretched bar LCD monitor. Provide your target application details, interface requirements, and volume goals, and our factory team will provide a comprehensive proposal and competitive commercial quotation within two hours.
