Commercial Display Signage: 42.6 Inch Ultra-Wide Bar LCD Monitor
Direct from manufacturer: 42.6 inch standard bar monitor (1920*230/3840*460, 400 cd/㎡). High-density panoramic visual solution for space-constrained architectural perimeters. Zero NRE mold fees, fast 3-day sampling, and custom OEM/ODM support.
Specifications
- Screen Size
- 42.6 Inch
- Resolution
- 1920*230/3840*460
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
42.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 42.6 inch | |
Resolution | 1920*230/3840*460 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Rethinking Linear Spaces: The Rise of Specialized Stretched Bar Displays
Spatial efficiency is a defining metric in contemporary commercial architecture. High-throughput railway stations, supermarket aisles, and manufacturing cleanrooms require real-time information delivery, but lack the physical height required for conventional computer screens. The 42.6-inch ultra-wide bar monitor represents a targeted hardware solution to this dilemma. Delivering 1920*230/3840*460 native resolution across an active 42.6-inch area, this display integrates flush into narrow headers, shelf channels, and equipment fascias, providing vibrant high-definition media without altering interior structural boundaries.
Deploying digital signage along narrow architectural boundaries transforms passive building surfaces into interactive communication channels. From commercial banking counters to hospital triage halls, panoramic displays streamline public traffic flow and enhance customer service delivery.
In demanding transit and retail venues, space optimization is both an aesthetic and functional necessity. By converting narrow wall headers and shelf fronts into active information zones, facility managers maximize commercial utility per square meter.
True IPS Technology: Wide Symmetrical Viewing Angles Without Chromatic Drift
Engineered for clarity and longevity, the 42.6-inch panoramic display features a native resolution of 1920*230/3840*460 and a brightness rating of 400 cd/㎡. The anti-glare surface minimizes ambient reflections, while the 1200:1 contrast ratio and IPS symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angles ensure optimal image quality from all perspectives. The backlight is rated for over 60,000+ operational hours of 24/7 commercial performance.
The LED backlight system incorporates premium phosphor coatings that deliver a broad, balanced color spectrum, ensuring that dynamic video sequences render with lifelike warmth and accurate saturation.
The IPS alignment layer ensures that contrast and color saturation remain virtually identical across the entire 178-degree viewing cone, allowing passersby approaching from sharp angles to read information effortlessly.
Solid-State Mechanical Layout: Preventing Dust Intake in Public Venues

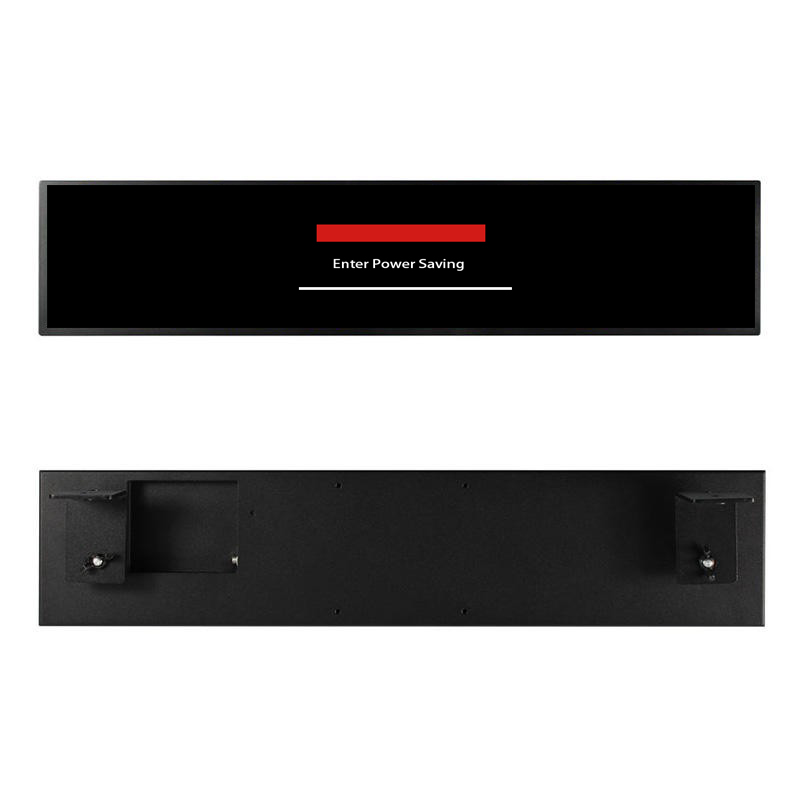

The 42.6-inch chassis combines robust metal construction with a slim bezel profile. Precision mounting provisions and an industrial powder-coat treatment ensure lasting durability in commercial installations.
Engineered for durability, the unit features a passive cooling design that eliminates internal fans and associated maintenance requirements. The chassis provides standard VESA rear mounting points and lateral mounting channels for rapid integration into retail and transit fixtures.
For cleanroom and pharmaceutical applications, the enclosure features smooth, screw-less front surfaces and non-porous powder coatings that withstand daily wipe-down with sanitizing alcohol and chemical detergents.
Power Supply Architecture: Wide-Voltage Regulation and Energy Conservation
System integrators will appreciate the plug-and-play connectivity engineered into this commercial display. Featuring standard HDMI, VGA video connections, the display links directly to external digital media players, embedded box PCs, and workstation graphic cards. The internal scaling processor automatically configures custom wide-aspect raster timings, ensuring hassle-free software configuration during site commissioning. Audio integration is facilitated via a 3.5mm Audio Socket, giving installers the flexibility to connect local directional audio speakers, auxiliary sound bars, or central PA routing systems for synchronized broadcasts. Operating across a wide input voltage range of global 100~240V line voltage at 50/60Hz, the internal power supply provides stable electrical isolation against power surges, voltage drops, and harmonic line noise. Active operational power consumption is constrained to ≤ 90w, while environmental durability is certified across ambient temperatures of below10℃ ~ +50℃ and humidity levels reaching ≤ 85%RH.
Industrial-grade capacitors and solid-state power components ensure dependable electrical performance across wide ambient temperature swings, preventing unexpected restarts or power-cycling issues.
Wide-range AC input tolerance ensures stable display operation in regions with unstable electrical grids, absorbing line surges, voltage drops, and brownouts without interrupting continuous public broadcasts.
Open Signal Integration for Multi-Platform Computing
This commercial monitor operates on a strictly non-proprietary hardware baseline, ensuring seamless compatibility with global computing standards. Whether your project utilizes x86 Windows PCs for high-performance interactive 3D media, compact Android boxes for lightweight cloud signage, or Linux controllers for hardened industrial telemetry, a single HDMI link delivers pristine native-resolution rendering across your chosen operating environment.
Commercial Viability: Case Studies in High-Throughput Public Infrastructure
Across commercial and industrial environments, the 42.6-inch stretched display provides versatile visual communication. In retail stores, it drives sales through dynamic point-of-purchase messaging. In transit fleets, it displays real-time route progress. In industrial control rooms, it delivers live equipment telemetry, and in corporate buildings, it functions as a modern architectural directory.
Airport concourses and baggage reclaim zones use this panoramic screen above luggage carousels and customs inspection lanes. Clear, multi-lingual passenger guidance and arrival notifications reduce traveler congestion during international peak arrival banks.
Automated parcel locker networks and interactive retail kiosks benefit from the intuitive guidance provided by horizontal header screens. Step-by-step transaction prompts guide users smoothly through drop-off and pickup procedures.
Manufacturing Scale: In-House Stamping, Extrusion Tooling, and Rapid Sampling
Choosing ZXT connects your project team directly to our manufacturing facility. We maintain permanent tooling inventories, provide evaluation samples in three days, and support overseas partners with turnkey displays, open-frame kits, and custom engineering assistance.
From prototype validation through high-volume mass production, ZXT delivers consistent manufacturing quality that has earned the trust of over 1,000 commercial display clients in more than 50 countries.
Commercial Hardware Selection FAQ
**Q1: Is this display compatible with Android digital signage player sticks?**
Yes. Any Android media stick or compute box with an HDMI output connects directly, allowing operators to run standard Android digital signage APKs with full native resolution support.
**Q2: What enclosure materials are available?**
Depending on model and application, we supply precision architectural extruded aluminum profiles (ideal for retail shelves) and heavy-duty cold-rolled electro-galvanized sheet metal housings (for industrial racks and transit).
**Q3: Can we request customized power supply options such as DC 12V or 24V?**
Yes. In addition to universal 100-240V AC inputs, we can engineer custom DC 12V, 24V, or wide-range vehicle power conversion modules for automotive and railway rolling stock deployments.
Direct Commercial Inquiry and Specification Review
Initiate your project consultation for the 42.6-inch stretched bar display by contacting our international technical sales team. We are prepared to provide 2D/3D mechanical drawings, verify electrical interfaces, and expedite 3-day evaluation samples for your team. Submit your project scope and quantities today for a prompt factory quotation within two business hours.
