Non-touchscreen
Stretched Bar LCD Monitor – 41.6 Inch High-Definition Commercial Screen
Commercial 41.6 inch industrial sheet metal bar monitor with 1920*580 native resolution and 400 cd/㎡ brightness. Built for continuous operation across transport networks, retail aisles, and industrial facilities. Rapid global fulfillment from Shenzhen.
Specifications
- Screen Size
- 41.6 Inch
- Resolution
- 1920*580
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
41.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 41.6 inch | |
Resolution | 1920*580 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Dilemma: Why Conventional 16:9 Displays Obstruct Modern Fixtures
Commercial fixture design increasingly demands high-density visual communication without sacrificing vertical clearance. Standard square monitors take up too much vertical space, making them impractical for horizontal shelf rails, transit headers, and industrial control consoles. Engineered specifically for these horizontal perimeters, the 41.6-inch panoramic display establishes a clean balance between compact dimensions and wide-format visual presence. With a native raster of 1920*580, it allows multi-column split-screen graphics and automated status alerts to operate seamlessly within narrow spaces previously deemed unusable for dynamic digital media.
The streamlined horizontal geometry enables store architects to maintain cohesive interior sightlines. Customers browsing retail aisles enjoy unimpeded views of premium product displays while receiving relevant pricing and promotional information directly at eye level.
Eliminating the need for structural redesigns translates to substantial capital savings for project contractors. Installation teams can utilize existing retail track extrusions or vehicle bulkheads without commissioning expensive custom millwork or heavy mechanical brackets.
Visual Integrity: Deep Black Levels, High Contrast, and Chromatic Consistency
The optical configuration of the 41.6-inch stretched screen combines 1920*580 resolution with 400 cd/㎡ calibrated brightness. Featuring a 1200:1 contrast ratio, the panel delivers rich colors and deep blacks. IPS wide-viewing optics ensure consistent CR≥10 wide-angle IPS optical alignment visibility without color shifting, while the commercial-grade LED backlight delivers an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
Factory color calibration ensures that multi-screen video ribbon installations display identical chromatic balance and brightness levels, creating a cohesive, professional appearance across extended display walls.
Optical clarity is maintained across years of continuous operation thanks to high-grade polarising films that resist ultraviolet degradation and discoloration caused by prolonged ambient exposure.
Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels
Constructed from high-tensile cold-rolled steel, the 41.6-inch monitor casing delivers outstanding mechanical durability. The galvanized metal enclosure provides robust impact resistance and internal component protection in heavy-duty commercial and transit applications.

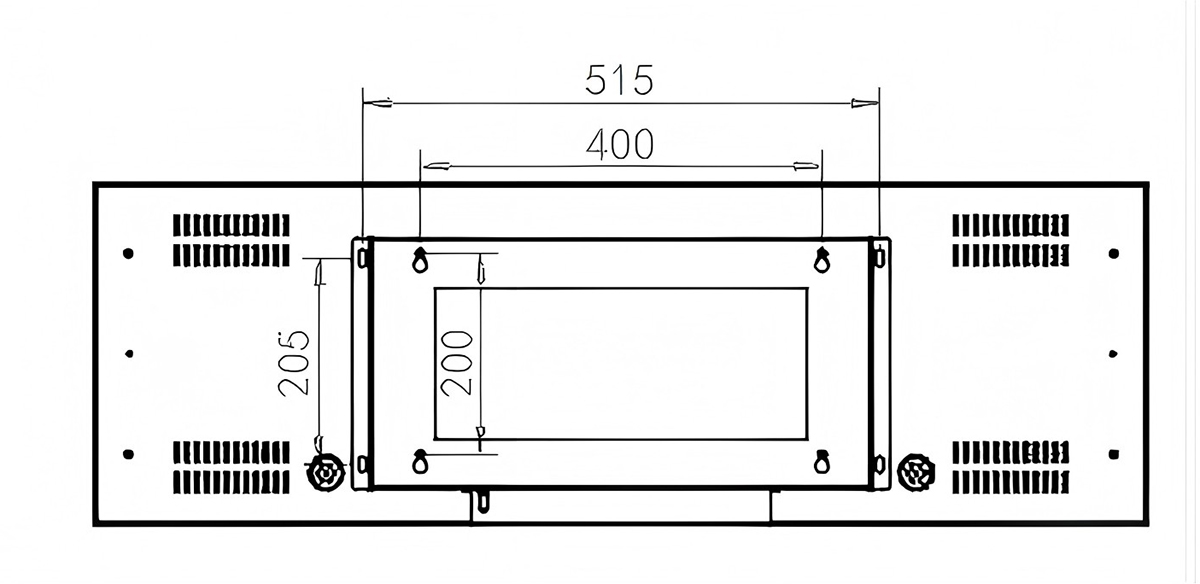

The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Hardware Connectivity: HDMI, VGA, and Audio Distribution Provisions
Equipped with comprehensive input connectivity, the display integrates HDMI, VGA video ports to ensure straightforward interfacing with commercial computing systems. Whether driven by an Android media player, a Windows industrial PC, or an embedded Linux box, the internal video processor scales incoming signals smoothly, maintaining correct aspect ratio geometry without edge cropping or horizontal stretching. An integrated Audio Socket (3.5mm) delivers clear audio output, making it simple to add auxiliary sound reinforcement for interactive promotions, queue call-outs, and transit transfer alerts. Power efficiency is a hallmark of this design. Built to run on universal standard 110V to 240V AC power input mains power, the monitor draws no more than ≤ 90w during active operation. The hardware is built to operate under demanding environmental conditions, rated for continuous performance from below10℃ ~ +50℃ with non-condensing humidity up to ≤ 85%RH.
Low overall operational power consumption keeps thermal emissions minimal, reducing the air-conditioning load in enclosed retail kiosks, transit carriages, and server room equipment racks.
Low total power draw minimizes operational utility expenses across multi-screen commercial rollouts, helping enterprise clients achieve energy conservation targets and reduce overall operating expenditure.
Universal OS Adaptability: Freedom from Proprietary Lock-In
Enterprise display infrastructure requires absolute software freedom. By separating the optical display panel from host processing logic, this monitor prevents premature hardware retirement caused by outdated onboard chipsets. Connecting an external media player running Windows, Android, or Linux via HDMI provides instant video synchronization, allowing enterprise IT managers to run their chosen digital signage CMS or telemetry dashboard unimpeded.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 41.6-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
Direct Factory Sourcing: Reducing Procurement Costs and Engineering Lead Times
ZXT provides source-factory manufacturing for commercial stretched displays, eliminating third-party markups. Our in-stock tooling ensures zero mold charges on standard sizes, supported by fast 3-day sample dispatch and modular SKD shipping options for international clients.
Factory-direct warranty coverage is backed by responsive technical assistance and available spare parts kits, ensuring that deployed displays maintain continuous commercial service year after year.
Display Integration & Technical FAQ
**Q1: Can we control the display power state remotely?**
Yes. The monitor supports standard HDMI CEC power synchronization and automated signal-sensing sleep modes, allowing connected media players to wake or sleep the display automatically according to operating schedules.
**Q2: What is the operating temperature range for this hardware?**
The display is engineered for wide-temperature commercial stability, operating reliably across ambient environments from -10°C to +50°C (with optional extended wide-temperature packages from -20°C to +70°C).
**Q3: How does ZXT guarantee consistent quality across volume production?**
Every production run undergoes 100% factory burn-in testing under elevated temperature and humidity conditions, optical colorimeter calibration, and rigorous mechanical vibration screening before packaging.
Initiate Custom Hardware Scoping and Sample Dispatch
Request a quote or order an evaluation sample for the 41.6-inch commercial stretched bar LCD monitor by contacting our Shenzhen manufacturing team today. We provide full 2D dimensional sheets, 3D STEP CAD files, and volume-discounted price schedules. Contact our technical sales desk with your project details to receive a detailed engineering proposal within two hours.
