Non-touchscreen

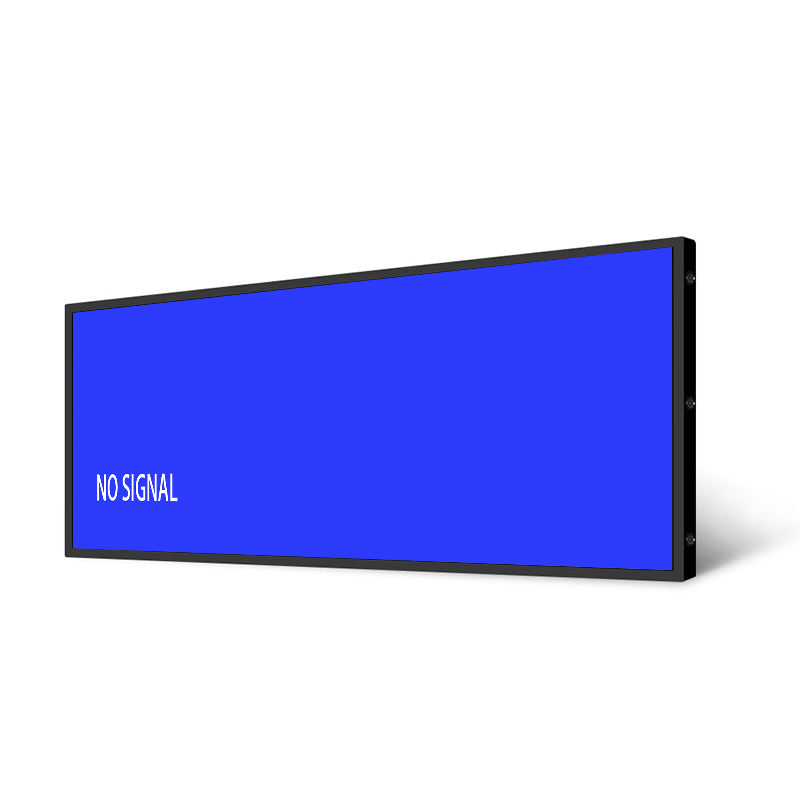

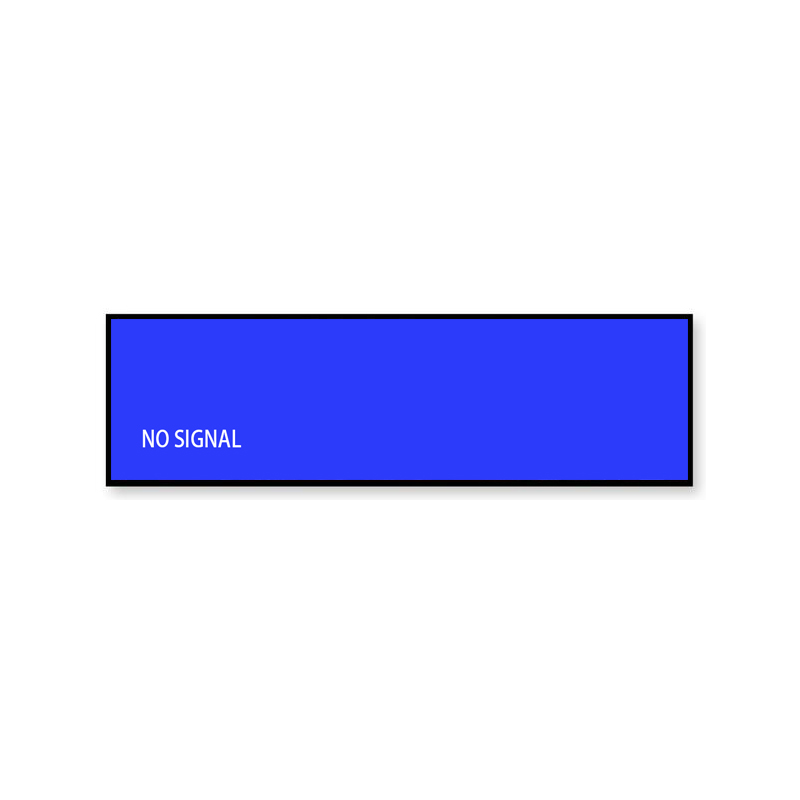

Industrial 41.4 Inch Bar Type Monitor Display with Rugged Sheet Metal
Factory-direct 41.4 inch industrial sheet metal bar monitor delivering 1920*960/3840*1920 panoramic display resolution and 400 cd/㎡ brightness. Fanless solid-state cooling for silent, dust-free operation in demanding commercial environments.
Specifications
- Screen Size
- 41.4 Inch
- Resolution
- 1920*960*3840*1920
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
41.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 41.4 inch | |
Resolution | 1920*960/3840*1920 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Architectural Geometry: Resolving Horizontal Constraints in Commercial Architecture
In modern commercial retail and transportation hubs, standard 16:9 displays consistently create severe installation conflicts. Their excessive vertical height obstructs customer sightlines, intrudes into pedestrian aisles, and requires costly alterations to architectural shelving and vehicle bulkheads. The 41.4-inch stretched bar LCD monitor resolves these spatial bottlenecks by delivering native 1920*960/3840*1920 resolution across an elongated panoramic diagonal. Occupying virtually zero vertical height, it converts dormant horizontal margins into dynamic visual corridors for continuous advertising, live pricing, and passenger information without disrupting surrounding fixtures.
By replacing static cardboard signs and bulky poster frames with dynamic panoramic video loops, retail and transportation operators unlock real-time promotional agility. Content management platforms can instantly update merchandise promotions or emergency transit notices across hundreds of distributed displays, reducing maintenance overhead and maximizing visual engagement.
From an engineering standpoint, preserving structural sightlines directly correlates with higher customer retention in commercial spaces. Rather than obstructing surrounding merchandising displays or passenger pathways, the low-profile chassis sits flush against linear surfaces, creating an uncluttered, modern visual environment.
Engineered Optics: High Pixel Density and Glare Suppression for Public Spaces
Equipped with an industrial-grade liquid crystal matrix, the 41.4-inch stretched monitor delivers native 1920*960/3840*1920 resolution and a luminous output of 400 cd/㎡. It provides crisp, high-contrast imagery backed by a 1200:1 contrast ratio, ensuring text and graphics remain readable under intense interior lighting. True IPS technology provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, while the backlight system is rated for over 60,000 hours of continuous 24/7 commercial duty of dependable operation.
Optical bonding technology minimizes internal air gaps between the cover glass and liquid crystal cell, virtually eliminating internal light refraction and delivering crisp, surface-printed visual clarity.
Fast liquid crystal transition times prevent image blurring and ghosting during high-speed promotional video animations, ensuring that fast-moving product footage appears fluid and natural.
Vibration Resistance: Heavy-Gauge Enclosure Engineering for Transit and Industry
The 41.4-inch sheet metal enclosure is engineered for harsh industrial environments, featuring a cold-rolled steel frame with corrosion-resistant finishing. This sturdy design protects internal components from factory vibrations and physical knocks.
Thermal performance is optimized through passive conduction, using the external metal body to dissipate heat away from internal electronics. This fanless system ensures silent operation and protects internal circuits from dust. Rear VESA patterns and lateral slide channels support flexible mounting configurations.
The housing design includes dedicated cable strain-relief tie points that prevent video and power cords from vibrating loose over years of service. Accessible side-mounting screw holes facilitate quick integration into self-service kiosk fascias.
Signal Compatibility: Plug-and-Play Synchronicity with Industrial Controllers
The electronic architecture of this display emphasizes compatibility, signal fidelity, and energy efficiency. Engineered with standard HDMI, VGA interfaces, the A/D controller board accepts standard graphic inputs from industrial computers, media player appliances, and network broadcast controllers. Integrated auto-sensing firmware accurately locks onto custom panoramic timings, rendering incoming video streams pixel-for-pixel without graphical distortion. Sound synchronization is enabled through a dedicated 3.5mm Audio Socket, allowing system builders to connect shelf-edge directional sound transponders or external speaker bars. The display incorporates a robust power conditioning module designed for universal 100-240V commercial electrical mains inputs. With an energy-conserving power rating of ≤ 90w, large supermarket chains and metro networks deploying hundreds of screens benefit from substantially lower electricity bills and reduced thermal footprints. Engineered to withstand challenging commercial and transportation environments, the unit functions reliably across operating temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
Automatic video timing detection instantly synchronizes incoming graphic signals from media players or industrial PCs, eliminating the need for manual resolution adjustments or complex display driver installation.
The internal switch-mode power converter features robust electromagnetic interference (EMC) shielding that prevents high-frequency noise from radiating into sensitive nearby industrial or telecommunications equipment.
Hardware-Agnostic Display Architecture via High-Definition Video

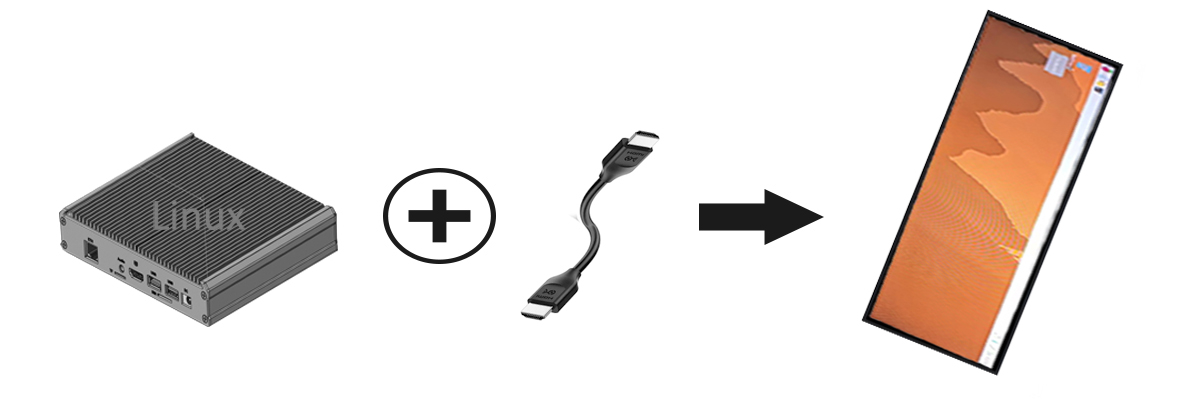

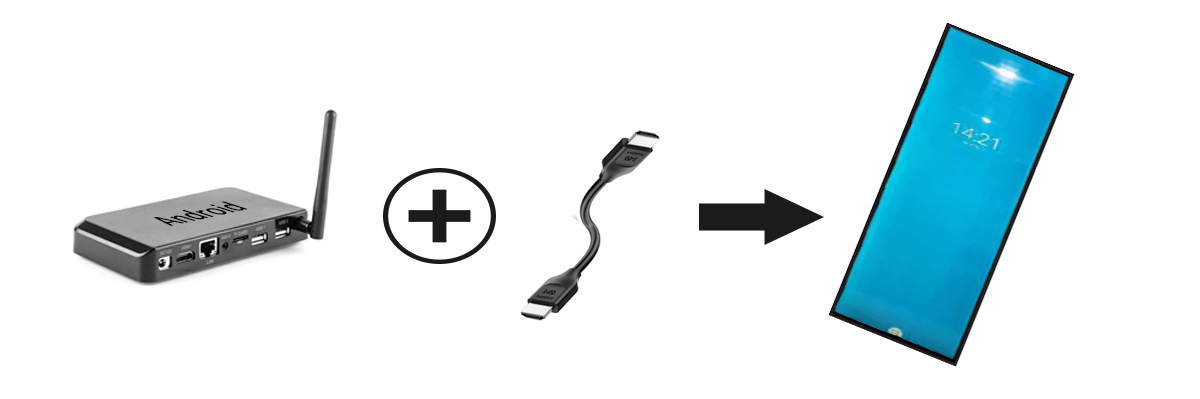

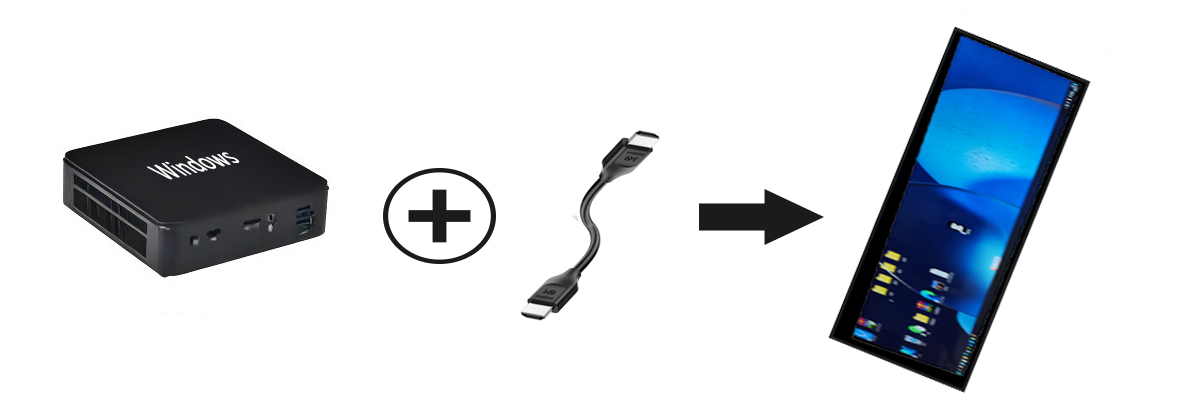

Designed with an uncompromised open-platform philosophy, this commercial screen avoids embedded operating system obsolescence. Through universal HDMI signal linking, installers can interface any external computing unit—whether powered by Windows, Android OS, or embedded Linux kernels. This freedom empowers network administrators to run custom touch kiosk interfaces, web-based digital menu boards, or PLC automation software with zero compatibility friction.
Industry Solutions: Retail Gondola Headers, Metro Doorways, and 19-Inch Racks
Designed to maximize linear visual space, the 41.4-inch display delivers clear commercial benefits across several industries. Retailers install it on shelf fascias to boost brand engagement. Transit authorities mount it in rail carriages for dynamic passenger route guidance. Control rooms use it as an auxiliary telemetry monitor, and corporate facilities integrate it into reception headers.
In banking branches and public administrative centers, the display streamlines customer queue flow. Mounted above service windows or teller partitions, it displays clear ticket calling numbers, teller status indicators, and financial service advisories in a space-saving linear footprint.
Automated manufacturing plants utilize this monitor along assembly lines to broadcast real-time production quotas and machine alerts. The wide horizontal format allows line supervisors and operators to monitor factory floor status from across large plant bays.
Agile OEM/ODM Solutions: Custom Paint Finishes, Logo Printing, and Optical Bonding
With over nine years of specialized display manufacturing experience, ZXT supports international system integrators with factory-direct pricing and rapid fulfillment. We offer in-stock tooling, 3-day sample dispatch, and complete engineering documentation including 3D CAD models.
Our engineering staff possesses deep expertise in international compliance standards, assisting partners in meeting CE, FCC, RoHS, and specialized railway or retail electrical safety certifications.
Product Engineering & Architecture FAQ
**Q1: Can this screen be used as an ultrawide PC secondary monitor or telemetry panel?**
Yes. Many professional workstation users, gamers, and control room operators connect this display beneath main monitors via HDMI as a dedicated sensor panel for hardware metrics, timelines, or communication feeds.
**Q2: How does the passive thermal design protect against dust?**
By utilizing a fanless solid-state cooling layout that transfers heat conductively through the metallic housing, the display eliminates air intake vents and motorized fans, preventing internal dust and grease buildup.
**Q3: Are protective glass options available for public installations?**
Yes. We offer chemically toughened Morse scale magnitude 7 impact-resistant front glass with anti-glare etching, providing robust protection against public scratches and accidental physical impacts.
Engineering Collaboration and Volume Pricing Assessment
Contact ZXT's international sales engineering group to discuss volume pricing, custom bracket options, or evaluation sample units for the 41.4-inch ultra-wide stretched display. Share your target installation parameters, interface needs, and expected delivery dates, and our technical specialists will prepare a comprehensive engineering proposal and quotation within two business hours.
