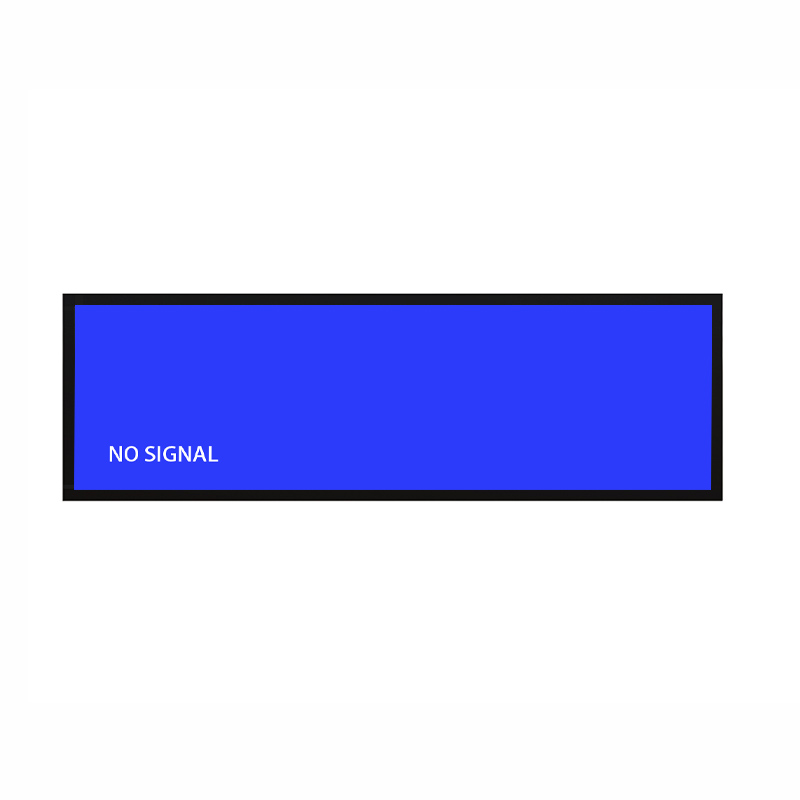

Industrial 38.6 Inch Bar Type Monitor Display with Rugged Sheet Metal
Source manufacturer supply of 38.6 inch industrial sheet metal bar monitor with 3840*1080/1920*540 resolution and 400 cd/㎡ brightness. High-durability commercial display engineered for 24/7 public service. Complete 2D/3D CAD mounting blueprints upon request.
Specifications
- Screen Size
- 38.6 Inch
- Resolution
- 3840*1080/1920*540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
38.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 38.6 inch | |
Resolution | 3840*1080/1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Linear Digital Communication: Overcoming Traditional Screen Placement Barriers
Standard monitors often prove impractical when mounting displays along narrow retail shelves or vehicle door bulkheads. The 38.6-inch stretched display overcomes these geometric limitations, presenting 3840*1080/1920*540 resolution across an active 38.6-inch diagonal to deliver clear, uncompressed digital visuals in tight horizontal spaces.
Retailers can highlight high-margin products and limited-time offers directly where purchasing decisions occur. Eye-level digital animation captures customer attention far more effectively than static shelf tags.
In transit vehicle design, maintaining passenger headroom and complying with safety clearance standards is mandatory. The ultra-slim vertical depth of this display ensures compliance while maximizing information display area.
Visual Precision: Eliminating Distortion Across Ultra-Wide Active Areas
Engineered for commercial visibility, the 38.6-inch stretched bar screen delivers 3840*1080/1920*540 resolution and 400 cd/㎡ calibrated luminance. A 1200:1 contrast ratio ensures rich image depth, supported by symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours commercial backlight service rating.
Solid-state LED illumination provides instantaneous full-brightness startup, ensuring that commercial displays resume vivid visual operation immediately following scheduled power cycles.
Instantaneous solid-state power-on response ensures that display networks resume vibrant visual broadcasting immediately following automated overnight power cycles or utility power restoration.
Enclosure Craftsmanship: Aerospace Aluminum and Galvanized Sheet Steel Options
The 38.6-inch sheet metal chassis utilizes precision-bent electro-galvanized cold-rolled steel plates engineered to withstand severe physical impacts and continuous mechanical stresses. Its heavy-duty framework provides high torsional rigidity, internal vibration isolation, and superior RF noise attenuation in automated manufacturing and transit installations.
To achieve maximum operational lifespan, the monitor utilizes a convection-optimized fanless thermal layout. Heat generated by the LED backlight and power conversion circuitry is dissipated evenly across the external metal body, preventing internal localized hotspots. This solid-state passive design completely prevents airborne grease, moisture, and dust particles from being sucked into the display casing, ensuring uninterrupted reliability in busy commercial settings. Versatile installation is facilitated through standardized rear VESA hole patterns as well as lateral slide-nut mounting channels.
The rear enclosure features dual-plane mounting points that support both direct wall-bracket hanging and articulated arm anchoring. Recessed cable entry ports allow wiring harnesses to exit flush against mounting surfaces, preventing pinched wires and maintaining a clean architectural appearance.
Power Supply Architecture: Wide-Voltage Regulation and Energy Conservation
System integrators will appreciate the plug-and-play connectivity engineered into this commercial display. Featuring standard HDMI, VGA video connections, the display links directly to external digital media players, embedded box PCs, and workstation graphic cards. The internal scaling processor automatically configures custom wide-aspect raster timings, ensuring hassle-free software configuration during site commissioning. Audio integration is facilitated via a 3.5mm Audio Socket, giving installers the flexibility to connect local directional audio speakers, auxiliary sound bars, or central PA routing systems for synchronized broadcasts. Operating across a wide input voltage range of global 100~240V line voltage at 50/60Hz, the internal power supply provides stable electrical isolation against power surges, voltage drops, and harmonic line noise. Active operational power consumption is constrained to ≤ 60w, while environmental durability is certified across ambient temperatures of below10℃ ~ +50℃ and humidity levels reaching ≤ 85%RH.
Industrial-grade capacitors and solid-state power components ensure dependable electrical performance across wide ambient temperature swings, preventing unexpected restarts or power-cycling issues.
Wide-range AC input tolerance ensures stable display operation in regions with unstable electrical grids, absorbing line surges, voltage drops, and brownouts without interrupting continuous public broadcasts.
Universal OS Flexibility for Turnkey Commercial Integration
Tailor your visual display precisely to your software workflow. Equipped with standard HDMI inputs, this commercial monitor effortlessly displays output from external Windows workstations, Android media players, and Linux industrial engines. Integrators enjoy the complete freedom to deploy preferred signage CMS engines, custom interactive kiosk scripts, or real-time data visualizers without proprietary barriers.
Target Environments: Commercial Display Strategies for Space-Limited Fixtures
Engineered for space-limited commercial installations, the 38.6-inch stretched bar screen delivers dynamic visual impact across diverse sectors. Supermarket chains deploy it along gondola shelf rails for real-time digital merchandising. Public transit operators utilize it for interior passenger route mapping. Financial institutions install it at teller counters for queue calling, and manufacturing plants use it for continuous assembly line status monitoring.
Municipal bus fleets deploy this low-profile screen along ceiling bulkheads to broadcast next-stop alerts, GPS route progress, and municipal announcements. The wide viewing angles ensure passengers seated throughout the vehicle can read journey details clearly without neck strain.
Hospitality venues report enhanced guest satisfaction when using panoramic displays for lobby wayfinding and conference schedules. The elegant linear form factor complements modern hotel interior architecture while delivering clear guest directions.
Manufacturer Agility: Permanent Tooling Inventories and Custom Bracket Finishing
ZXT delivers source-factory reliability for global display integrators. Our in-house manufacturing facilities maintain extensive tooling inventories, eliminating NRE mold charges and enabling 3-day sample shipping. We support overseas clients with fully assembled monitors or modular SKD kits designed to lower import duties and freight costs.
Strict quality management systems govern every stage of production, from incoming optical inspection of open-cell panels to computerized colorimeter calibration and vibration table testing.
Frequently Asked Questions (FAQ)
**Q1: Can this display be driven by our existing digital signage software?**
Yes. Engineered with an open hardware architecture, the display accepts standard HDMI and VGA signals from any external Windows, Android, or Linux player running your preferred CMS platform without proprietary software lock-in.
**Q2: Is this monitor certified for continuous 24/7 commercial operation?**
Absolutely. The display incorporates an industrial-grade A-grade liquid crystal cell and solid-state LED backlight rated for over 60,000 hours of continuous operation, supported by a fanless passive cooling design.
**Q3: Can ZXT provide customized mounting brackets or enclosure finishes?**
Yes. As a direct source manufacturer, we offer comprehensive OEM/ODM customization, including custom powder-coat colors, specialized shelf-edge mounting brackets, open-frame configurations, and modular SKD/CKD supply.
Discuss Project Specifications and Volume Price Tiers
Reach out to ZXT's commercial display team to evaluate sample hardware, review mechanical tolerances, or discuss volume OEM/ODM pricing for the 38.6-inch stretched display. We provide fast technical responses and official quotes.
