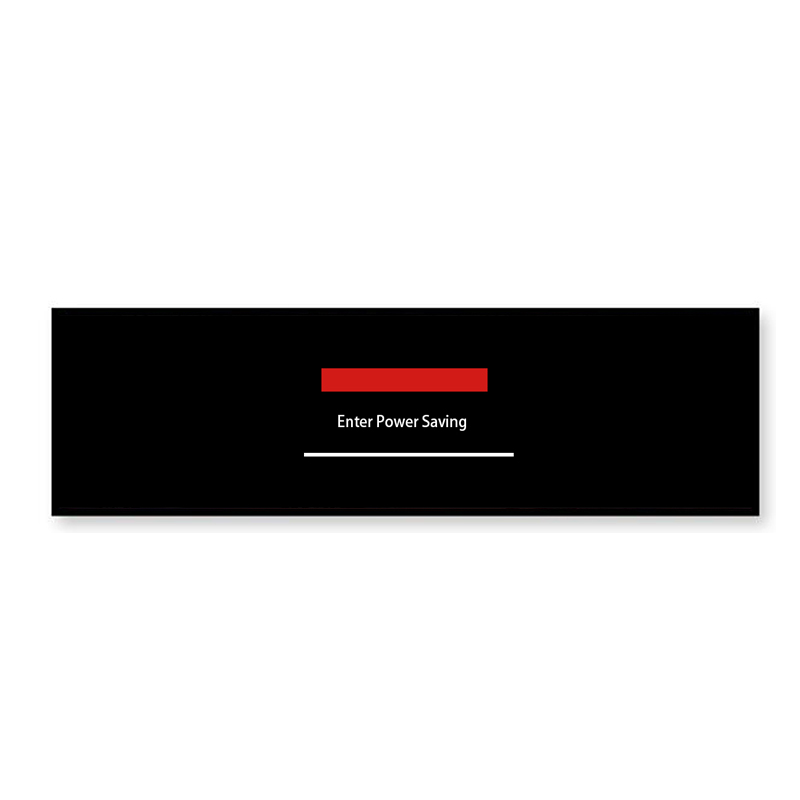

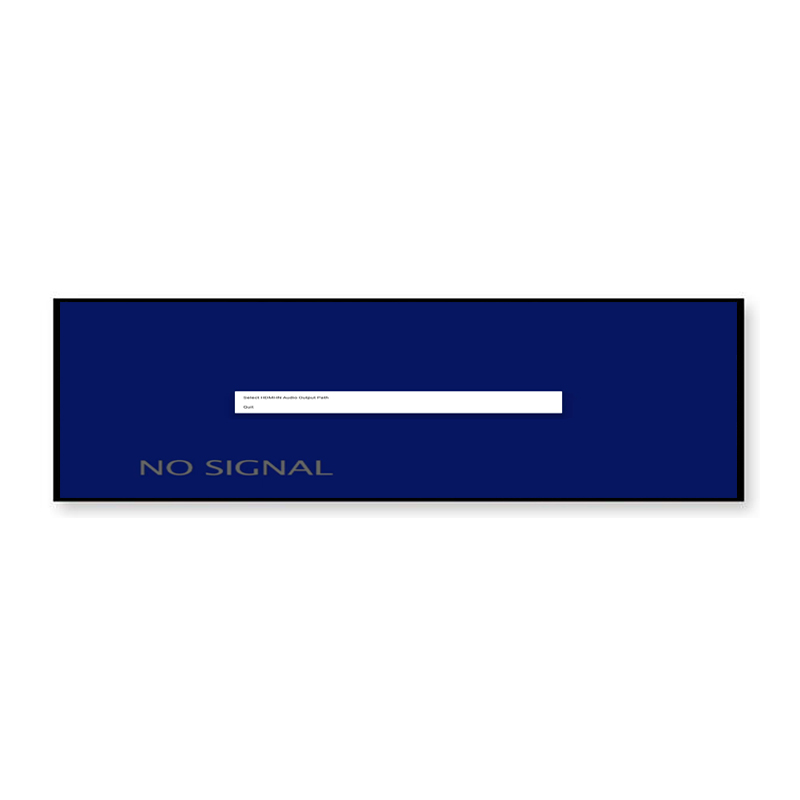

Commercial Display Signage: 38.5 Inch Ultra-Wide Bar LCD Monitor
Industrial-grade 38.5 inch industrial sheet metal bar monitor delivering 1920*510/3840*1020 native resolution and 400 cd/㎡ brightness. Fanless passive thermal design engineered for 24/7 commercial operation. Factory-direct pricing with complete 2D/3D CAD technical support.
Specifications
- Screen Size
- 38.5 Inch
- Resolution
- 1920*510/3840*1020
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
38.5 Inch Stretched LCD（Metal） | ||
Display Specifications | ||
Screen Size | 38.5 inch | |
Resolution | 1920*510/3840*1020 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Linear Digital Communication: Overcoming Traditional Screen Placement Barriers
Standard monitors often prove impractical when mounting displays along narrow retail shelves or vehicle door bulkheads. The 38.5-inch stretched display overcomes these geometric limitations, presenting 1920*510/3840*1020 resolution across an active 38.5-inch diagonal to deliver clear, uncompressed digital visuals in tight horizontal spaces.
Retailers can highlight high-margin products and limited-time offers directly where purchasing decisions occur. Eye-level digital animation captures customer attention far more effectively than static shelf tags.
In transit vehicle design, maintaining passenger headroom and complying with safety clearance standards is mandatory. The ultra-slim vertical depth of this display ensures compliance while maximizing information display area.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 38.5-inch panoramic display utilizes a commercial-grade LCD cell with a native 1920*510/3840*1020 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 400 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 1200:1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Fanless Heat Spreading: Extending Electronic Lifespan Through Solid-State Cooling
Formed from heavy-duty cold-rolled steel, the 38.5-inch chassis is designed to survive demanding transport and control room environments. Its rigid metal construction delivers superior shock absorption and electromagnetic immunity, safeguarding driver circuits against industrial interference.
Built without mechanical cooling fans, the display relies on efficient conductive thermal paths through its metallic housing to maintain optimal operating temperatures. This silent, dust-free design maximizes operational longevity, while standardized rear VESA patterns and lateral slide channels support versatile installation.
Designed with multi-axis mounting versatility, the rear housing accommodates custom ceiling drop-poles, articulated wall brackets, and desktop tilt-stands. Heavy-duty internal mounting studs prevent thread stripping during repeated installation cycles.
Controller Architecture: Seamless Audio-Video Synchronization and Native Scaling
The monitor features HDMI, VGA video inputs compatible with standard commercial and industrial video sources. Audio playback is supported through a 3.5mm Audio Socket. Operating on AC 100V~240V (50/60Hz) power with an efficient consumption of ≤ 60w, the unit functions dependably across temperatures from below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
High-efficiency switch-mode power supplies minimize wasted heat generation, allowing the display to operate comfortably within tight architectural cavities with restricted ventilation.
Dual video input provisions allow technicians to connect a primary media player alongside a secondary backup feed, providing redundant visual broadcasting capability for mission-critical transit wayfinding.
Multi-OS Ecosystem Support via Standard Video Interface
Eliminating the constraints of built-in proprietary player boards, this open-standard commercial monitor provides straightforward connectivity to external Windows, Android, and Linux controllers via HDMI. This decoupled design enables AV contractors to deploy specialized content management software, digital pricing applications, or real-time SCADA telemetry systems while maintaining the flexibility to swap media players at any future date.
Sector Deployment Profiles: High-Footfall Commercial and Public Venues
The unique compact proportions of the 38.5-inch stretched bar monitor make it exceptionally versatile across tight commercial footprints: 1. Smart Retail Shelf Strips: Mounted on cosmetic counters, liquor shelving, and pharmacy displays to showcase real-time digital pricing, product benefits, and QR promotions. 2. Workstation & PC Secondary Telemetry: Positioned beneath primary monitors on gaming and creator desks for real-time CPU/GPU telemetry, chat streams, and audio timelines. 3. 1U/2U Server Rack & Industrial Consoles: Integrated into standard equipment racks and CNC machine panels to provide continuous system status and telemetry feeds. 4. Service Counter & Queue Indicators: Installed at bank teller counters and hospital intake stations to present queue ticket numbers and service status updates.
In smart grocery retail chains, this display format streamlines shelf-edge marketing by replacing static paper shelf tags with dynamic video loops. Supermarket category managers can schedule price changes, promote brand stories, and push limited-time discounts right at the point of decision, driving noticeable increases in retail basket size and impulse item turnover.
Field performance data demonstrates that integrating dynamic panoramic video loops into supermarket shelf headers drives measurable sales lift across featured product categories. Shoppers browsing grocery aisles spend more time engaging with product selections when dynamic pricing and brand storytelling are presented at eye level.
In-House Engineering Support: 2D/3D CAD Models and Technical Collaboration
Direct sourcing from ZXT gives your enterprise a competitive advantage in display hardware quality, cost efficiency, and lead-time reliability. With over nine years of specialized R&D and hundreds of commercial implementations worldwide, we maintain a complete catalog of in-stock profile tooling. This allows system integrators to deploy customized stretched bar hardware without incurring custom mold fees, with evaluation samples dispatched in as little as three days. We offer adaptable fulfillment options to streamline international logistics. Clients can order fully certified finished monitors, open-frame assemblies ready for enclosure drop-in, or complete SKD/CKD component shipments that allow overseas partners to assemble locally and minimize import duties. Our in-house R&D staff collaborates directly with client engineers, providing full 2D and 3D CAD modeling data and custom firmware support.
Dedicated international sales engineers provide prompt technical support, returning detailed commercial proposals, dimensional drawings, and technical feasibility reviews within two business hours.
Technical Consultation FAQ
**Q1: Does this display support Linux industrial distributions?**
Yes. The display works seamlessly with Ubuntu, Debian, RedHat, and embedded Linux kernels via standard HDMI video interfacing, with zero need for specialized proprietary display driver packages.
**Q2: What measures prevent image sticking during static content display?**
The industrial-grade liquid crystal cell features advanced pixel anti-burn-in properties, allowing continuous display of static price tags and route maps without visual retention or ghosting artifacts.
**Q3: Can ZXT customize the front bezel thickness or shape?**
Yes. Our in-house engineering and tooling department can modify bezel dimensions, add custom mounting flanges, or integrate flush-mount bezels to match specialized architectural and fixture requirements.
Request 2D/3D CAD Blueprints and Sample Testing
Contact ZXT today to request CAD mounting blueprints, verify electrical interfaces, or order a 3-day evaluation sample of the 38.5-inch stretched bar monitor. Our sales engineers deliver detailed proposals within two hours.
