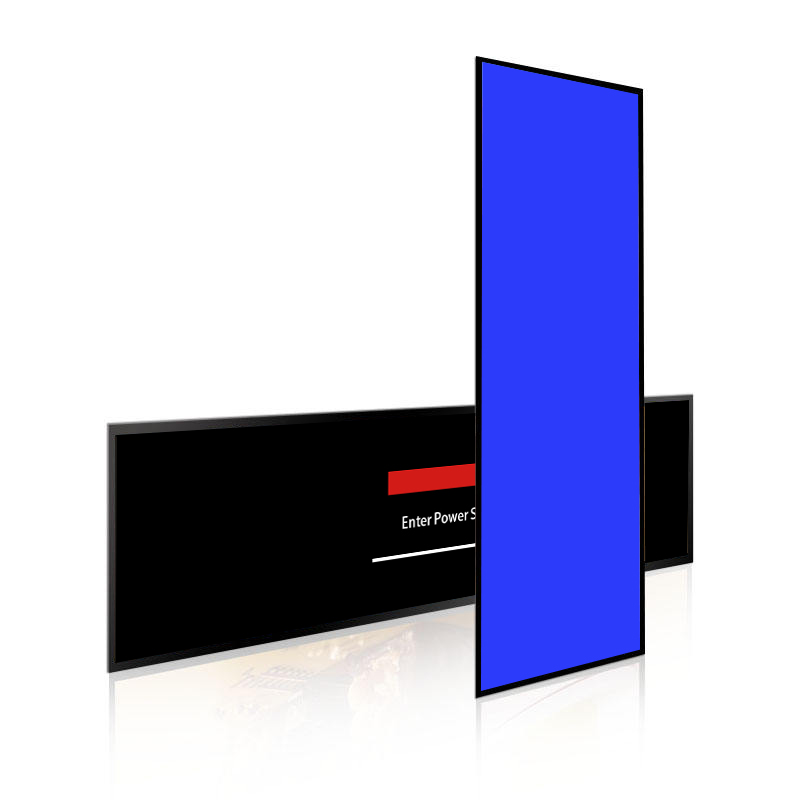

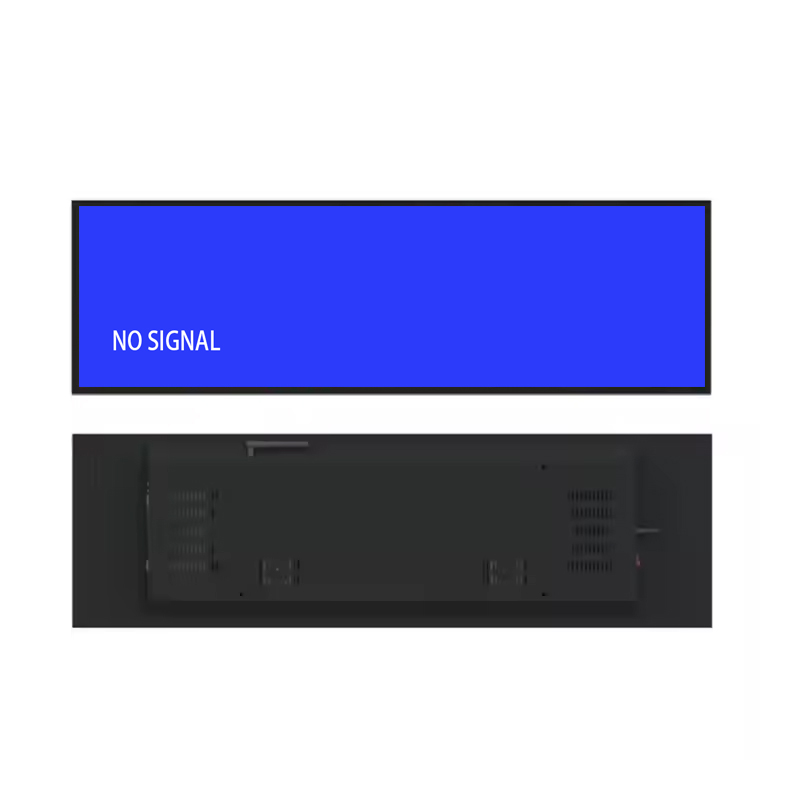

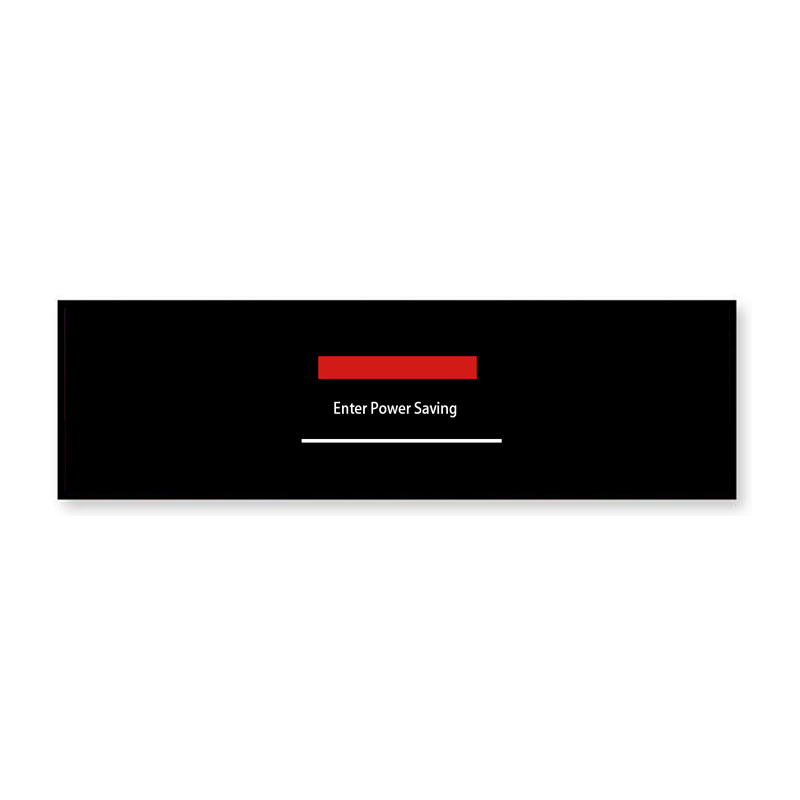

Stretched Bar LCD Monitor – 38.3 Inch High-Definition Commercial Screen
Direct manufacturer of 38.3 inch ultra-wide industrial sheet metal bar monitor (1920*510/3840*1020, 400 cd/㎡). High-definition commercial display delivering 60,000-hour backlight longevity for public transit and retail signage. Zero tooling fees on standard sizes.
Specifications
- Screen Size
- 38.3 Inch
- Resolution
- 1920*510/3840*1020
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
38.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 38.3 inch | |
Resolution | 1920*510/3840*1020 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Solving The Height Limitation: Engineering Custom Aspect Ratio Displays
The 38.3-inch ultra-wide bar monitor is designed specifically for environments where vertical space is tightly constrained. Delivering 1920*510/3840*1020 native resolution across its active 38.3-inch diagonal, it enables operators to present continuous promotional video loops, pricing updates, and transit announcements along narrow architectural surfaces.
Transportation authorities can broadcast synchronized route announcements and public service alerts in real time. The clear horizontal layout allows commuters to track their journey progress at a glance.
Replacing printed vinyl banners with dynamic digital strips allows shopping mall operators to monetize linear architectural surfaces, creating new advertising revenue streams across corridors and escalator bulkheads.
Display Performance: Calibrated Luminance and Anti-Reflective Surface Engineering
The optical engine of the 38.3-inch stretched display is built to rigorous industrial standards, delivering a native resolution of 1920*510/3840*1020 across its active matrix. This ultra-wide format allows complex multi-zone layouts—such as simultaneous video playback, static brand logos, and scrolling price or route tickers—to run side-by-side without graphical scaling artifacts. With a calibrated luminance of 400 cd/㎡, the display provides excellent readability in bright indoor commercial environments. The liquid crystal panel is paired with an anti-reflective polarising film that minimizes ambient light reflections, while the native contrast ratio of 1200:1 ensures deep blacks and sharp text separation. Equipped with advanced IPS alignment technology, the display maintains full optical fidelity across true IPS 178-degree wide visual cone viewing angles, while the LED backlight system boasts a service lifetime rating of an industrial service life exceeding 60,000 hours.
The liquid crystal cell incorporates precision color filter arrays that deliver authentic color reproduction, ensuring corporate logos, luxury apparel photography, and fresh produce imagery appear appetizing and true-to-life.
The optical polarising stack is specifically formulated to mitigate rainbow artifacts under polarized sunglasses, ensuring that vehicle passengers and outdoor shoppers read dynamic text without visual interference.
Chassis Robustness: Built to Endure High-Footfall Public and Industrial Wear
The 38.3-inch industrial monitor utilizes a reinforced sheet steel enclosure engineered to endure harsh shopfloor conditions. The electro-galvanized casing provides high impact resistance and structural integrity, protecting display electronics from mechanical vibration and physical abuse.
Passive thermal engineering ensures dependable heat dissipation without noisy mechanical fans, preventing airborne contaminants from entering the chassis. The enclosure includes standard VESA mounting patterns and lateral adjustment tracks to facilitate quick, secure mechanical integration into commercial cabinetry or transit headers.
Precision-stamped mounting ears allow the unit to drop directly into standard 19-inch equipment racks and instrument control panels. Secure front-fastening screws ensure the monitor remains firmly locked in place during transport and factory operation.
Signal Integrity: Preventing Line Noise and Video Jitter in Industrial Plants
Onboard HDMI, VGA video ports provide flexible connectivity with external media players and embedded systems. Audio output is supported via a 3.5mm Audio Socket. The display operates on universal global 100~240V line voltage at 50/60Hz power with a maximum consumption of ≤ 60w, performing reliably across ambient temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Hardware-level EDID emulation ensures that connected host computers immediately recognize the custom stretched display resolution, streamlining remote software management and automated reboots.
Efficient passive thermal dissipation paths conduct heat away from the internal power module directly to the metal casing, preventing internal thermal buildup and maximizing component longevity.
Vendor-Neutral Display Architecture with Plug-and-Play Video

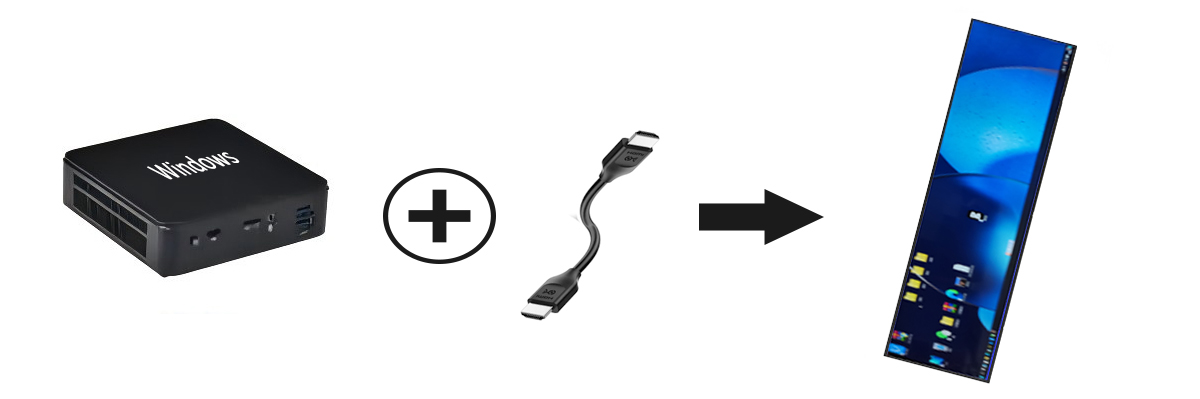

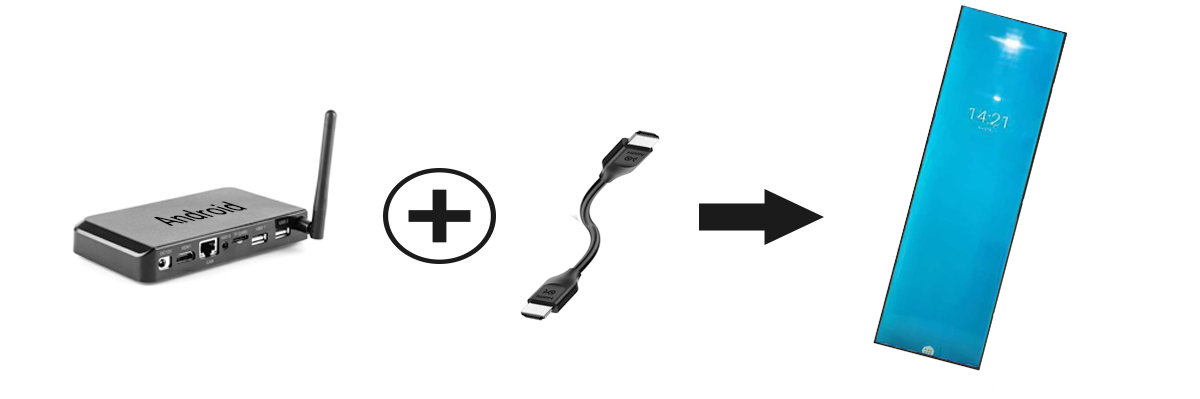

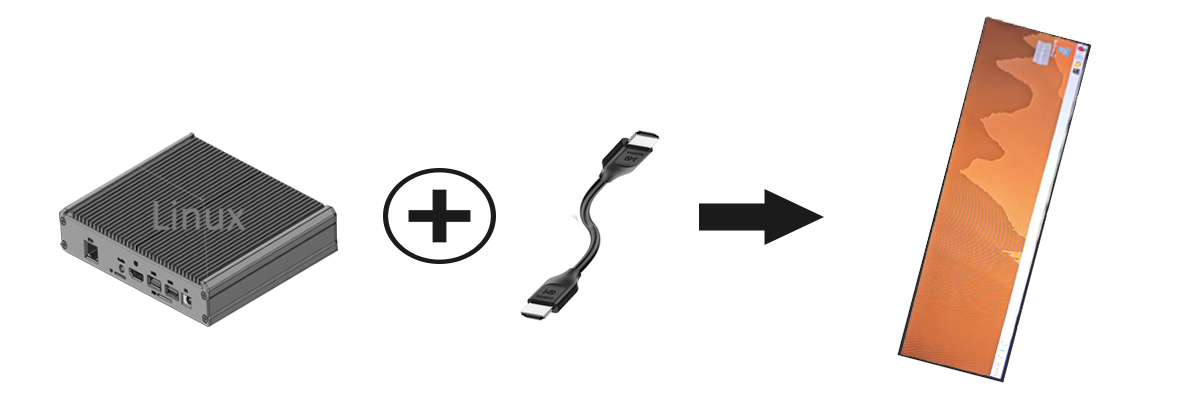

Protect your technology investment against proprietary software dead-ends. Engineered with universal HDMI input standards, the screen communicates flawlessly with external computing hardware running Windows, Android, or Linux. System integrators maintain full autonomy to select, configure, and upgrade their media software, interactive touch applications, and remote device monitoring tools without restrictive third-party platform limitations.
Application Blueprints: Deploying Stretched Bar Displays for Maximum Return
The 38.3-inch stretched bar monitor is optimized for linear architectural installations. It provides dynamic shelf-edge pricing in retail stores, route progress alerts in public transit vehicles, equipment status feeds in control centers, and directory listings in commercial office buildings.
High-speed commuter rail platform gates utilize this display as an overhead platform indicator. Passengers waiting along boarding zones can check real-time train arrival times, car carriage layouts, and safety instructions at a single glance.
Financial trading desks and professional creative workstations benefit from the display's ultrawide auxiliary utility. Traders and video editors keep critical communications and timeline trackers visible without sacrificing main desktop workspace.
Global Logistics Optimization: SKD/CKD Deliveries and Import Tariff Savings
By establishing a direct factory relationship with ZXT, your company secures factory-direct commercial terms backed by genuine industrial engineering capability. With over nine years of dedicated experience and hundreds of deployed projects worldwide, we keep standard extrusion dies and tooling components permanently in stock. This eliminates upfront tooling charges on standard sizes while enabling rapid sample shipping within 72 hours of project sign-off. We cater to international contractors and volume resellers by offering flexible packaging formats. Order fully assembled turnkey commercial monitors, frameless open-cell modules, or CKD/SKD modular kits designed to optimize sea and air container utilization and lower local import tariffs. Our dedicated engineering team assists with every phase of mechanical and electronic integration, providing full CAD support and factory testing.
Flexible packaging options—from individual retail-ready cartons to high-density bulk export pallets—are engineered to maximize container space utilization and protect hardware during long ocean transit.
Buyer & Integrator FAQ
**Q1: Does the display support multi-zone content splitting?**
Yes. The native panoramic resolution provides ample horizontal canvas for digital signage software to partition the display into multiple discrete zones, such as simultaneous video playback, static prices, and tickers.
**Q2: How quickly can replacement parts or expansion units be provided?**
Because ZXT maintains active tooling and standardized component inventories, spare parts, replacement driver boards, and expansion units can be prepared and dispatched with industry-leading lead times.
**Q3: Can we obtain customized packaging for retail distribution?**
Yes. We offer custom-branded master export cartons, individualized retail packaging, and reinforced high-density palletization engineered to survive long-distance international ocean and air freight.
Discuss Project Specifications and Volume Price Tiers
Reach out to ZXT's commercial display team to evaluate sample hardware, review mechanical tolerances, or discuss volume OEM/ODM pricing for the 38.3-inch stretched display. We provide fast technical responses and official quotes.
