touchscreen
37.6 Inch Bar LCD Display Pubblicitario Rectangular Digital Shelf Edge Advertising Screen
The 37.6 Inch bar LCD display at bus stops shows route information, arrival predictions, and transfer directions, while also playing commercials. The split-screen design ensures that the information and advertising content do not interfere with each other, serving the public while creating commercial value. The screen's high brightness ensures clear visibility both day and night.
Specifications
- Screen Size
- 37.6 Inch
- Operating System
- Android
- Installation
- Shelf Edge
37.6 Inch Bar LCD Display Pubblicitario Rectangular Digital Shelf Edge Advertising Screen
Create a Smarter Retail Experience with an Ultra-Wide Shelf Edge Display
The 37.6-inch Bar LCD Display is designed specifically for modern retail environments where dynamic content can influence purchasing decisions. With its ultra-wide rectangular format, commercial-grade LCD panel, and slim profile, this digital shelf edge display transforms ordinary shelving into an engaging advertising platform that captures customer attention exactly where buying decisions are made.
Ideal for supermarkets, convenience stores, pharmacies, electronics retailers, shopping malls, and brand stores, the display delivers high-definition images, promotional videos, pricing information, and product introductions in a sleek commercial design. Compared with traditional paper labels or static posters, digital shelf displays provide a more flexible, efficient, and visually appealing solution for in-store marketing.
As a factory-direct manufacturer, ZXTLCD specializes in the design and production of commercial stretched LCD displays. We provide comprehensive OEM and ODM services for distributors, digital signage companies, retail solution providers, and global system integrators.
37.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 37.6 inch | |
Resolution | 1920*540 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Built for Continuous Commercial Operation
The 37.6-inch stretched LCD display utilizes an industrial-grade panel engineered for long-term 24/7 operation. Wide viewing angles ensure that advertising content remains clear from multiple positions, while the ultra-wide aspect ratio allows businesses to display videos, images, scrolling text, pricing, and promotional messages simultaneously.
Its slim enclosure enables seamless installation on retail shelves, display racks, checkout counters, product showcases, and custom fixtures without occupying valuable merchandising space.
Whether deployed individually or as part of a large digital signage network, the display provides reliable performance and professional visual presentation for demanding commercial applications.
Factory Direct Manufacturing with Complete OEM & ODM Services
Working directly with the manufacturer gives you greater flexibility, faster communication, and more competitive pricing.
ZXTLCD supports complete customization services, including:
- Custom display dimensions
- Android or Linux operating systems
- HDMI, USB, LAN and Wi-Fi connectivity
- High-brightness versions for different environments
- Customized metal housing and frame colors
- Capacitive touch integration
- Private logo and boot animation
- CMS software integration
- Custom packaging and branding
- Project-based mechanical design
Whether you require hundreds of standard displays or a fully customized retail solution, our engineering team works closely with you throughout development and production.

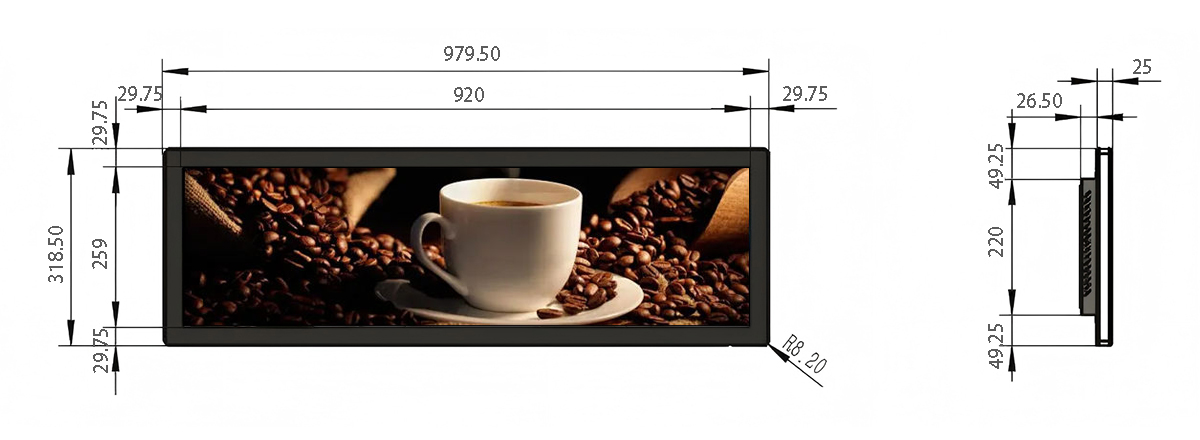

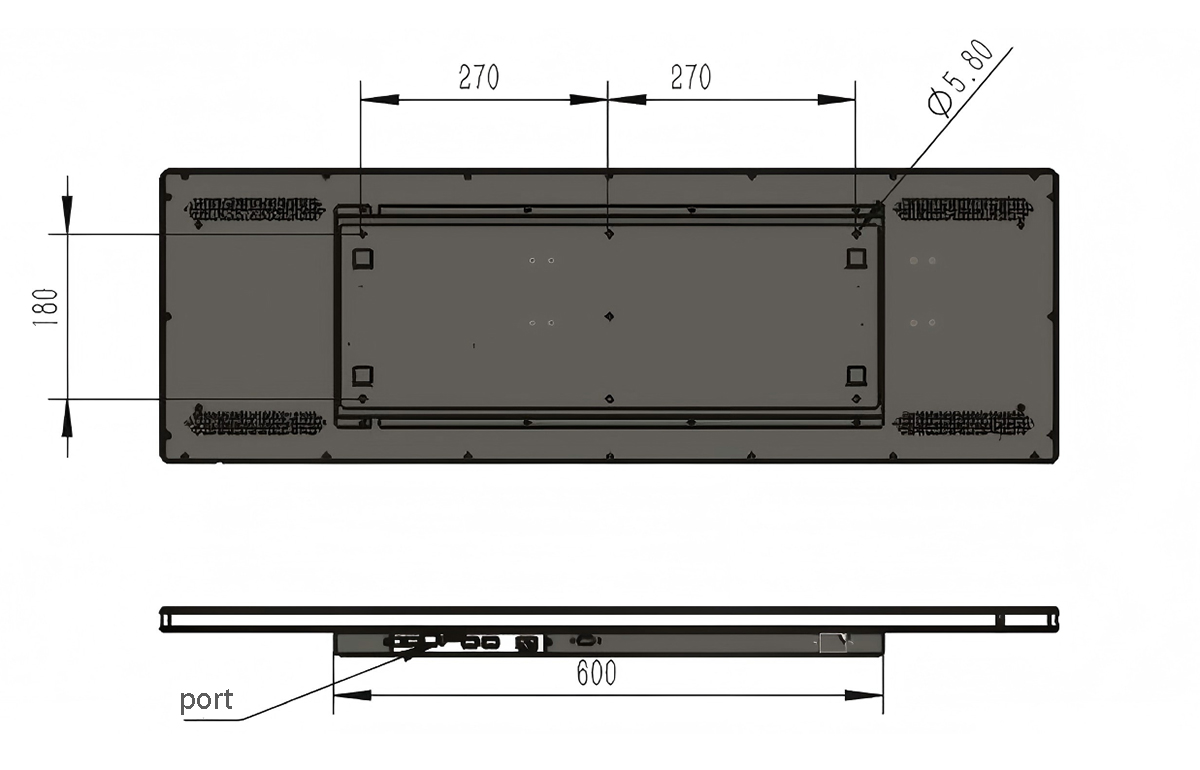

Product Dimension as follows:
Strict Quality Control from Manufacturing to Delivery
Every commercial display undergoes comprehensive quality inspections before shipment, including panel testing, aging tests, brightness calibration, image verification, interface testing, and packaging inspection.
With years of experience serving international customers, we maintain strict production standards to ensure reliable quality and consistent performance across every order.
Reliable After-Sales Support
A dependable supplier should provide support beyond manufacturing.
ZXTLCD offers:
- One-year warranty
- Professional technical consultation
- Remote troubleshooting
- Spare parts support
- Software assistance
- Quick response for OEM and ODM projects
Our experienced support team helps customers reduce maintenance costs and maximize long-term product performance.
Typical Applications
The 37.6-inch bar LCD display is widely used for:
- Digital shelf edge advertising
- Supermarkets and grocery stores
- Retail chain stores
- Shopping malls
- Pharmacy shelves
- Cosmetics displays
- Beverage and food promotions
- Electronic product showcases
- Smart retail systems
- Digital pricing and promotional displays
Why Choose ZXTLCD?
Choosing ZXTLCD means working directly with a professional commercial display manufacturer rather than a trading company. From product design and engineering to mass production and quality control, every stage is managed within our factory to ensure better pricing, consistent quality, and flexible customization.
Whether you are developing a new smart retail project or expanding an existing digital signage network, our team is ready to deliver reliable products, fast production, and responsive technical support.
Contact us today to discuss your OEM or ODM requirements and receive a customized solution tailored to your business.
