Non-touchscreen
Custom Ratio Bar Monitor (37 Inch) with Standard HDMI Video Input
Specialized 37 inch standard ultra-wide bar display (1920*540, 400 cd/㎡) direct from Shenzhen manufacturing facility. Engineered for space-limited commercial installations with robust metal housing. Fast 3-day evaluation samples available.
Specifications
- Screen Size
- 37 Inch
- Resolution
- 1920*540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
37 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 37 inch | |
Resolution | 1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Perimeter Optimization: Converting Dormant Edge Margins into Dynamic Visuals
A common challenge in digital signage deployment is the inability to install dynamic video displays in narrow horizontal margins. Conventional 16:9 monitors demand substantial vertical clearance, making them unusable along supermarket gondola edges, bus door headers, and industrial machine consoles. The 37-inch cut-bar LCD screen bypasses these physical limits by adopting a specialized panoramic form factor delivering native 1920*540 resolution across an elongated 37-inch active diagonal. Venues can now present synchronized multi-zone promotional animations, dynamic price feeds, and essential directional signage right at the point of decision.
Commercial operators benefit from significant cost reductions in fixture fabrication. Because these stretched units install directly into standard shelving channels and door bulkheads, enterprise clients avoid expensive structural custom cabinet work.
The ultra-wide panoramic aspect ratio allows graphic designers to separate high-priority navigational alerts from continuous background advertising loops, ensuring that viewers immediately register essential updates without information overload.
High-Definition Visual Delivery: Color Purity, Contrast, and Viewing Geometry
The 37-inch display is powered by an industrial-grade LCD panel designed for high-resolution panoramic visualization. With a native resolution of 1920*540, it presents sharp, detailed imagery that ensures promotional campaigns, digital price updates, and public transport schedules are legible and visually compelling at all times. Luminance is calibrated at 400 cd/㎡, delivering clear, crisp visuals in well-lit commercial spaces without generating uncomfortable glare for nearby customers. Backed by a 1200:1 contrast ratio, the display produces rich color tones, clean white highlights, and deep shadows. True IPS wide-angle technology provides an expansive symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angle, while the solid-state LED backlight system is rated for an industrial-grade operational life of 60,000+ operational hours.
High panel transmission efficiency allows the display to achieve striking luminous output while maintaining low internal thermal dissipation, safeguarding delicate electronic components from excessive heat aging.
A resilient anti-glare surface treatment diffuses incoming light rays at microscopic angles, preventing harsh specular reflections from blinding nearby shoppers or transit operators under overhead LED lighting.
Structural Engineering: Low-Profile Framing and Standard VESA Compatibility
With a sleek, modern commercial casing, the 37-inch display integrates seamlessly into corporate and retail fixtures. The durable powder-coated steel frame ensures structural stability and resistance to surface wear.

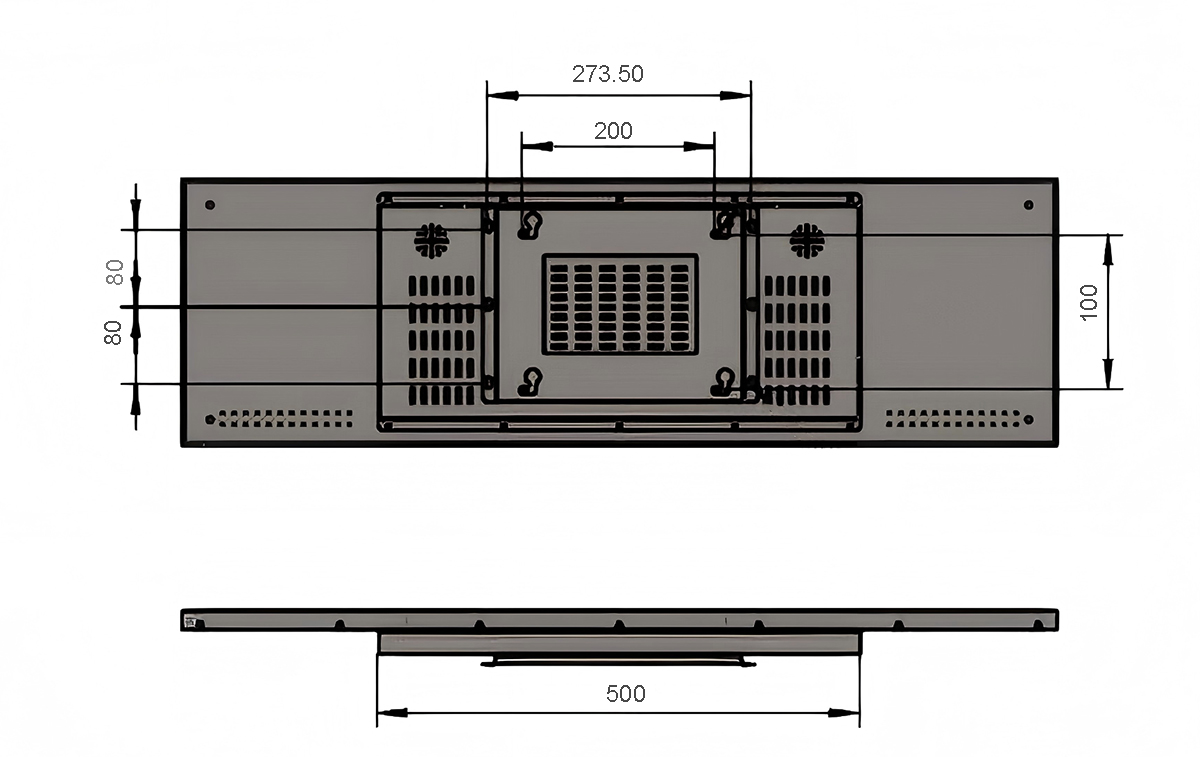

The unit features a fanless, solid-state cooling design that conducts thermal energy away from sensitive electronics directly to the outer casing. This passive cooling system ensures whisper-quiet operation and eliminates fan-related maintenance issues. Rear VESA mounting points and lateral slide channels provide straightforward installation across various mounting structures.
The chassis profile incorporates recessed rear connector pockets that protect HDMI and power plugs from accidental snags during maintenance. Right-angle cable routing channels allow the monitor to sit flush against flat architectural walls with zero gap.
Audio-Visual Processing: Audio Socket Provision and Pixel-to-Pixel Mapping
Featuring standard HDMI, VGA video interfaces, the display connects directly to commercial media players and industrial computing hardware. Automatic video timing synchronization ensures accurate pixel mapping. An integrated Audio Socket (3.5mm) supports external audio connectivity, while the power module accepts standard 110V to 240V AC power input with power consumption rated at ≤ 60w. The monitor operates reliably across temperatures of below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Universal mains power input simplifies international deployment, allowing system builders to install the same hardware globally without requiring external voltage transformers or specialized power adapters.
Standardized video connector placement and reinforced cable strain-relief points ensure that HDMI and VGA cables remain securely anchored, even when deployed in vibrating buses or rail vehicles.
Open Architecture HDMI Connectivity: Freedom to Choose Your OS
Safeguard your digital signage rollout from proprietary obsolescence with an open-architecture commercial display. Supporting direct HDMI video feeds from external Windows boxes, Android media sticks, and Linux industrial controllers, this monitor provides instant compatibility with your target content management software, interactive point-of-sale applications, and network telemetry utilities.
Industry Solutions: Retail Gondola Headers, Metro Doorways, and 19-Inch Racks
Designed to maximize linear visual space, the 37-inch display delivers clear commercial benefits across several industries. Retailers install it on shelf fascias to boost brand engagement. Transit authorities mount it in rail carriages for dynamic passenger route guidance. Control rooms use it as an auxiliary telemetry monitor, and corporate facilities integrate it into reception headers.
In banking branches and public administrative centers, the display streamlines customer queue flow. Mounted above service windows or teller partitions, it displays clear ticket calling numbers, teller status indicators, and financial service advisories in a space-saving linear footprint.
Automated manufacturing plants utilize this monitor along assembly lines to broadcast real-time production quotas and machine alerts. The wide horizontal format allows line supervisors and operators to monitor factory floor status from across large plant bays.
Factory-Direct Supply Lines: Turnkey Monitors and Modular Hardware Kits
By procuring from ZXT, international clients benefit from direct engineering support, competitive factory pricing, and fast fulfillment. With over nine years of manufacturing experience, we provide in-stock tooling, rapid 3-day sample delivery, and flexible supply formats including turnkey monitors and SKD component kits.
We support client-specified firmware customizations, including custom boot logos, fixed EDID resolution timings, and customized default input channel preferences for turnkey field rollouts.
Technical Consultation FAQ
**Q1: Does this display support Linux industrial distributions?**
Yes. The display works seamlessly with Ubuntu, Debian, RedHat, and embedded Linux kernels via standard HDMI video interfacing, with zero need for specialized proprietary display driver packages.
**Q2: What measures prevent image sticking during static content display?**
The industrial-grade liquid crystal cell features advanced pixel anti-burn-in properties, allowing continuous display of static price tags and route maps without visual retention or ghosting artifacts.
**Q3: Can ZXT customize the front bezel thickness or shape?**
Yes. Our in-house engineering and tooling department can modify bezel dimensions, add custom mounting flanges, or integrate flush-mount bezels to match specialized architectural and fixture requirements.
Discuss Project Specifications and Volume Price Tiers
Reach out to ZXT's commercial display team to evaluate sample hardware, review mechanical tolerances, or discuss volume OEM/ODM pricing for the 37-inch stretched display. We provide fast technical responses and official quotes.
