Non-touchscreen
Dual-Screen Bar Monitor – 37.7 Inch Hanging Stretched Display for Retail
Direct from manufacturer: 37.7 inch double-sided stretched display (1920*360/3840*720, 350~700 cd/㎡). High-density panoramic visual solution for space-constrained architectural perimeters. Zero NRE mold fees, fast 3-day sampling, and custom OEM/ODM support.
Specifications
- Screen Size
- 37.7 Inch
- Resolution
- 1920*360/3840*720
- Brightness
- 350~700 cd/㎡
- Interface
- HDMI / VGA
37.7 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 37.7 inch | |
Resolution | 1920*360/3840*720 | |
Brightness | 350~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Architectural Geometry: Resolving Horizontal Constraints in Commercial Architecture
In modern commercial retail and transportation hubs, standard 16:9 displays consistently create severe installation conflicts. Their excessive vertical height obstructs customer sightlines, intrudes into pedestrian aisles, and requires costly alterations to architectural shelving and vehicle bulkheads. The 37.7-inch stretched bar LCD monitor resolves these spatial bottlenecks by delivering native 1920*360/3840*720 resolution across an elongated panoramic diagonal. Occupying virtually zero vertical height, it converts dormant horizontal margins into dynamic visual corridors for continuous advertising, live pricing, and passenger information without disrupting surrounding fixtures.
By replacing static cardboard signs and bulky poster frames with dynamic panoramic video loops, retail and transportation operators unlock real-time promotional agility. Content management platforms can instantly update merchandise promotions or emergency transit notices across hundreds of distributed displays, reducing maintenance overhead and maximizing visual engagement.
From an engineering standpoint, preserving structural sightlines directly correlates with higher customer retention in commercial spaces. Rather than obstructing surrounding merchandising displays or passenger pathways, the low-profile chassis sits flush against linear surfaces, creating an uncluttered, modern visual environment.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 37.7-inch panoramic display utilizes a commercial-grade LCD cell with a native 1920*360/3840*720 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 350~700 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 1200:1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Industrial Housing Design: Resisting Ambient Dust, Moisture, and Vibration

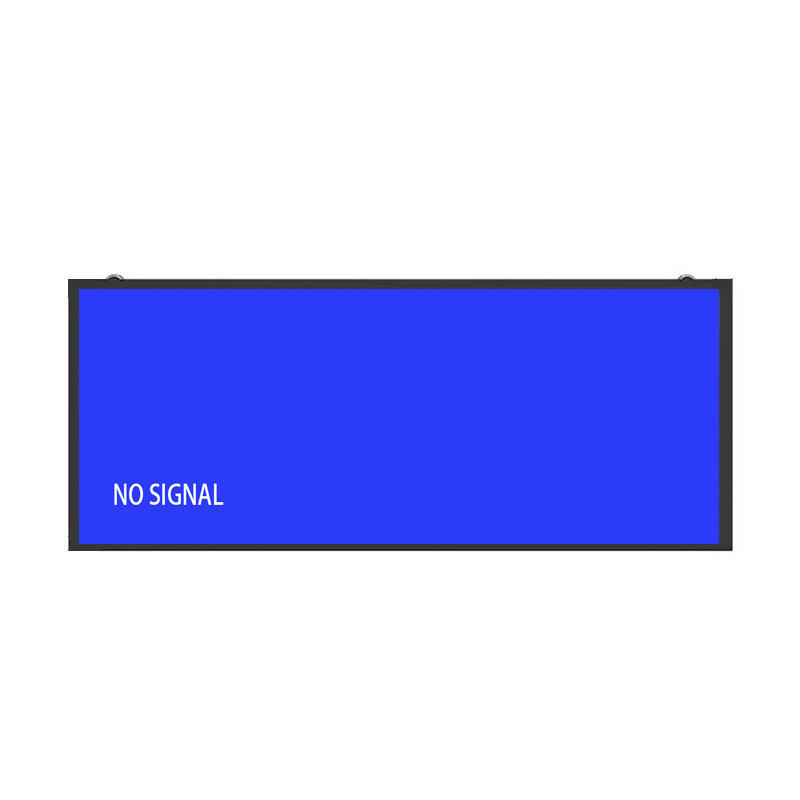

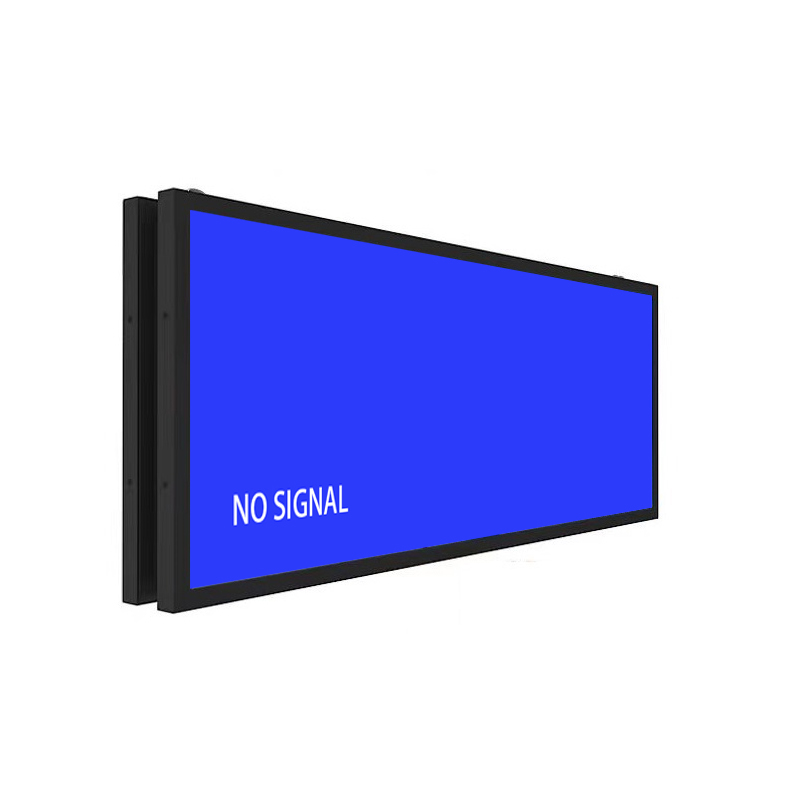

The 37.7-inch double-sided display enclosure combines dual LCD panels with a central aluminum-steel subframe. This integrated design provides simultaneous bidirectional messaging for transit terminals, cutting installation hardware requirements by half compared to dual standalone monitors.
Thermal efficiency is maintained through an advanced fanless heat dissipation layout that uses the external metal body as a heat sink. This eliminates fan noise and prevents dust and grease accumulation within the housing, supporting long-term commercial reliability. The chassis provides standard VESA mounting provisions and side-channel grooves for secure installation.
For overhead corridor and transit concourse deployments, the housing features reinforced steel eyelet anchor points rated for heavy-duty aircraft suspension wires. Safety cables lock directly into internal structural gussets, ensuring complete public safety in seismic or high-vibration zones.
Audio-Visual Processing: Audio Socket Provision and Pixel-to-Pixel Mapping
Featuring standard HDMI, VGA video interfaces, the display connects directly to commercial media players and industrial computing hardware. Automatic video timing synchronization ensures accurate pixel mapping. An integrated 3.5mm Audio Socket supports external audio connectivity, while the power module accepts standard 110V to 240V AC power input with power consumption rated at ≤ 60w. The monitor operates reliably across temperatures of below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Universal mains power input simplifies international deployment, allowing system builders to install the same hardware globally without requiring external voltage transformers or specialized power adapters.
Standardized video connector placement and reinforced cable strain-relief points ensure that HDMI and VGA cables remain securely anchored, even when deployed in vibrating buses or rail vehicles.
Open-Architecture Computing: Universal Operating System Flexibility

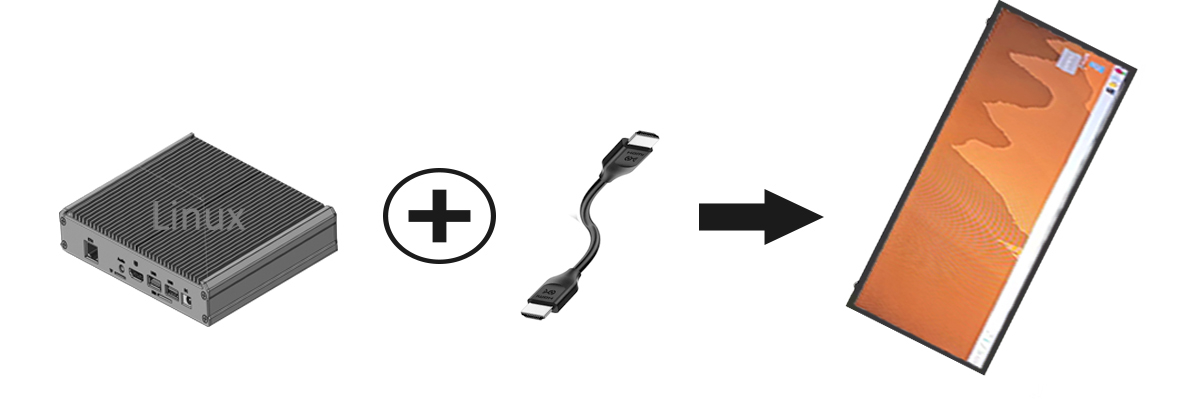

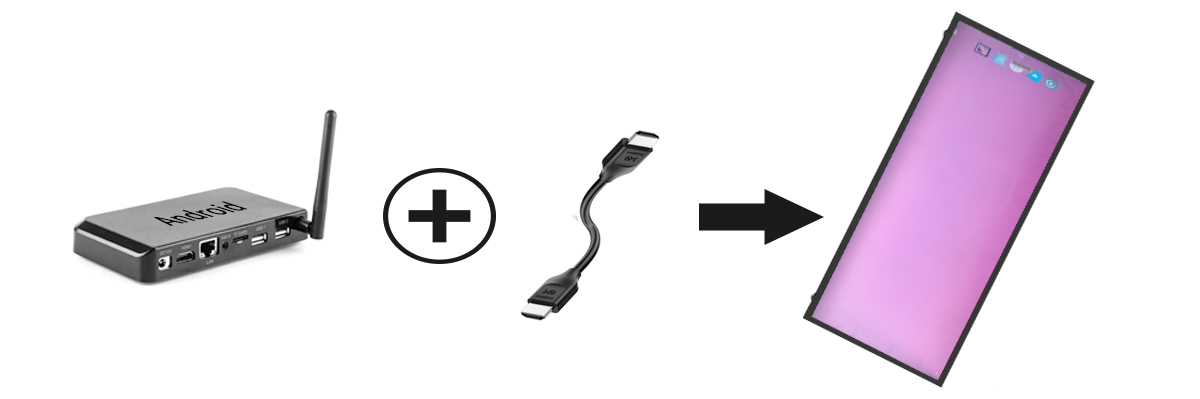

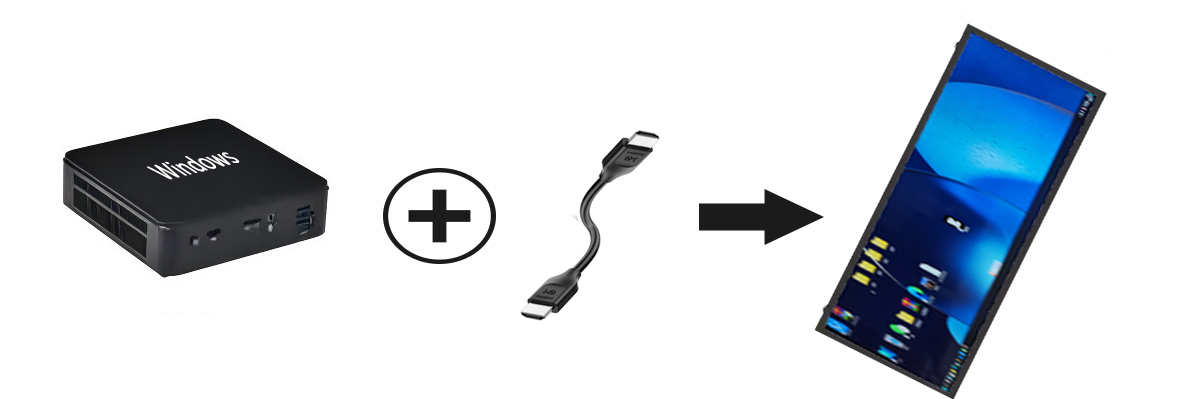

Built to eliminate restrictive proprietary hardware dependencies, this monitor embraces a truly open compute architecture. Integrating an external media host running Windows, Android, or Linux distributions is as simple as attaching a standard HDMI cable. This plug-and-play flexibility gives AV integrators complete liberty to deploy their preferred digital signage CMS suite, proprietary SCADA telemetry package, or custom retail interactive applications without firmware barricades.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 37.7-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
Supply Chain Flexibility: Assembled Displays, Open-Frame Units, and SKD Packs
Partnering with ZXT gives hardware integrators access to verified manufacturing expertise and factory-direct pricing. With extensive in-stock casing tooling, we eliminate mold fees and dispatch samples in three days, offering turnkey displays or SKD kits to optimize international logistics.
Our extensive library of proven extrusion dies and stamping tooling allows clients to deploy customized stretched bar hardware without incurring the high costs and lengthy delays of new tooling development.
Technical Selection & System Integration FAQ
**Q1: How do we switch between different operating systems on this display?**
Switching operating systems is frictionless: simply connect your chosen host computer (Windows PC, Android box, or Linux controller) via HDMI. The display adapts instantly without requiring internal firmware reconfiguration.
**Q2: What is the expected backlight service lifespan?**
The industrial-grade solid-state LED backlight is rated for an operational lifespan exceeding 60,000 hours, ensuring consistent chromatic performance and high luminance across multi-year commercial deployments.
**Q3: Does ZXT provide 2D and 3D CAD models for pre-engineering?**

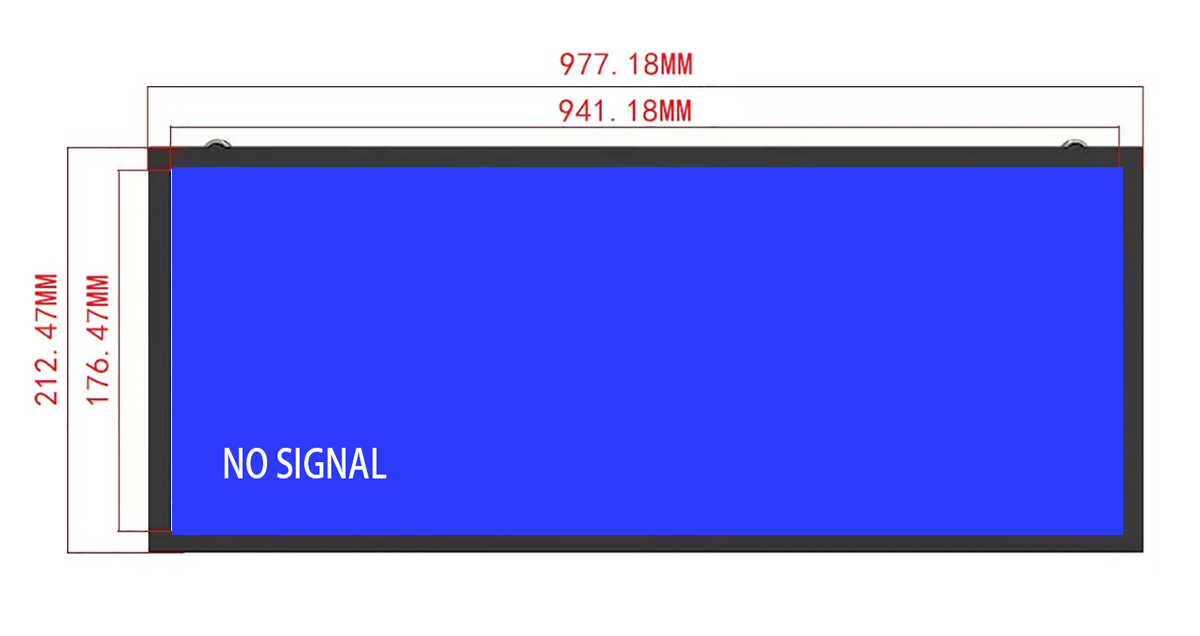

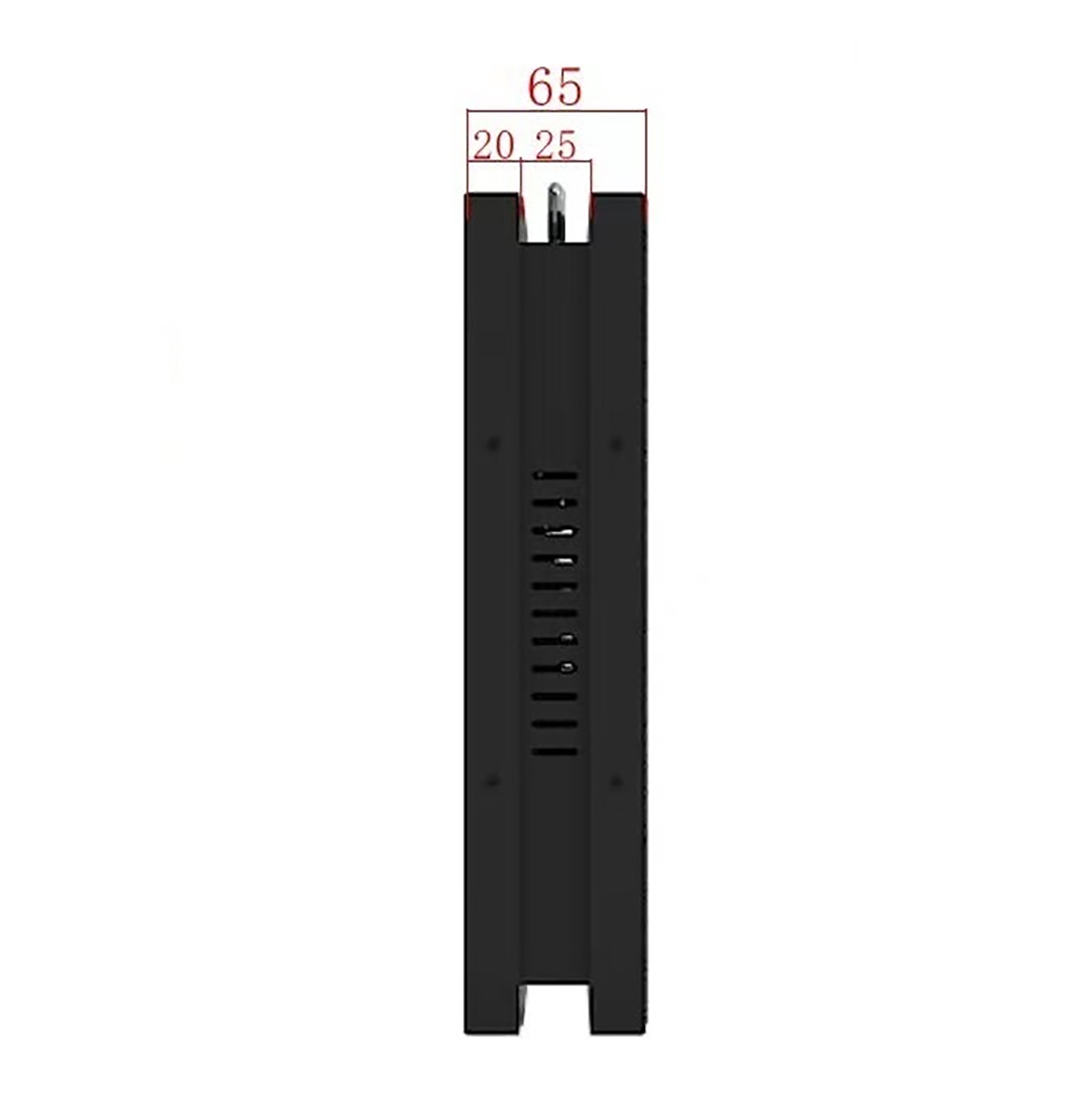

Yes. Our engineering department supplies comprehensive 2D dimensional PDF drawings and 3D STEP CAD files to assist your mechanical team with structural fixture and cabinet integration.
Project Scoping and Commercial Hardware Proposal
Get in touch with ZXT's international engineering desk to discuss project specifications, CAD models, or sample orders for the 37.7-inch stretched bar monitor. Our team provides fast, professional commercial proposals.
