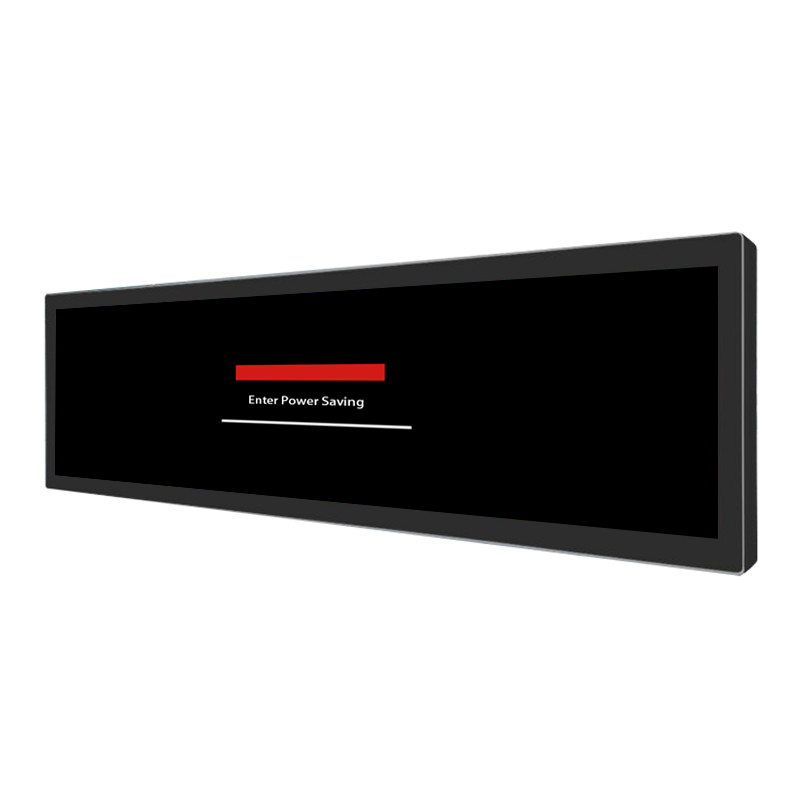

37.6 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Wholesale 37.6 inch industrial sheet metal bar monitor featuring native 1920*540 resolution and 400 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 37.6 Inch
- Resolution
- 1920*540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
37.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 37.6 inch | |
Resolution | 1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Engineering: Unlocking Underutilized Architectural Perimeters
Retail merchandising and passenger transit environments demand specialized displays designed for narrow linear perimeters. The 37.6-inch stretched LCD monitor satisfies this requirement by providing 1920*540 native resolution across an active 37.6-inch diagonal, maximizing horizontal display area while preserving valuable vertical clearance.
The specialized cut-bar aspect ratio allows software developers to design multi-zone split-screen layouts. Static brand banners can run alongside animated promotional videos, maximizing screen utility within a single fixture.
The horizontal display geometry aligns naturally with human horizontal glance paths, ensuring that dynamic price callouts and route stops catch attention without requiring shoppers or commuters to look away from their primary path.
Visual Precision: Eliminating Distortion Across Ultra-Wide Active Areas
Engineered for commercial visibility, the 37.6-inch stretched bar screen delivers 1920*540 resolution and 400 cd/㎡ calibrated luminance. A 1200:1 contrast ratio ensures rich image depth, supported by symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours commercial backlight service rating.

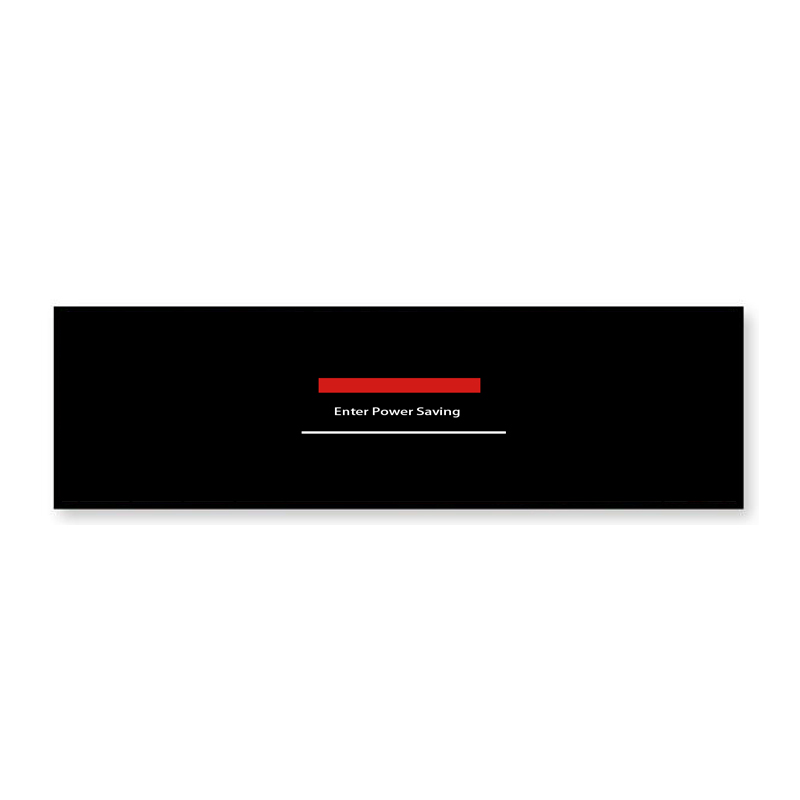

Solid-state LED illumination provides instantaneous full-brightness startup, ensuring that commercial displays resume vivid visual operation immediately following scheduled power cycles.
Instantaneous solid-state power-on response ensures that display networks resume vibrant visual broadcasting immediately following automated overnight power cycles or utility power restoration.
Industrial Housing Design: Resisting Ambient Dust, Moisture, and Vibration
The 37.6-inch monitor features a ruggedized cold-rolled steel body designed for mission-critical deployments. Its electro-galvanized metal framework resists physical impact, protects sensitive liquid crystal layers from torsional strain, and ensures long-term structural alignment in mobile and stationary industrial installations.

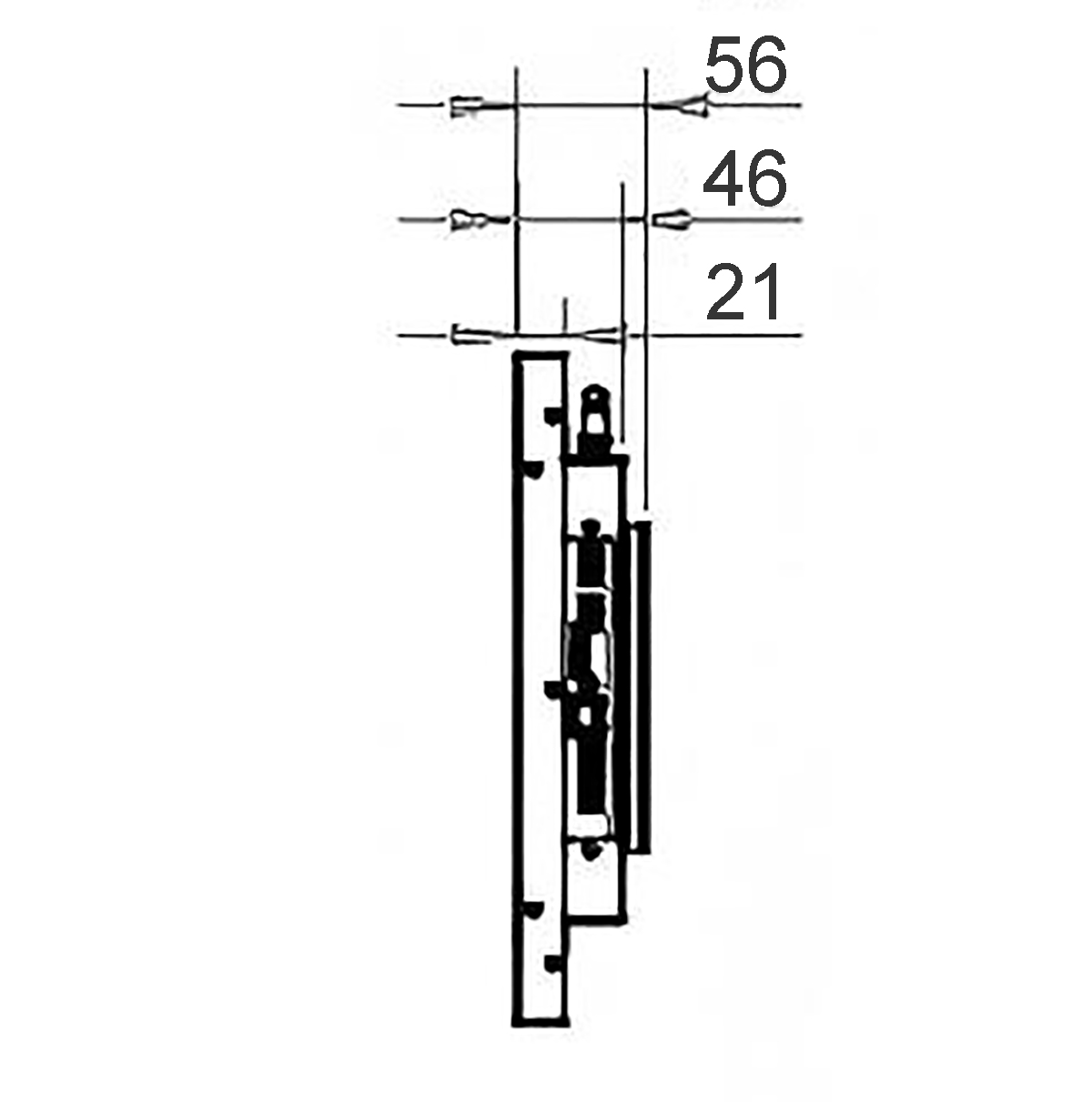

Thermal efficiency is maintained through an advanced fanless heat dissipation layout that uses the external metal body as a heat sink. This eliminates fan noise and prevents dust and grease accumulation within the housing, supporting long-term commercial reliability. The chassis provides standard VESA mounting provisions and side-channel grooves for secure installation.
For overhead corridor and transit concourse deployments, the housing features reinforced steel eyelet anchor points rated for heavy-duty aircraft suspension wires. Safety cables lock directly into internal structural gussets, ensuring complete public safety in seismic or high-vibration zones.
Input Versatility: Connecting to Industrial IPCs, Android Boxes, and Controllers
The display provides HDMI, VGA video connectivity for straightforward integration with digital signage systems and industrial computers. An integrated Audio Socket (3.5mm) enables external sound connectivity. Power is supplied via universal universal 100-240V commercial electrical mains mains, with energy consumption rated at ≤ 60w. Reliable operation is maintained across temperatures of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
Robust input connector soldering and reinforced chassis anchor points prevent loose cable connections caused by mechanical vibration in mobile transit vehicles and vibrating factory machinery.
High-reliability solid-state capacitors and premium inductors prevent power supply failure, ensuring dependable continuous operation across multi-year commercial deployment schedules.
Open Signal Integration for Multi-Platform Computing
This commercial monitor operates on a strictly non-proprietary hardware baseline, ensuring seamless compatibility with global computing standards. Whether your project utilizes x86 Windows PCs for high-performance interactive 3D media, compact Android boxes for lightweight cloud signage, or Linux controllers for hardened industrial telemetry, a single HDMI link delivers pristine native-resolution rendering across your chosen operating environment.
Field Deployment Breakdown: Retail Aisles, Train Doorways, and Datacenter Racks
The 37.6-inch stretched screen delivers valuable visual communication in linear spaces. Common deployment scenarios include supermarket shelf merchandising, bus and train passenger guidance, industrial machine tool telemetry, and corporate entrance architectural signage.
Automotive manufacturing plants and cleanroom testing facilities mount this display along inspection stations. Quality control technicians verify real-time tolerance data, assembly checklists, and defect alerts on a clean, wipe-down screen.
Pharmacy retail chains utilize the screen along personal care aisles to deliver educational health tips and seasonal promotions, assisting shoppers in making informed healthcare purchasing decisions right at the shelf.
Factory Direct Capabilities: Rapid Prototyping and Modular Assembly Formats
ZXT operates as an authentic source manufacturer of industrial commercial displays, eliminating third-party trading intermediaries to provide direct engineering collaboration and transparent factory pricing. Over nine years of research, development, and production have yielded an extensive library of proven tooling designs. For our clients, this means zero tooling costs on standard sizes and expedited sample delivery within three business days. To accommodate diverse global import regulations and assembly preferences, we deliver hardware in turnkey finished packages or modular SKD/CKD formats. Supplying matched panel cells, pre-configured driver motherboards, wiring harnesses, and chassis components allows international partners to assemble locally, dramatically cutting air freight expenses and tariff burdens. Our design engineers work directly with your technical personnel, providing 3D CAD modeling files, structural tolerance consultations, and customized interface configurations.
Maintaining extensive raw glass cell inventories and pre-machined aluminum extrusions enables our factory to fulfill volume orders with rapid turnaround, minimizing project schedule risks for international contractors.
Display Integration & Technical FAQ
**Q1: Can we control the display power state remotely?**
Yes. The monitor supports standard HDMI CEC power synchronization and automated signal-sensing sleep modes, allowing connected media players to wake or sleep the display automatically according to operating schedules.
**Q2: What is the operating temperature range for this hardware?**
The display is engineered for wide-temperature commercial stability, operating reliably across ambient environments from -10°C to +50°C (with optional extended wide-temperature packages from -20°C to +70°C).
**Q3: How does ZXT guarantee consistent quality across volume production?**
Every production run undergoes 100% factory burn-in testing under elevated temperature and humidity conditions, optical colorimeter calibration, and rigorous mechanical vibration screening before packaging.
Commercial Quotation and Production Scheduling
Contact our technical sales team to request mechanical drawings, discuss volume pricing, or arrange a 3-day sample dispatch for the 37.6-inch panoramic stretched monitor. We deliver prompt factory-direct quotations and technical support.
