Non-touchscreen

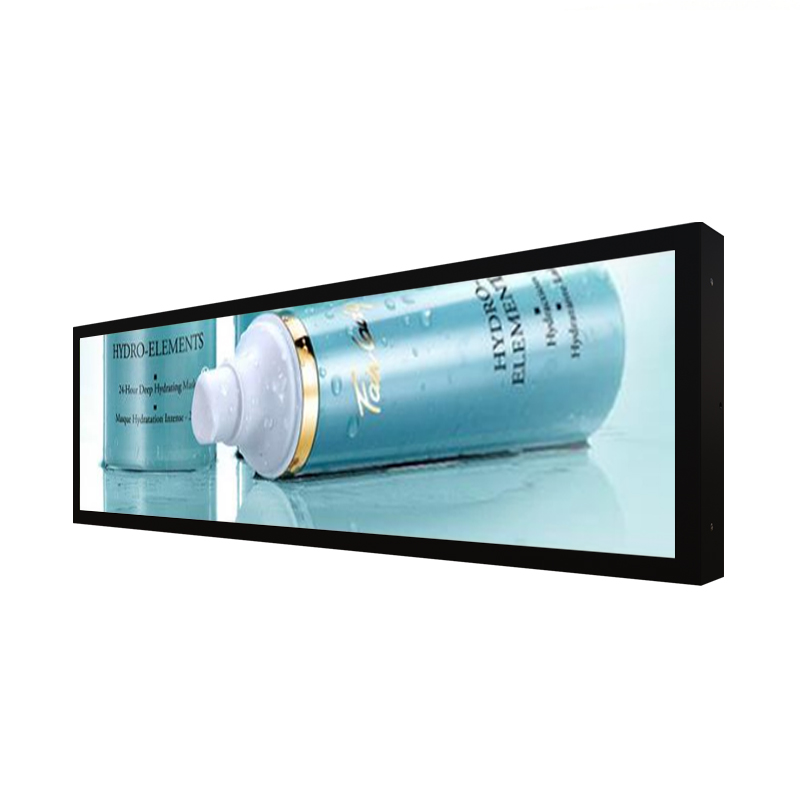

36 Inch ODM Custom Size Strip Screen Ultra-Wide Bar Lcd Panel Display for Supermarket Shelves
A 36-inch Ultra-Wide Bar LCD Panel with a resolution of 3840*1080 is installed at the end of the pharmacy shelf to push seasonal health reminders and medication information. During peak flu season, it automatically plays information on flu prevention and commonly used medications, and during seasonal changes, it pushes allergy medication reminders.
Specifications
- Screen Size
- 36 Inch
- Resolution
- 3840*1080/1920*540
- Display area
- 878.10*243mm
36 Inch ODM Custom Size Strip Screen Ultra-Wide Bar Lcd Panel Display for Supermarket Shelves
Professional 36 Inch Ultra-Wide LCD Display for Smart Retail Solutions
The 36 Inch ODM Custom Size Strip Screen Ultra-Wide Bar LCD Panel Display is a commercial-grade digital signage solution designed for supermarkets, retail stores, pharmacies, shopping malls, convenience stores, and other smart retail environments.
Its ultra-wide stretched design fits perfectly on shelf edges, display racks, checkout counters, and promotional areas, enabling retailers to replace traditional paper labels with dynamic digital advertising and real-time product information.
As a professional Commercial LCD Display Manufacturer, ZXTLCD offers complete OEM and ODM customization services for global distributors, retailers, and digital signage integrators.
Designed for Supermarket Shelf Applications
This Digital Shelf Edge Display is specifically developed for modern retail environments.
Typical applications include:
- Supermarket shelves
- Grocery stores
- Retail chains
- Pharmacies
- Cosmetic stores
- Electronics retailers
- Convenience stores
- Shopping malls
- Duty-free shops
- Brand promotional displays
The ultra-wide format helps retailers attract customer attention while improving the shopping experience through dynamic digital content.
36 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 36 inch | |
Resolution | 3840*1080/1920*540 | |
Brightness | 300~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Smart Android Digital Signage System
The display supports multiple intelligent media platforms for flexible deployment.
Available options include:
- Android operating system
- Windows embedded PC
- HDMI input
- USB multimedia playback
- LAN networking
- Wi-Fi connectivity
- Cloud CMS management
- Remote content updates
- Split-screen display
- Scheduled playback
- Automatic looping
Retailers can efficiently manage advertising campaigns across multiple stores through centralized content management.
Commercial-Grade Performance
Designed for demanding commercial applications, the display offers exceptional durability and reliability.
Commercial features include:
- Industrial IPS LCD panel
- 24/7 continuous operation
- Stable image performance
- Wide operating temperature range
- Energy-efficient LED backlight
- Durable aluminum enclosure
- Multiple installation methods
- Long service life
These characteristics make it ideal for large-scale retail digital signage projects.

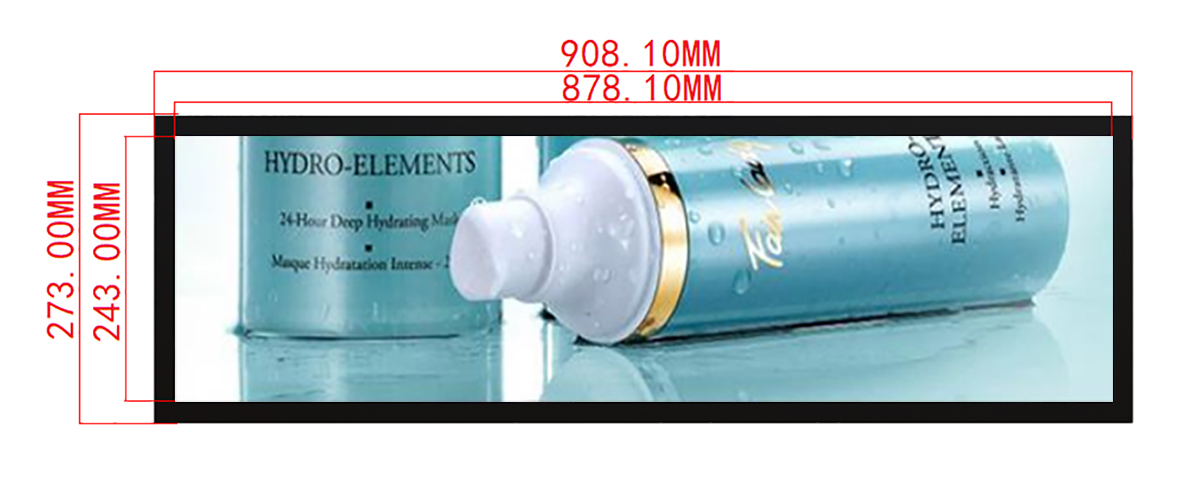

Product Dimension as follows:
OEM & ODM Custom Manufacturing
ZXTLCD provides comprehensive customization services to meet the requirements of global customers.
Customization options include:
- Custom display sizes
- Custom aspect ratios
- High brightness solutions
- Capacitive touch integration
- Android motherboard customization
- Windows embedded PC
- Housing design
- Logo printing
- CMS software integration
- Interface customization (HDMI, USB, LAN, Wi-Fi)
- Packaging customization
From concept design to mass production, ZXTLCD delivers complete OEM and ODM manufacturing solutions.
Partner with a Trusted Shelf Display Manufacturer
If you are searching for a reliable 36 Inch Stretched LCD Display Manufacturer, Digital Shelf Edge Display Supplier, Retail Advertising Screen Factory, or OEM Commercial Display Partner, ZXTLCD provides professional solutions tailored to your project requirements.
Our experienced engineering team supports custom hardware, software integration, and scalable production for supermarkets, retail chains, and smart store deployments worldwide.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
