Non-touchscreen

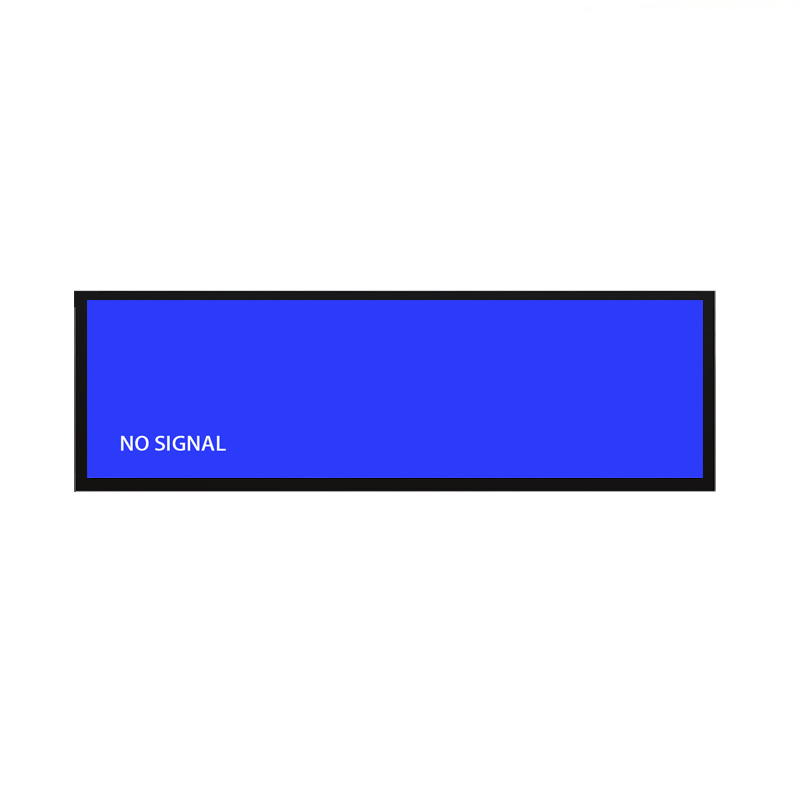

36 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Wholesale 36 inch industrial sheet metal bar monitor featuring 3840*1080/1920*540 resolution and 300~700 cd/㎡ calibrated luminance. True IPS full-viewing optics and low-power electrical design for large retail and transit deployments. Factory direct terms.
Specifications
- Screen Size
- 36 Inch
- Resolution
- 3840*1080/1920*540
- Brightness
- 300~700 cd/㎡
- Interface
- HDMI / VGA
36 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 36 inch | |
Resolution | 3840*1080/1920*540 | |
Brightness | 300~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Solving The Height Limitation: Engineering Custom Aspect Ratio Displays
The 36-inch ultra-wide bar monitor is designed specifically for environments where vertical space is tightly constrained. Delivering 3840*1080/1920*540 native resolution across its active 36-inch diagonal, it enables operators to present continuous promotional video loops, pricing updates, and transit announcements along narrow architectural surfaces.
Transportation authorities can broadcast synchronized route announcements and public service alerts in real time. The clear horizontal layout allows commuters to track their journey progress at a glance.
Replacing printed vinyl banners with dynamic digital strips allows shopping mall operators to monetize linear architectural surfaces, creating new advertising revenue streams across corridors and escalator bulkheads.
Optical Clarity at Scale: Active Matrix Performance in Panoramic Ratios
The 36-inch display features an industrial LCD panel offering 3840*1080/1920*540 resolution, 300~700 cd/㎡ brightness, and a 1200:1 contrast ratio. IPS wide-angle technology ensures CR≥10 wide-angle IPS optical alignment visibility, while the energy-efficient LED backlight provides an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
The anti-reflective surface treatment diffuses harsh ambient light sources, enabling viewers to comfortably read detailed pricing and route information without squinting or shifting positions.
Constant-current driving topology guarantees zero perceptible high-frequency flicker, providing a comfortable viewing experience for retail cashiers, office workers, and transit passengers alike.
Mechanical Integrity: Extrusion Tolerances and Fanless Thermal Management
Built for demanding industrial and transportation applications, the 36-inch sheet metal housing is formed from heavy-gauge cold-rolled electro-galvanized steel. The ruggedized enclosure provides superior mechanical shock absorption, structural stiffness, and excellent electromagnetic shielding (EMC), safeguarding internal timing and driving electronics from harsh factory floor vibration, motor noise, and vehicle chassis dynamics.
Thermal management relies on a purely passive, fanless conduction architecture. High-efficiency internal thermal heat-spreaders route heat away from the liquid crystal cell and driving chipsets directly into the external metallic chassis. By eliminating motorized fans, the monitor avoids internal dust accumulation, eliminates mechanical motor failure points, and operates in absolute acoustic silence—critical for quiet luxury retail and public service desks. Mounting versatility is integral to the enclosure design, featuring standard VESA mounting patterns alongside lateral slide-track channels.
Mechanical installation flexibility is ensured through standardized VESA 75x75 and 100x100 mounting patterns integrated directly into the rear chassis plate. In addition, continuous lateral T-slot channels allow technicians to slide and lock mounting brackets into exact position, simplifying alignment across long multi-display shelf runs or vehicle interior bulkheads.
Hardware Connectivity: HDMI, VGA, and Audio Distribution Provisions
Equipped with comprehensive input connectivity, the display integrates HDMI, VGA video ports to ensure straightforward interfacing with commercial computing systems. Whether driven by an Android media player, a Windows industrial PC, or an embedded Linux box, the internal video processor scales incoming signals smoothly, maintaining correct aspect ratio geometry without edge cropping or horizontal stretching. An integrated Audio Socket (3.5mm) delivers clear audio output, making it simple to add auxiliary sound reinforcement for interactive promotions, queue call-outs, and transit transfer alerts. Power efficiency is a hallmark of this design. Built to run on universal standard 110V to 240V AC power input mains power, the monitor draws no more than ≤ 60w during active operation. The hardware is built to operate under demanding environmental conditions, rated for continuous performance from below10℃ ~ +50℃ with non-condensing humidity up to ≤ 85%RH.
Low overall operational power consumption keeps thermal emissions minimal, reducing the air-conditioning load in enclosed retail kiosks, transit carriages, and server room equipment racks.
Low total power draw minimizes operational utility expenses across multi-screen commercial rollouts, helping enterprise clients achieve energy conservation targets and reduce overall operating expenditure.
Decoupled Open-Architecture Display for Multi-OS Environments
Experience complete operational freedom with a display engineered for universal HDMI video integration. Unencumbered by proprietary player restrictions, it interfaces smoothly with external Windows computers, Android network players, and Linux automation devices. This architecture allows venues to easily upgrade media player hardware or switch digital signage CMS software over time without replacing the display itself.
Deployment Vectors: Retail Shelves, Passenger Transoms, and Control Consoles
The 36-inch panoramic display excels in spaces where horizontal information delivery enhances operational efficiency. In smart supermarket aisles, it provides eye-level pricing and product promotions. In transit hubs, it serves as an overhead route indicator above passenger boarding gates. In corporate headquarters, it functions as an elegant architectural directory, while in industrial server rooms, it provides clear rack-mount telemetry feeds.
In luxury cosmetics and high-end department store showcases, the display functions as an elegant digital riser that highlights brand prestige. Subtle video animations and product feature breakdowns complement the physical merchandise, elevating retail aesthetics and customer dwell time.
High-end fashion boutiques and cosmetics flagship stores utilize the display as a luxury architectural accent. Seamlessly integrated into glass shelving and perfume risers, the screen elevates brand perception while presenting subtle, cinematic promotional footage.
Procuring From The Source: Verified Commercial Quality and Transparent Pricing
Sourcing directly from ZXT provides commercial display buyers with verified factory pricing, established extrusion tooling, and rapid turnaround. Backed by nine-plus years of manufacturing experience, we offer standard sample dispatch within three days, zero tooling fees on standard sizes, and comprehensive 2D/3D CAD engineering support for international project developers.
Our modular SKD and CKD export programs empower international partners to assemble displays locally, qualifying for favorable regional tariff classifications and reducing international freight costs.
Procurement & Technical Verification FAQ
**Q1: Can this display be integrated into third-party kiosk cabinetry?**
Yes. The compact enclosure profile, standardized VESA mounting holes, and optional open-frame mounting ears make it exceptionally straightforward to integrate into self-service kiosks, vending machines, and ATMs.
**Q2: How does ZXT support overseas localized assembly?**
Through our established SKD/CKD programs, we provide tested sub-assemblies, detailed assembly process documentation, and technical support to assist overseas partners in establishing localized production.
**Q3: How do we initiate an engineering consultation for custom specifications?**
Simply contact our technical sales department with your target installation parameters, dimensional constraints, and order volumes, and our engineering team will provide a comprehensive proposal within two hours.
Technical Consultation and Custom Bracket Inquiries
Inquire today for factory-direct pricing, 3D STEP CAD models, or evaluation sample units of the 36-inch commercial stretched bar display. Our engineering staff is ready to assist with custom hardware scoping within two hours.
