36.8 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Source factory supply of 36.8 inch industrial sheet metal bar monitor with 1920*360 resolution and 200~400 cd/㎡ luminous output. Engineered for continuous commercial duty in retail gondolas, vehicle headers, and control rooms. Fast 72-hour sample dispatch and modular SKD export kits.
Specifications
- Screen Size
- 36.8 Inch
- Resolution
- 1920*360
- Brightness
- 200~400 cd/㎡
- Interface
- HDMI / VGA
36.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 36.8 inch | |
Resolution | 1920*360 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Engineering: Unlocking Underutilized Architectural Perimeters
Retail merchandising and passenger transit environments demand specialized displays designed for narrow linear perimeters. The 36.8-inch stretched LCD monitor satisfies this requirement by providing 1920*360 native resolution across an active 36.8-inch diagonal, maximizing horizontal display area while preserving valuable vertical clearance.
The specialized cut-bar aspect ratio allows software developers to design multi-zone split-screen layouts. Static brand banners can run alongside animated promotional videos, maximizing screen utility within a single fixture.
The horizontal display geometry aligns naturally with human horizontal glance paths, ensuring that dynamic price callouts and route stops catch attention without requiring shoppers or commuters to look away from their primary path.
Commercial Grade Panel Engineering: 24/7 Duty Cycle and Low Luminous Decay
Delivering high visual precision, the 36.8-inch stretched screen features a native resolution of 1920*360 and 200~400 cd/㎡ luminance. The 1200:1 contrast ratio ensures clear text and dynamic visuals, while IPS ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles and a over 60,000 hours of continuous 24/7 commercial duty backlight lifespan support dependable 24/7 commercial operation.
Carefully tuned gamma curves ensure smooth shadow transitions and clean highlight separation, allowing subtle photographic details to shine in commercial promotional campaigns.
Wide-color-gamut phosphor LEDs provide vibrant red, green, and blue saturation, ensuring that food, apparel, and corporate branding assets render with striking visual fidelity and commercial appeal.
Mechanical Integrity: Extrusion Tolerances and Fanless Thermal Management
Built for demanding industrial and transportation applications, the 36.8-inch sheet metal housing is formed from heavy-gauge cold-rolled electro-galvanized steel. The ruggedized enclosure provides superior mechanical shock absorption, structural stiffness, and excellent electromagnetic shielding (EMC), safeguarding internal timing and driving electronics from harsh factory floor vibration, motor noise, and vehicle chassis dynamics.
Thermal management relies on a purely passive, fanless conduction architecture. High-efficiency internal thermal heat-spreaders route heat away from the liquid crystal cell and driving chipsets directly into the external metallic chassis. By eliminating motorized fans, the monitor avoids internal dust accumulation, eliminates mechanical motor failure points, and operates in absolute acoustic silence—critical for quiet luxury retail and public service desks. Mounting versatility is integral to the enclosure design, featuring standard VESA mounting patterns alongside lateral slide-track channels.
Mechanical installation flexibility is ensured through standardized VESA 75x75 and 100x100 mounting patterns integrated directly into the rear chassis plate. In addition, continuous lateral T-slot channels allow technicians to slide and lock mounting brackets into exact position, simplifying alignment across long multi-display shelf runs or vehicle interior bulkheads.
Power Supply Architecture: Wide-Voltage Regulation and Energy Conservation
System integrators will appreciate the plug-and-play connectivity engineered into this commercial display. Featuring standard HDMI, VGA video connections, the display links directly to external digital media players, embedded box PCs, and workstation graphic cards. The internal scaling processor automatically configures custom wide-aspect raster timings, ensuring hassle-free software configuration during site commissioning. Audio integration is facilitated via a Audio Socket (3.5mm), giving installers the flexibility to connect local directional audio speakers, auxiliary sound bars, or central PA routing systems for synchronized broadcasts. Operating across a wide input voltage range of global 100~240V line voltage at 50/60Hz, the internal power supply provides stable electrical isolation against power surges, voltage drops, and harmonic line noise. Active operational power consumption is constrained to ≤ 60w, while environmental durability is certified across ambient temperatures of below10℃ ~ +50℃ and humidity levels reaching ≤ 85%RH.
Industrial-grade capacitors and solid-state power components ensure dependable electrical performance across wide ambient temperature swings, preventing unexpected restarts or power-cycling issues.
Wide-range AC input tolerance ensures stable display operation in regions with unstable electrical grids, absorbing line surges, voltage drops, and brownouts without interrupting continuous public broadcasts.
Universal OS Adaptability: Freedom from Proprietary Lock-In

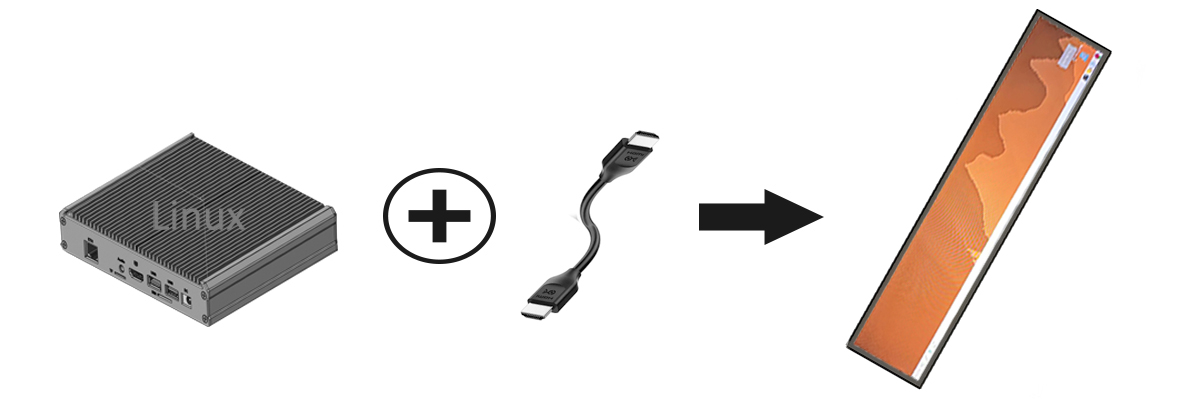

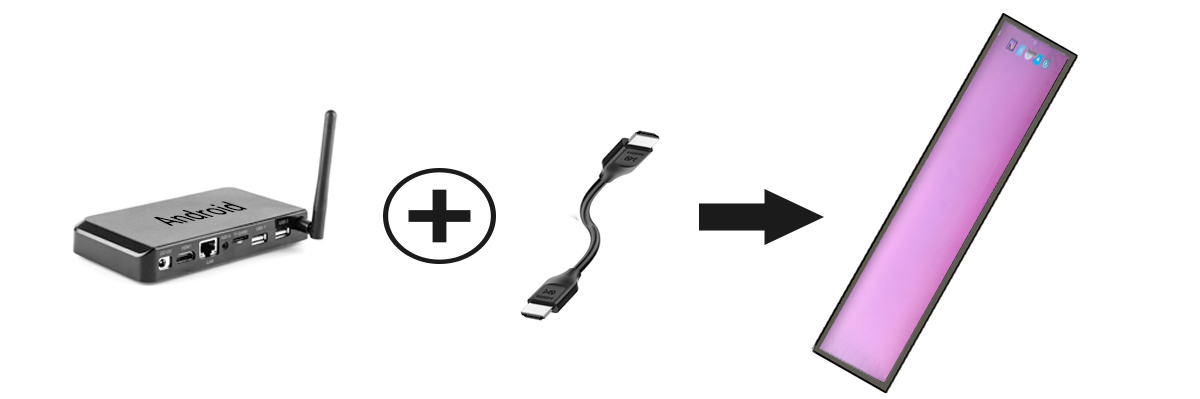

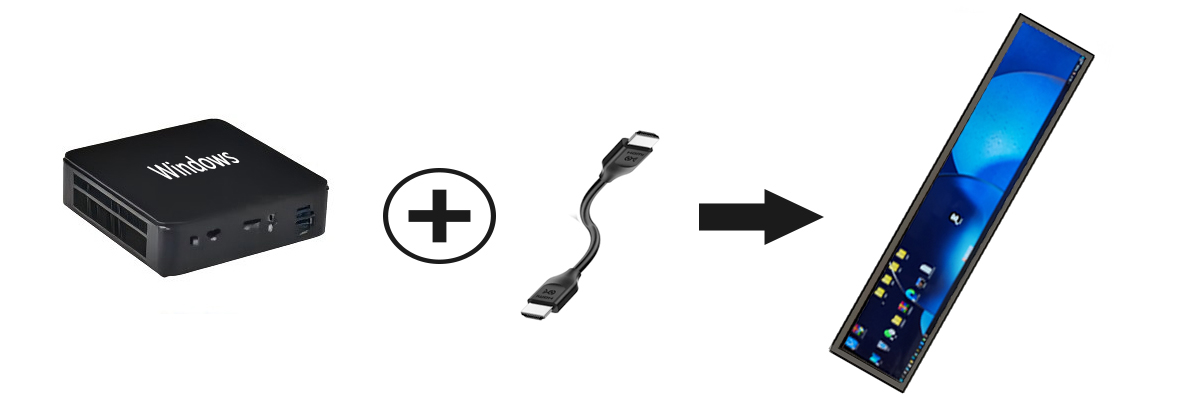

Enterprise display infrastructure requires absolute software freedom. By separating the optical display panel from host processing logic, this monitor prevents premature hardware retirement caused by outdated onboard chipsets. Connecting an external media player running Windows, Android, or Linux via HDMI provides instant video synchronization, allowing enterprise IT managers to run their chosen digital signage CMS or telemetry dashboard unimpeded.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 36.8-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
Engineering Consultation: Firmware Tuning, Pinout Schemes, and CAD Blueprints
ZXT provides direct factory manufacturing of commercial stretched bar displays, eliminating middleman costs. We maintain in-stock tooling for standard sizes, deliver evaluation samples within three business days, and provide complete 2D/3D CAD models and modular SKD/CKD shipping options to support overseas assembly.
Direct factory communication eliminates the misunderstandings common with trading intermediaries, giving project managers clear visibility into production milestones and shipping schedules.
Enterprise Signage & Procurement FAQ
**Q1: Does this display require proprietary cloud subscriptions?**
No. The monitor functions as an open commercial display without mandatory software licensing or ongoing platform fees, leaving you completely free to select any commercial or open-source digital signage CMS.
**Q2: What viewing angles does the display support?**
Equipped with true IPS wide-angle optical alignment, the screen delivers symmetrical 178-degree (89°/89°/89°/89°) viewing cones without color shifting, contrast degradation, or visual washout.
**Q3: Can this display be installed in both horizontal and vertical orientations?**
Yes. The commercial-grade liquid crystal panel and fanless thermal design support both landscape horizontal banners and portrait vertical totem installations with equal reliability.
Project Scoping and Commercial Hardware Proposal
Get in touch with ZXT's international engineering desk to discuss project specifications, CAD models, or sample orders for the 36.8-inch stretched bar monitor. Our team provides fast, professional commercial proposals.
