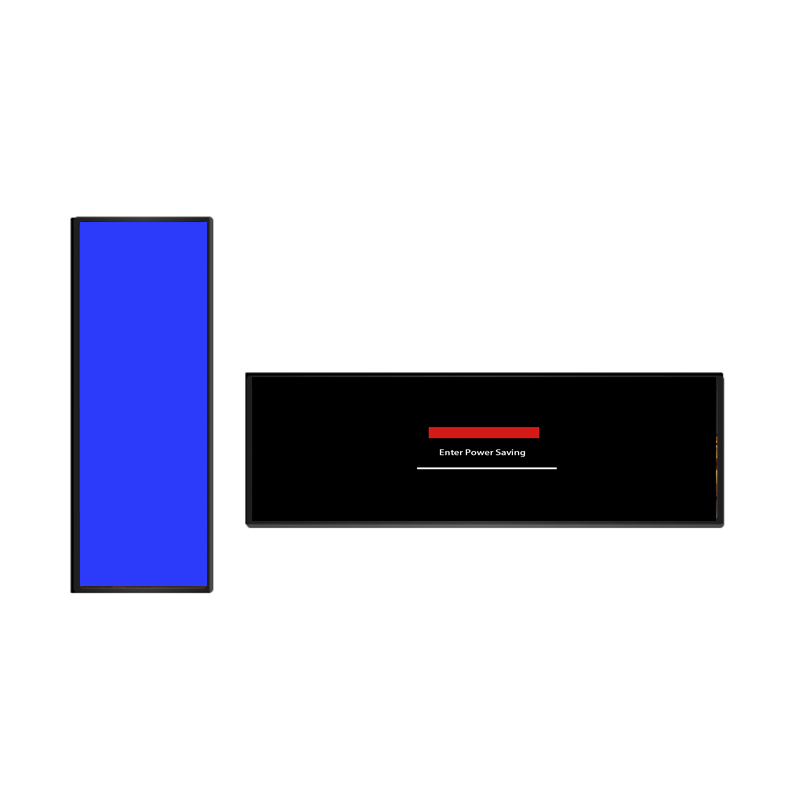

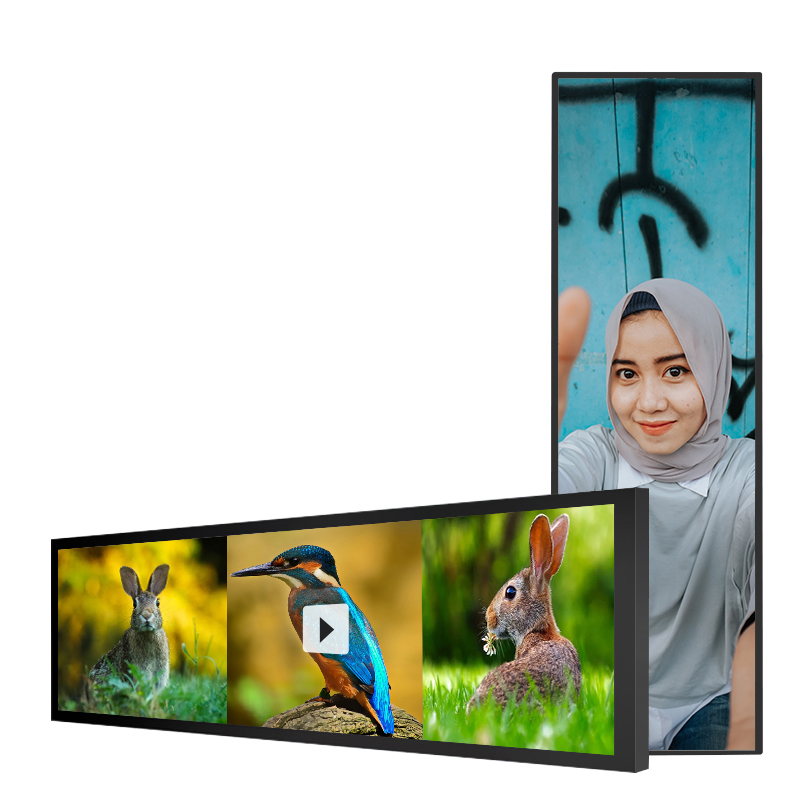

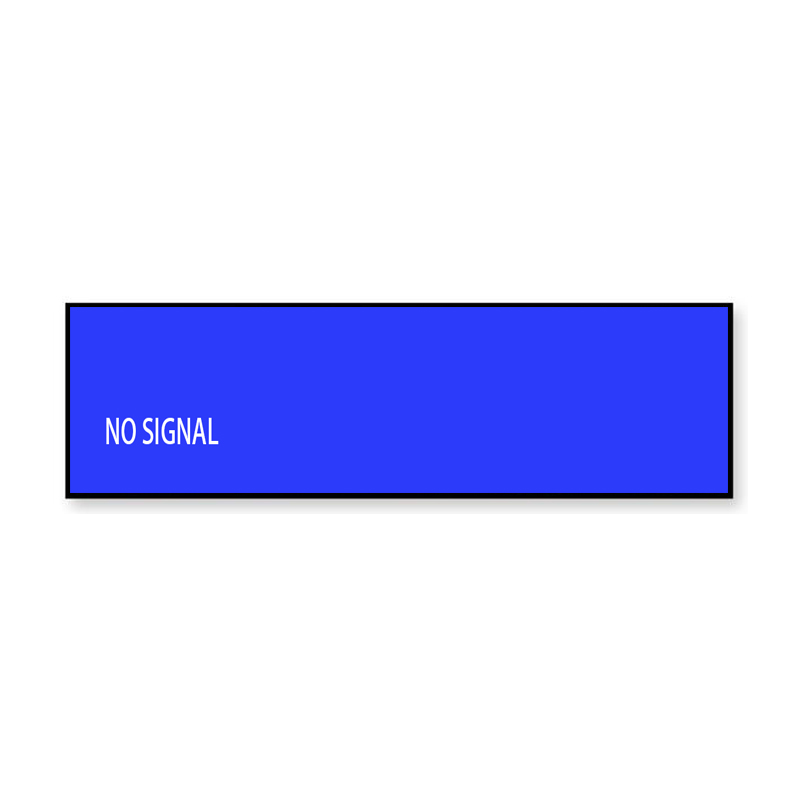

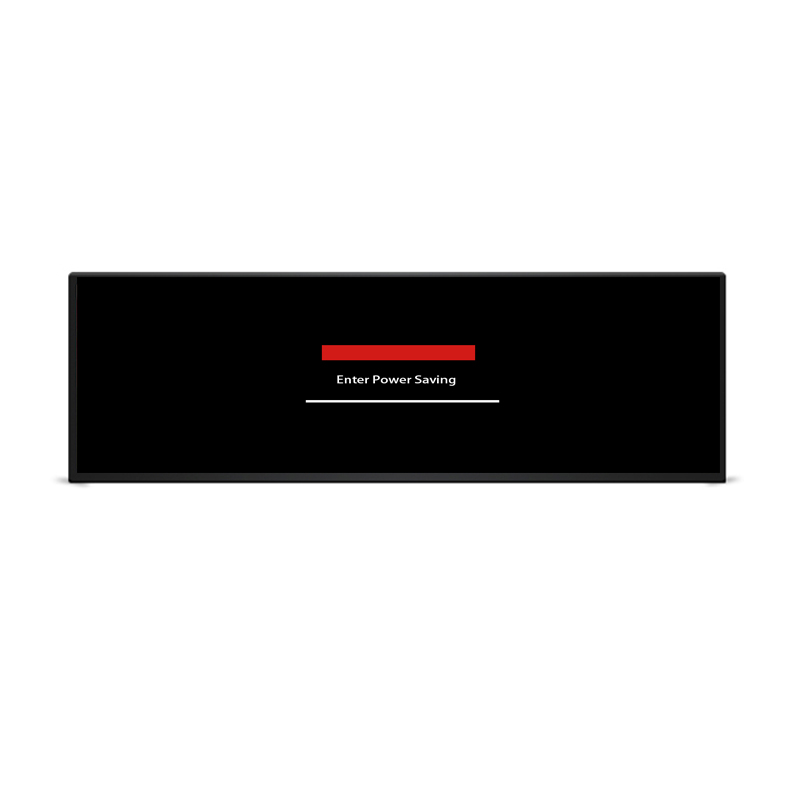

Commercial Display Signage: 36.6 Inch Ultra-Wide Bar LCD Monitor
Commercial 36.6 inch industrial sheet metal bar monitor with 1920*360 native resolution and 400 cd/㎡ brightness. Built for continuous operation across transport networks, retail aisles, and industrial facilities. Rapid global fulfillment from Shenzhen.
Specifications
- Screen Size
- 36.6 Inch
- Resolution
- 1920*360
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
36.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 36.6 inch | |
Resolution | 1920*360 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Overcoming Installation Bottlenecks Along Linear Commercial Surface Headers
When installation height is restricted to narrow horizontal strips, standard monitors waste space and disrupt interior design. The 36.6-inch stretched bar LCD monitor provides a compact, purpose-built solution, presenting 1920*360 resolution across an active 36.6-inch diagonal. It allows retailers, transit authorities, and industrial plants to broadcast high-definition media without sacrificing clearance.
Passenger transport operators require displays that deliver clear information without obstructing carriage sightlines. These low-profile monitors fit neatly above doorways, ensuring passengers stay informed throughout their journeys.
Store fixture builders benefit from standardized mounting dimensions that speed up initial assembly. The display drops cleanly into pre-formed cabinet openings, reducing workshop labor and speeding up store opening schedules.
Commercial Grade Panel Engineering: 24/7 Duty Cycle and Low Luminous Decay
Delivering high visual precision, the 36.6-inch stretched screen features a native resolution of 1920*360 and 400 cd/㎡ luminance. The 1200:1 contrast ratio ensures clear text and dynamic visuals, while IPS ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles and a over 60,000 hours of continuous 24/7 commercial duty backlight lifespan support dependable 24/7 commercial operation.
Carefully tuned gamma curves ensure smooth shadow transitions and clean highlight separation, allowing subtle photographic details to shine in commercial promotional campaigns.
Wide-color-gamut phosphor LEDs provide vibrant red, green, and blue saturation, ensuring that food, apparel, and corporate branding assets render with striking visual fidelity and commercial appeal.
Chassis Architecture: Shock Absorption, Shielding, and Mounting Versatility
Housed in an industrial cold-rolled steel enclosure, the 36.6-inch monitor delivers high structural durability for demanding plant and transit environments. The corrosion-treated steel casing provides robust impact protection, shielding internal A/D boards and power converters from workshop debris and mechanical shocks.
The mechanical enclosure incorporates solid-state passive thermal dissipation, transferring heat away from internal components through high-conductivity internal heat spreaders. By eliminating mechanical fans, the unit operates in complete silence and prevents dust buildup inside the chassis. The rear casing includes standard VESA mounting points and adjustable side mounting channels for flexible installation on walls, poles, or custom fixtures.
Engineered for rapid field deployment, the chassis includes adjustable side-mounting flange ears that secure the display into custom metal cabinetry or wooden millwork. Vibration-damped rubber grommets isolate the display structure from external mechanical shocks in heavy machinery setups.
Power Management: Minimizing Wattage Draw Across Multi-Screen Deployments
The display incorporates HDMI, VGA video inputs for immediate compatibility with external digital signage players and embedded PCs. Video signals are scaled accurately without distortion. Audio output is provided via a Audio Socket (3.5mm), while the universal power supply supports global 100~240V line voltage at 50/60Hz with an energy-efficient draw of ≤ 60w. Environmental ratings cover temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
The video processing engine features adaptive edge-smoothing algorithms that scale standard video resolutions cleanly across the ultra-wide aspect ratio without introducing pixel distortion or visual artifacts.
Automatic video signal recovery firmware monitors input signal integrity continuously, instantly re-establishing video synchronization following external player reboots or signal switching events.
Hardware-Agnostic Display Architecture via High-Definition Video
Designed with an uncompromised open-platform philosophy, this commercial screen avoids embedded operating system obsolescence. Through universal HDMI signal linking, installers can interface any external computing unit—whether powered by Windows, Android OS, or embedded Linux kernels. This freedom empowers network administrators to run custom touch kiosk interfaces, web-based digital menu boards, or PLC automation software with zero compatibility friction.
Realized Applications: Corporate Entrances, Transit Cabins, and Control Rooms
The 36.6-inch stretched bar LCD monitor meets the demands of high-traffic commercial environments. It is deployed along retail shelving for dynamic promotional pricing, within transit vehicles for passenger route alerts, in data centers for equipment telemetry, and in commercial lobbies for building directories.
Museums and interactive exhibition pavilions utilize this linear display on exhibit pedestals and showcase fascias. Curators deliver rich multimedia storytelling, historical timelines, and artifact context alongside delicate physical exhibits.
Sports arenas and entertainment venues deploy the display above concession stands to showcase live score feeds and food specials simultaneously, keeping fans engaged while driving food and beverage revenue.
Source Factory Authority: In-Stock Tooling, SKD Export, and Zero NRE Costs
Partnering directly with ZXT connects your project team straight to our manufacturing floor, bypassing intermediary markups and communication delays. With over nine years of dedicated display engineering and 300+ commercial projects worldwide, we maintain permanent in-stock inventories of standard aluminum extrusion profiles and stamping molds. This in-stock tooling advantage allows our clients to deploy custom stretched hardware without expensive initial NRE tooling charges, backed by fast 3-day sample dispatch for standard configurations. To support overseas display brands, repair facilities, and volume contractors seeking to optimize import tariffs and international shipping costs, we offer complete flexibility in delivery formats. Choose from fully assembled turnkey displays, open-frame kits for cabinet integration, or modular SKD/CKD component bundles including factory-tested LCD glass, matched A/D driver boards, and precision-stamped chassis hardware. Our engineering team provides comprehensive design support, delivering 2D engineering blueprints, 3D STEP CAD files, and connector pinout schematics.
Every production unit undergoes comprehensive factory burn-in testing under elevated temperature and humidity conditions, ensuring exceptional out-of-the-box reliability for overseas project deployments.
Field Application & Installation FAQ
**Q1: How does this monitor connect to external audio systems?**
The display extracts audio from the incoming HDMI stream and routes it through an onboard 3.5mm audio socket, allowing installers to link external sound systems for synchronized promotional announcements.
**Q2: What mounting standards are supported on the rear chassis?**
The rear casing incorporates industry-standard VESA mounting patterns alongside adjustable lateral slide-nut tracks, supporting wall brackets, ceiling drop-poles, articulated arms, and custom cabinet cutouts.
**Q3: Can ZXT adjust panel brightness for semi-outdoor or sunlit storefronts?**
Yes. In addition to standard commercial luminance ratings, we offer custom high-brightness LED backlight configurations reaching up to 1000+ nits, equipped with automatic ambient light dimming sensors.
