Non-touchscreen
Stretched Bar LCD Monitor – 35 Inch High-Definition Commercial Screen
Factory-direct 35 inch industrial sheet metal bar monitor delivering 1920*270 panoramic display resolution and 400 cd/㎡ brightness. Fanless solid-state cooling for silent, dust-free operation in demanding commercial environments.
Specifications
- Screen Size
- 35 Inch
- Resolution
- 1920*270
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
35 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 35 inch | |
Resolution | 1920*270 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Addressing Narrow Mounting Footprints in High-Density Retail and Public Transit
The physical layout of modern retail gondolas and public transit carriages leaves little room for bulky consumer-style displays. The 35-inch stretched bar screen provides an elegant alternative, delivering native 1920*270 resolution within an ultra-thin vertical envelope. It enables dynamic multimedia advertising and passenger wayfinding to operate in spaces where standard screens simply cannot fit.
From corporate reception desks to boutique retail showcases, linear digital screens elevate brand perception. High-resolution panoramic graphics create a modern, tech-forward atmosphere that distinguishes premium venues from competitors.
By delivering panoramic visual authority in spaces measuring just a few inches in height, this hardware unlocks dynamic promotional channels along architectural boundaries that traditional AV hardware simply cannot reach.

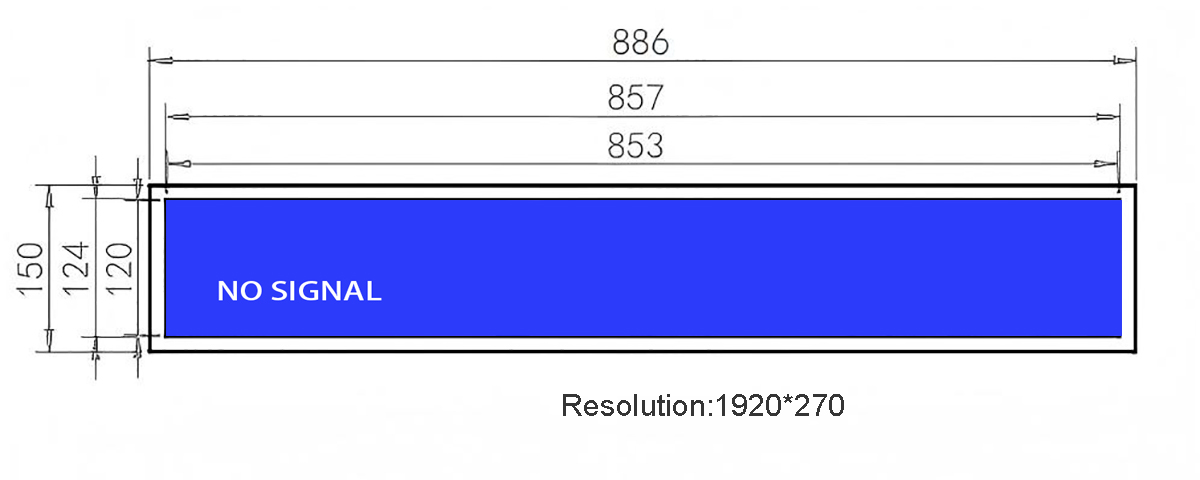

Image Reproduction: Wide Aspect Pixel Mapping and Accurate Color Rendering
The optical system of the 35-inch panoramic display features 1920*270 resolution, 400 cd/㎡ brightness, and a 1200:1 contrast ratio. True IPS technology guarantees true IPS 178-degree wide visual cone viewing angles without color distortion, while the industrial LED backlight ensures an industrial service life exceeding 60,000 hours of continuous commercial operation.
The liquid crystal panel is engineered for rapid pixel response times, eliminating ghosting and motion blur during fast-scrolling advertising text and high-frame-rate video playback.
The protective front glass surface combines high optical transparency with oil-resistant surface properties, repelling accidental fingerprint smudges and preserving pristine screen clarity in public environments.
Enclosure Craftsmanship: Aerospace Aluminum and Galvanized Sheet Steel Options
The 35-inch sheet metal chassis utilizes precision-bent electro-galvanized cold-rolled steel plates engineered to withstand severe physical impacts and continuous mechanical stresses. Its heavy-duty framework provides high torsional rigidity, internal vibration isolation, and superior RF noise attenuation in automated manufacturing and transit installations.
To achieve maximum operational lifespan, the monitor utilizes a convection-optimized fanless thermal layout. Heat generated by the LED backlight and power conversion circuitry is dissipated evenly across the external metal body, preventing internal localized hotspots. This solid-state passive design completely prevents airborne grease, moisture, and dust particles from being sucked into the display casing, ensuring uninterrupted reliability in busy commercial settings. Versatile installation is facilitated through standardized rear VESA hole patterns as well as lateral slide-nut mounting channels.
The rear enclosure features dual-plane mounting points that support both direct wall-bracket hanging and articulated arm anchoring. Recessed cable entry ports allow wiring harnesses to exit flush against mounting surfaces, preventing pinched wires and maintaining a clean architectural appearance.
Audio-Visual Processing: Audio Socket Provision and Pixel-to-Pixel Mapping
Featuring standard HDMI, VGA video interfaces, the display connects directly to commercial media players and industrial computing hardware. Automatic video timing synchronization ensures accurate pixel mapping. An integrated Audio Socket (3.5mm) supports external audio connectivity, while the power module accepts standard 110V to 240V AC power input with power consumption rated at ≤ 60w. The monitor operates reliably across temperatures of below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Universal mains power input simplifies international deployment, allowing system builders to install the same hardware globally without requiring external voltage transformers or specialized power adapters.
Standardized video connector placement and reinforced cable strain-relief points ensure that HDMI and VGA cables remain securely anchored, even when deployed in vibrating buses or rail vehicles.

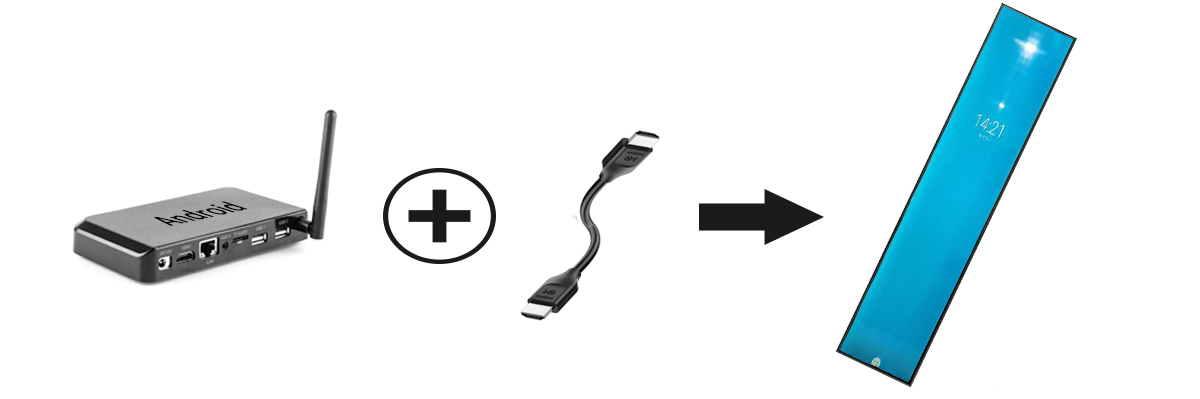

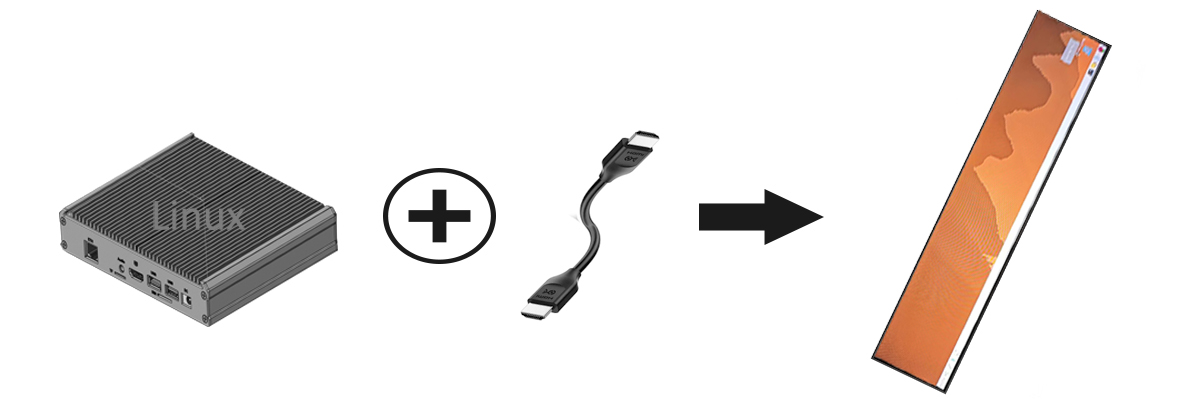

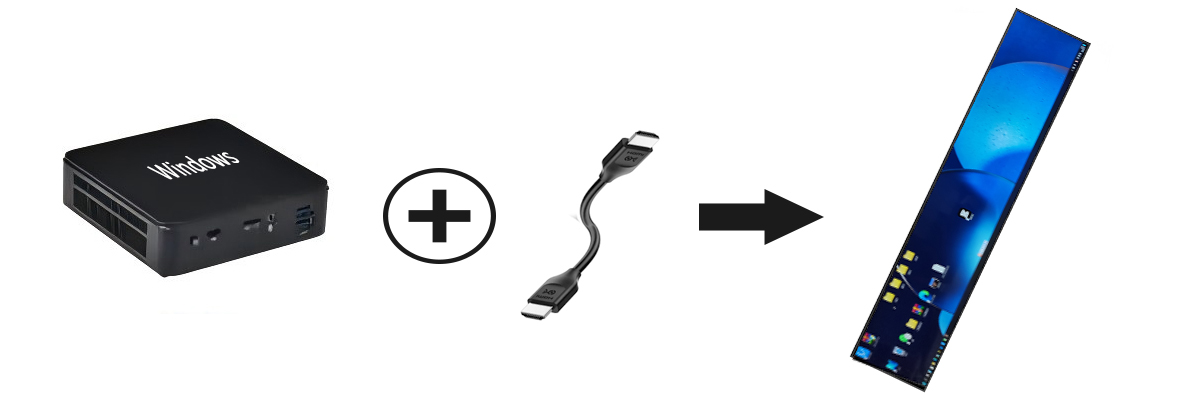

Frictionless Cross-Platform Operation (Windows, Android, Linux)
Avoid the hidden costs and vendor lock-in associated with closed smart screen ecosystems. Featuring standard high-definition HDMI video interfacing, the display supports immediate cross-platform compatibility across Windows workstations, Android compute sticks, and industrial Linux appliances. Operators can switch host operating systems in seconds to match evolving CMS software, passenger information engines, or automated factory monitoring frameworks.
Deployment Analysis: Where Panoramic Display Form Factors Deliver Peak Value
Deploying the 35-inch panoramic display enables venues to present dynamic video messaging in previously inaccessible spaces. Key applications include retail grocery shelf signage, commuter train door route maps, corporate elevator transom directories, and manufacturing facility production status banners.
Corporate office towers mount this screen across elevator door lintels and common hallway corridors. Building managers broadcast tenant announcements, weather alerts, and corporate communications in an unobtrusive, contemporary format.
Museum curators praise the display's ability to deliver rich historical context alongside delicate artifacts. The low-profile screen fits neatly into exhibit vitrines and pedestals without distracting visitors from the physical collection.
Turnkey and Modular Supply: Helping International Partners Scale Deployments
ZXT delivers factory-direct manufacturing for commercial stretched bar displays, offering competitive pricing, in-stock tooling, and 3-day sample turnaround. We provide complete technical support, including 2D/3D CAD models and modular SKD delivery to optimize international tariffs.
We partner with system integrators to build long-term commercial relationships, offering transparent volume-tiered pricing structures and dedicated account management for enterprise digital signage initiatives.
Enterprise Signage & Procurement FAQ
**Q1: Does this display require proprietary cloud subscriptions?**
No. The monitor functions as an open commercial display without mandatory software licensing or ongoing platform fees, leaving you completely free to select any commercial or open-source digital signage CMS.
**Q2: What viewing angles does the display support?**
Equipped with true IPS wide-angle optical alignment, the screen delivers symmetrical 178-degree (89°/89°/89°/89°) viewing cones without color shifting, contrast degradation, or visual washout.
**Q3: Can this display be installed in both horizontal and vertical orientations?**
Yes. The commercial-grade liquid crystal panel and fanless thermal design support both landscape horizontal banners and portrait vertical totem installations with equal reliability.
Direct Commercial Inquiry and Specification Review
Initiate your project consultation for the 35-inch stretched bar display by contacting our international technical sales team. We are prepared to provide 2D/3D mechanical drawings, verify electrical interfaces, and expedite 3-day evaluation samples for your team. Submit your project scope and quantities today for a prompt factory quotation within two business hours.
