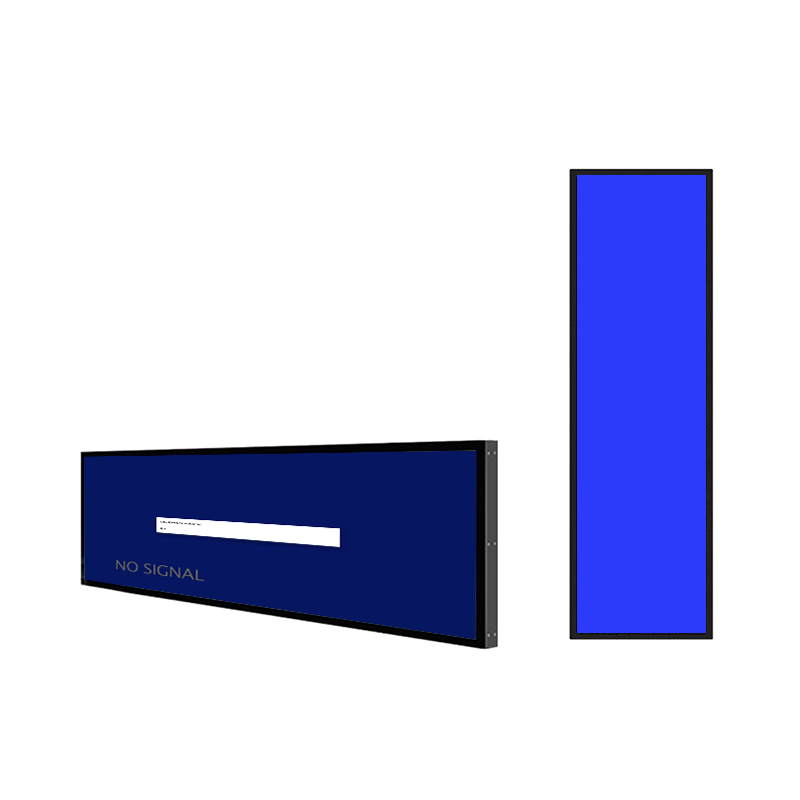

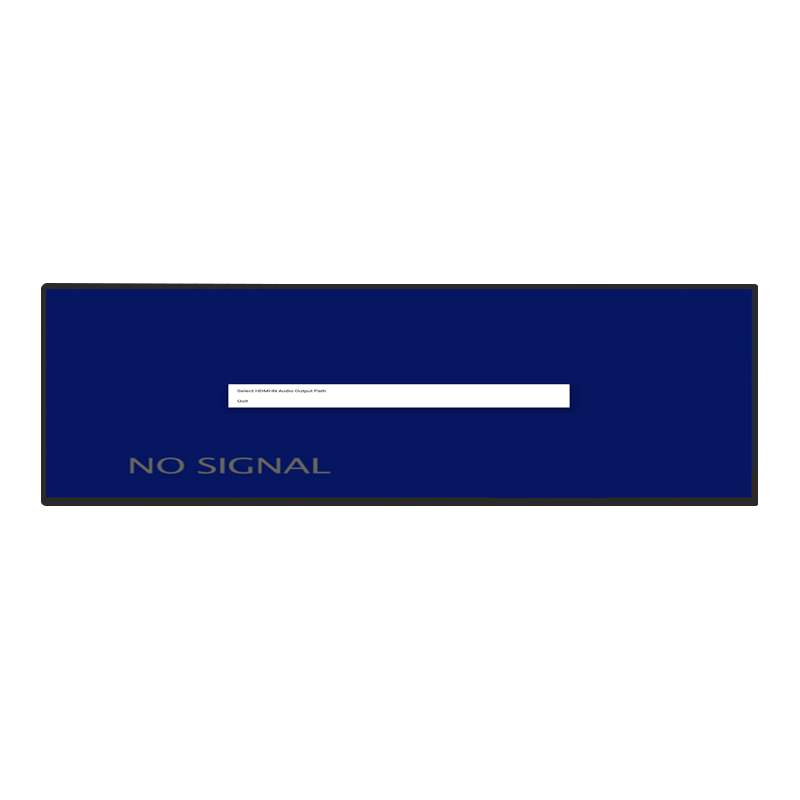

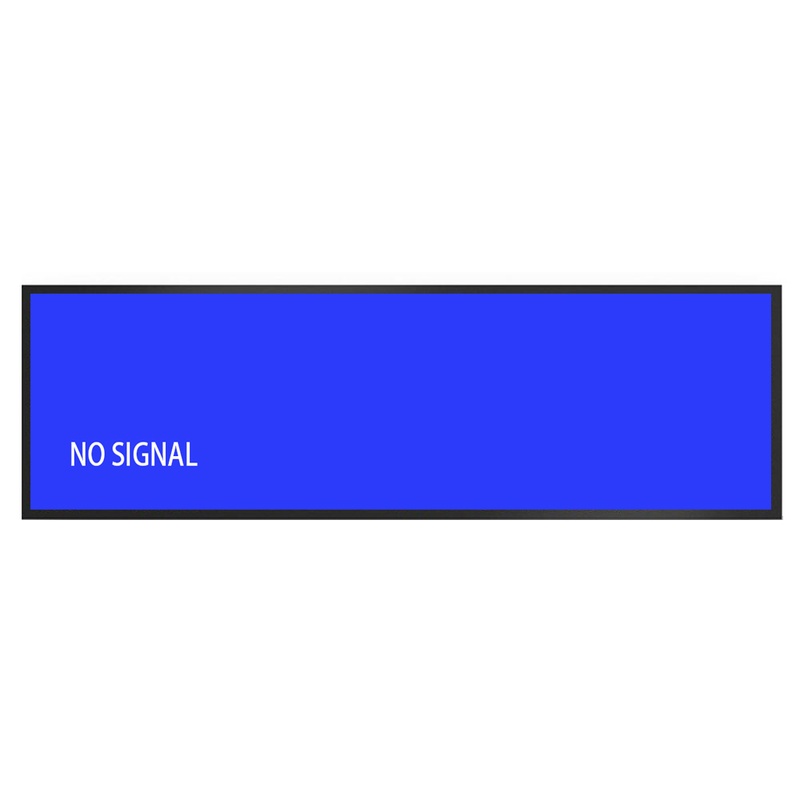

Industrial 35.9 Inch Bar Type Monitor Display with Rugged Sheet Metal

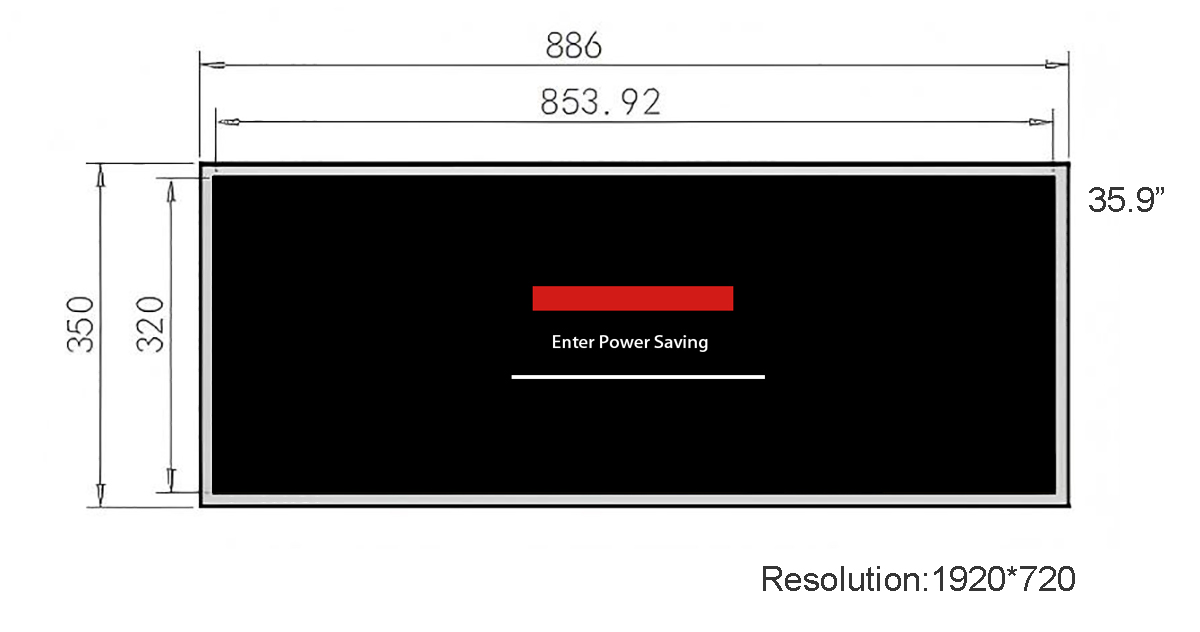

Source manufacturer supply of 35.9 inch industrial sheet metal bar monitor with 1920*720 resolution and 400 cd/㎡ brightness. High-durability commercial display engineered for 24/7 public service. Complete 2D/3D CAD mounting blueprints upon request.
Specifications
- Screen Size
- 35.9 Inch
- Resolution
- 1920*720
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
35.9 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 35.9 inch | |
Resolution | 1920*720 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
The Architectural Case for Stretched Displays: Minimizing Dead Visual Zones
Eliminating physical clutter while delivering high-impact visual data is the central purpose of the 35.9-inch stretched display. Rather than forcing oversized standard screens into narrow architectural margins, operators can install this sleek 35.9-inch unit delivering native 1920*720 resolution. It converts dormant shelf headers and transit door transoms into valuable digital real estate without requiring structural renovations.
Facilities running round-the-clock public operations require signage hardware that operates reliably with minimal human intervention. These stretched screens provide consistent, continuous operation, ensuring uninterrupted visual communication.
Operating within restricted physical envelopes without generating localized heat pockets is critical for equipment longevity. The streamlined geometry facilitates natural airflow across rear thermal conduction planes.
Optical Performance Under Harsh Commercial and Ambient Lighting Conditions
With an active display area delivering 1920*720 resolution, the 35.9-inch stretched monitor provides crisp panoramic visuals. Calibrated to 400 cd/㎡ with a 1200:1 contrast ratio, it ensures strong visual impact in well-lit retail and transit spaces. Symmetrical symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours backlight rating provide reliable long-term performance.
High static contrast ensures that fine text fonts stand out distinctly against dark backgrounds, maximizing information legibility for dynamic route maps and transportation schedules.
Even luminance distribution across the elongated horizontal raster prevents localized hot spots, ensuring that scrolling promotional text and flight arrival lists maintain uniform visual intensity from end to end.
Mechanical Integrity: Extrusion Tolerances and Fanless Thermal Management
Built for demanding industrial and transportation applications, the 35.9-inch sheet metal housing is formed from heavy-gauge cold-rolled electro-galvanized steel. The ruggedized enclosure provides superior mechanical shock absorption, structural stiffness, and excellent electromagnetic shielding (EMC), safeguarding internal timing and driving electronics from harsh factory floor vibration, motor noise, and vehicle chassis dynamics.
Thermal management relies on a purely passive, fanless conduction architecture. High-efficiency internal thermal heat-spreaders route heat away from the liquid crystal cell and driving chipsets directly into the external metallic chassis. By eliminating motorized fans, the monitor avoids internal dust accumulation, eliminates mechanical motor failure points, and operates in absolute acoustic silence—critical for quiet luxury retail and public service desks. Mounting versatility is integral to the enclosure design, featuring standard VESA mounting patterns alongside lateral slide-track channels.
Mechanical installation flexibility is ensured through standardized VESA 75x75 and 100x100 mounting patterns integrated directly into the rear chassis plate. In addition, continuous lateral T-slot channels allow technicians to slide and lock mounting brackets into exact position, simplifying alignment across long multi-display shelf runs or vehicle interior bulkheads.
Electrical Reliability: Transient Surge Defense and Clean Signal Routing
Connecting the display into enterprise IT and AV networks is completely frictionless thanks to onboard HDMI, VGA video ports. The display interfaces smoothly with commercial media players, industrial embedded controllers, and split-screen video processors, supporting native resolution mapping without image distortion. An integrated Audio Socket (3.5mm) simplifies connection to external speakers, allowing venues to combine panoramic promotional visuals with directional sound reinforcement. Designed for global commercial deployment, the power converter accepts universal universal 100-240V commercial electrical mains electrical mains. Operating power is capped at an efficient ≤ 60w, delivering significant energy savings. The display delivers robust environmental resilience, operating reliably across ambient temperatures of below10℃ ~ +50℃ and humidity ranges up to ≤ 85%RH.
Conformal protective varnishing applied across printed circuit boards protects copper traces and solder joints against airborne moisture condensation, oil vapors, and conductive dust particles.
Conformal protective varnishing applied across the printed circuit boards forms a durable barrier against ambient humidity condensation, airborne grease vapors, and fine industrial dust particulates.
Open-Architecture Computing: Universal Operating System Flexibility

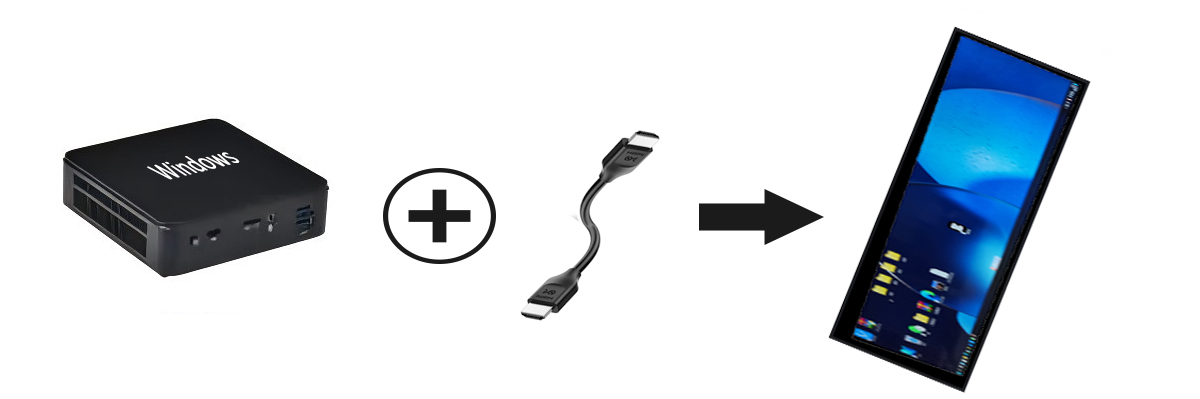

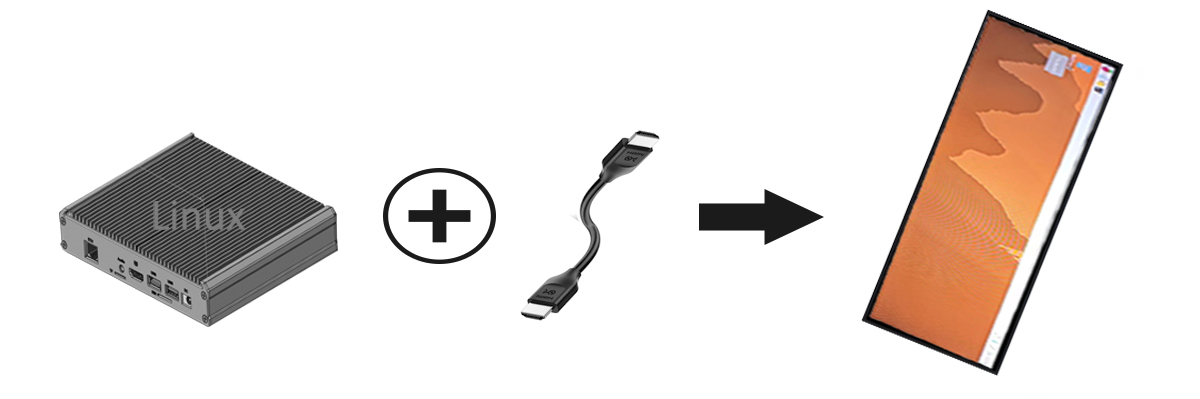

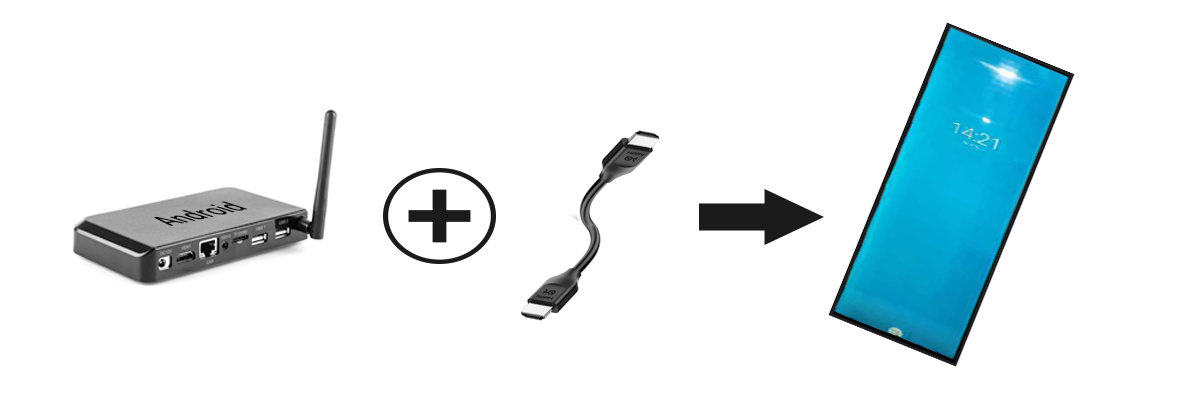

Built to eliminate restrictive proprietary hardware dependencies, this monitor embraces a truly open compute architecture. Integrating an external media host running Windows, Android, or Linux distributions is as simple as attaching a standard HDMI cable. This plug-and-play flexibility gives AV integrators complete liberty to deploy their preferred digital signage CMS suite, proprietary SCADA telemetry package, or custom retail interactive applications without firmware barricades.
Sector Implementation: Passenger Route Displays and Shelf-Edge Video Banners
The 35.9-inch stretched monitor delivers high visual authority in narrow mounting footprints. It is widely utilized for supermarket shelf-edge branding, rail transit passenger information systems, server room equipment monitoring, and QSR restaurant menu displays, providing reliable performance across demanding commercial settings.
Interactive self-service kiosks and automated parcel lockers embed this horizontal display in top fascias. Intuitive visual prompts and animated status bars guide users through transaction steps, speeding up user checkout and package pickup cycles.
Commercial office towers utilizing panoramic displays above elevator transoms report positive tenant feedback. Dynamic building notices, public transit alerts, and local weather updates are broadcast in an unobtrusive, contemporary format.
Manufacturing Scale: In-House Stamping, Extrusion Tooling, and Rapid Sampling
Choosing ZXT connects your project team directly to our manufacturing facility. We maintain permanent tooling inventories, provide evaluation samples in three days, and support overseas partners with turnkey displays, open-frame kits, and custom engineering assistance.
From prototype validation through high-volume mass production, ZXT delivers consistent manufacturing quality that has earned the trust of over 1,000 commercial display clients in more than 50 countries.
Hardware Deployment & Specification FAQ
**Q1: Can multiple displays be mounted side-by-side to form a continuous visual ribbon?**
Yes. The ultra-narrow bezel design and lateral slide-channel grooves allow multiple units to be installed horizontally in tight alignment, creating seamless digital merchandising ribbons along store shelf rows.
**Q2: Is audio output supported on this monitor?**
Yes. The motherboard includes an integrated 3.5mm stereo audio output jack, enabling direct connection to shelf-edge sound bars, directional speakers, or external public address amplification equipment.
**Q3: What is ZXT's minimum order quantity (MOQ) for standard models?**
Because we maintain permanent in-stock tooling and extrusion profiles, standard models have flexible, low MOQ requirements, allowing enterprise clients to begin with small evaluation batches before volume rollouts.
Initiate Custom Hardware Scoping and Sample Dispatch
Request a quote or order an evaluation sample for the 35.9-inch commercial stretched bar LCD monitor by contacting our Shenzhen manufacturing team today. We provide full 2D dimensional sheets, 3D STEP CAD files, and volume-discounted price schedules. Contact our technical sales desk with your project details to receive a detailed engineering proposal within two hours.
