Non-touchscreen
35.5 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Wholesale 35.5 inch industrial sheet metal bar monitor featuring 1920*372 resolution and 400 cd/㎡ calibrated luminance. True IPS full-viewing optics and low-power electrical design for large retail and transit deployments. Factory direct terms.
Specifications
- Screen Size
- 35.5 Inch
- Resolution
- 1920*372
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
35.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 35.5 inch | |
Resolution | 1920*372 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Space Challenges: Overcoming Vertical Clearances with Panoramic Displays
Store fixture designers and transit architects frequently encounter spaces where traditional 16:9 displays cannot be accommodated. The 35.5-inch ultra-wide bar monitor resolves this challenge by providing a low-profile panoramic viewing format. Displaying 1920*372 native pixels across its 35.5-inch diagonal, it delivers continuous brand messaging, dynamic pricing, and route guidance along narrow architectural borders that would otherwise remain inactive.
Integrating panoramic hardware into commercial fixtures eliminates the visual clutter associated with standard monitors. The display becomes an organic part of the fixture, enhancing interior aesthetics while delivering essential information.
In busy transportation terminals, passengers require instant, intuitive visual cues. Overhead horizontal displays provide continuous sightline guidance that travelers can scan effortlessly while walking through crowded concourses.
Luminescence Engineering: Balancing Brightness Output with Thermal Efficiency
Designed for demanding commercial applications, the 35.5-inch stretched screen features 1920*372 resolution and a 400 cd/㎡ luminance rating. With a 1200:1 contrast ratio, it renders sharp details and vivid colors. IPS technology delivers CR≥10 wide-angle IPS optical alignment viewing angles, backed by a solid-state LED backlight rated for more than 60,000 hours of maintenance-free illumination.
Intelligent thermal heat spreaders behind the LED arrays prevent localized backlight hotspots, ensuring that luminance remains uniform from edge to edge across the entire panoramic canvas.
The display matrix features high optical transmittance, allowing the backlight to operate at optimal efficiency while generating minimal internal heat, extending the operating life of surrounding driver electronics.
Installation Engineering: Lateral Slide-Tracks and Universal Mounting Provisions
The 35.5-inch sheet metal housing is constructed from precision-formed galvanized steel plates, offering superior structural stiffness and impact defense. The robust chassis protects display electronics from mechanical shocks in harsh industrial and transit deployments.
Passive thermal dissipation through the metallic housing ensures stable operating temperatures without the need for mechanical cooling fans. The enclosure includes standardized VESA mounting provisions and lateral slide channels for straightforward installation.
Flexible mounting hardware options include top-suspension hanging brackets, recessed cabinet clips, and articulated wall mounts. All structural fasteners are fabricated from stainless steel to resist atmospheric corrosion in semi-outdoor venues.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated Audio Socket (3.5mm) provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 60w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.

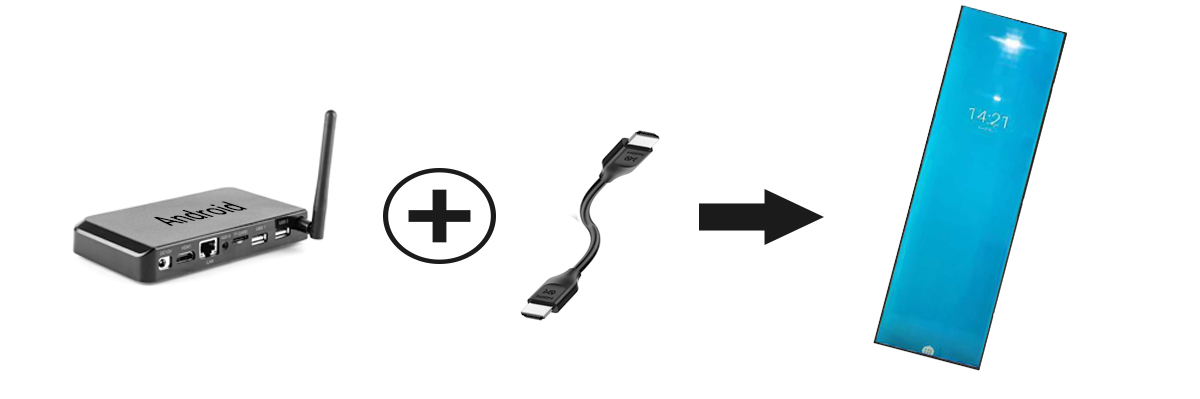

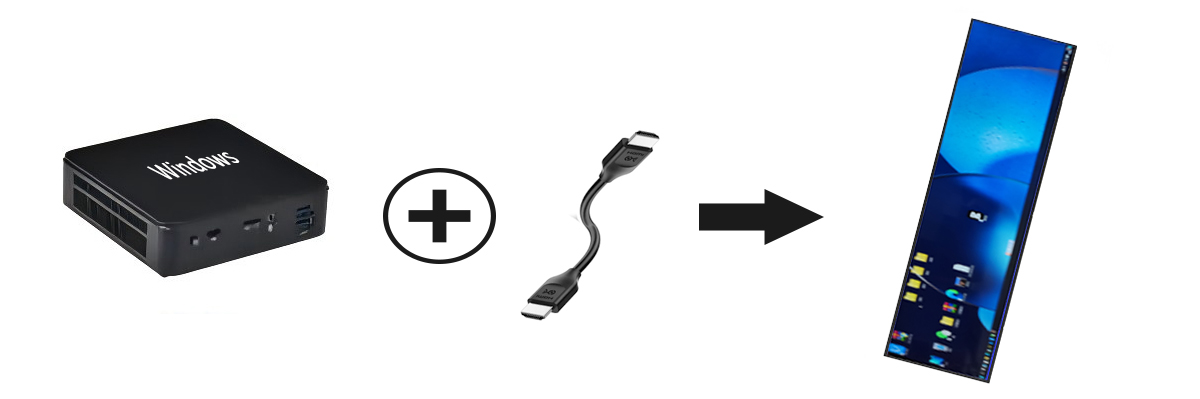

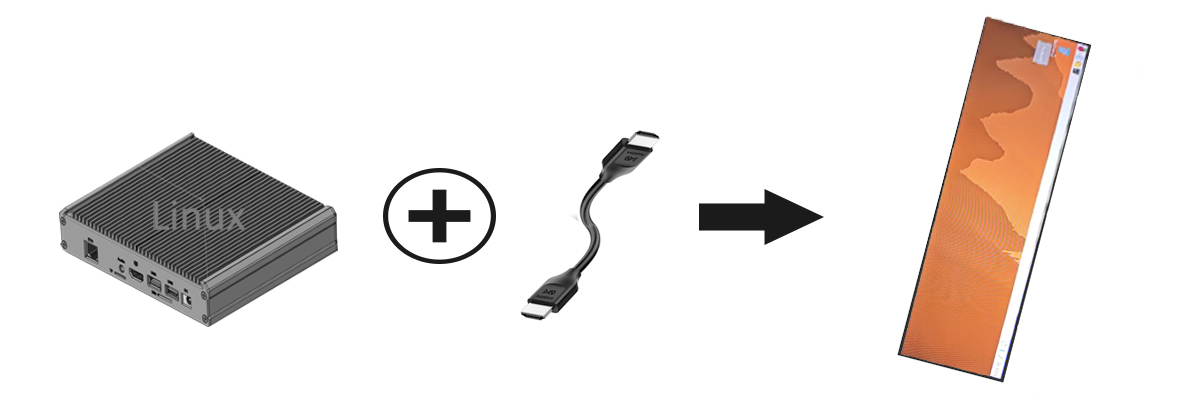

Seamless Multi-OS Switching via HDMI (Windows / Android / Linux)
Engineered as an open-architecture commercial display without proprietary hardware lock-in. By simply connecting an external Windows PC box, Android media player, or Linux industrial controller via a standard HDMI cable, you can achieve effortless operating system switching tailored to your digital signage CMS, interactive software, or industrial monitoring platform.
Commercial Viability: Case Studies in High-Throughput Public Infrastructure
Across commercial and industrial environments, the 35.5-inch stretched display provides versatile visual communication. In retail stores, it drives sales through dynamic point-of-purchase messaging. In transit fleets, it displays real-time route progress. In industrial control rooms, it delivers live equipment telemetry, and in corporate buildings, it functions as a modern architectural directory.
Airport concourses and baggage reclaim zones use this panoramic screen above luggage carousels and customs inspection lanes. Clear, multi-lingual passenger guidance and arrival notifications reduce traveler congestion during international peak arrival banks.
Automated parcel locker networks and interactive retail kiosks benefit from the intuitive guidance provided by horizontal header screens. Step-by-step transaction prompts guide users smoothly through drop-off and pickup procedures.
Direct Factory Sourcing: Reducing Procurement Costs and Engineering Lead Times
ZXT provides source-factory manufacturing for commercial stretched displays, eliminating third-party markups. Our in-stock tooling ensures zero mold charges on standard sizes, supported by fast 3-day sample dispatch and modular SKD shipping options for international clients.
Factory-direct warranty coverage is backed by responsive technical assistance and available spare parts kits, ensuring that deployed displays maintain continuous commercial service year after year.
System Integrator Frequently Asked Questions
**Q1: Are special graphic cards required to drive this stretched resolution?**
No. Standard integrated and discrete graphic chipsets on modern Windows, Android, and Linux devices natively support custom panoramic resolutions through standard HDMI EDID recognition.
**Q2: How does the display perform under bright commercial lighting?**
With calibrated commercial luminance output and anti-glare polarized surface treatment, the screen diffuses harsh ambient ceiling reflections to ensure crisp readability across retail aisles and transit concourses.
**Q3: What warranty and after-sales support does ZXT provide?**
We provide comprehensive commercial factory warranties backed by responsive technical engineering assistance, schematic pinout documentation, and readily available modular replacement parts.
Engineering Collaboration and Volume Pricing Assessment
Contact ZXT's international sales engineering group to discuss volume pricing, custom bracket options, or evaluation sample units for the 35.5-inch ultra-wide stretched display. Share your target installation parameters, interface needs, and expected delivery dates, and our technical specialists will prepare a comprehensive engineering proposal and quotation within two business hours.
