Non-touchscreen
Double-Sided 35.2 Inch Stretched Bar LCD Screen with Slim Bezel
Source-factory 35.2 inch double-sided stretched display delivering native 1920*360/3840*720 resolution and 350~700 cd/㎡ commercial brightness. Complete with HDMI/VGA inputs and fanless thermal architecture. Fast sampling and volume OEM/ODM fulfillment.
Specifications
- Screen Size
- 35.2 Inch
- Resolution
- 1920*360/3840*720
- Brightness
- 350~700 cd/㎡
- Interface
- HDMI / VGA
35.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 35.2 inch | |
Resolution | 1920*360/3840*720 | |
Brightness | 350~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Panoramic Engineering: Delivering Wide Visual Feeds in Restricted Vertical Slots
Engineered for installations where standard 16:9 monitors are too tall, the 35.2-inch stretched display delivers 1920*360/3840*720 resolution across an active 35.2-inch diagonal. It allows commercial operators to deploy vibrant promotional content and operational alerts along narrow horizontal headers with zero space waste.
By turning dormant perimeter spaces into dynamic visual assets, venues maximize the commercial value of their existing architecture. Every square inch of wall or shelf space contributes actively to customer engagement.
Enterprise clients benefit from a consistent hardware aesthetic across diverse venue locations. The standardized linear enclosure provides a cohesive visual signature whether installed in boutique shops or transit hubs.
Optical Metrics: Resolution Density, Color Saturation, and Panel Uniformity
Visual excellence is anchored by an industrial-grade A-grade liquid crystal panel delivering a native resolution of 1920*360/3840*720 across the 35.2-inch active diagonal. This fine pixel pitch ensures that fine pricing fonts, multi-lingual transit schedules, and high-definition video loops render with razor-sharp definition. Calibrated to a luminous intensity of 350~700 cd/㎡, the display delivers bright, legible visuals under harsh commercial lighting conditions. Paired with a static contrast ratio of 1200:1, it actively disperses ambient reflections while preserving high color saturation and deep blacks. True IPS wide-angle technology provides symmetrical viewing angles of symmetrical 89°/89°/89°/89° IPS full viewing angles, ensuring uniform color temperature and sharpness across wide vantage points. The solid-state LED backlight system is rated for an operational service lifetime exceeding 60,000+ operational hours, ensuring consistent brightness throughout continuous 24/7 commercial operation.
Advanced optical coatings actively suppress external glare, ensuring that vibrant content remains readable even when mounted directly beneath intense commercial ceiling spotlights or adjacent to glass storefronts exposed to natural ambient daylight.
Sub-pixel rendering algorithms optimized within the display controller ensure that micro-fine typography, numerical price codes, and barcode symbols remain crisply defined without jagged pixelation or chromatic fringing.
Enclosure Craftsmanship: Aerospace Aluminum and Galvanized Sheet Steel Options

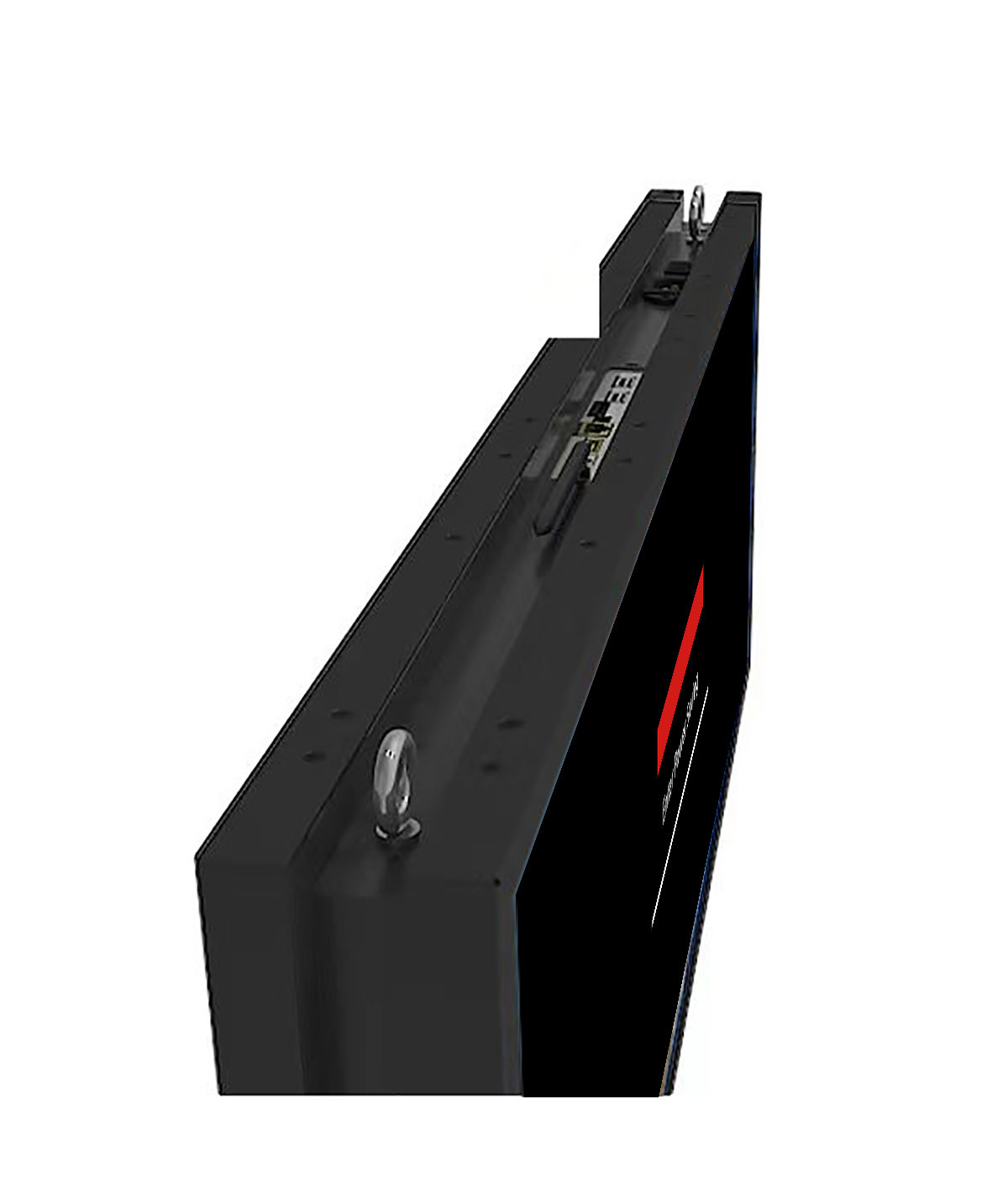

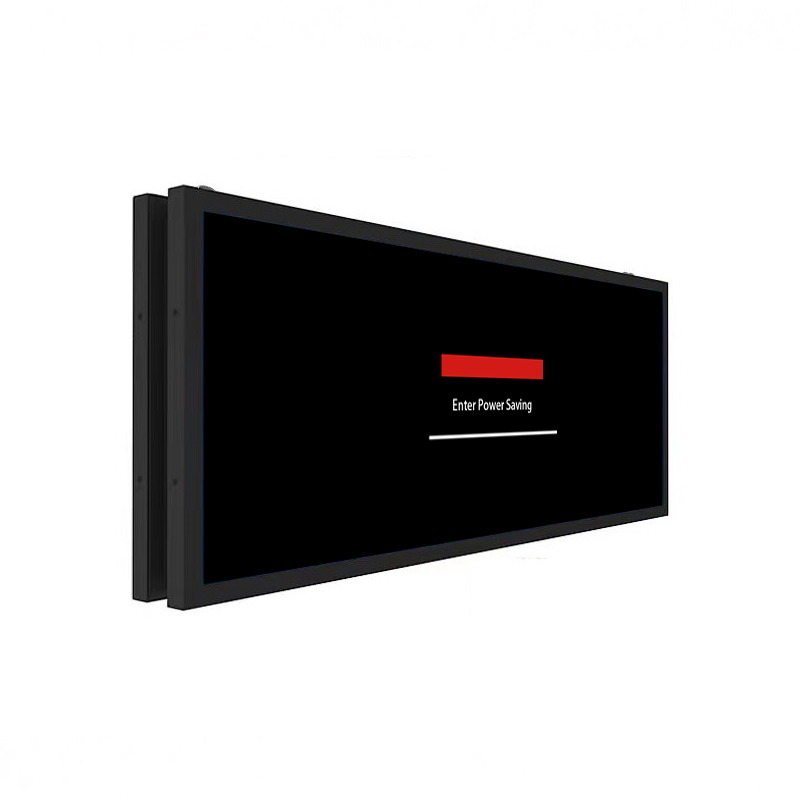

Engineered for bilateral public wayfinding, the 35.2-inch double-sided display packages dual panels within a streamlined central chassis. The symmetrical hanging design maximizes passenger engagement from both traffic directions while keeping ceiling load minimal through an integrated steel cable suspension system.
To achieve maximum operational lifespan, the monitor utilizes a convection-optimized fanless thermal layout. Heat generated by the LED backlight and power conversion circuitry is dissipated evenly across the external metal body, preventing internal localized hotspots. This solid-state passive design completely prevents airborne grease, moisture, and dust particles from being sucked into the display casing, ensuring uninterrupted reliability in busy commercial settings. Versatile installation is facilitated through standardized rear VESA hole patterns as well as lateral slide-nut mounting channels.
The rear enclosure features dual-plane mounting points that support both direct wall-bracket hanging and articulated arm anchoring. Recessed cable entry ports allow wiring harnesses to exit flush against mounting surfaces, preventing pinched wires and maintaining a clean architectural appearance.
Hardware Connectivity: HDMI, VGA, and Audio Distribution Provisions
Equipped with comprehensive input connectivity, the display integrates HDMI, VGA video ports to ensure straightforward interfacing with commercial computing systems. Whether driven by an Android media player, a Windows industrial PC, or an embedded Linux box, the internal video processor scales incoming signals smoothly, maintaining correct aspect ratio geometry without edge cropping or horizontal stretching. An integrated 3.5mm Audio Socket delivers clear audio output, making it simple to add auxiliary sound reinforcement for interactive promotions, queue call-outs, and transit transfer alerts. Power efficiency is a hallmark of this design. Built to run on universal standard 110V to 240V AC power input mains power, the monitor draws no more than ≤ 60w during active operation. The hardware is built to operate under demanding environmental conditions, rated for continuous performance from below10℃ ~ +50℃ with non-condensing humidity up to ≤ 85%RH.
Low overall operational power consumption keeps thermal emissions minimal, reducing the air-conditioning load in enclosed retail kiosks, transit carriages, and server room equipment racks.
Low total power draw minimizes operational utility expenses across multi-screen commercial rollouts, helping enterprise clients achieve energy conservation targets and reduce overall operating expenditure.
Multi-OS Ecosystem Support via Standard Video Interface

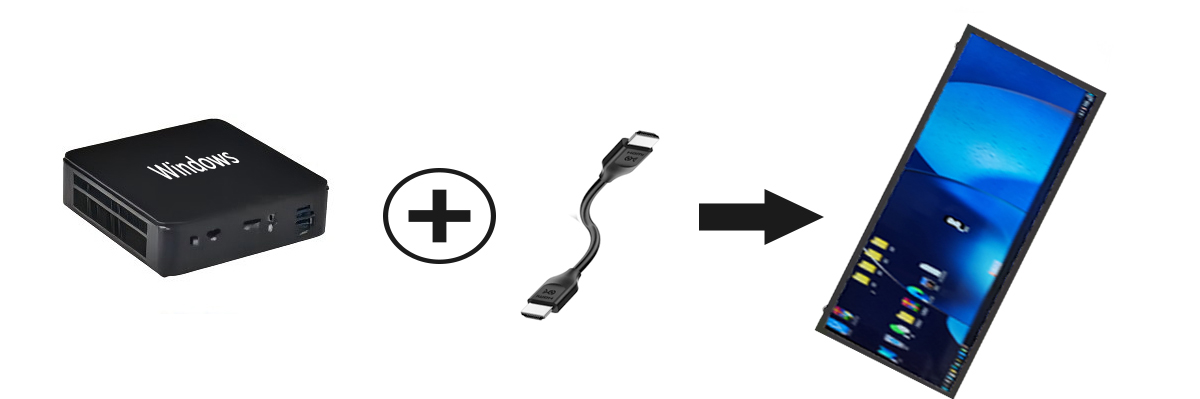

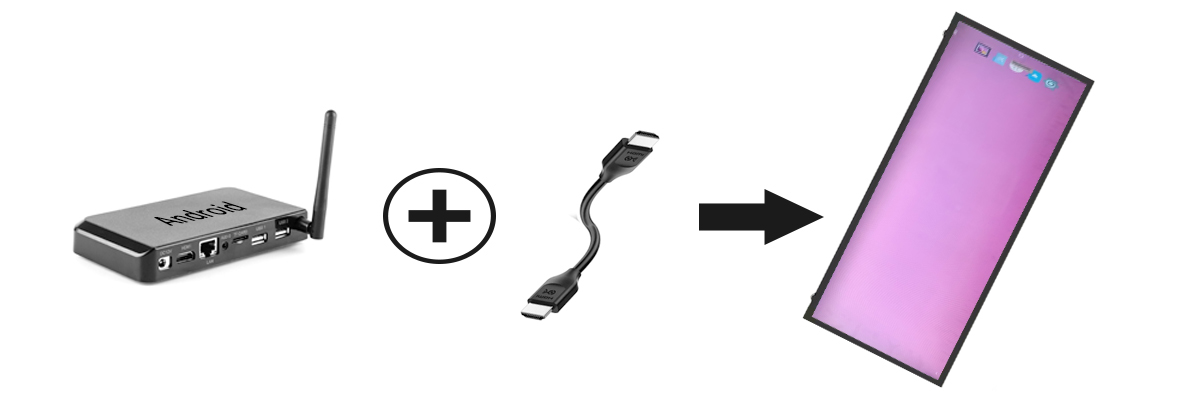

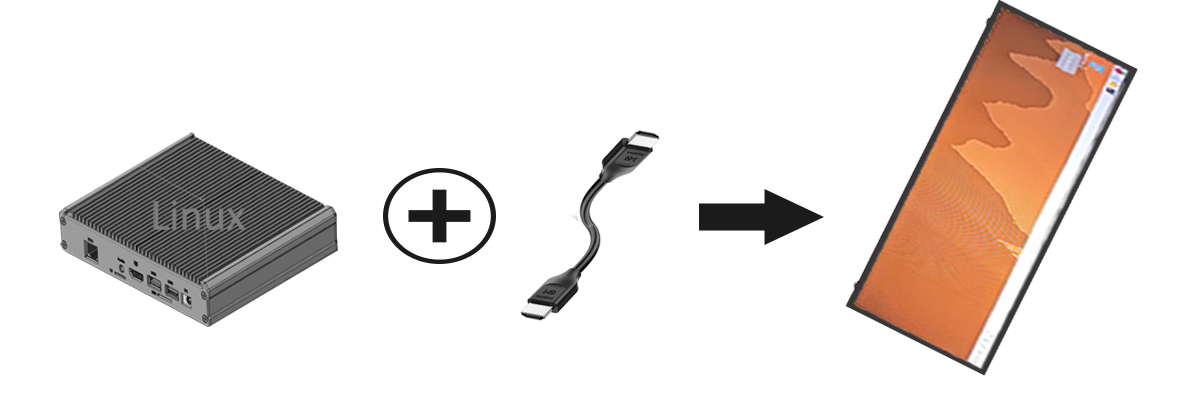

Eliminating the constraints of built-in proprietary player boards, this open-standard commercial monitor provides straightforward connectivity to external Windows, Android, and Linux controllers via HDMI. This decoupled design enables AV contractors to deploy specialized content management software, digital pricing applications, or real-time SCADA telemetry systems while maintaining the flexibility to swap media players at any future date.
Real-World Scenarios: Maximizing Audience Engagement Across Key Sectors
The expansive architectural scale of the 35.2-inch stretched display delivers monumental visual impact across large-scale commercial facilities: 1. Command & Control Centers (CCTV / SOC / NOC): Serving as central panoramic video ribbons in security, emergency dispatch, and traffic control rooms without distracting bezel seams. 2. Airport Flight Information Display Systems (FIDS): Mounted across departure halls and check-in counters to present panoramic multi-gate flight schedules visible across long distances. 3. Corporate Executive Briefing Centers: Integrated into boardroom feature walls and museum exhibition pavilions to deliver continuous ultra-wide multimedia presentations. 4. Arena Concourse Digital Ribbons: Positioned along stadium entryways and VIP hospitality lounges for continuous live match scoring, sponsor branding, and venue directions.
Quick-service restaurants and urban cafes utilize this ultra-wide display above ordering counters to present dynamic panoramic menu selections. Vivid food photography, combo pricing, and real-time out-of-stock indicators help guide customer ordering choices, reducing counter queue wait times during peak hours.
Quick-service restaurants deploying panoramic digital menu strips experience faster order processing and reduced counter wait times. Clear combo photography and real-time out-of-stock indicators guide customer choices before they reach the ordering terminal.
Global Logistics Optimization: SKD/CKD Deliveries and Import Tariff Savings
By establishing a direct factory relationship with ZXT, your company secures factory-direct commercial terms backed by genuine industrial engineering capability. With over nine years of dedicated experience and hundreds of deployed projects worldwide, we keep standard extrusion dies and tooling components permanently in stock. This eliminates upfront tooling charges on standard sizes while enabling rapid sample shipping within 72 hours of project sign-off. We cater to international contractors and volume resellers by offering flexible packaging formats. Order fully assembled turnkey commercial monitors, frameless open-cell modules, or CKD/SKD modular kits designed to optimize sea and air container utilization and lower local import tariffs. Our dedicated engineering team assists with every phase of mechanical and electronic integration, providing full CAD support and factory testing.
Flexible packaging options—from individual retail-ready cartons to high-density bulk export pallets—are engineered to maximize container space utilization and protect hardware during long ocean transit.
Product Engineering & Architecture FAQ
**Q1: Can this screen be used as an ultrawide PC secondary monitor or telemetry panel?**
Yes. Many professional workstation users, gamers, and control room operators connect this display beneath main monitors via HDMI as a dedicated sensor panel for hardware metrics, timelines, or communication feeds.
**Q2: How does the passive thermal design protect against dust?**
By utilizing a fanless solid-state cooling layout that transfers heat conductively through the metallic housing, the display eliminates air intake vents and motorized fans, preventing internal dust and grease buildup.
**Q3: Are protective glass options available for public installations?**
Yes. We offer chemically toughened Morse scale magnitude 7 impact-resistant front glass with anti-glare etching, providing robust protection against public scratches and accidental physical impacts.
Contact Our International Display Engineering Desk
Connect directly with ZXT's display engineering specialists to review specifications, request 2D/3D CAD blueprints, or schedule a sample dispatch for the 35.2-inch stretched bar LCD monitor. Provide your target application details, interface requirements, and volume goals, and our factory team will provide a comprehensive proposal and competitive commercial quotation within two hours.
