Non-touchscreen
34 Inch Stretched LCD Bar Digital Signage Indoor/Outdoor Shopping Mall Wayfinding
34 Inch Hardware Stretched LCD Display Display area:798*333mm Resolution:3440*1440 Material:Hardware
34 Inch Stretched Bar LCD Display for Smart Wayfinding and Indoor/Outdoor Navigation Systems
The 34 inch stretched bar LCD display is a professional digital signage solution designed for shopping malls, transportation hubs, commercial buildings, and public environments. With its ultra-wide format and versatile indoor/outdoor capability, this display is widely used for smart wayfinding and real-time information communication systems.
As modern cities and commercial spaces become more complex, demand for intelligent navigation solutions such as stretched bar lcd display systems continues to grow rapidly.
Why Stretched Bar LCD Display Is Ideal for Wayfinding Systems
Traditional signage systems often lack flexibility and real-time update capabilities. In contrast, digital stretched bar displays provide dynamic content delivery and clear directional communication.
The stretched bar lcd display offers several advantages for wayfinding applications:
- Real-time directional updates
- Clear navigation guidance
- High visibility in public spaces
- Space-saving ultra-wide design
- Multi-location content synchronization
- Improved visitor experience
This makes it an essential component of modern smart building infrastructure.
34 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 34 inch | |
Resolution | 3440*1440 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Features of 34 Inch Stretched Bar LCD Display
Ultra Wide Format Design
The elongated screen structure is ideal for directional signage and corridor installations, maximizing visibility without occupying large space.
Indoor and Outdoor Compatibility
Designed for flexible deployment in both indoor and semi-outdoor environments such as shopping malls, entrances, and transit areas.
High Brightness Commercial Display
Ensures clear visibility under different lighting conditions, including strong ambient light environments.
Smart Content Management Support
Supports cloud-based CMS systems for remote updates, scheduling, and centralized content control.
Industrial Grade Stability
Built for continuous 24/7 operation in high-traffic public environments.
Applications of Stretched Bar LCD Display
The stretched bar lcd display is widely used across multiple industries:
Shopping Malls
Used for store directories, promotional navigation, and event guidance.
Transportation Hubs
Provides passenger information, platform directions, and real-time updates.
Commercial Buildings
Used for floor guidance, tenant directories, and visitor navigation.
Hospitals
Displays department locations, queue information, and patient guidance.
Hotels
Used for meeting room directions, service navigation, and guest information.
Smart City Infrastructure
Supports public information systems and urban digital communication networks.

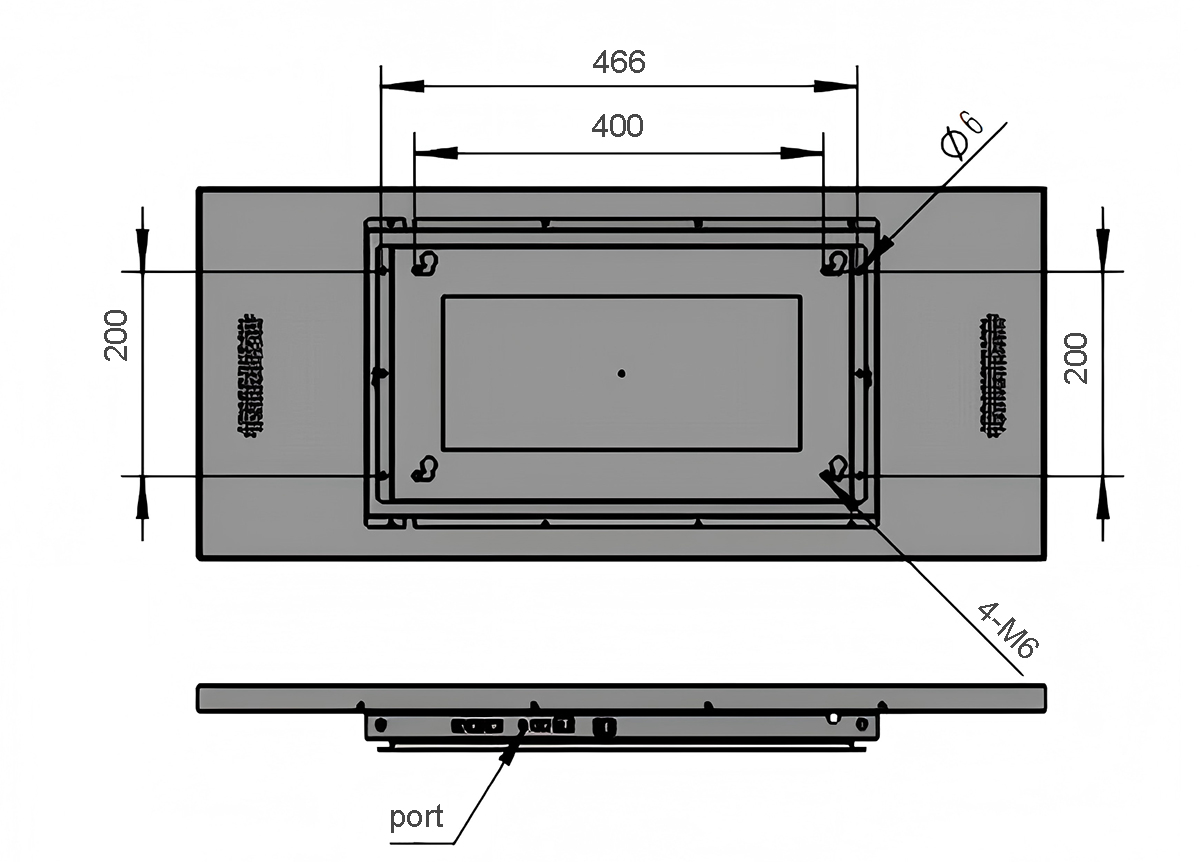

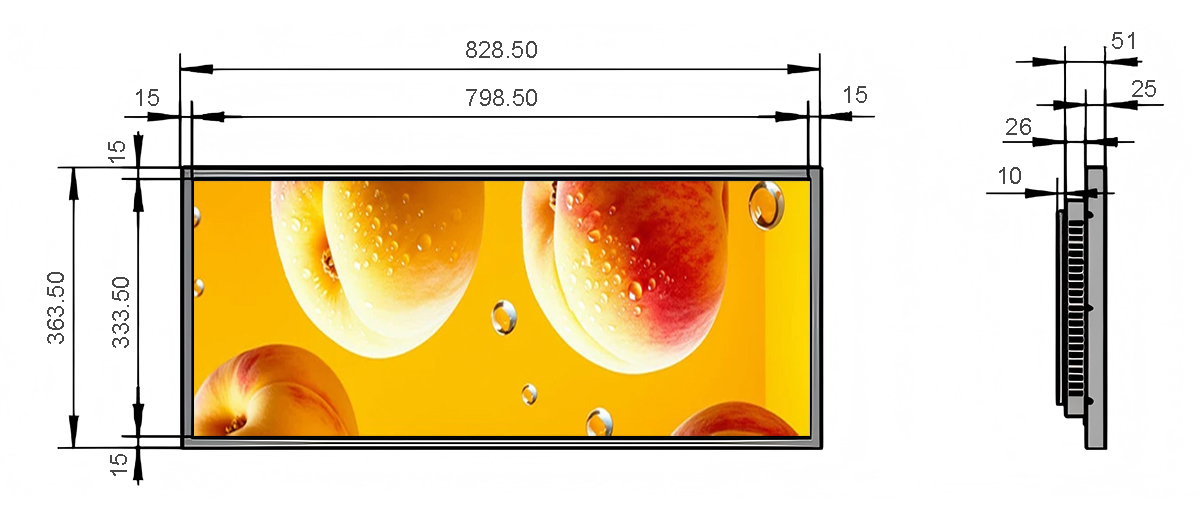

Product Dimension as follows:
Why Choose Our Stretched Bar LCD Display Solution
- Factory direct manufacturing
- Strong engineering capability
- Global export experience
- Stable supply chain system
- Professional CMS integration support
- Fast production lead time
- Full after-sales service
We help global partners build intelligent navigation and information systems.
FAQ – Stretched Bar LCD Display
Q1: What is a stretched bar LCD display used for?
It is used for wayfinding, navigation systems, shopping mall directories, and public information displays.
Q2: Can it be used outdoors?
Yes, it supports indoor and semi-outdoor environments depending on configuration.
Q3: Does it support real-time updates?
Yes, with CMS integration, content can be updated remotely in real time.
Q4: Is it suitable for shopping malls?
Yes, it is widely used in shopping malls for navigation and directory systems.
Q5: Do you provide OEM customization?
Yes, we support full OEM & ODM customization including hardware and software.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
