Non-touchscreen
PC Secondary Monitor – 34 Inch Ultrawide Bar Screen for Custom Desk Setup
Commercial-grade 34 inch standard ultra-wide bar display delivering 3440*1440 resolution and 400 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 34 Inch
- Resolution
- 3440*1440
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
34 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 34 inch | |
Resolution | 3440*1440 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Rethinking Linear Spaces: The Rise of Specialized Stretched Bar Displays
Spatial efficiency is a defining metric in contemporary commercial architecture. High-throughput railway stations, supermarket aisles, and manufacturing cleanrooms require real-time information delivery, but lack the physical height required for conventional computer screens. The 34-inch ultra-wide bar monitor represents a targeted hardware solution to this dilemma. Delivering 3440*1440 native resolution across an active 34-inch area, this display integrates flush into narrow headers, shelf channels, and equipment fascias, providing vibrant high-definition media without altering interior structural boundaries.
Deploying digital signage along narrow architectural boundaries transforms passive building surfaces into interactive communication channels. From commercial banking counters to hospital triage halls, panoramic displays streamline public traffic flow and enhance customer service delivery.
In demanding transit and retail venues, space optimization is both an aesthetic and functional necessity. By converting narrow wall headers and shelf fronts into active information zones, facility managers maximize commercial utility per square meter.
Visual Physics: Maintaining Sharp Image Definition Under Ambient Lighting
At the heart of this display is an industrial-grade A-grade liquid crystal cell engineered for continuous commercial duty. Featuring a native 3440*1440 resolution, the 34-inch screen provides high-definition clarity that ensures intricate graphic assets, dynamic video commercials, and multi-line transit schedules remain razor-sharp from standard viewing distances. Boasting an engineered luminous output of 400 cd/㎡, the panel overcomes the visual washout typical of consumer screens in bright commercial lighting. Paired with a 1200:1 native contrast ratio, the optical stack produces deep black levels and vibrant chromatic saturation. The display's IPS panel structure ensures wide optical visibility with CR≥10 wide-angle IPS optical alignment viewing angles, while the solid-state LED backlight is rated for a continuous operational life of more than 60,000 hours of maintenance-free illumination.
An optimized polarising matrix prevents color inversion and contrast degradation when the screen is viewed from steep vertical or lateral perspectives, preserving image fidelity in tight corridor passages.
High static contrast performance ensures that deep blacks remain rich and text characters stand out sharply, maximizing legibility in low-light transit tunnels as well as brightly illuminated department stores.
Industrial Housing Design: Resisting Ambient Dust, Moisture, and Vibration
The 34-inch chassis utilizes heavy-duty metallic construction with tight manufacturing tolerances. Designed for architectural headers and wall cutouts, the housing provides lasting protection against physical impacts and cleaning chemicals.

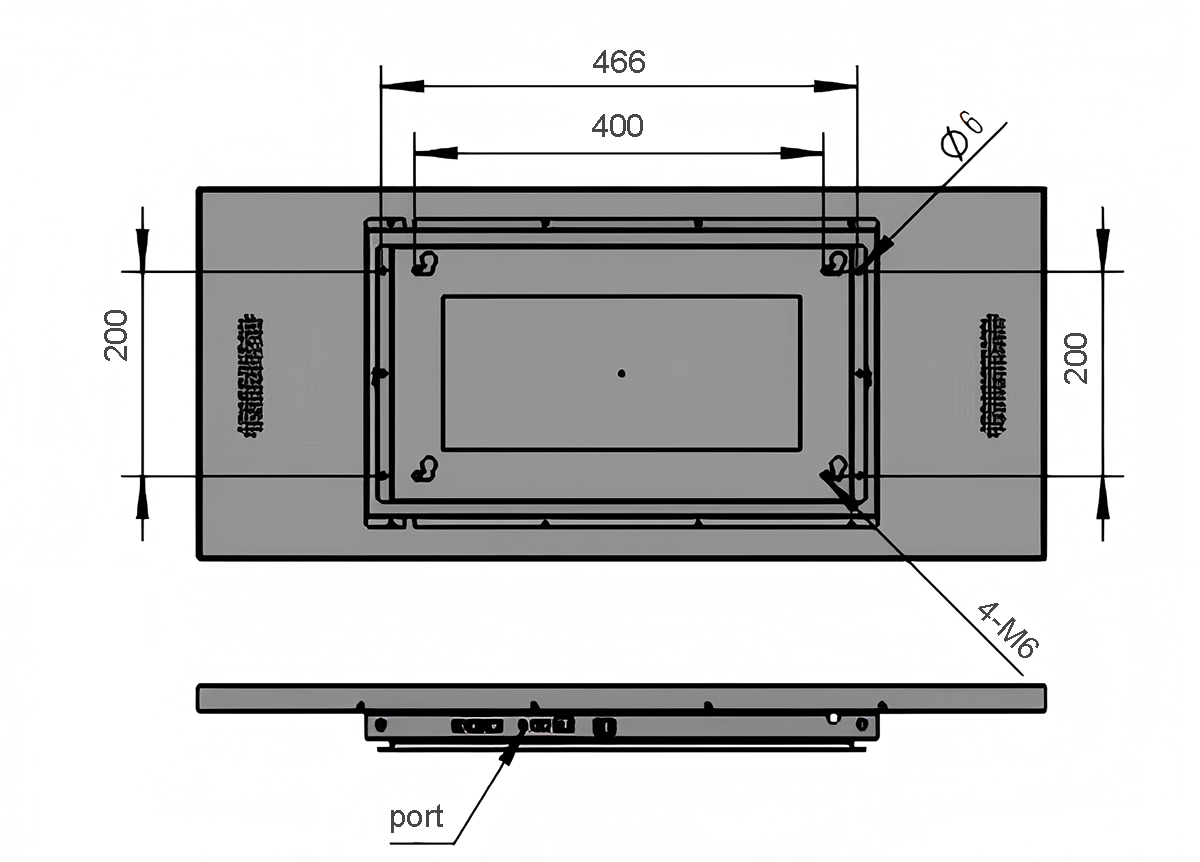

Thermal efficiency is maintained through an advanced fanless heat dissipation layout that uses the external metal body as a heat sink. This eliminates fan noise and prevents dust and grease accumulation within the housing, supporting long-term commercial reliability. The chassis provides standard VESA mounting provisions and side-channel grooves for secure installation.
For overhead corridor and transit concourse deployments, the housing features reinforced steel eyelet anchor points rated for heavy-duty aircraft suspension wires. Safety cables lock directly into internal structural gussets, ensuring complete public safety in seismic or high-vibration zones.
Electrical Reliability: Transient Surge Defense and Clean Signal Routing
Connecting the display into enterprise IT and AV networks is completely frictionless thanks to onboard HDMI, VGA video ports. The display interfaces smoothly with commercial media players, industrial embedded controllers, and split-screen video processors, supporting native resolution mapping without image distortion. An integrated Audio Socket (3.5mm) simplifies connection to external speakers, allowing venues to combine panoramic promotional visuals with directional sound reinforcement. Designed for global commercial deployment, the power converter accepts universal universal 100-240V commercial electrical mains electrical mains. Operating power is capped at an efficient ≤ 60w, delivering significant energy savings. The display delivers robust environmental resilience, operating reliably across ambient temperatures of below10℃ ~ +50℃ and humidity ranges up to ≤ 85%RH.
Conformal protective varnishing applied across printed circuit boards protects copper traces and solder joints against airborne moisture condensation, oil vapors, and conductive dust particles.
Conformal protective varnishing applied across the printed circuit boards forms a durable barrier against ambient humidity condensation, airborne grease vapors, and fine industrial dust particulates.
Universal Video Ingestion Across Leading Operating Systems

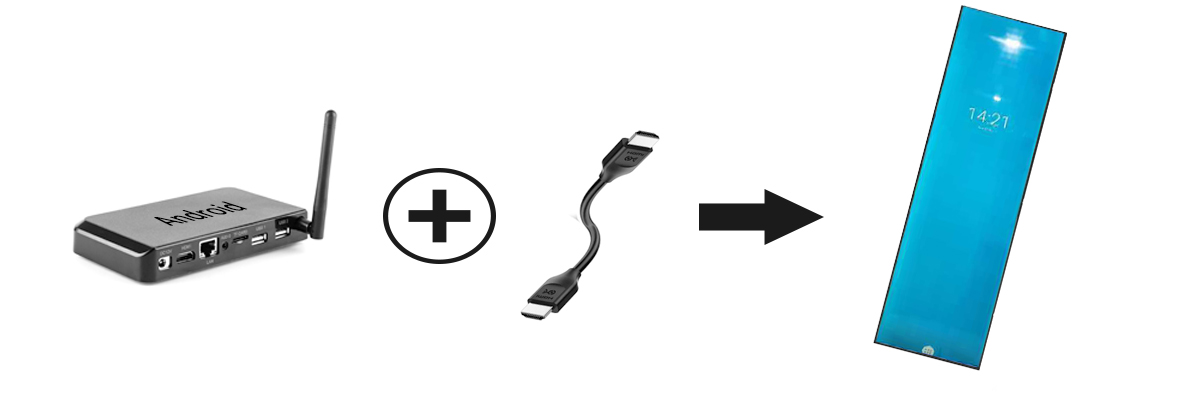

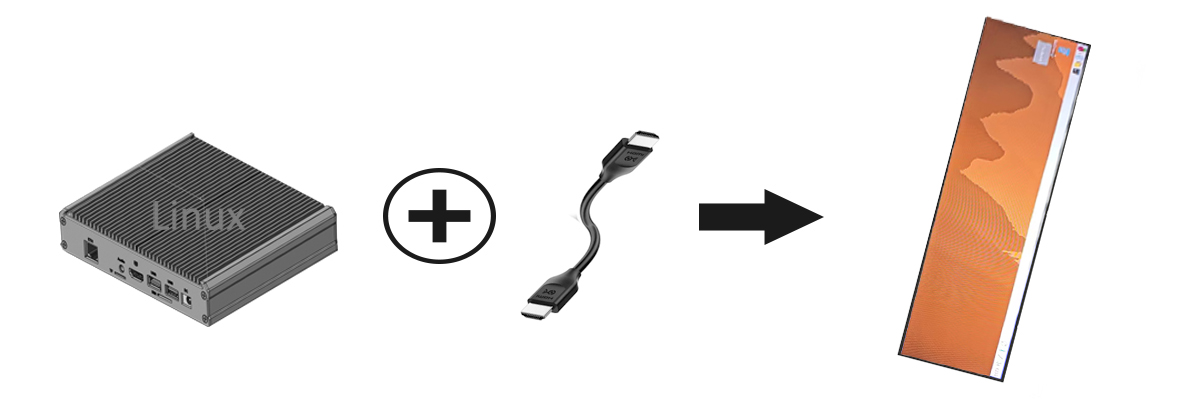

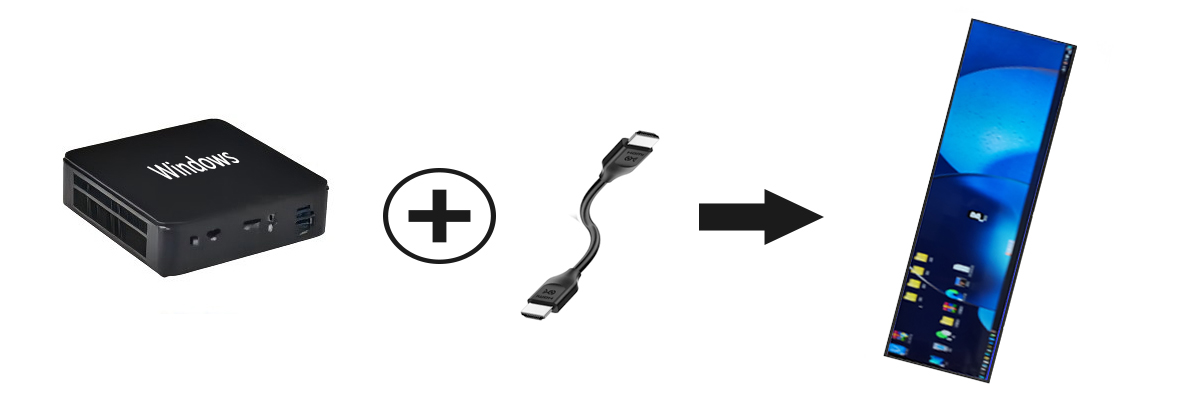

This display adopts a clean, open hardware topology that welcomes external video input from Windows, Android, and Linux compute engines alike. A single HDMI connection delivers seamless pixel mapping and audio-video pass-through, giving digital signage operators and kiosk engineers the latitude to implement custom CMS platforms, automated queue software, or industrial SCADA consoles without artificial hardware constraints.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 34-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
Manufacturer Agility: Permanent Tooling Inventories and Custom Bracket Finishing
ZXT delivers source-factory reliability for global display integrators. Our in-house manufacturing facilities maintain extensive tooling inventories, eliminating NRE mold charges and enabling 3-day sample shipping. We support overseas clients with fully assembled monitors or modular SKD kits designed to lower import duties and freight costs.
Strict quality management systems govern every stage of production, from incoming optical inspection of open-cell panels to computerized colorimeter calibration and vibration table testing.
Buyer & Integrator FAQ
**Q1: Does the display support multi-zone content splitting?**
Yes. The native panoramic resolution provides ample horizontal canvas for digital signage software to partition the display into multiple discrete zones, such as simultaneous video playback, static prices, and tickers.
**Q2: How quickly can replacement parts or expansion units be provided?**
Because ZXT maintains active tooling and standardized component inventories, spare parts, replacement driver boards, and expansion units can be prepared and dispatched with industry-leading lead times.
**Q3: Can we obtain customized packaging for retail distribution?**
Yes. We offer custom-branded master export cartons, individualized retail packaging, and reinforced high-density palletization engineered to survive long-distance international ocean and air freight.
Technical Consultation and Custom Bracket Inquiries
Inquire today for factory-direct pricing, 3D STEP CAD models, or evaluation sample units of the 34-inch commercial stretched bar display. Our engineering staff is ready to assist with custom hardware scoping within two hours.
