Non-touchscreen
Custom Ratio Bar Monitor (34.5 Inch) with Standard HDMI Video Input
Specialized 34.5 inch standard bar monitor (1920*450, 400 cd/㎡) direct from Shenzhen manufacturing facility. Engineered for space-limited commercial installations with robust metal housing. Fast 3-day evaluation samples available.
Specifications
- Screen Size
- 34.5 Inch
- Resolution
- 1920*450
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
34.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 34.5 inch | |
Resolution | 1920*450 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Eliminating Structural Redesigns: Direct Integration into Linear Fascias
Linear visual communication is fundamentally transforming how brands and public operators engage with audiences. Where conventional displays dominate vertical walls and desktops, narrow architectural perimeters require an entirely different form factor. Standard monitors are simply too tall, obstructing customer views and complicating mechanical mounting. The 34.5-inch panoramic stretched bar LCD monitor meets these demands by packaging native 1920*450 resolution into an elongated 34.5-inch display profile, turning neglected architectural boundaries into dynamic customer touchpoints.
Modern grocery and department store merchandising demands dynamic storytelling right at the shelf edge. Panoramic digital screens capture shopper dwell time and drive impulse purchases by pairing high-definition video loops with clear pricing.
Retailers deploying digital shelf strips experience a significant reduction in pricing errors and promotional lag. Automated cloud updates ensure that promotional campaigns and regulatory price labels remain synchronized across entire store networks.
Display Quality: Sharp Typography, Fine Graphic Detail, and Vibrant Colors
The 34.5-inch ultra-wide display offers 1920*450 native resolution, paired with a 400 cd/㎡ brightness output and a 1200:1 contrast ratio. The IPS optical layer provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, ensuring consistent visual clarity for viewers positioned at various angles, while the commercial backlight is rated for over 60,000 hours of continuous 24/7 commercial duty of duty.
The display's wide viewing angle architecture ensures that passenger information tickers and pricing tables remain clearly legible to pedestrians walking past at rapid speeds from various approach vectors.
Carefully tuned gamma correction curves produce balanced shadow detail and smooth color gradations, allowing intricate advertising graphics and photographic assets to reproduce with true-to-life vibrancy.
Enclosure Dynamics: Balancing Sleek Commercial Styling with Factory Hardening
Housed in an elegant yet sturdy metal casing, the 34.5-inch display delivers lasting commercial performance. The scratch-resistant finish and tight assembly tolerances support flush mounting across architectural surfaces.
The fanless mechanical design ensures silent operation and prevents dust and airborne particles from accumulating inside the casing. Heat is transferred naturally through the metal enclosure, while standard VESA patterns and lateral channels support flexible mounting.
The mechanical frame incorporates internal structural stiffeners that prevent panel warping across wide temperature fluctuations. Standardized rear VESA mounting patterns provide instant compatibility with commercial display brackets.
Power Supply Architecture: Wide-Voltage Regulation and Energy Conservation
System integrators will appreciate the plug-and-play connectivity engineered into this commercial display. Featuring standard HDMI, VGA video connections, the display links directly to external digital media players, embedded box PCs, and workstation graphic cards. The internal scaling processor automatically configures custom wide-aspect raster timings, ensuring hassle-free software configuration during site commissioning. Audio integration is facilitated via a Audio Socket (3.5mm), giving installers the flexibility to connect local directional audio speakers, auxiliary sound bars, or central PA routing systems for synchronized broadcasts. Operating across a wide input voltage range of global 100~240V line voltage at 50/60Hz, the internal power supply provides stable electrical isolation against power surges, voltage drops, and harmonic line noise. Active operational power consumption is constrained to ≤ 60w, while environmental durability is certified across ambient temperatures of below10℃ ~ +50℃ and humidity levels reaching ≤ 85%RH.
Industrial-grade capacitors and solid-state power components ensure dependable electrical performance across wide ambient temperature swings, preventing unexpected restarts or power-cycling issues.
Wide-range AC input tolerance ensures stable display operation in regions with unstable electrical grids, absorbing line surges, voltage drops, and brownouts without interrupting continuous public broadcasts.
Open Hardware Standards: Seamless Windows, Android, and Linux Support

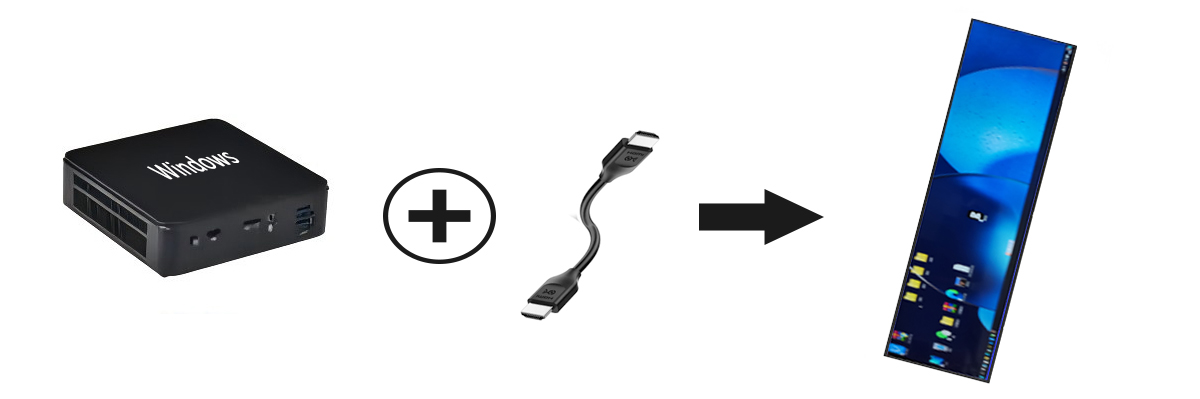

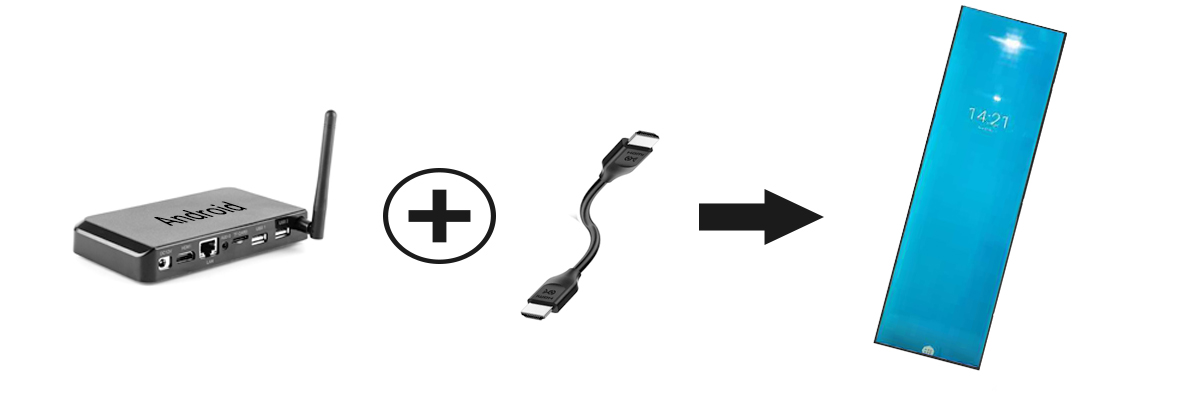

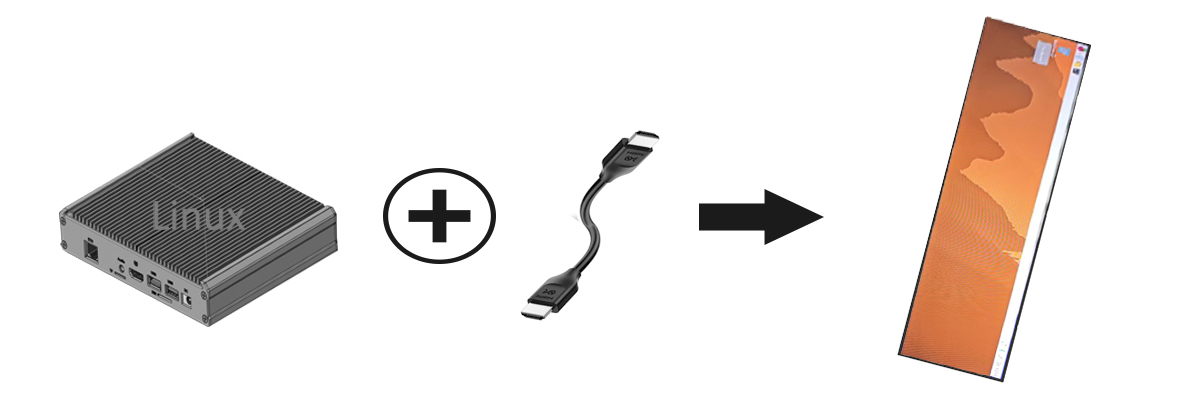

By adhering strictly to open commercial hardware standards, this monitor ensures effortless multi-OS synchronization via standard HDMI connections. System architects can freely pair the screen with external Windows computing hardware, cost-effective Android digital signage units, or robust Linux industrial microcontrollers, ensuring seamless compatibility with any enterprise software platform.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 34.5-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
Agile OEM/ODM Solutions: Custom Paint Finishes, Logo Printing, and Optical Bonding
With over nine years of specialized display manufacturing experience, ZXT supports international system integrators with factory-direct pricing and rapid fulfillment. We offer in-stock tooling, 3-day sample dispatch, and complete engineering documentation including 3D CAD models.
Our engineering staff possesses deep expertise in international compliance standards, assisting partners in meeting CE, FCC, RoHS, and specialized railway or retail electrical safety certifications.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Request Technical Blueprints and Factory Direct Quotation
Ready to deploy the 34.5-inch panoramic stretched bar monitor in your next commercial project? Contact our engineering sales team today to request comprehensive 3D CAD drawings, verify connector pinouts, or arrange a 3-day evaluation sample. Send us your project specifications and delivery timelines, and our technical staff will return an official factory-direct proposal within two hours.
