Non-touchscreen

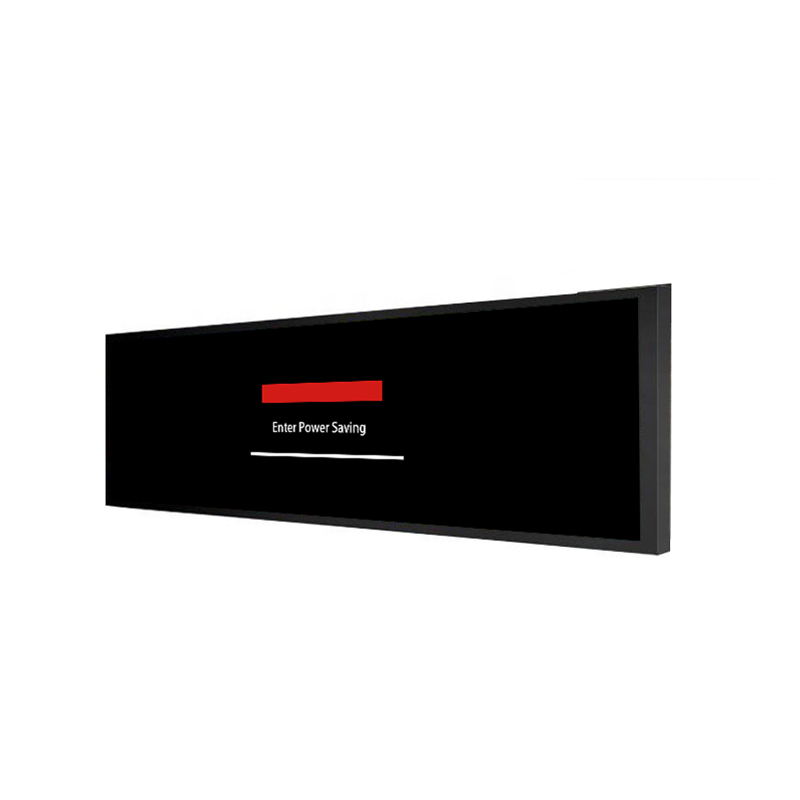

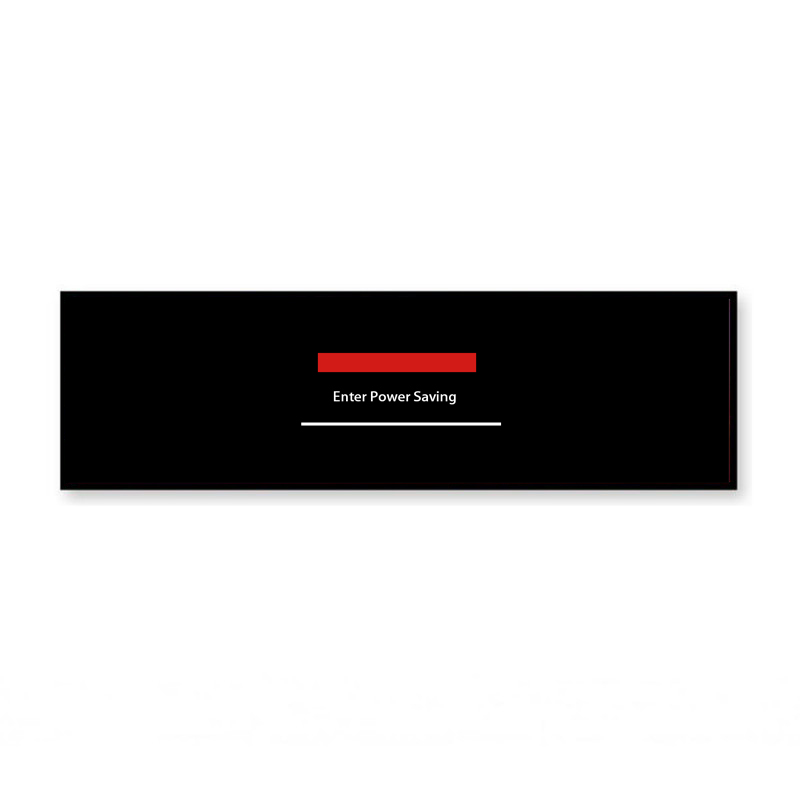

Commercial Display Signage: 34.3 Inch Ultra-Wide Bar LCD Monitor
Commercial-grade 34.3 inch industrial sheet metal bar monitor delivering 1920*382 resolution and 400 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 34.3 Inch
- Resolution
- 1920*382
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
34.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 34.3 inch | |
Resolution | 1920*382 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Horizontal Form Factors: Purpose-Built Solutions for Narrow Physical Footprints
Maximizing spatial productivity is essential in high-density retail aisles, airport passenger corridors, and vehicle passenger cabins. Standard desktop-format screens obstruct customer views and complicate mechanical mounting due to their bulky vertical proportions. The 34.3-inch stretched commercial display addresses this spatial conflict through an ultra-wide form factor delivering native 1920*382 resolution across an active 34.3-inch diagonal. This specialized geometry fits flush into horizontal headers, narrow shelving channels, and compact control desks, delivering vibrant graphics without demanding vertical headroom.
In high-traffic transit corridors, clear visual hierarchy is essential for passenger comfort. Panoramic displays mounted overhead deliver critical wayfinding data in an intuitive linear format that commuters can digest in seconds.
Commercial interiors increasingly emphasize clean, unobtrusive architectural lines. The slender profile of this display integrates organically into modern store designs, avoiding the bulky industrial look of conventional commercial monitors.
Long-Term Optical Durability: Solid-State LED Backlight Lifespan Engineering
Featuring an industrial A-grade LCD panel, the 34.3-inch stretched monitor delivers 1920*382 resolution and 400 cd/㎡ brightness. The optical stack achieves a 1200:1 contrast ratio for sharp text and vibrant color saturation. Wide-angle IPS technology ensures true IPS 178-degree wide visual cone visibility, supported by an energy-efficient LED backlight system rated for an industrial service life exceeding 60,000 hours of continuous service.
A durable surface polariser repels static dust accumulation and resists surface scratches, preserving pristine optical transparency in busy public environments with heavy foot traffic.
Solid-state LED backlights utilize efficient thermal conductive substrates, keeping diode junction temperatures low to prevent premature luminous decay and chromatic drift over extended commercial service.
Solid-State Mechanical Layout: Preventing Dust Intake in Public Venues
The 34.3-inch industrial display features a heavy-gauge sheet steel chassis designed for challenging operating conditions. Its rigid galvanized steel body provides high shock tolerance and electromagnetic shielding for factory automation consoles.
Engineered for durability, the unit features a passive cooling design that eliminates internal fans and associated maintenance requirements. The chassis provides standard VESA rear mounting points and lateral mounting channels for rapid integration into retail and transit fixtures.
For cleanroom and pharmaceutical applications, the enclosure features smooth, screw-less front surfaces and non-porous powder coatings that withstand daily wipe-down with sanitizing alcohol and chemical detergents.
Hardware Connectivity: HDMI, VGA, and Audio Distribution Provisions
Equipped with comprehensive input connectivity, the display integrates HDMI, VGA video ports to ensure straightforward interfacing with commercial computing systems. Whether driven by an Android media player, a Windows industrial PC, or an embedded Linux box, the internal video processor scales incoming signals smoothly, maintaining correct aspect ratio geometry without edge cropping or horizontal stretching. An integrated Audio Socket (3.5mm) delivers clear audio output, making it simple to add auxiliary sound reinforcement for interactive promotions, queue call-outs, and transit transfer alerts. Power efficiency is a hallmark of this design. Built to run on universal standard 110V to 240V AC power input mains power, the monitor draws no more than ≤ 60w during active operation. The hardware is built to operate under demanding environmental conditions, rated for continuous performance from below10℃ ~ +50℃ with non-condensing humidity up to ≤ 85%RH.
Low overall operational power consumption keeps thermal emissions minimal, reducing the air-conditioning load in enclosed retail kiosks, transit carriages, and server room equipment racks.
Low total power draw minimizes operational utility expenses across multi-screen commercial rollouts, helping enterprise clients achieve energy conservation targets and reduce overall operating expenditure.
Universal OS Flexibility for Turnkey Commercial Integration
Tailor your visual display precisely to your software workflow. Equipped with standard HDMI inputs, this commercial monitor effortlessly displays output from external Windows workstations, Android media players, and Linux industrial engines. Integrators enjoy the complete freedom to deploy preferred signage CMS engines, custom interactive kiosk scripts, or real-time data visualizers without proprietary barriers.
Industry Solutions: Retail Gondola Headers, Metro Doorways, and 19-Inch Racks
Designed to maximize linear visual space, the 34.3-inch display delivers clear commercial benefits across several industries. Retailers install it on shelf fascias to boost brand engagement. Transit authorities mount it in rail carriages for dynamic passenger route guidance. Control rooms use it as an auxiliary telemetry monitor, and corporate facilities integrate it into reception headers.
In banking branches and public administrative centers, the display streamlines customer queue flow. Mounted above service windows or teller partitions, it displays clear ticket calling numbers, teller status indicators, and financial service advisories in a space-saving linear footprint.
Automated manufacturing plants utilize this monitor along assembly lines to broadcast real-time production quotas and machine alerts. The wide horizontal format allows line supervisors and operators to monitor factory floor status from across large plant bays.
B2B Production Excellence: 100% Factory Burn-In Testing and Direct Support
Direct factory procurement from ZXT ensures competitive pricing and reliable hardware delivery. We maintain in-stock extrusion tooling, offer 3-day sample dispatch, and support international partners with flexible delivery formats from finished displays to modular SKD kits.
Long-term component lifecycle management ensures that key panel models, driver boards, and mechanical dimensions remain stable across multi-year enterprise rollout phases, preventing unexpected redesigns.
Technical Selection & System Integration FAQ
**Q1: How do we switch between different operating systems on this display?**

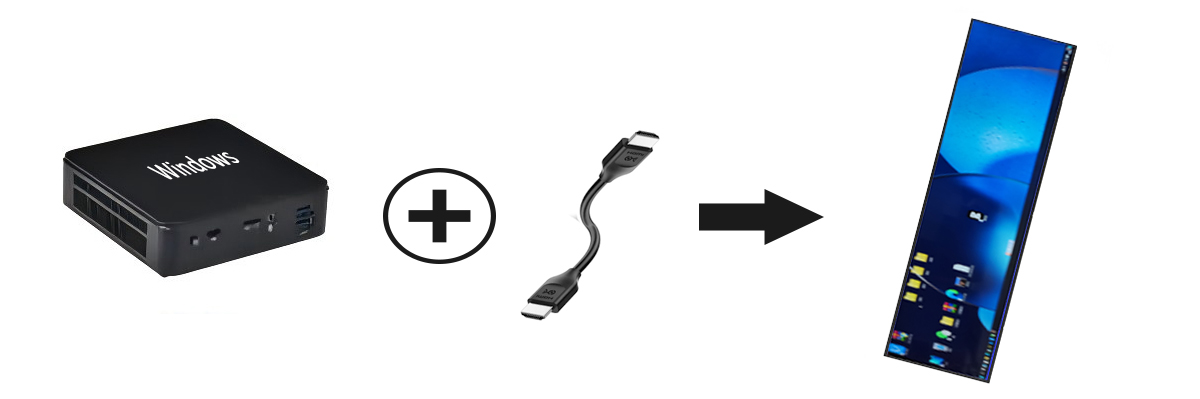

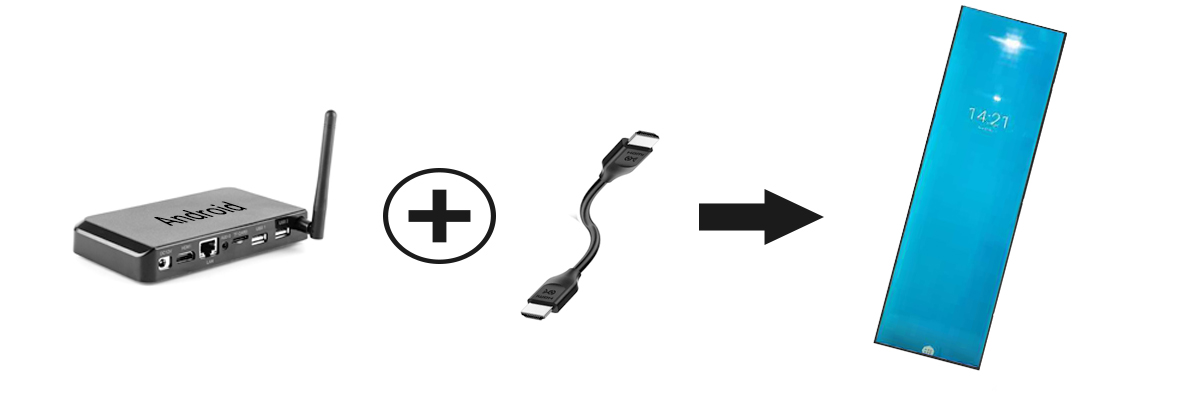

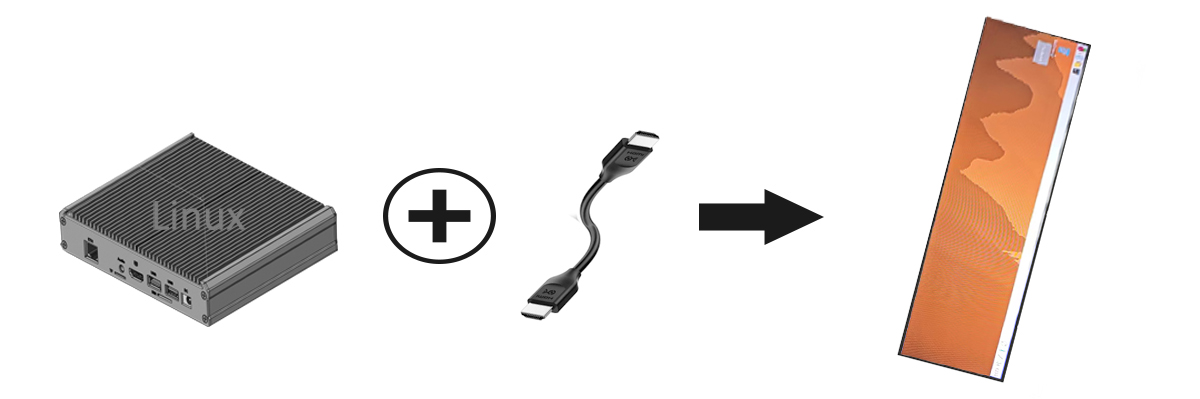

Switching operating systems is frictionless: simply connect your chosen host computer (Windows PC, Android box, or Linux controller) via HDMI. The display adapts instantly without requiring internal firmware reconfiguration.
**Q2: What is the expected backlight service lifespan?**
The industrial-grade solid-state LED backlight is rated for an operational lifespan exceeding 60,000 hours, ensuring consistent chromatic performance and high luminance across multi-year commercial deployments.
**Q3: Does ZXT provide 2D and 3D CAD models for pre-engineering?**

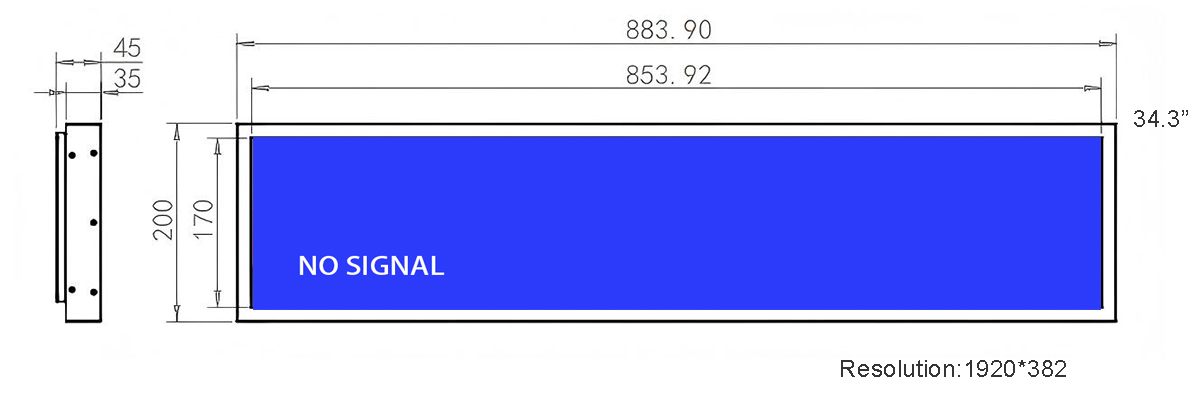

Yes. Our engineering department supplies comprehensive 2D dimensional PDF drawings and 3D STEP CAD files to assist your mechanical team with structural fixture and cabinet integration.
Project Consultation and Custom Quotation Inquiries
To evaluate a test sample of the 34.3-inch ultra-wide stretched bar LCD monitor, request detailed 2D/3D CAD mounting blueprints, or discuss high-volume OEM/ODM pricing tiers for upcoming commercial deployments, please contact our international technical sales department. Provide your target installation environment, anticipated order volume, and specific interface requirements, and our engineering team will provide a tailored hardware proposal and commercial quotation within two business hours.
