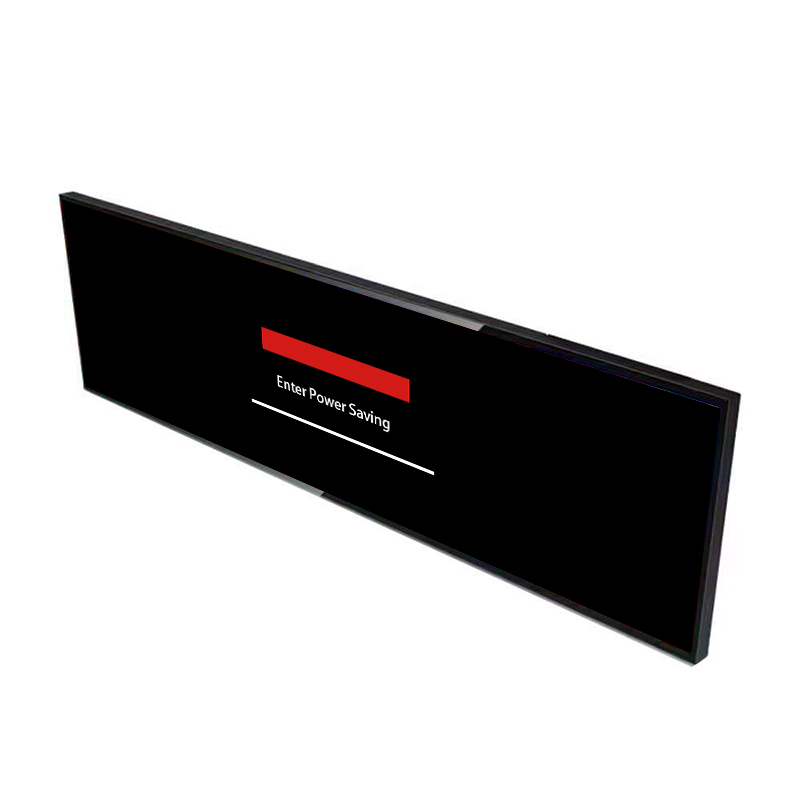

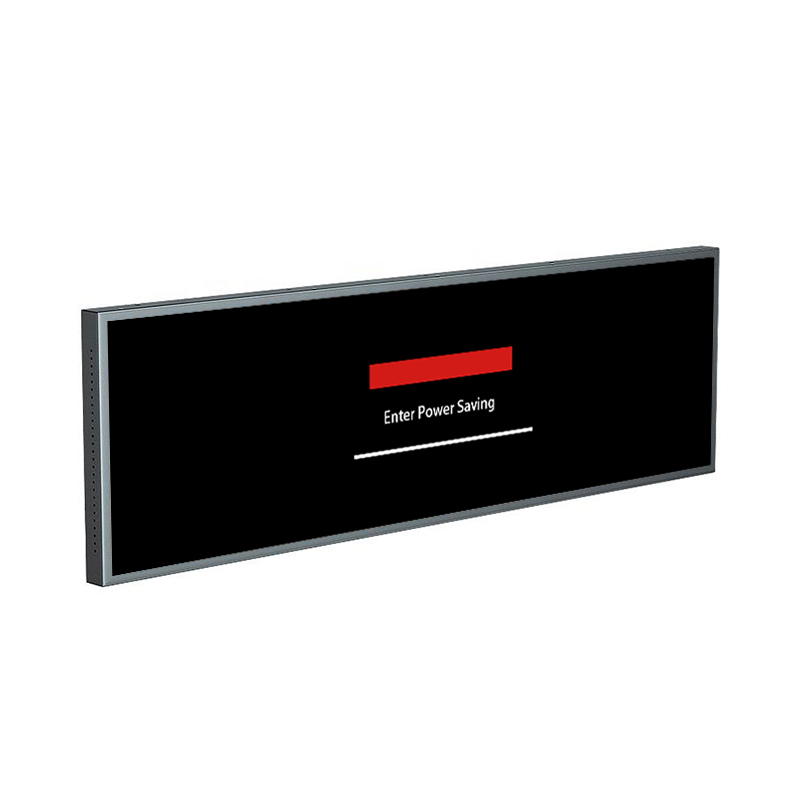

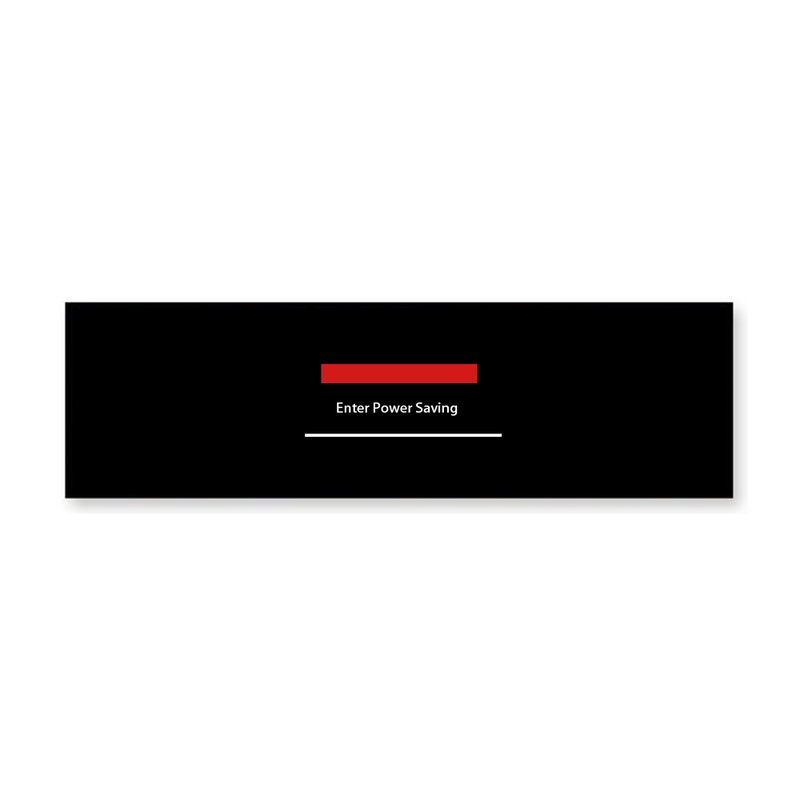

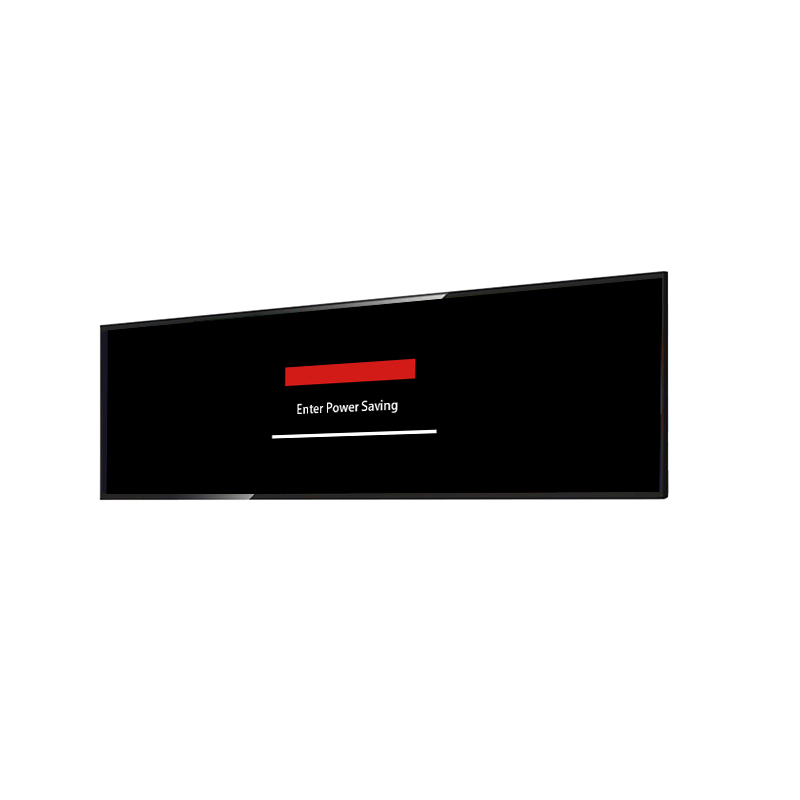

Stretched Bar LCD Monitor – 33.8 Inch High-Definition Commercial Screen
Factory-direct 33.8 inch industrial sheet metal bar monitor with 1920*171 panoramic display and 400 cd/㎡ luminance. Designed for linear spaces with zero vertical waste. Available in assembled units or modular SKD/CKD formats with 3-day sample lead time.
Specifications
- Screen Size
- 33.8 Inch
- Resolution
- 1920*171
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
33.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 33.8 inch | |
Resolution | 1920*171 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Perimeter Optimization: Converting Dormant Edge Margins into Dynamic Visuals
A common challenge in digital signage deployment is the inability to install dynamic video displays in narrow horizontal margins. Conventional 16:9 monitors demand substantial vertical clearance, making them unusable along supermarket gondola edges, bus door headers, and industrial machine consoles. The 33.8-inch cut-bar LCD screen bypasses these physical limits by adopting a specialized panoramic form factor delivering native 1920*171 resolution across an elongated 33.8-inch active diagonal. Venues can now present synchronized multi-zone promotional animations, dynamic price feeds, and essential directional signage right at the point of decision.
Commercial operators benefit from significant cost reductions in fixture fabrication. Because these stretched units install directly into standard shelving channels and door bulkheads, enterprise clients avoid expensive structural custom cabinet work.
The ultra-wide panoramic aspect ratio allows graphic designers to separate high-priority navigational alerts from continuous background advertising loops, ensuring that viewers immediately register essential updates without information overload.
True IPS Technology: Wide Symmetrical Viewing Angles Without Chromatic Drift
Engineered for clarity and longevity, the 33.8-inch panoramic display features a native resolution of 1920*171 and a brightness rating of 400 cd/㎡. The anti-glare surface minimizes ambient reflections, while the 1200:1 contrast ratio and IPS symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angles ensure optimal image quality from all perspectives. The backlight is rated for over 60,000+ operational hours of 24/7 commercial performance.
The LED backlight system incorporates premium phosphor coatings that deliver a broad, balanced color spectrum, ensuring that dynamic video sequences render with lifelike warmth and accurate saturation.
The IPS alignment layer ensures that contrast and color saturation remain virtually identical across the entire 178-degree viewing cone, allowing passersby approaching from sharp angles to read information effortlessly.
Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels
Constructed from high-tensile cold-rolled steel, the 33.8-inch monitor casing delivers outstanding mechanical durability. The galvanized metal enclosure provides robust impact resistance and internal component protection in heavy-duty commercial and transit applications.
The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Signal Compatibility: Plug-and-Play Synchronicity with Industrial Controllers
The electronic architecture of this display emphasizes compatibility, signal fidelity, and energy efficiency. Engineered with standard HDMI, VGA interfaces, the A/D controller board accepts standard graphic inputs from industrial computers, media player appliances, and network broadcast controllers. Integrated auto-sensing firmware accurately locks onto custom panoramic timings, rendering incoming video streams pixel-for-pixel without graphical distortion. Sound synchronization is enabled through a dedicated Audio Socket (3.5mm), allowing system builders to connect shelf-edge directional sound transponders or external speaker bars. The display incorporates a robust power conditioning module designed for universal 100-240V commercial electrical mains inputs. With an energy-conserving power rating of ≤ 60w, large supermarket chains and metro networks deploying hundreds of screens benefit from substantially lower electricity bills and reduced thermal footprints. Engineered to withstand challenging commercial and transportation environments, the unit functions reliably across operating temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
Automatic video timing detection instantly synchronizes incoming graphic signals from media players or industrial PCs, eliminating the need for manual resolution adjustments or complex display driver installation.
The internal switch-mode power converter features robust electromagnetic interference (EMC) shielding that prevents high-frequency noise from radiating into sensitive nearby industrial or telecommunications equipment.
Decoupled Open-Architecture Display for Multi-OS Environments
Experience complete operational freedom with a display engineered for universal HDMI video integration. Unencumbered by proprietary player restrictions, it interfaces smoothly with external Windows computers, Android network players, and Linux automation devices. This architecture allows venues to easily upgrade media player hardware or switch digital signage CMS software over time without replacing the display itself.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 33.8-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
The ZXT Manufacturing Advantage: 9+ Years of Industrial Display Leadership
ZXT offers direct factory sourcing for commercial stretched bar displays, supported by nearly a decade of manufacturing experience. We provide zero-tooling-fee deployments on standard sizes, 3-day sample turnaround, and complete OEM/ODM engineering support including CAD files and custom bracket design.
We provide comprehensive sample evaluation packages complete with power supplies, video cables, and mounting hardware, allowing technical teams to conduct thorough bench testing prior to volume commitment.
Procurement & Integration FAQ
**Q1: Does this display generate fan noise during operation?**
No. The monitor utilizes a 100% passive fanless conduction cooling architecture that dissipates heat naturally through the metallic chassis, operating in total acoustic silence while preventing internal dust accumulation.
**Q2: Are touch screen options available for this stretched format?**
Yes. We offer optional projected capacitive (PCAP) 10-point multi-touch overlays with Morse 7 explosion-proof tempered glass and optical bonding, as well as infrared (IR) touch frames for specialized kiosk builds.
**Q3: Can overseas partners order this monitor in SKD or CKD format?**
Yes. To help international contractors reduce customs tariffs and air freight expenses, ZXT supplies complete knocked-down (CKD) or semi-knocked-down (SKD) kits including tested LCD panels, driver boards, and raw casings.
B2B Commercial Consultation and Engineering Support
Contact ZXT today to request 3D CAD blueprints, technical datasheets, or evaluation samples for the 33.8-inch stretched bar LCD monitor. Our technical sales team returns official factory proposals within two hours.
