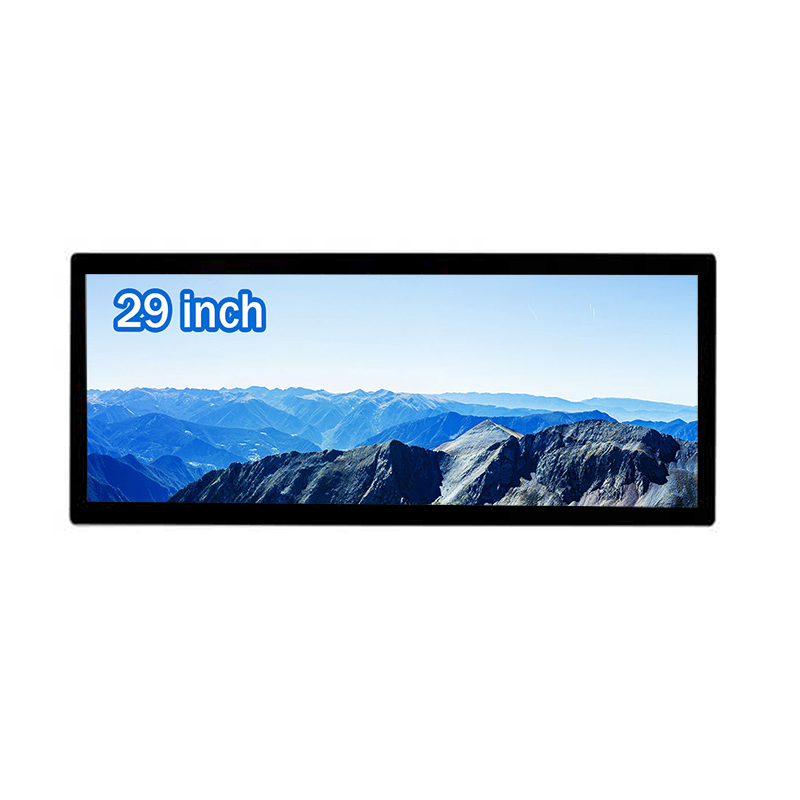

29-inch Bar Screen Commercial Display Horizontal Vertical Adjustable for Store Shelves
29 Inch Aluminum Stretched LCD Display Display area:672*283.5mm Resolution:2560*1080 Material:Aluminum Touch style:G+G Capacitive Touch screen
29-inch Bar Screen Commercial Display Horizontal Vertical Adjustable for Store Shelves
Meeting Room Bar Display for Smart Commercial and Multi-Scene Digital Communication
The 29-inch Bar Screen Commercial Display Horizontal Vertical Adjustable for Store Shelves is a flexible and compact digital signage solution designed for modern commercial environments that require adaptability, clarity, and efficient space usage. As a professional meeting room bar display, it is engineered not only for retail shelf applications but also for corporate meeting spaces, smart offices, and multi-functional commercial environments.
With its adjustable horizontal and vertical installation design, this model provides exceptional flexibility for different mounting scenarios, making it suitable for global markets including the USA, Europe, and Middle East.
Why Meeting Room Bar Display Is Becoming a Smart Office Standard
Modern offices are evolving toward digital and connected environments. Traditional printed meeting schedules and static notice boards are no longer efficient.
A meeting room bar display provides:
- Real-time meeting room scheduling updates
- Centralized office communication
- Clean and modern digital signage integration
- Space-saving ultra-wide display format
This makes it a key component in smart office infrastructure and enterprise communication systems.
Flexible Horizontal and Vertical Adjustable Design
Unlike fixed-format displays, this 29-inch model supports both horizontal and vertical installation.
This allows users to adapt the display for:
- Shelf-edge retail installations
- Wall-mounted office signage
- Corridor directional information
- Meeting room entrance displays
This flexibility makes it highly suitable for multi-purpose commercial environments where installation conditions vary.
29 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 29 inch | |
Resolution | 2560*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial LCD Display Exporter for Global Markets
As a professional commercial lcd display exporter, we supply stable and scalable solutions to international clients.
We serve:
- United States
- Europe (Germany, UK, France, Italy)
- Middle East (UAE, Saudi Arabia, Qatar)
- Africa and Southeast Asia
Our export services include packaging optimization, logistics support, and full technical documentation for global deployment.
Bar LCD Display Distributor for Retail and Corporate Projects
As a trusted bar lcd display distributor, we support system integrators and project contractors with reliable supply chains.
Key benefits include:
- Stable product availability for large projects
- Consistent quality across batches
- OEM/ODM customization support
- Competitive pricing for bulk orders
This ensures smooth deployment for retail chains, office buildings, and smart infrastructure projects.
Bar LCD Display Distributor for Multi-Industry Applications
As a bar lcd display distributor, we provide solutions for multiple industries:
Retail Stores
Shelf-edge digital promotion and advertising.
Corporate Offices
Meeting room scheduling and internal communication.
Hotels
Guest information and event signage.
Public Buildings
Wayfinding and digital information boards.
OEM & ODM Customization Services
We provide full OEM and ODM customization to meet project-specific requirements.
Customization options include:
- Screen size and aspect ratio adjustment
- Android / Windows / Linux system integration
- Horizontal and vertical mounting structure design
- Branding and private label production
- CMS and software integration support
This flexibility allows clients to build customized digital signage ecosystems.

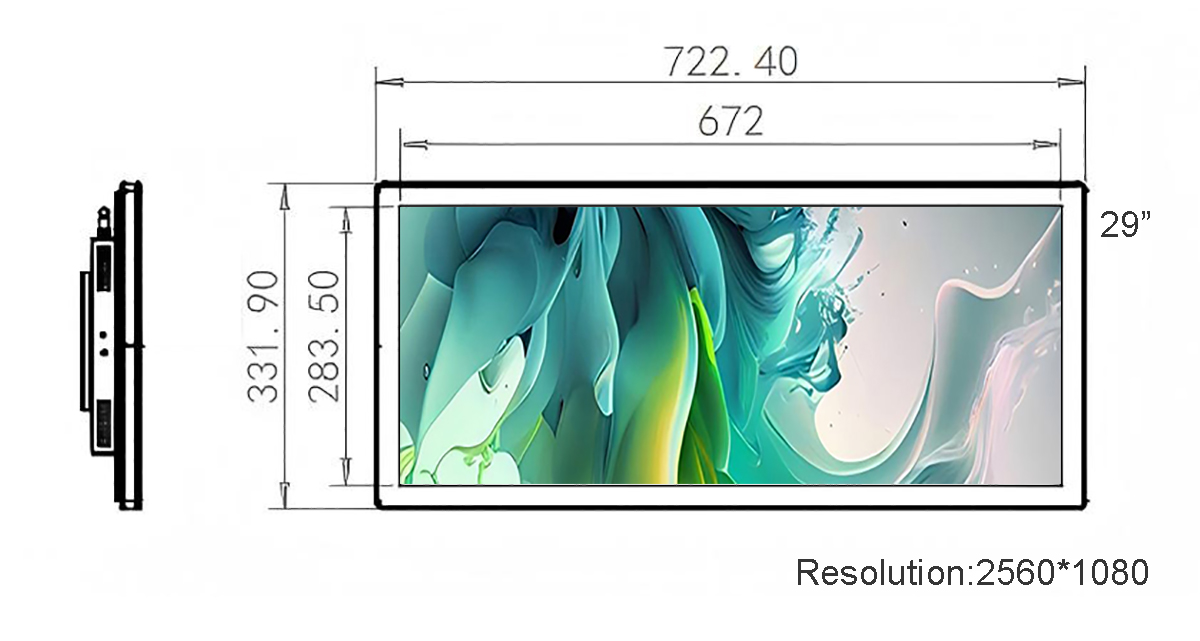

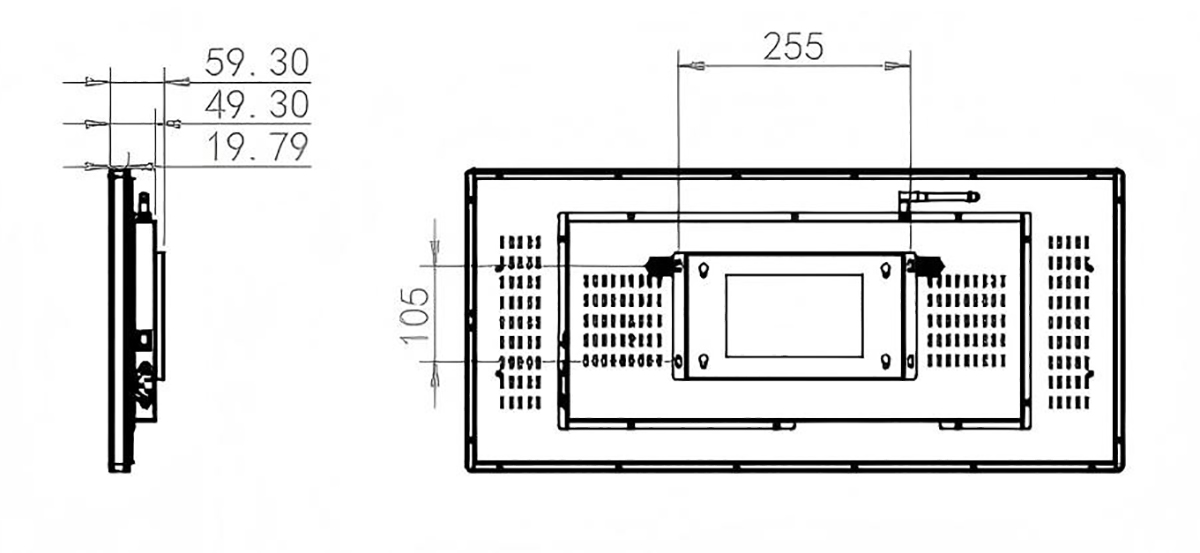

Product Dimension as follows:
Application Scenarios
The 29-inch adjustable bar display is widely used in:
Meeting Rooms
Real-time room scheduling and booking display.
Retail Shelves
Product promotion and shelf-edge advertising.
Corporate Offices
Internal communication and directional signage.
Hotels
Conference room and event information display.
Commercial Buildings
Multi-purpose digital signage applications.
FAQ
Q1: What is a meeting room bar display used for?
It is used for meeting room scheduling, office communication, and smart building signage.
Q2: Can it be used for retail shelves?
Yes, it supports shelf-mounted advertising and retail promotion applications.
Q3: Are you a commercial lcd display exporter?
Yes, we are a factory-direct commercial lcd display exporter serving global markets.
Q4: Do you offer OEM customization?
Yes, we provide full OEM/ODM services including hardware and software customization.
