Non-touchscreen

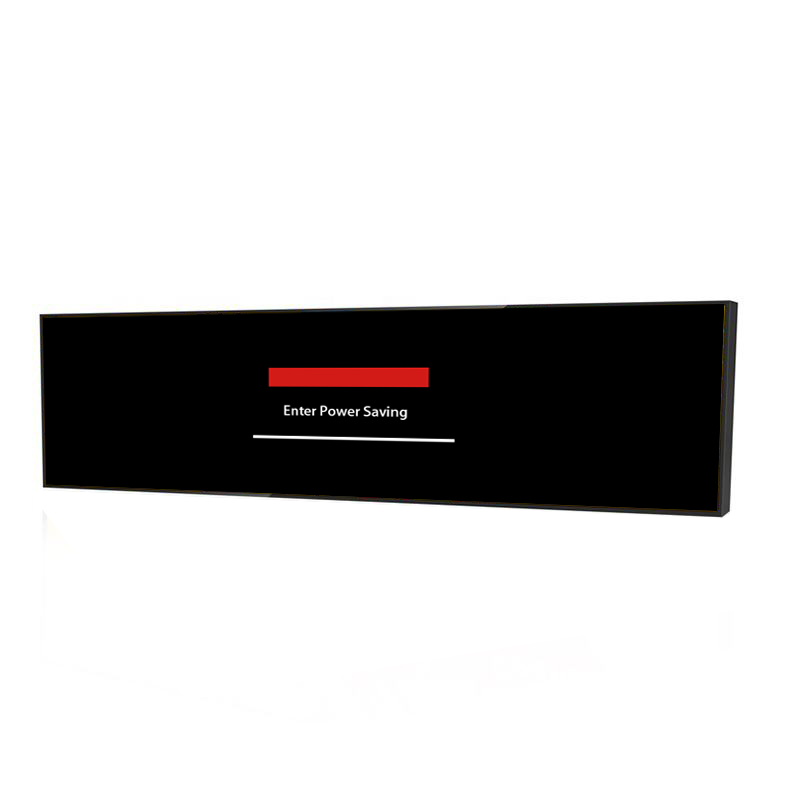

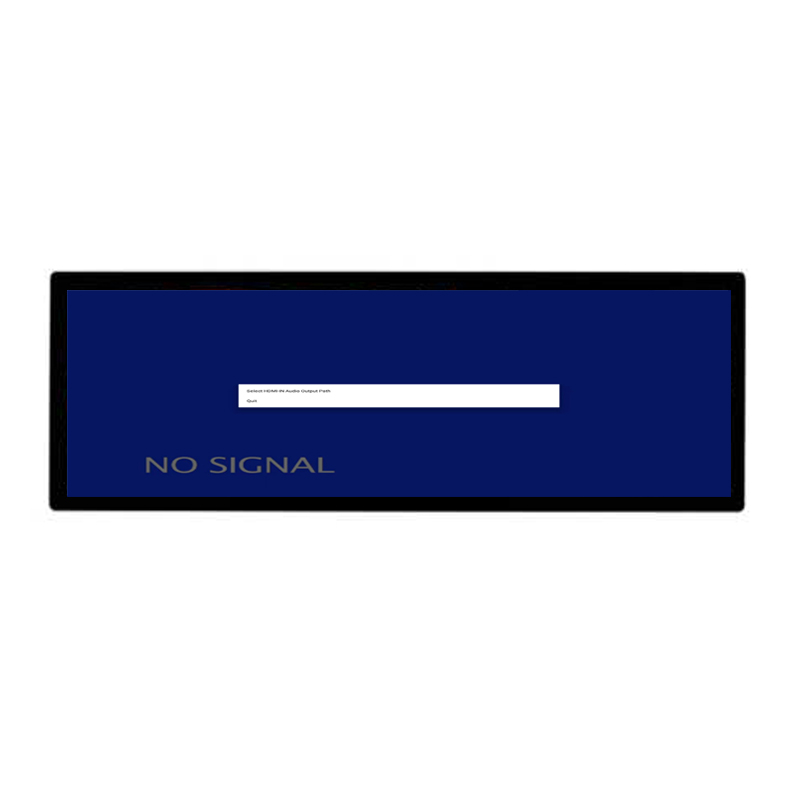

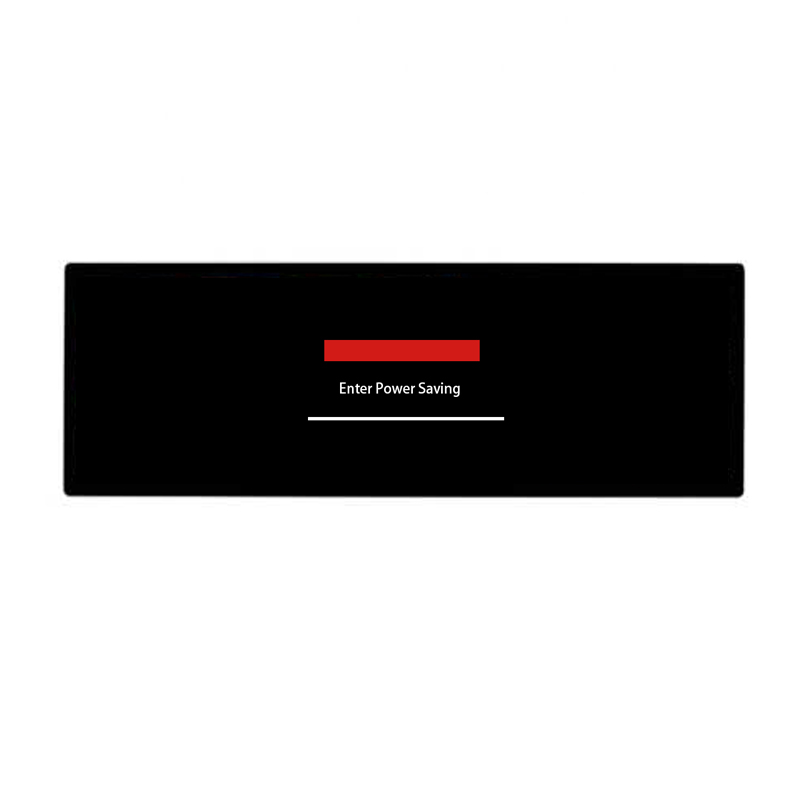

29.3 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Source-factory 29.3 inch industrial sheet metal bar monitor delivering native 1920*708 resolution and 400 cd/㎡ commercial brightness. Complete with HDMI/VGA inputs and fanless thermal architecture. Fast sampling and volume OEM/ODM fulfillment.
Specifications
- Screen Size
- 29.3 Inch
- Resolution
- 1920*708
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
29.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 29.3 inch | |
Resolution | 1920*708 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Dilemma: Why Conventional 16:9 Displays Obstruct Modern Fixtures
Commercial fixture design increasingly demands high-density visual communication without sacrificing vertical clearance. Standard square monitors take up too much vertical space, making them impractical for horizontal shelf rails, transit headers, and industrial control consoles. Engineered specifically for these horizontal perimeters, the 29.3-inch panoramic display establishes a clean balance between compact dimensions and wide-format visual presence. With a native raster of 1920*708, it allows multi-column split-screen graphics and automated status alerts to operate seamlessly within narrow spaces previously deemed unusable for dynamic digital media.
The streamlined horizontal geometry enables store architects to maintain cohesive interior sightlines. Customers browsing retail aisles enjoy unimpeded views of premium product displays while receiving relevant pricing and promotional information directly at eye level.
Eliminating the need for structural redesigns translates to substantial capital savings for project contractors. Installation teams can utilize existing retail track extrusions or vehicle bulkheads without commissioning expensive custom millwork or heavy mechanical brackets.
Engineered Optics: High Pixel Density and Glare Suppression for Public Spaces
Equipped with an industrial-grade liquid crystal matrix, the 29.3-inch stretched monitor delivers native 1920*708 resolution and a luminous output of 400 cd/㎡. It provides crisp, high-contrast imagery backed by a 1000:1 contrast ratio, ensuring text and graphics remain readable under intense interior lighting. True IPS technology provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, while the backlight system is rated for over 60,000 hours of continuous 24/7 commercial duty of dependable operation.
Optical bonding technology minimizes internal air gaps between the cover glass and liquid crystal cell, virtually eliminating internal light refraction and delivering crisp, surface-printed visual clarity.
Fast liquid crystal transition times prevent image blurring and ghosting during high-speed promotional video animations, ensuring that fast-moving product footage appears fluid and natural.
Mechanical Design: Protecting Internal Electronics in Demanding Environments
Fabricated from heavy-gauge electro-galvanized steel, the 29.3-inch enclosure provides excellent physical protection and structural rigidity. The metal casing resists mechanical shock, prevents chassis flex, and shields internal driver electronics from ambient electrical noise.
Solid-state thermal engineering allows the display to operate continuously without internal cooling fans, preventing dust accumulation and eliminating acoustic noise. The mechanical chassis features standardized VESA rear mounting patterns alongside adjustable lateral slide grooves for easy integration.
Architectural integration is streamlined by an ultra-low-profile mounting depth that complies with international building code corridor protrusion limits. Flush-mount wall brackets allow the display to integrate smoothly into elevator lobbies and narrow hallways.
Interfacing Standards: Audio Output Jack and Industrial Video Scaling Logic
The display includes HDMI, VGA video interfaces for plug-and-play integration with media players and industrial systems. Audio output is supported via a Audio Socket (3.5mm). Built to accept universal AC 100V~240V (50/60Hz) power with an efficient draw of ≤ 45w, it is rated for environmental conditions of below10℃ ~ +50℃ and ≤ 85%RH.
Low standby power consumption complies with international commercial energy efficiency standards, helping enterprise clients meet corporate sustainability and green building certification goals.
Universal mains power compatibility simplifies worldwide distribution, allowing global retail brands to deploy the identical hardware model across North American, European, and Asian locations seamlessly.

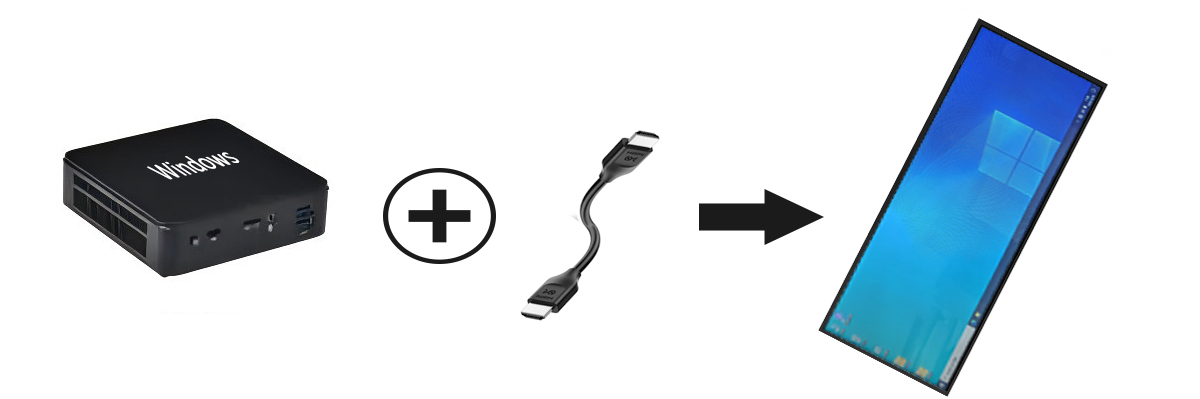

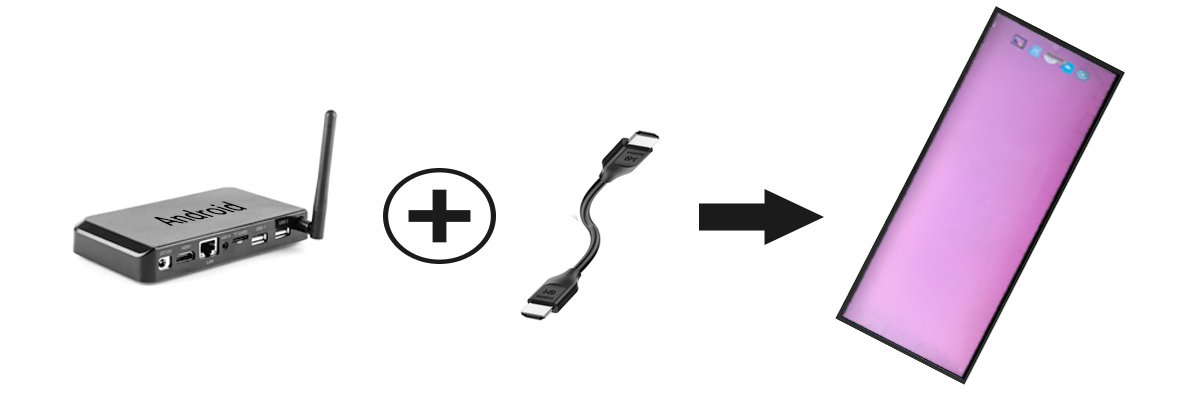

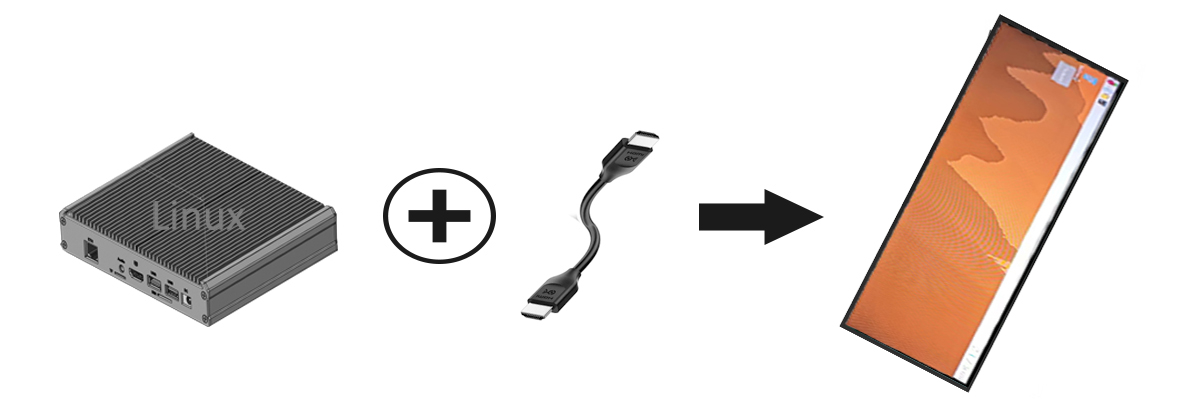

Open Architecture HDMI Connectivity: Freedom to Choose Your OS
Safeguard your digital signage rollout from proprietary obsolescence with an open-architecture commercial display. Supporting direct HDMI video feeds from external Windows boxes, Android media sticks, and Linux industrial controllers, this monitor provides instant compatibility with your target content management software, interactive point-of-sale applications, and network telemetry utilities.
Deployment Vectors: Retail Shelves, Passenger Transoms, and Control Consoles
The 29.3-inch panoramic display excels in spaces where horizontal information delivery enhances operational efficiency. In smart supermarket aisles, it provides eye-level pricing and product promotions. In transit hubs, it serves as an overhead route indicator above passenger boarding gates. In corporate headquarters, it functions as an elegant architectural directory, while in industrial server rooms, it provides clear rack-mount telemetry feeds.
In luxury cosmetics and high-end department store showcases, the display functions as an elegant digital riser that highlights brand prestige. Subtle video animations and product feature breakdowns complement the physical merchandise, elevating retail aesthetics and customer dwell time.
High-end fashion boutiques and cosmetics flagship stores utilize the display as a luxury architectural accent. Seamlessly integrated into glass shelving and perfume risers, the screen elevates brand perception while presenting subtle, cinematic promotional footage.
Engineering Consultation: Firmware Tuning, Pinout Schemes, and CAD Blueprints
ZXT provides direct factory manufacturing of commercial stretched bar displays, eliminating middleman costs. We maintain in-stock tooling for standard sizes, deliver evaluation samples within three business days, and provide complete 2D/3D CAD models and modular SKD/CKD shipping options to support overseas assembly.
Direct factory communication eliminates the misunderstandings common with trading intermediaries, giving project managers clear visibility into production milestones and shipping schedules.
Frequently Asked Questions (FAQ)
**Q1: Can this display be driven by our existing digital signage software?**
Yes. Engineered with an open hardware architecture, the display accepts standard HDMI and VGA signals from any external Windows, Android, or Linux player running your preferred CMS platform without proprietary software lock-in.
**Q2: Is this monitor certified for continuous 24/7 commercial operation?**
Absolutely. The display incorporates an industrial-grade A-grade liquid crystal cell and solid-state LED backlight rated for over 60,000 hours of continuous operation, supported by a fanless passive cooling design.
**Q3: Can ZXT provide customized mounting brackets or enclosure finishes?**
Yes. As a direct source manufacturer, we offer comprehensive OEM/ODM customization, including custom powder-coat colors, specialized shelf-edge mounting brackets, open-frame configurations, and modular SKD/CKD supply.
Schedule Sample Dispatch and Review Technical Specs
To evaluate the 29.3-inch stretched bar display for your next deployment, contact our Shenzhen engineering team today. We offer full CAD support, 3-day sample dispatch, and volume-tiered commercial pricing.
