28.6 Inch TouchScreen ultra Wide 4K Stretched bar LCD Screens for Shelves
28.6 Inch Aluminum Stretched LCD Display Display area:698.5*196.5mm Resolution:1920*540 Material:Aluminum、Tempered glass Touch style:G+G Capacitive Touch screen
28.6 Inch 4K Touch Stretched Display for Smart Retail Shelf and Interactive Digital Signage Solutions
The 28.6 inch ultra wide 4K touchscreen stretched display is a next-generation smart retail solution designed for modern supermarkets, convenience stores, and intelligent retail environments. Featuring an interactive touch panel and ultra-wide stretched format, this display transforms traditional shelves into dynamic digital communication platforms.
As retail technology evolves toward digital engagement and automation, demand for stretched display systems with touch interaction and high-resolution performance continues to grow globally.
Why Stretched Display Is Transforming Smart Retail Shelves
Traditional shelf advertising is static and limited in engagement. However, interactive stretched displays enable real-time communication between brands and customers at the point of purchase.
The stretched display provides several key advantages:
- Real-time interactive product engagement
- Enhanced shelf-level advertising impact
- Improved customer decision-making experience
- Better space utilization on retail shelves
- Dynamic promotional content delivery
- Strong visual attention in crowded retail environments
This makes it a powerful tool for smart retail transformation.
28.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28.6 inch | |
Resolution | 1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Features of 28.6 Inch 4K Touch Stretched Display
Ultra Wide 4K Resolution Screen
The high-resolution display ensures sharp and detailed visual output, improving product visibility and brand communication.
Touchscreen Interactive Technology
Supports multi-touch functionality, allowing customers to interact with product information, promotions, and digital content.
Shelf Integration Design
Specifically designed for retail shelf installation, enabling seamless integration into existing store layouts.
Commercial Grade Stability
Built for continuous 24/7 operation in high-traffic retail environments.
Smart Content Management Support
Compatible with cloud-based CMS systems for centralized content updates and campaign management.
Applications of Stretched Display in Retail Industry
The stretched display is widely used in modern retail environments:
Supermarkets
Used for shelf advertising, product promotions, and real-time pricing updates.
Convenience Stores
Enhances impulse buying with interactive promotional content.
FMCG Brand Shelves
Improves brand visibility and product storytelling at shelf level.
Smart Retail Stores
Supports digital transformation and interactive shopping experience.
Chain Retail Stores
Enables centralized content control across multiple store locations.
Beverage & Snack Aisles
Displays promotions and product recommendations directly at point-of-sale.

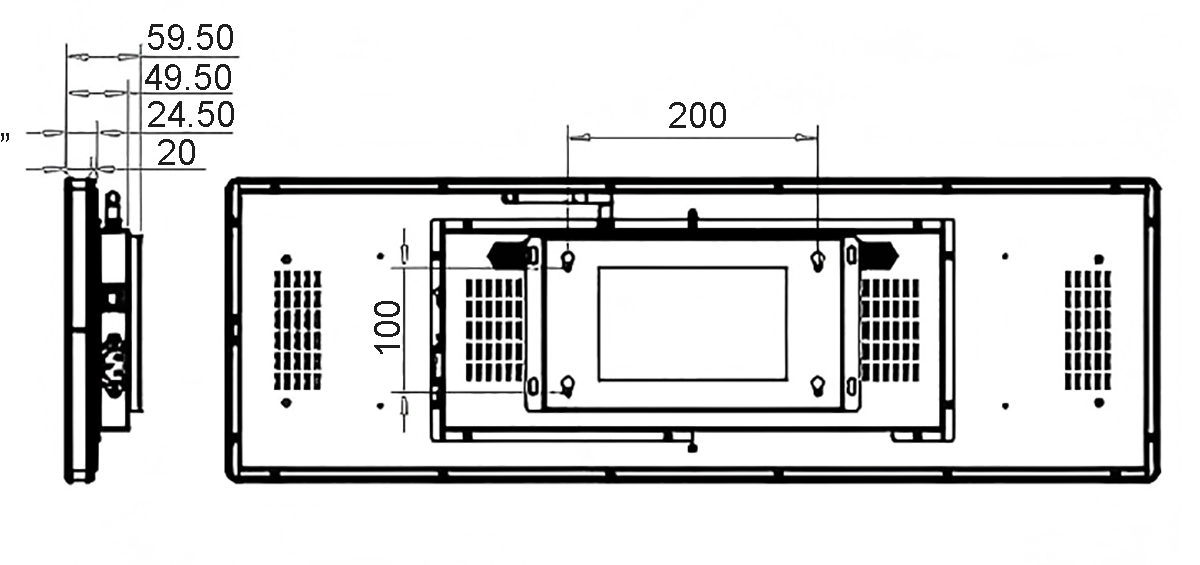

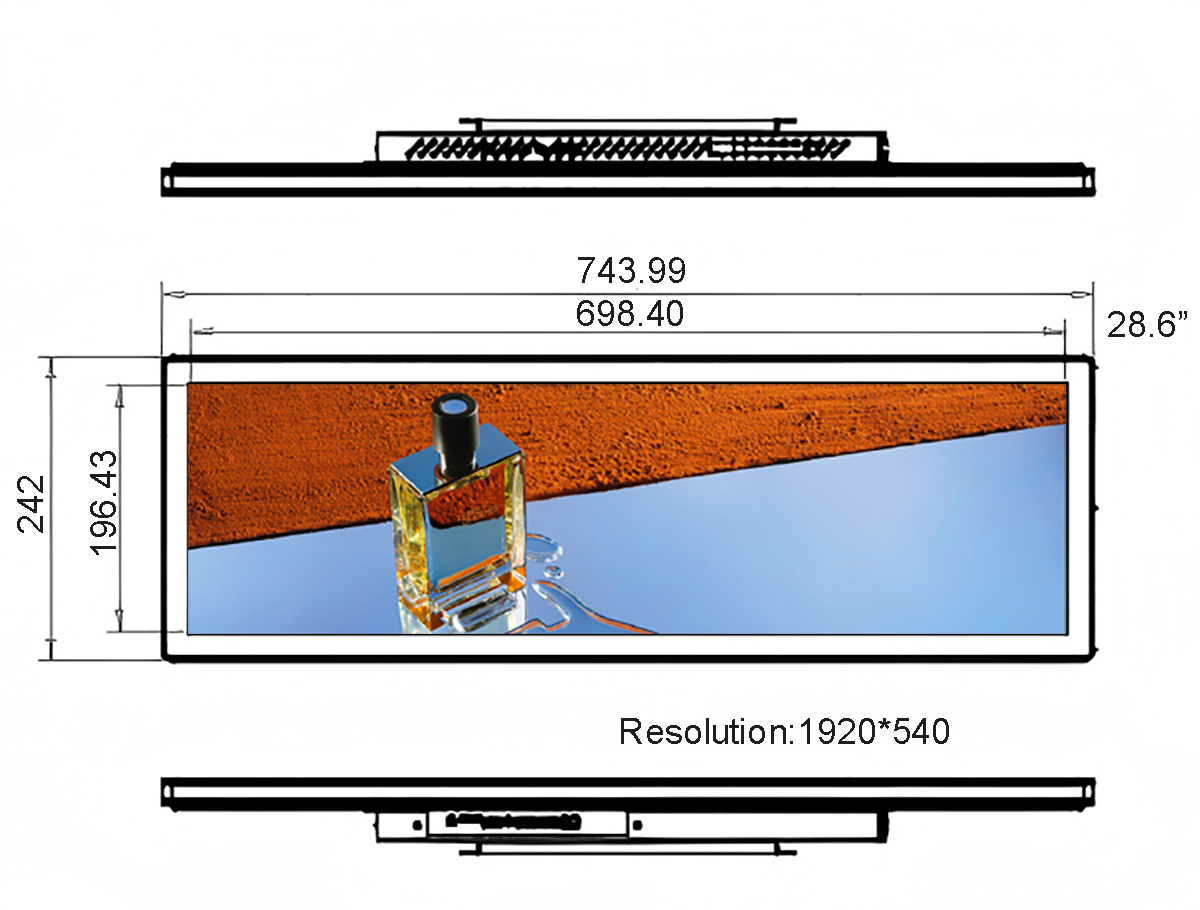

Product Dimension as follows:
OEM & ODM Customization Services
As a professional stretched LCD manufacturer, we provide full OEM & ODM solutions for global retail clients.
Customization options include:
- Custom stretched screen sizes
- Android / Windows system integration
- Cloud CMS platform integration
- Touch and non-touch versions
- High brightness shelf display options
- Private label branding
- API integration for retail systems
We support full smart retail shelf digital transformation projects.
Why Choose Our Stretched Display Solution
- Factory direct manufacturing
- Strong R&D capability
- Stable global supply chain
- Fast production lead time
- Retail industry specialization
- Full OEM & ODM support
- Professional after-sales service
We help global retailers build intelligent in-store communication systems.
FAQ – Stretched Display
Q1: What is a stretched display used for?
It is used for retail shelf advertising, interactive product display, and smart store digital signage systems.
Q2: What is the advantage of 4K touch display?
It provides high-resolution visuals and allows customer interaction with product content.
Q3: Can it be installed on retail shelves?
Yes, it is specifically designed for shelf integration.
Q4: Does it support cloud content management?
Yes, it supports CMS-based remote content updates.
Q5: Is it suitable for supermarkets?
Yes, it is widely used in supermarkets and FMCG retail environments.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
