Non-touchscreen

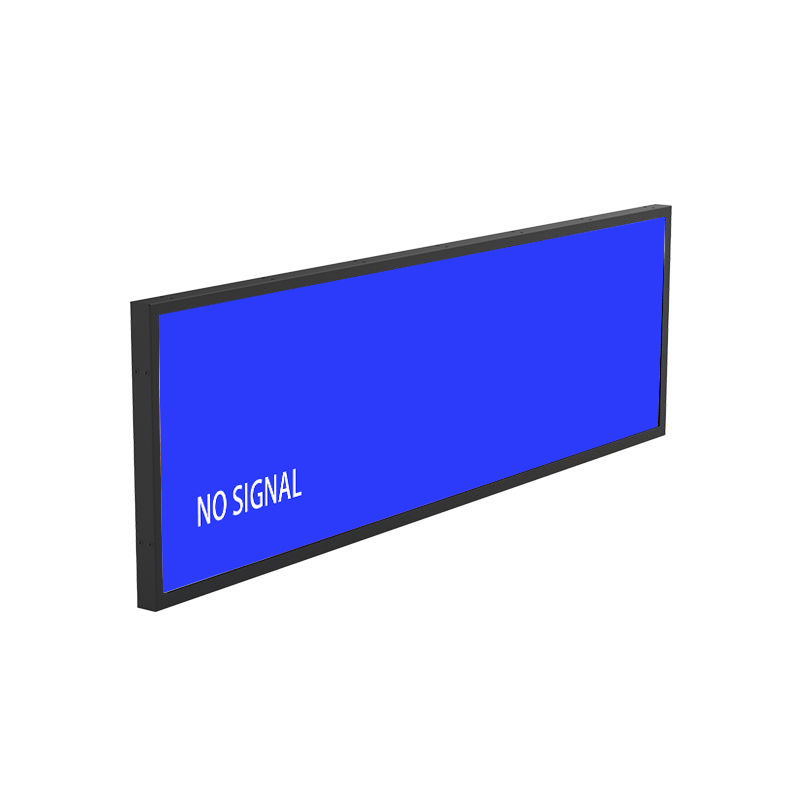

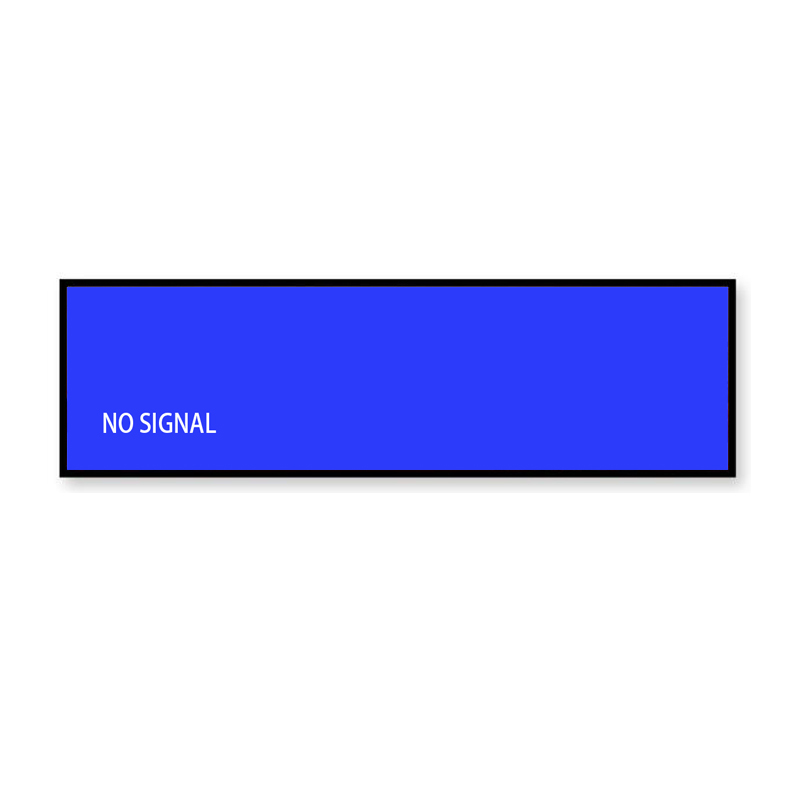

Commercial Display Signage: 28 Inch Ultra-Wide Bar LCD Monitor
Factory-direct 28 inch industrial sheet metal bar monitor delivering 1920*360 panoramic display resolution and 400 cd/㎡ brightness. Fanless solid-state cooling for silent, dust-free operation in demanding commercial environments.
Specifications
- Screen Size
- 28 Inch
- Resolution
- 1920*360
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
28 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28 inch | |
Resolution | 1920*360 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Panoramic Engineering: Delivering Wide Visual Feeds in Restricted Vertical Slots

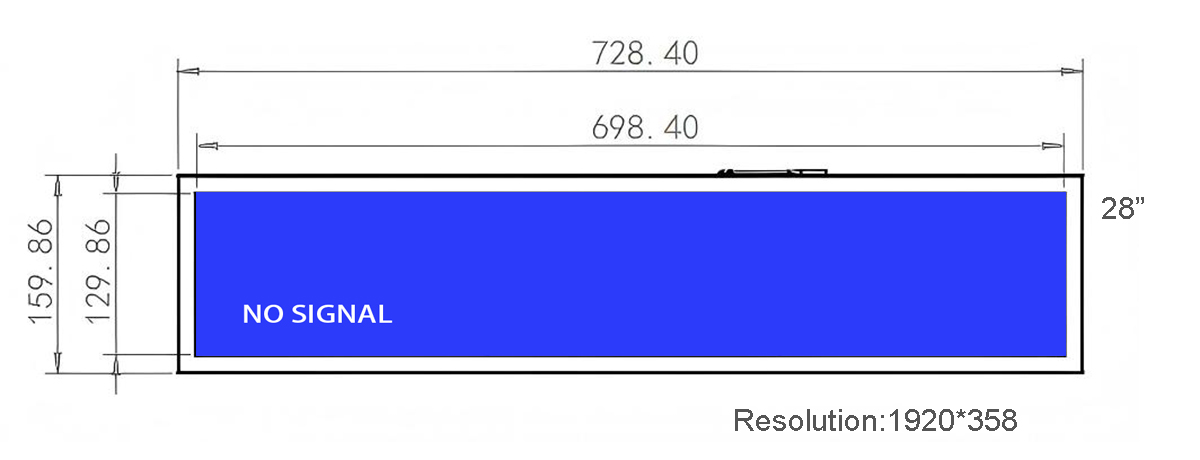

Engineered for installations where standard 16:9 monitors are too tall, the 28-inch stretched display delivers 1920*360 resolution across an active 28-inch diagonal. It allows commercial operators to deploy vibrant promotional content and operational alerts along narrow horizontal headers with zero space waste.
By turning dormant perimeter spaces into dynamic visual assets, venues maximize the commercial value of their existing architecture. Every square inch of wall or shelf space contributes actively to customer engagement.
Enterprise clients benefit from a consistent hardware aesthetic across diverse venue locations. The standardized linear enclosure provides a cohesive visual signature whether installed in boutique shops or transit hubs.
Visual Physics: Maintaining Sharp Image Definition Under Ambient Lighting
At the heart of this display is an industrial-grade A-grade liquid crystal cell engineered for continuous commercial duty. Featuring a native 1920*360 resolution, the 28-inch screen provides high-definition clarity that ensures intricate graphic assets, dynamic video commercials, and multi-line transit schedules remain razor-sharp from standard viewing distances. Boasting an engineered luminous output of 400 cd/㎡, the panel overcomes the visual washout typical of consumer screens in bright commercial lighting. Paired with a 1000:1 native contrast ratio, the optical stack produces deep black levels and vibrant chromatic saturation. The display's IPS panel structure ensures wide optical visibility with CR≥10 wide-angle IPS optical alignment viewing angles, while the solid-state LED backlight is rated for a continuous operational life of more than 60,000 hours of maintenance-free illumination.
An optimized polarising matrix prevents color inversion and contrast degradation when the screen is viewed from steep vertical or lateral perspectives, preserving image fidelity in tight corridor passages.
High static contrast performance ensures that deep blacks remain rich and text characters stand out sharply, maximizing legibility in low-light transit tunnels as well as brightly illuminated department stores.
Fanless Heat Spreading: Extending Electronic Lifespan Through Solid-State Cooling
Formed from heavy-duty cold-rolled steel, the 28-inch chassis is designed to survive demanding transport and control room environments. Its rigid metal construction delivers superior shock absorption and electromagnetic immunity, safeguarding driver circuits against industrial interference.

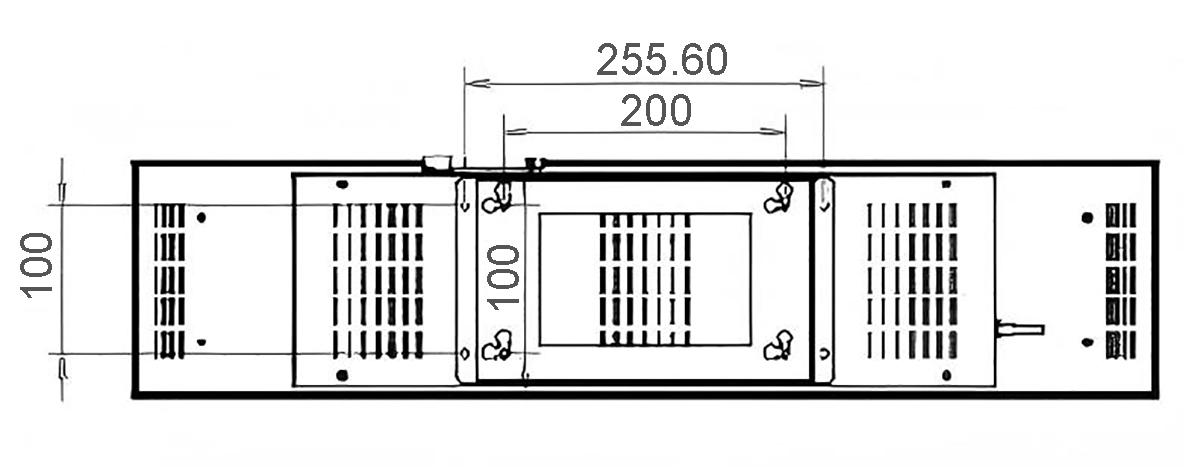

Built without mechanical cooling fans, the display relies on efficient conductive thermal paths through its metallic housing to maintain optimal operating temperatures. This silent, dust-free design maximizes operational longevity, while standardized rear VESA patterns and lateral slide channels support versatile installation.
Designed with multi-axis mounting versatility, the rear housing accommodates custom ceiling drop-poles, articulated wall brackets, and desktop tilt-stands. Heavy-duty internal mounting studs prevent thread stripping during repeated installation cycles.
Signal Integrity: Preventing Line Noise and Video Jitter in Industrial Plants
Onboard HDMI, VGA video ports provide flexible connectivity with external media players and embedded systems. Audio output is supported via a Audio Socket (3.5mm). The display operates on universal global 100~240V line voltage at 50/60Hz power with a maximum consumption of ≤ 45w, performing reliably across ambient temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Hardware-level EDID emulation ensures that connected host computers immediately recognize the custom stretched display resolution, streamlining remote software management and automated reboots.
Efficient passive thermal dissipation paths conduct heat away from the internal power module directly to the metal casing, preventing internal thermal buildup and maximizing component longevity.
Open-Architecture Computing: Universal Operating System Flexibility
Built to eliminate restrictive proprietary hardware dependencies, this monitor embraces a truly open compute architecture. Integrating an external media host running Windows, Android, or Linux distributions is as simple as attaching a standard HDMI cable. This plug-and-play flexibility gives AV integrators complete liberty to deploy their preferred digital signage CMS suite, proprietary SCADA telemetry package, or custom retail interactive applications without firmware barricades.
Strategic Venues: Airport Information Systems, Fast-Food Menus, and Factory Lines
With its specialized panoramic form factor, the 28-inch display serves diverse commercial sectors. It enhances retail product displays with dynamic video loops, informs public transit commuters with real-time route updates, monitors server rack metrics in data centers, and displays panoramic menus in restaurant chains.
Specialty pharmacy and health retail stores install this monitor along vitamin and personal care shelving. Nutritional information, product usage guides, and promotional discounts are presented at eye level to support informed customer purchasing decisions.
Commuter rail stations report smoother passenger boarding flows when deploying this display along platform boarding gates. Passengers waiting along platform edges can verify carriage layouts and arrival times at a single glance.
Factory Direct Capabilities: Rapid Prototyping and Modular Assembly Formats
ZXT operates as an authentic source manufacturer of industrial commercial displays, eliminating third-party trading intermediaries to provide direct engineering collaboration and transparent factory pricing. Over nine years of research, development, and production have yielded an extensive library of proven tooling designs. For our clients, this means zero tooling costs on standard sizes and expedited sample delivery within three business days. To accommodate diverse global import regulations and assembly preferences, we deliver hardware in turnkey finished packages or modular SKD/CKD formats. Supplying matched panel cells, pre-configured driver motherboards, wiring harnesses, and chassis components allows international partners to assemble locally, dramatically cutting air freight expenses and tariff burdens. Our design engineers work directly with your technical personnel, providing 3D CAD modeling files, structural tolerance consultations, and customized interface configurations.
Maintaining extensive raw glass cell inventories and pre-machined aluminum extrusions enables our factory to fulfill volume orders with rapid turnaround, minimizing project schedule risks for international contractors.
System Integrator Frequently Asked Questions
**Q1: Are special graphic cards required to drive this stretched resolution?**
No. Standard integrated and discrete graphic chipsets on modern Windows, Android, and Linux devices natively support custom panoramic resolutions through standard HDMI EDID recognition.
**Q2: How does the display perform under bright commercial lighting?**
With calibrated commercial luminance output and anti-glare polarized surface treatment, the screen diffuses harsh ambient ceiling reflections to ensure crisp readability across retail aisles and transit concourses.
**Q3: What warranty and after-sales support does ZXT provide?**
We provide comprehensive commercial factory warranties backed by responsive technical engineering assistance, schematic pinout documentation, and readily available modular replacement parts.
Evaluate Sample Hardware and Request CAD Models
To discuss custom engineering requirements, request 2D/3D CAD drawings, or order an evaluation sample of the 28-inch stretched bar display, contact our international sales desk today. Our engineering team provides official commercial proposals within two business hours.
