Stretched Bar LCD Monitor – 28.6 Inch High-Definition Commercial Screen
Commercial-grade 28.6 inch industrial sheet metal bar monitor delivering 1920*540/3840*1080 resolution and 400 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 28.6 Inch
- Resolution
- 1920*540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
28.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28.6 inch | |
Resolution | 1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Engineering: Unlocking Underutilized Architectural Perimeters
Retail merchandising and passenger transit environments demand specialized displays designed for narrow linear perimeters. The 28.6-inch stretched LCD monitor satisfies this requirement by providing 1920*540/3840*1080 native resolution across an active 28.6-inch diagonal, maximizing horizontal display area while preserving valuable vertical clearance.
The specialized cut-bar aspect ratio allows software developers to design multi-zone split-screen layouts. Static brand banners can run alongside animated promotional videos, maximizing screen utility within a single fixture.
The horizontal display geometry aligns naturally with human horizontal glance paths, ensuring that dynamic price callouts and route stops catch attention without requiring shoppers or commuters to look away from their primary path.
Image Reproduction: Wide Aspect Pixel Mapping and Accurate Color Rendering
The optical system of the 28.6-inch panoramic display features 1920*540/3840*1080 resolution, 400 cd/㎡ brightness, and a 1000:1 contrast ratio. True IPS technology guarantees true IPS 178-degree wide visual cone viewing angles without color distortion, while the industrial LED backlight ensures an industrial service life exceeding 60,000 hours of continuous commercial operation.
The liquid crystal panel is engineered for rapid pixel response times, eliminating ghosting and motion blur during fast-scrolling advertising text and high-frame-rate video playback.
The protective front glass surface combines high optical transparency with oil-resistant surface properties, repelling accidental fingerprint smudges and preserving pristine screen clarity in public environments.
Enclosure Dynamics: Balancing Sleek Commercial Styling with Factory Hardening
Housed in a rugged cold-rolled steel enclosure, the 28.6-inch monitor is built to withstand mechanical stress and vibration. The electro-galvanized metal structure ensures lasting durability and reliable internal circuit shielding in demanding field installations.
The fanless mechanical design ensures silent operation and prevents dust and airborne particles from accumulating inside the casing. Heat is transferred naturally through the metal enclosure, while standard VESA patterns and lateral channels support flexible mounting.
The mechanical frame incorporates internal structural stiffeners that prevent panel warping across wide temperature fluctuations. Standardized rear VESA mounting patterns provide instant compatibility with commercial display brackets.
Electronic Interfacing: Video Signal Paths and Automated Raster Scaling
Seamless electronic integration into existing computing infrastructures is achieved through versatile signal interface provisions. The monitor motherboard incorporates standard HDMI, VGA video inputs, allowing immediate plug-and-play communication with standard digital signage media players, x86 industrial PCs, Android embedded compute sticks, and programmable logic controller output boards. Video signal scaling circuitry automatically synchronizes with custom ultra-wide timings, ensuring proper native scaling without horizontal image squeezing or letterboxing artifacts. Audio playback is supported via an integrated Audio Socket (3.5mm), facilitating straightforward connection to external sound bars, shelf-mounted directional audio speakers, or centralized PA amplification equipment. Operating from a universal switch-mode power supply accepting AC 100V~240V (50/60Hz), the internal power converter delivers stable low-ripple direct current to sensitive driver ICs while providing resilient protection against electrical surges and line fluctuations commonly encountered in industrial complexes. Energy efficiency remains a central engineering priority: overall operational power consumption is constrained to ≤ 45w, minimizing thermal loading and dramatically reducing total operational utility costs across large-scale multi-screen installations. The hardware is qualified for continuous operation across an ambient operating temperature range of below10℃ ~ +50℃ alongside non-condensing relative humidity levels of ≤ 85%RH.
Internal power conversion circuitry incorporates multi-stage surge suppression and electromagnetic interference filtering, shielding sensitive driver chips from electrical spikes and voltage sag on noisy commercial circuits.
Industrial-grade signal conditioning chips filter incoming video inputs to eliminate pixel jitter and timing mismatch, guaranteeing rock-solid graphical synchronization when driven by commercial digital signage players.
Open Architecture HDMI Connectivity: Freedom to Choose Your OS

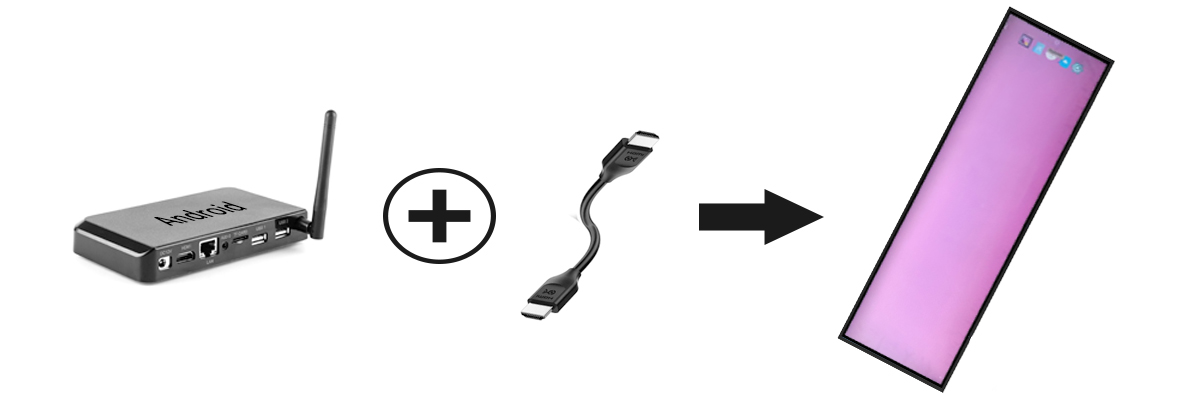

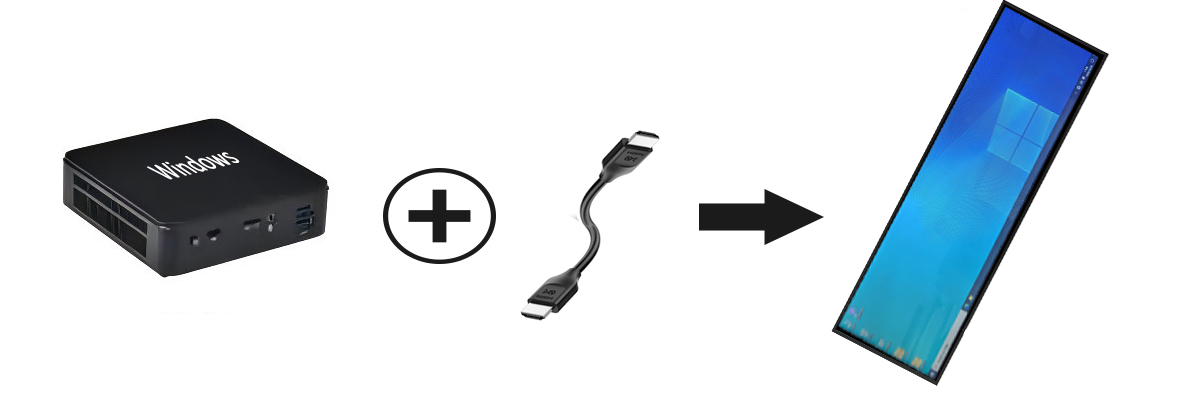

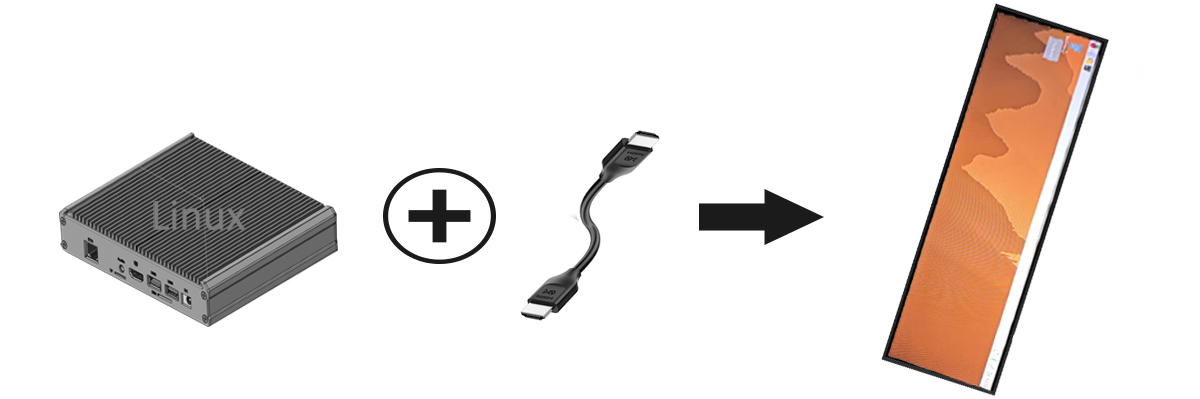

Safeguard your digital signage rollout from proprietary obsolescence with an open-architecture commercial display. Supporting direct HDMI video feeds from external Windows boxes, Android media sticks, and Linux industrial controllers, this monitor provides instant compatibility with your target content management software, interactive point-of-sale applications, and network telemetry utilities.
Implementation Case Studies: Transforming In-Store and In-Vehicle Wayfinding
With commanding panoramic visibility, the 28.6-inch stretched display is engineered for high-throughput public transportation and retail infrastructure: 1. Rail Transit Metro Carriage Headers: Suspended above train doors and central aisles to display dynamic panoramic transit routes, bilingual station alerts, and safety notices. 2. Airport Concourse Wayfinding: Positioned above baggage carousels, customs lanes, and security checkpoints to provide continuous multi-lingual passenger guidance. 3. Flagship Retail Shopfront Ribbons: Built into luxury retail fascias and boutique feature walls for continuous panoramic fashion runway and brand video displays. 4. Industrial Production Line Tickers: Mounted in manufacturing plants to broadcast real-time production targets, safety metrics, and operational KPIs across broad factory spans.
In corporate data centers and industrial control rooms, the horizontal screen provides a continuous telemetry window without obstructing primary workstation monitors. Network engineers and equipment operators monitor real-time server loads, network traffic spikes, and manufacturing line metrics across a dedicated panoramic display strip.
Control room operators utilizing this display as a dedicated auxiliary telemetry ribbon report improved situational awareness. By dedicating the horizontal screen to continuous server load metrics and multi-camera status feeds, operators keep their primary workstation monitors clutter-free.
Global Logistics Optimization: SKD/CKD Deliveries and Import Tariff Savings
By establishing a direct factory relationship with ZXT, your company secures factory-direct commercial terms backed by genuine industrial engineering capability. With over nine years of dedicated experience and hundreds of deployed projects worldwide, we keep standard extrusion dies and tooling components permanently in stock. This eliminates upfront tooling charges on standard sizes while enabling rapid sample shipping within 72 hours of project sign-off. We cater to international contractors and volume resellers by offering flexible packaging formats. Order fully assembled turnkey commercial monitors, frameless open-cell modules, or CKD/SKD modular kits designed to optimize sea and air container utilization and lower local import tariffs. Our dedicated engineering team assists with every phase of mechanical and electronic integration, providing full CAD support and factory testing.
Flexible packaging options—from individual retail-ready cartons to high-density bulk export pallets—are engineered to maximize container space utilization and protect hardware during long ocean transit.
Commercial Rollout FAQ
**Q1: What cable lengths are supported for HDMI video feeds?**
Standard passive high-speed HDMI cables support connections up to 10 meters, while active optical HDMI cables or standard HDMI-over-CAT6 extenders can be utilized for long-distance media player placement.
**Q2: How does the display handle unexpected power outages?**
The monitor features automatic power-recovery logic. Once electrical power is restored, the display powers on instantly and resumes active video broadcasting without requiring manual button intervention.
**Q3: Can we schedule a factory technical video consultation with ZXT engineers?**
Yes. Our international technical sales team can coordinate direct video conferences with our hardware design engineers to review CAD drawings, project requirements, and customized production timelines.
Evaluate Sample Hardware and Request CAD Models
To discuss custom engineering requirements, request 2D/3D CAD drawings, or order an evaluation sample of the 28.6-inch stretched bar display, contact our international sales desk today. Our engineering team provides official commercial proposals within two business hours.
