Smart Retail Shelf Advertising: 28.6 Inch Bar LCD Monitor (1920x540)
Factory-direct 28.6 inch standard ultra-wide bar display with 1920*540 panoramic display and 400 cd/㎡ luminance. Designed for linear spaces with zero vertical waste. Available in assembled units or modular SKD/CKD formats with 3-day sample lead time.
Specifications
- Screen Size
- 28.6 Inch
- Resolution
- 1920*540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
28.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28.6 inch | |
Resolution | 1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Dilemma: Why Conventional 16:9 Displays Obstruct Modern Fixtures
Commercial fixture design increasingly demands high-density visual communication without sacrificing vertical clearance. Standard square monitors take up too much vertical space, making them impractical for horizontal shelf rails, transit headers, and industrial control consoles. Engineered specifically for these horizontal perimeters, the 28.6-inch panoramic display establishes a clean balance between compact dimensions and wide-format visual presence. With a native raster of 1920*540, it allows multi-column split-screen graphics and automated status alerts to operate seamlessly within narrow spaces previously deemed unusable for dynamic digital media.
The streamlined horizontal geometry enables store architects to maintain cohesive interior sightlines. Customers browsing retail aisles enjoy unimpeded views of premium product displays while receiving relevant pricing and promotional information directly at eye level.
Eliminating the need for structural redesigns translates to substantial capital savings for project contractors. Installation teams can utilize existing retail track extrusions or vehicle bulkheads without commissioning expensive custom millwork or heavy mechanical brackets.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 28.6-inch panoramic display utilizes a commercial-grade LCD cell with a native 1920*540 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 400 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 1000:1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Thermal Dissipation Engineering: Silent Conduction Without Moving Parts

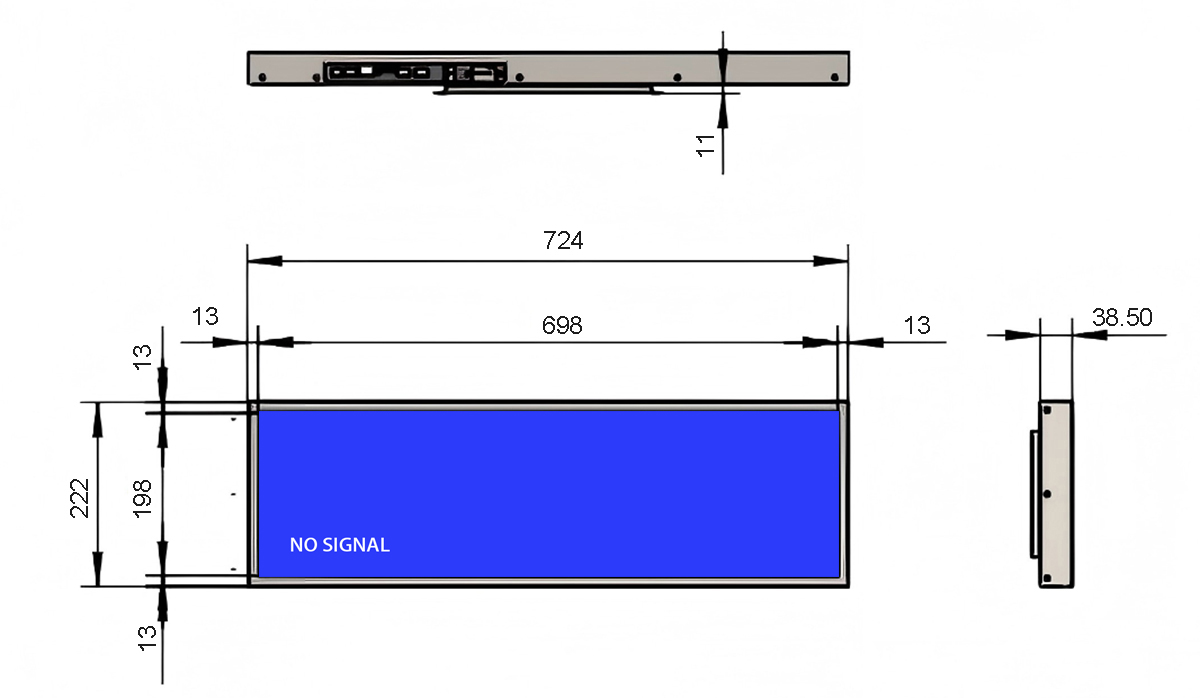

Engineered with a low-profile commercial housing, the 28.6-inch display combines structural stiffness with a contemporary bezel design. The corrosion-treated exterior maintains a pristine finish across years of commercial duty.

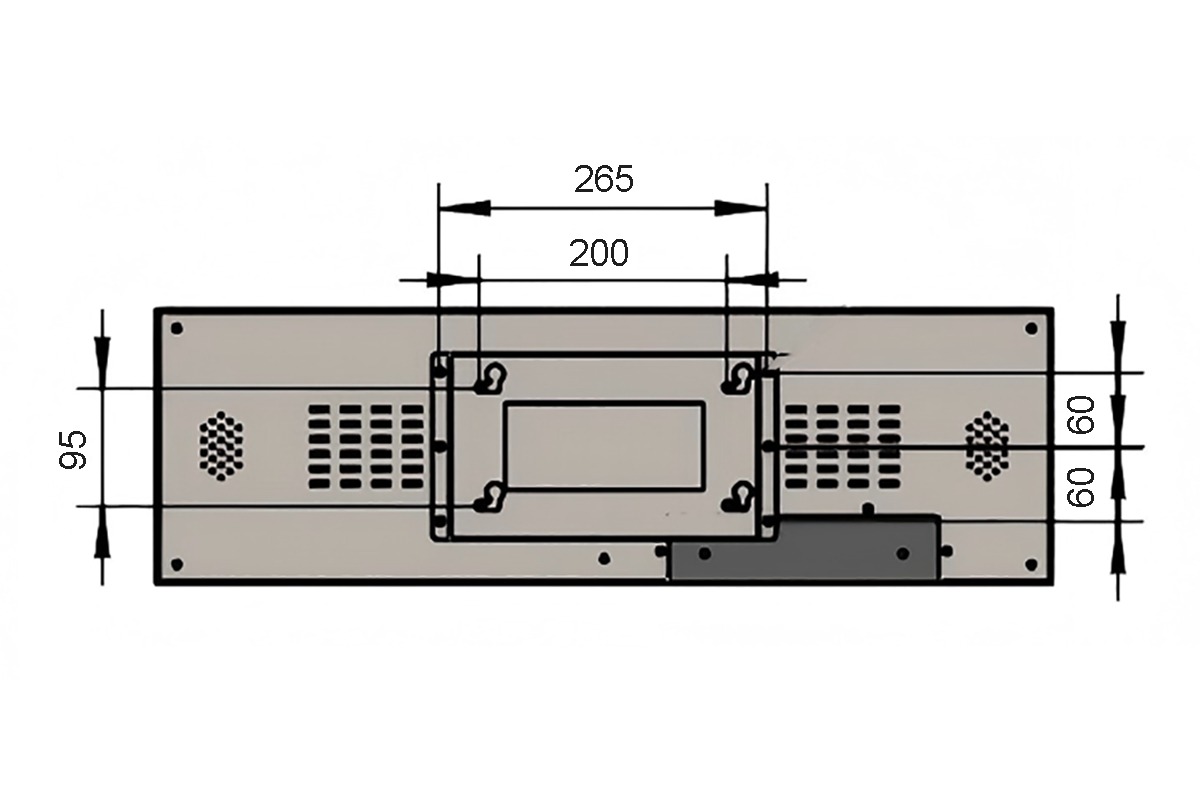

Engineered for continuous commercial operation, the display utilizes a fanless thermal architecture that dissipates heat naturally through its metal chassis. This design prevents mechanical failure and internal dust contamination, ensuring silent, reliable performance in retail and transportation settings. Mounting options include standard rear VESA patterns and versatile lateral mounting slots.
Integrated structural slide channels along the top and bottom edges permit tool-free adjustment when mounting multiple screens in a continuous horizontal line. This modular mechanical rail system cuts field installation labor by up to forty percent for large retail fit-outs.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated Audio Socket (3.5mm) provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 45w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.
Open-Platform Display Flexibility: Zero Vendor Entanglement

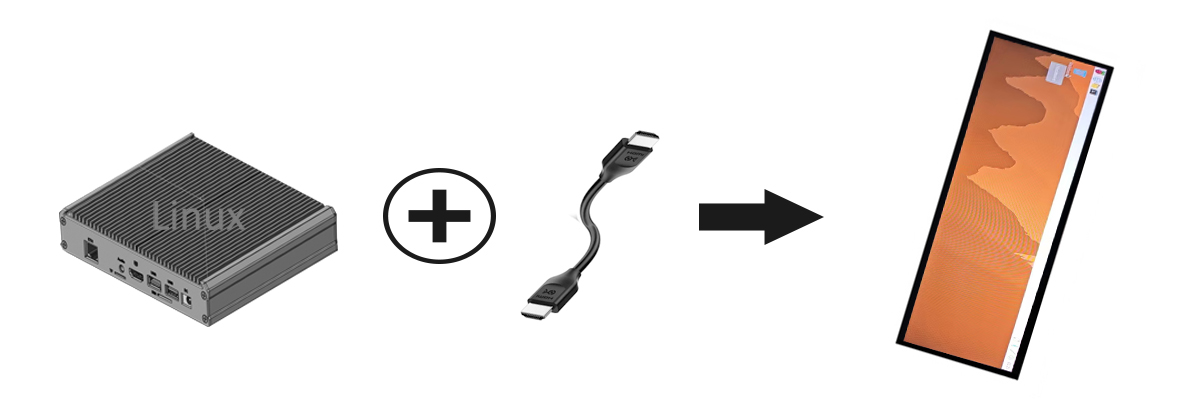

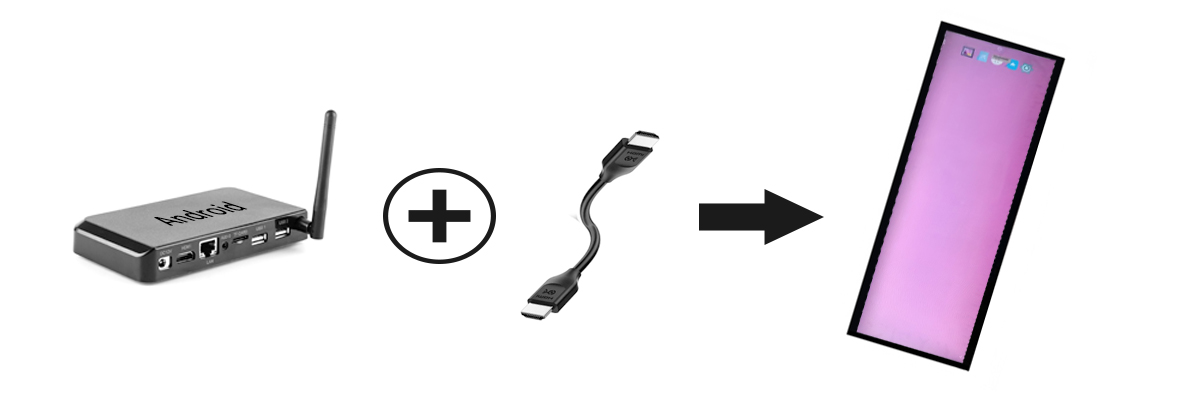

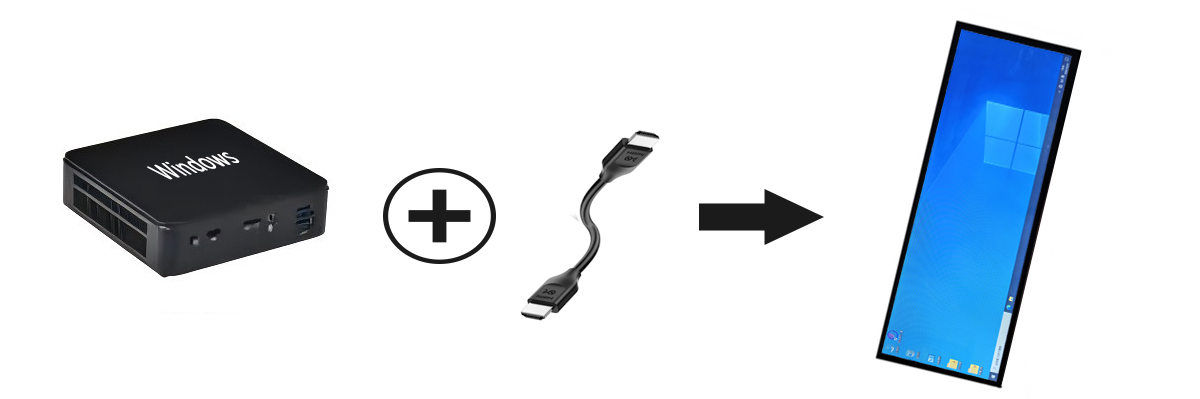

Built specifically for professional system integrators who demand flexibility, this monitor operates without proprietary software locks or mandatory subscription ecosystems. By linking any standard Windows industrial PC, Android signage appliance, or Linux embedded computer through an HDMI connection, clients gain immediate access to an open-canvas display ready to run any specialized commercial or industrial software suite.
Target Environments: Commercial Display Strategies for Space-Limited Fixtures
Engineered for space-limited commercial installations, the 28.6-inch stretched bar screen delivers dynamic visual impact across diverse sectors. Supermarket chains deploy it along gondola shelf rails for real-time digital merchandising. Public transit operators utilize it for interior passenger route mapping. Financial institutions install it at teller counters for queue calling, and manufacturing plants use it for continuous assembly line status monitoring.
Municipal bus fleets deploy this low-profile screen along ceiling bulkheads to broadcast next-stop alerts, GPS route progress, and municipal announcements. The wide viewing angles ensure passengers seated throughout the vehicle can read journey details clearly without neck strain.
Hospitality venues report enhanced guest satisfaction when using panoramic displays for lobby wayfinding and conference schedules. The elegant linear form factor complements modern hotel interior architecture while delivering clear guest directions.
Procuring From The Source: Verified Commercial Quality and Transparent Pricing
Sourcing directly from ZXT provides commercial display buyers with verified factory pricing, established extrusion tooling, and rapid turnaround. Backed by nine-plus years of manufacturing experience, we offer standard sample dispatch within three days, zero tooling fees on standard sizes, and comprehensive 2D/3D CAD engineering support for international project developers.
Our modular SKD and CKD export programs empower international partners to assemble displays locally, qualifying for favorable regional tariff classifications and reducing international freight costs.
Commercial Hardware Selection FAQ
**Q1: Is this display compatible with Android digital signage player sticks?**
Yes. Any Android media stick or compute box with an HDMI output connects directly, allowing operators to run standard Android digital signage APKs with full native resolution support.
**Q2: What enclosure materials are available?**
Depending on model and application, we supply precision architectural extruded aluminum profiles (ideal for retail shelves) and heavy-duty cold-rolled electro-galvanized sheet metal housings (for industrial racks and transit).
**Q3: Can we request customized power supply options such as DC 12V or 24V?**
Yes. In addition to universal 100-240V AC inputs, we can engineer custom DC 12V, 24V, or wide-range vehicle power conversion modules for automotive and railway rolling stock deployments.
Commercial Quotation and Production Scheduling
Contact our technical sales team to request mechanical drawings, discuss volume pricing, or arrange a 3-day sample dispatch for the 28.6-inch panoramic stretched monitor. We deliver prompt factory-direct quotations and technical support.
