Non-touchscreen
28.6 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Direct manufacturer of 28.6 inch ultra-wide aluminum profile stretched display (1920*540/3840*1080, 300~700 cd/㎡). High-definition commercial display delivering 60,000-hour backlight longevity for public transit and retail signage. Zero tooling fees on standard sizes.
Specifications
- Screen Size
- 28.6 Inch
- Resolution
- 1920*540/3840*1080
- Brightness
- 300~700 cd/㎡
- Interface
- HDMI / VGA
28.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28.6 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 300~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Perimeter Optimization: Converting Dormant Edge Margins into Dynamic Visuals
A common challenge in digital signage deployment is the inability to install dynamic video displays in narrow horizontal margins. Conventional 16:9 monitors demand substantial vertical clearance, making them unusable along supermarket gondola edges, bus door headers, and industrial machine consoles. The 28.6-inch cut-bar LCD screen bypasses these physical limits by adopting a specialized panoramic form factor delivering native 1920*540/3840*1080 resolution across an elongated 28.6-inch active diagonal. Venues can now present synchronized multi-zone promotional animations, dynamic price feeds, and essential directional signage right at the point of decision.
Commercial operators benefit from significant cost reductions in fixture fabrication. Because these stretched units install directly into standard shelving channels and door bulkheads, enterprise clients avoid expensive structural custom cabinet work.
The ultra-wide panoramic aspect ratio allows graphic designers to separate high-priority navigational alerts from continuous background advertising loops, ensuring that viewers immediately register essential updates without information overload.
Panel Specifications: Industrial-Grade Backlight Reliability and Luminous Stability
Delivering high visual fidelity across an ultra-wide active area, the 28.6-inch stretched display features an industrial LCD panel with native 1920*540/3840*1080 resolution. This elongated aspect ratio provides ample screen real estate for split-screen layouts, dynamic tickers, and multi-media video banners without graphical distortion or letterboxing. With a factory-calibrated luminance output of 300~700 cd/㎡, the display ensures consistent optical clarity in bright interior commercial environments. Supported by a native contrast ratio of 1000:1, it renders crisp text, rich graphics, and deep blacks. Equipped with IPS wide-viewing technology, the display delivers a symmetrical true IPS 178-degree wide visual cone viewing cone, while the LED backlight module is rated for more than an industrial service life exceeding 60,000 hours of continuous operation.
The active matrix substrate features uniform pixel pitch alignment that eliminates distracting moiré patterns and visual banding, ensuring smooth photographic gradients in commercial advertising loops.
Precision factory color profiling guarantees that multi-screen video ribbon installations display identical color temperatures and white points, presenting a seamless visual narrative across extended architectural runs.
Fanless Heat Spreading: Extending Electronic Lifespan Through Solid-State Cooling

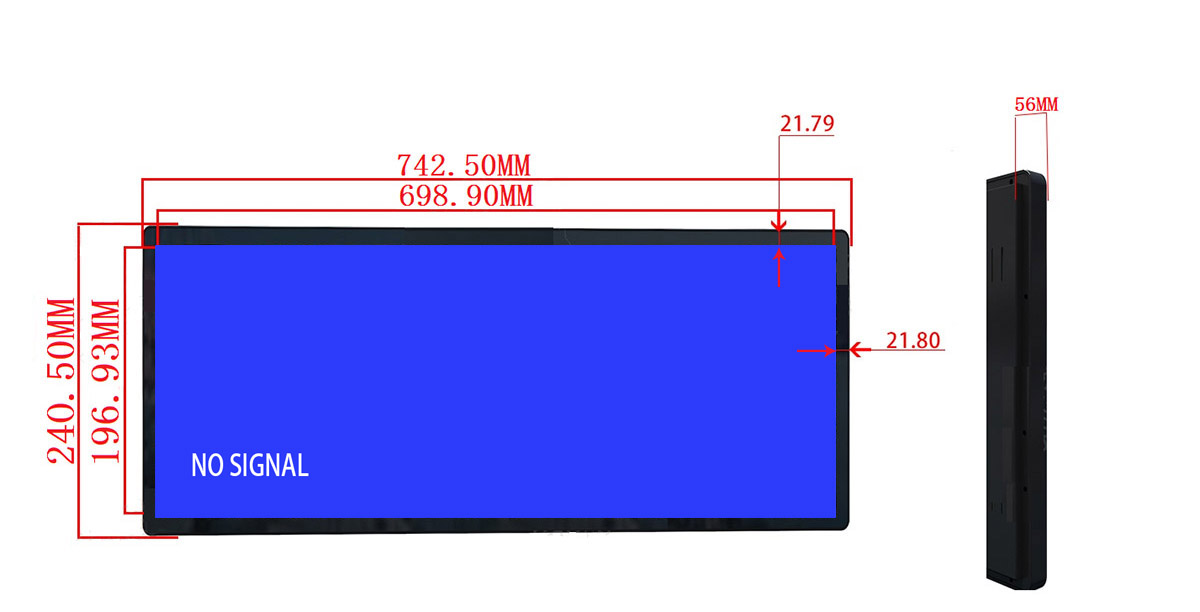

The 28.6-inch aluminum profile enclosure is engineered for unobtrusive shelf-edge deployment. Its slim-bezel framing and lightweight alloy construction allow rapid installation on retail fixtures with zero sag or structural strain.
Built without mechanical cooling fans, the display relies on efficient conductive thermal paths through its metallic housing to maintain optimal operating temperatures. This silent, dust-free design maximizes operational longevity, while standardized rear VESA patterns and lateral slide channels support versatile installation.
Designed with multi-axis mounting versatility, the rear housing accommodates custom ceiling drop-poles, articulated wall brackets, and desktop tilt-stands. Heavy-duty internal mounting studs prevent thread stripping during repeated installation cycles.
Input Versatility: Connecting to Industrial IPCs, Android Boxes, and Controllers
The display provides HDMI, VGA video connectivity for straightforward integration with digital signage systems and industrial computers. An integrated Audio Socket (3.5mm) enables external sound connectivity. Power is supplied via universal universal 100-240V commercial electrical mains mains, with energy consumption rated at ≤ 45w. Reliable operation is maintained across temperatures of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
Robust input connector soldering and reinforced chassis anchor points prevent loose cable connections caused by mechanical vibration in mobile transit vehicles and vibrating factory machinery.
High-reliability solid-state capacitors and premium inductors prevent power supply failure, ensuring dependable continuous operation across multi-year commercial deployment schedules.
Universal OS Adaptability: Freedom from Proprietary Lock-In
Enterprise display infrastructure requires absolute software freedom. By separating the optical display panel from host processing logic, this monitor prevents premature hardware retirement caused by outdated onboard chipsets. Connecting an external media player running Windows, Android, or Linux via HDMI provides instant video synchronization, allowing enterprise IT managers to run their chosen digital signage CMS or telemetry dashboard unimpeded.
Deployment Analysis: Where Panoramic Display Form Factors Deliver Peak Value
Deploying the 28.6-inch panoramic display enables venues to present dynamic video messaging in previously inaccessible spaces. Key applications include retail grocery shelf signage, commuter train door route maps, corporate elevator transom directories, and manufacturing facility production status banners.
Corporate office towers mount this screen across elevator door lintels and common hallway corridors. Building managers broadcast tenant announcements, weather alerts, and corporate communications in an unobtrusive, contemporary format.
Museum curators praise the display's ability to deliver rich historical context alongside delicate artifacts. The low-profile screen fits neatly into exhibit vitrines and pedestals without distracting visitors from the physical collection.
Agile OEM/ODM Solutions: Custom Paint Finishes, Logo Printing, and Optical Bonding
With over nine years of specialized display manufacturing experience, ZXT supports international system integrators with factory-direct pricing and rapid fulfillment. We offer in-stock tooling, 3-day sample dispatch, and complete engineering documentation including 3D CAD models.
Our engineering staff possesses deep expertise in international compliance standards, assisting partners in meeting CE, FCC, RoHS, and specialized railway or retail electrical safety certifications.
Hardware Deployment & Specification FAQ
**Q1: Can multiple displays be mounted side-by-side to form a continuous visual ribbon?**
Yes. The ultra-narrow bezel design and lateral slide-channel grooves allow multiple units to be installed horizontally in tight alignment, creating seamless digital merchandising ribbons along store shelf rows.
**Q2: Is audio output supported on this monitor?**
Yes. The motherboard includes an integrated 3.5mm stereo audio output jack, enabling direct connection to shelf-edge sound bars, directional speakers, or external public address amplification equipment.
**Q3: What is ZXT's minimum order quantity (MOQ) for standard models?**
Because we maintain permanent in-stock tooling and extrusion profiles, standard models have flexible, low MOQ requirements, allowing enterprise clients to begin with small evaluation batches before volume rollouts.
Inquire for Factory-Direct Terms and CAD Files
Connect with our commercial display specialists to discuss custom bracket finishing, sample availability, or volume pricing for the 28.6-inch stretched bar monitor. We provide comprehensive quotes within two hours.
