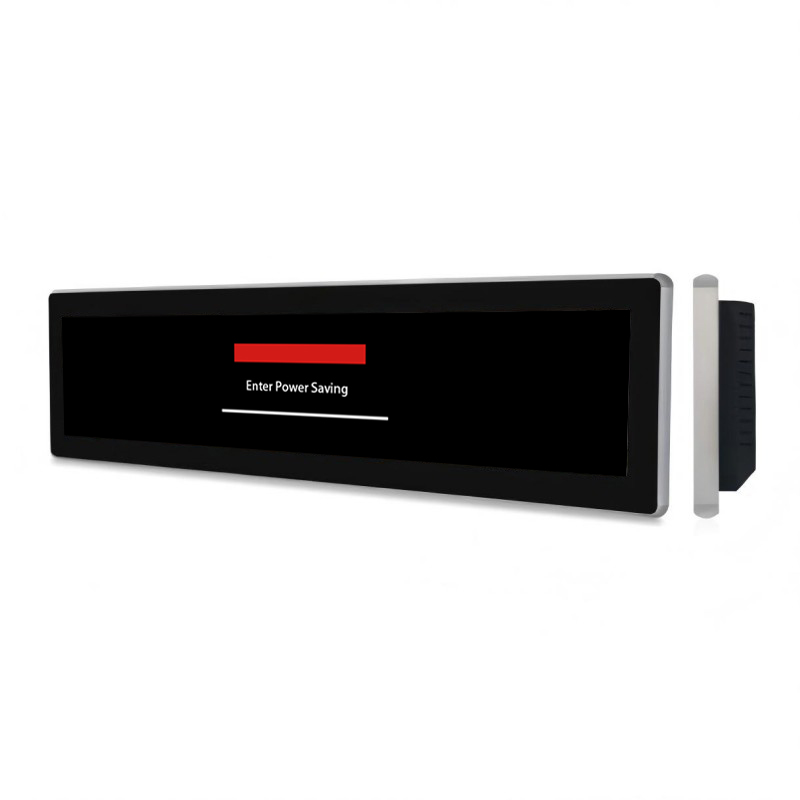

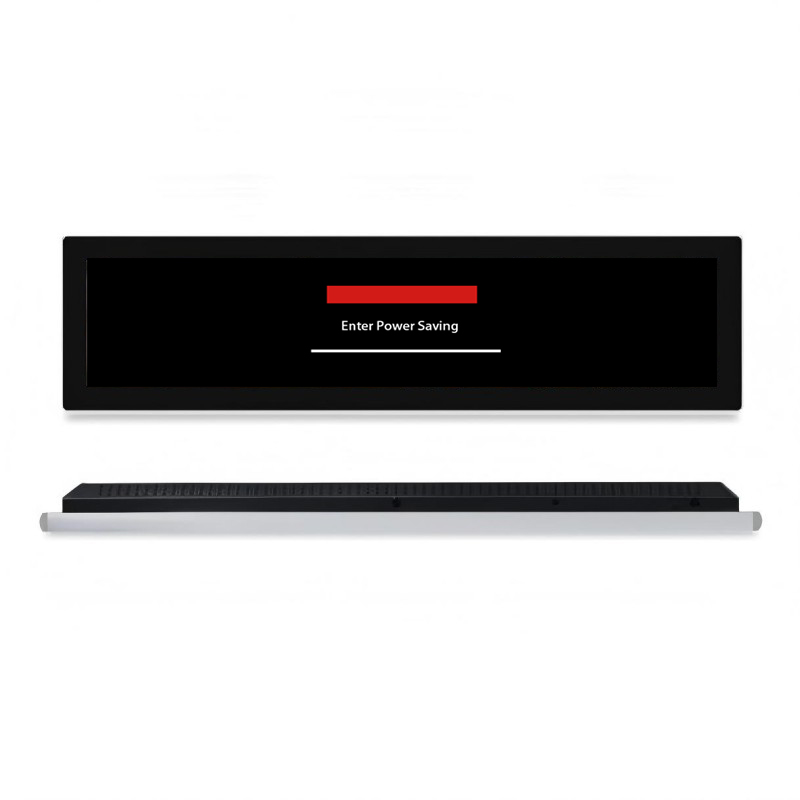

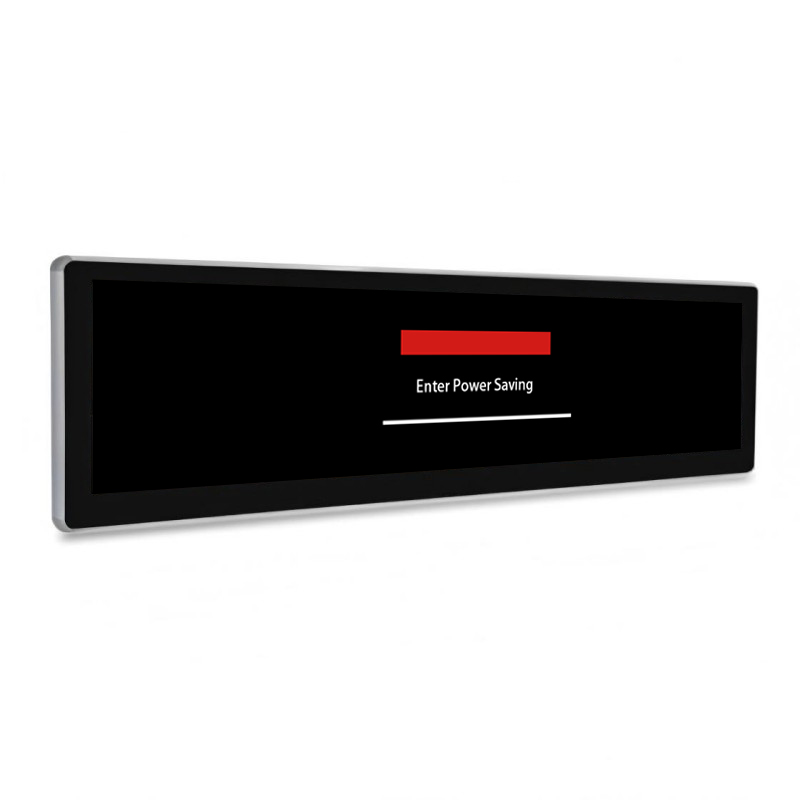

Stretched Bar LCD Monitor – 28.1 Inch High-Definition Commercial Screen
Commercial 28.1 inch aluminum profile stretched display with 1920*360 native resolution and 200~400 cd/㎡ brightness. Built for continuous operation across transport networks, retail aisles, and industrial facilities. Rapid global fulfillment from Shenzhen.
Specifications
- Screen Size
- 28.1 Inch
- Resolution
- 1920*360
- Brightness
- 200~400 cd/㎡
- Interface
- HDMI / VGA
28.1 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28.1 inch | |
Resolution | 1920*360 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Addressing Narrow Mounting Footprints in High-Density Retail and Public Transit
The physical layout of modern retail gondolas and public transit carriages leaves little room for bulky consumer-style displays. The 28.1-inch stretched bar screen provides an elegant alternative, delivering native 1920*360 resolution within an ultra-thin vertical envelope. It enables dynamic multimedia advertising and passenger wayfinding to operate in spaces where standard screens simply cannot fit.
From corporate reception desks to boutique retail showcases, linear digital screens elevate brand perception. High-resolution panoramic graphics create a modern, tech-forward atmosphere that distinguishes premium venues from competitors.
By delivering panoramic visual authority in spaces measuring just a few inches in height, this hardware unlocks dynamic promotional channels along architectural boundaries that traditional AV hardware simply cannot reach.
Luminescence Engineering: Balancing Brightness Output with Thermal Efficiency
Designed for demanding commercial applications, the 28.1-inch stretched screen features 1920*360 resolution and a 200~400 cd/㎡ luminance rating. With a 1000:1 contrast ratio, it renders sharp details and vivid colors. IPS technology delivers CR≥10 wide-angle IPS optical alignment viewing angles, backed by a solid-state LED backlight rated for more than 60,000 hours of maintenance-free illumination.
Intelligent thermal heat spreaders behind the LED arrays prevent localized backlight hotspots, ensuring that luminance remains uniform from edge to edge across the entire panoramic canvas.
The display matrix features high optical transmittance, allowing the backlight to operate at optimal efficiency while generating minimal internal heat, extending the operating life of surrounding driver electronics.
Solid-State Mechanical Layout: Preventing Dust Intake in Public Venues

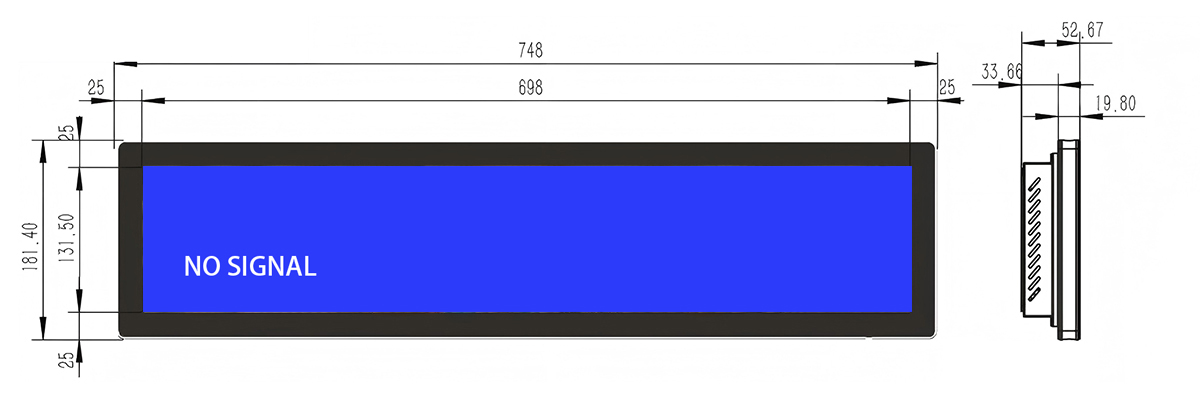

Engineered from high-quality 6063 aluminum extrusion, the 28.1-inch profile monitor combines a 3.5mm thin bezel with exceptional rigidity. The lightweight casing mounts cleanly onto retail shelf fronts without adding excess bulk.

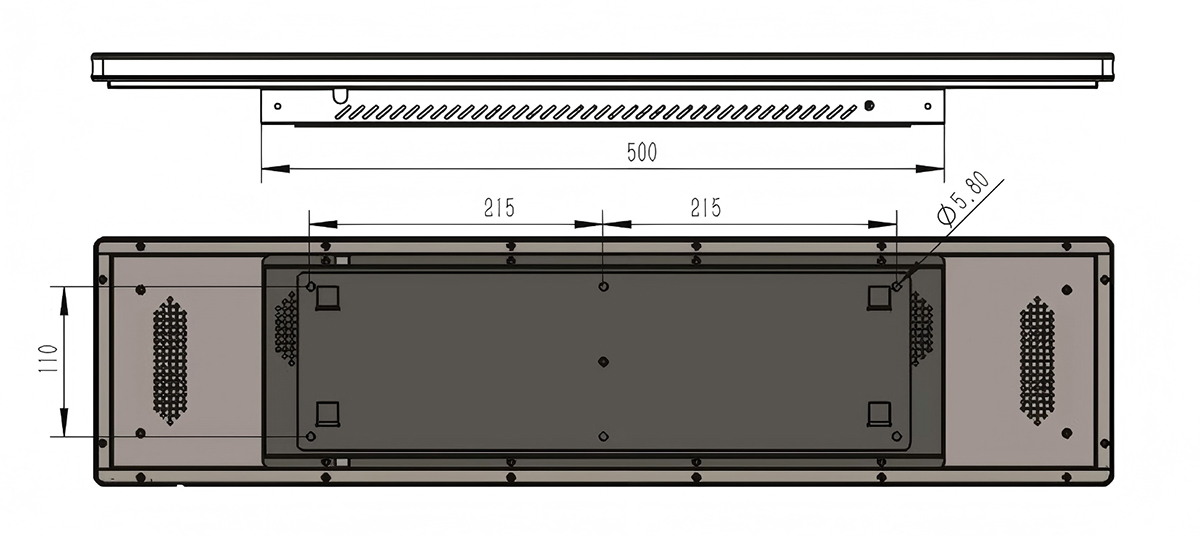

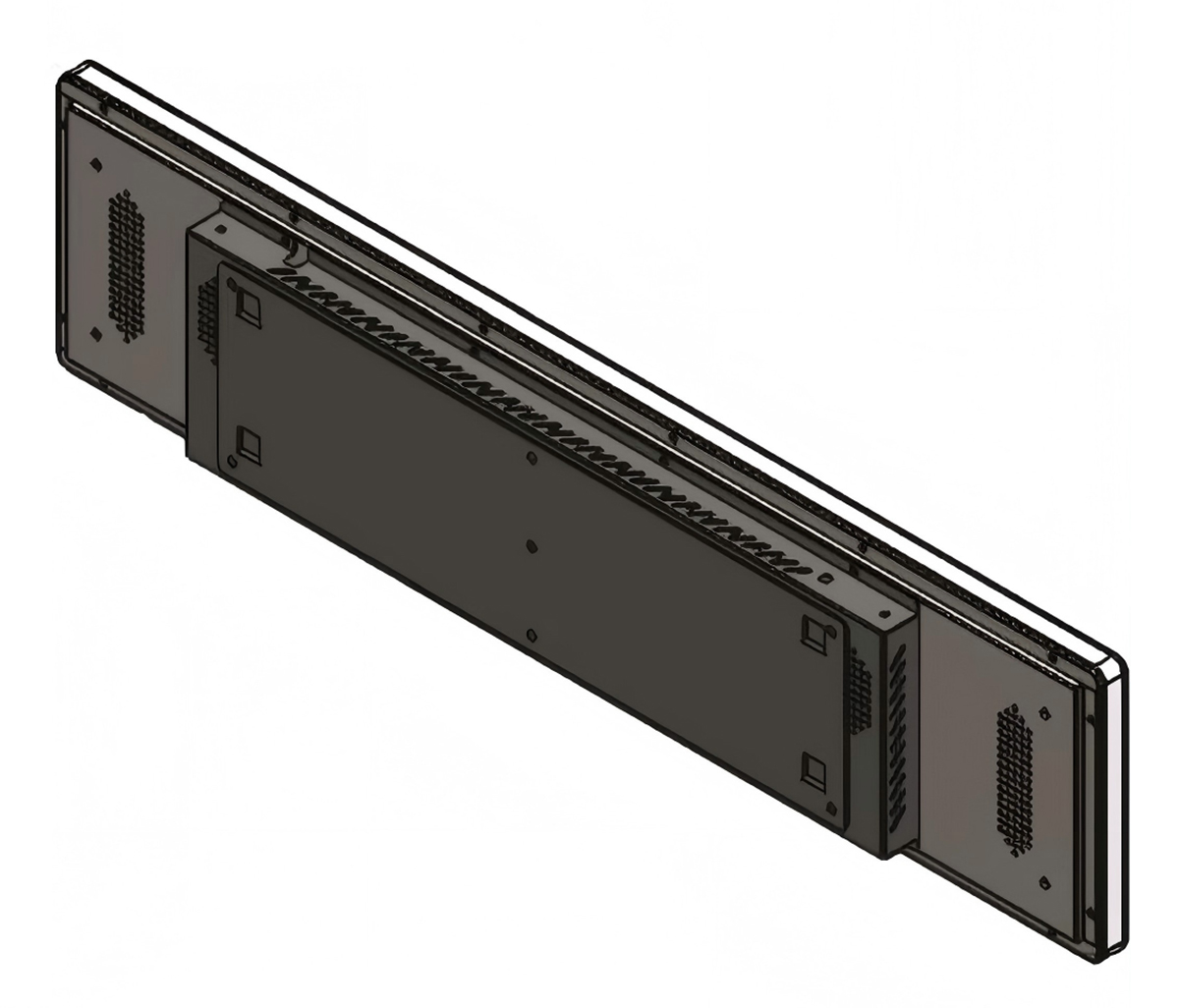

Engineered for durability, the unit features a passive cooling design that eliminates internal fans and associated maintenance requirements. The chassis provides standard VESA rear mounting points and lateral mounting channels for rapid integration into retail and transit fixtures.
For cleanroom and pharmaceutical applications, the enclosure features smooth, screw-less front surfaces and non-porous powder coatings that withstand daily wipe-down with sanitizing alcohol and chemical detergents.
Electronic Interfacing: Video Signal Paths and Automated Raster Scaling
Seamless electronic integration into existing computing infrastructures is achieved through versatile signal interface provisions. The monitor motherboard incorporates standard HDMI, VGA video inputs, allowing immediate plug-and-play communication with standard digital signage media players, x86 industrial PCs, Android embedded compute sticks, and programmable logic controller output boards. Video signal scaling circuitry automatically synchronizes with custom ultra-wide timings, ensuring proper native scaling without horizontal image squeezing or letterboxing artifacts. Audio playback is supported via an integrated Audio Socket (3.5mm), facilitating straightforward connection to external sound bars, shelf-mounted directional audio speakers, or centralized PA amplification equipment. Operating from a universal switch-mode power supply accepting AC 100V~240V (50/60Hz), the internal power converter delivers stable low-ripple direct current to sensitive driver ICs while providing resilient protection against electrical surges and line fluctuations commonly encountered in industrial complexes. Energy efficiency remains a central engineering priority: overall operational power consumption is constrained to ≤ 45w, minimizing thermal loading and dramatically reducing total operational utility costs across large-scale multi-screen installations. The hardware is qualified for continuous operation across an ambient operating temperature range of below10℃ ~ +50℃ alongside non-condensing relative humidity levels of ≤ 85%RH.
Internal power conversion circuitry incorporates multi-stage surge suppression and electromagnetic interference filtering, shielding sensitive driver chips from electrical spikes and voltage sag on noisy commercial circuits.
Industrial-grade signal conditioning chips filter incoming video inputs to eliminate pixel jitter and timing mismatch, guaranteeing rock-solid graphical synchronization when driven by commercial digital signage players.
Open-Architecture Computing: Universal Operating System Flexibility

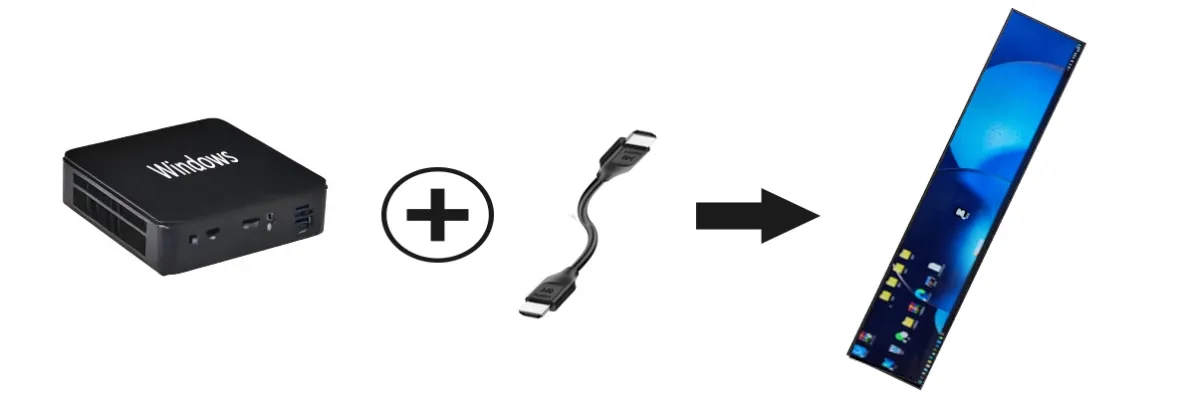

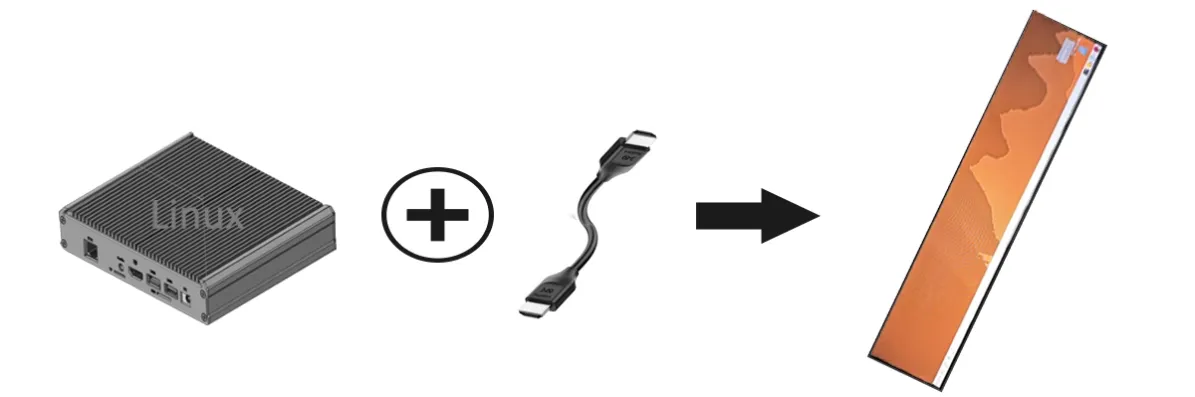

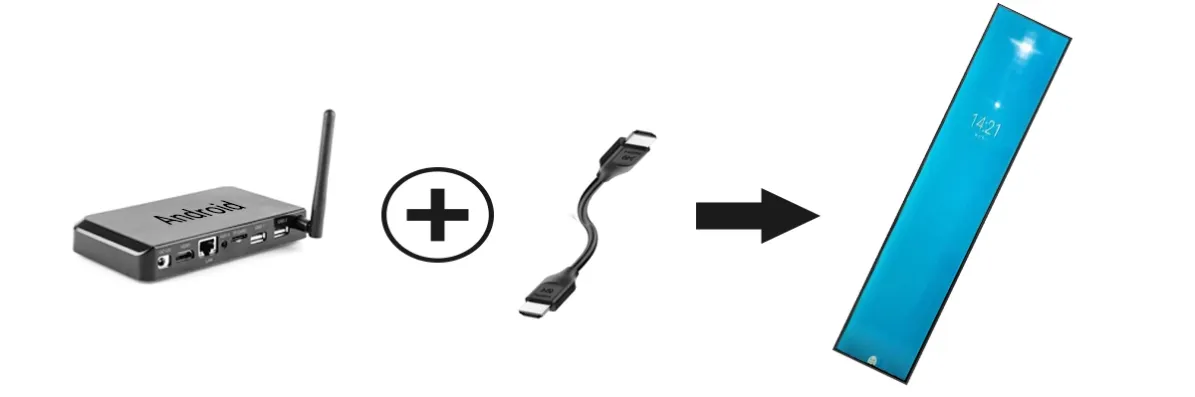

Built to eliminate restrictive proprietary hardware dependencies, this monitor embraces a truly open compute architecture. Integrating an external media host running Windows, Android, or Linux distributions is as simple as attaching a standard HDMI cable. This plug-and-play flexibility gives AV integrators complete liberty to deploy their preferred digital signage CMS suite, proprietary SCADA telemetry package, or custom retail interactive applications without firmware barricades.
Real-World Scenarios: Maximizing Audience Engagement Across Key Sectors
The expansive architectural scale of the 28.1-inch stretched display delivers monumental visual impact across large-scale commercial facilities: 1. Command & Control Centers (CCTV / SOC / NOC): Serving as central panoramic video ribbons in security, emergency dispatch, and traffic control rooms without distracting bezel seams. 2. Airport Flight Information Display Systems (FIDS): Mounted across departure halls and check-in counters to present panoramic multi-gate flight schedules visible across long distances. 3. Corporate Executive Briefing Centers: Integrated into boardroom feature walls and museum exhibition pavilions to deliver continuous ultra-wide multimedia presentations. 4. Arena Concourse Digital Ribbons: Positioned along stadium entryways and VIP hospitality lounges for continuous live match scoring, sponsor branding, and venue directions.
Quick-service restaurants and urban cafes utilize this ultra-wide display above ordering counters to present dynamic panoramic menu selections. Vivid food photography, combo pricing, and real-time out-of-stock indicators help guide customer ordering choices, reducing counter queue wait times during peak hours.
Quick-service restaurants deploying panoramic digital menu strips experience faster order processing and reduced counter wait times. Clear combo photography and real-time out-of-stock indicators guide customer choices before they reach the ordering terminal.
Procuring From The Source: Verified Commercial Quality and Transparent Pricing
Sourcing directly from ZXT provides commercial display buyers with verified factory pricing, established extrusion tooling, and rapid turnaround. Backed by nine-plus years of manufacturing experience, we offer standard sample dispatch within three days, zero tooling fees on standard sizes, and comprehensive 2D/3D CAD engineering support for international project developers.
Our modular SKD and CKD export programs empower international partners to assemble displays locally, qualifying for favorable regional tariff classifications and reducing international freight costs.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Discuss Project Specifications and Volume Price Tiers
Reach out to ZXT's commercial display team to evaluate sample hardware, review mechanical tolerances, or discuss volume OEM/ODM pricing for the 28.1-inch stretched display. We provide fast technical responses and official quotes.
