Non-touchscreen

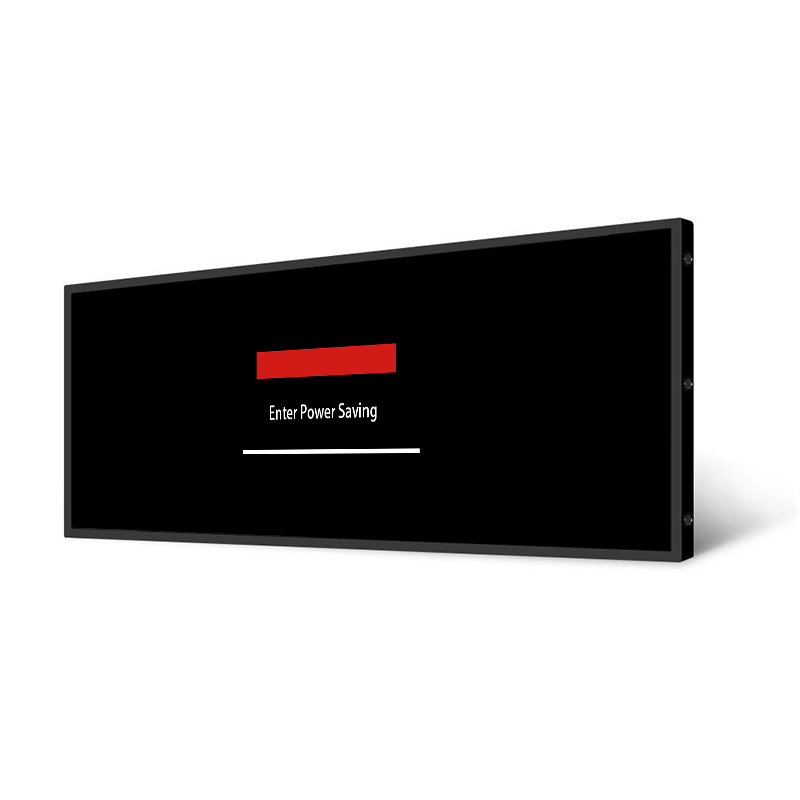

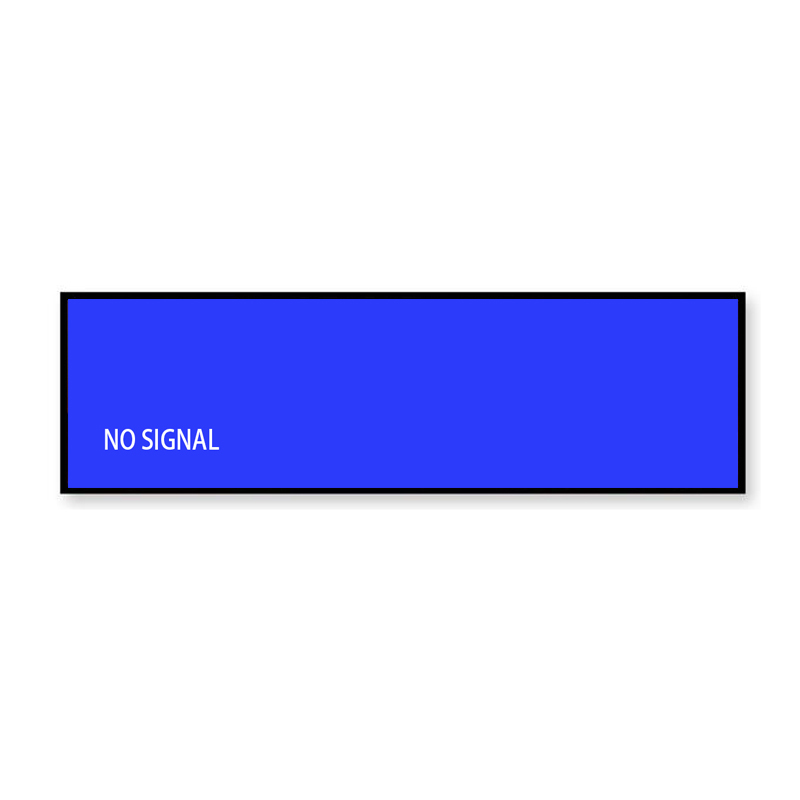

Custom Ratio Bar Monitor (25.2 Inch) with Standard HDMI Video Input
Specialized 25.2 inch industrial sheet metal bar monitor (1920*732, 250 cd/㎡) direct from Shenzhen manufacturing facility. Engineered for space-limited commercial installations with robust metal housing. Fast 3-day evaluation samples available.
Specifications
- Screen Size
- 25.2 Inch
- Resolution
- 1920*732
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
25.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 25.2 inch | |
Resolution | 1920*732 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Solving The Height Limitation: Engineering Custom Aspect Ratio Displays
The 25.2-inch ultra-wide bar monitor is designed specifically for environments where vertical space is tightly constrained. Delivering 1920*732 native resolution across its active 25.2-inch diagonal, it enables operators to present continuous promotional video loops, pricing updates, and transit announcements along narrow architectural surfaces.
Transportation authorities can broadcast synchronized route announcements and public service alerts in real time. The clear horizontal layout allows commuters to track their journey progress at a glance.
Replacing printed vinyl banners with dynamic digital strips allows shopping mall operators to monetize linear architectural surfaces, creating new advertising revenue streams across corridors and escalator bulkheads.
Optical Metrics: Resolution Density, Color Saturation, and Panel Uniformity
Visual excellence is anchored by an industrial-grade A-grade liquid crystal panel delivering a native resolution of 1920*732 across the 25.2-inch active diagonal. This fine pixel pitch ensures that fine pricing fonts, multi-lingual transit schedules, and high-definition video loops render with razor-sharp definition. Calibrated to a luminous intensity of 250 cd/㎡, the display delivers bright, legible visuals under harsh commercial lighting conditions. Paired with a static contrast ratio of 1000:1, it actively disperses ambient reflections while preserving high color saturation and deep blacks. True IPS wide-angle technology provides symmetrical viewing angles of symmetrical 89°/89°/89°/89° IPS full viewing angles, ensuring uniform color temperature and sharpness across wide vantage points. The solid-state LED backlight system is rated for an operational service lifetime exceeding 60,000+ operational hours, ensuring consistent brightness throughout continuous 24/7 commercial operation.
Advanced optical coatings actively suppress external glare, ensuring that vibrant content remains readable even when mounted directly beneath intense commercial ceiling spotlights or adjacent to glass storefronts exposed to natural ambient daylight.
Sub-pixel rendering algorithms optimized within the display controller ensure that micro-fine typography, numerical price codes, and barcode symbols remain crisply defined without jagged pixelation or chromatic fringing.
Industrial Housing Design: Resisting Ambient Dust, Moisture, and Vibration
The 25.2-inch monitor features a ruggedized cold-rolled steel body designed for mission-critical deployments. Its electro-galvanized metal framework resists physical impact, protects sensitive liquid crystal layers from torsional strain, and ensures long-term structural alignment in mobile and stationary industrial installations.
Thermal efficiency is maintained through an advanced fanless heat dissipation layout that uses the external metal body as a heat sink. This eliminates fan noise and prevents dust and grease accumulation within the housing, supporting long-term commercial reliability. The chassis provides standard VESA mounting provisions and side-channel grooves for secure installation.
For overhead corridor and transit concourse deployments, the housing features reinforced steel eyelet anchor points rated for heavy-duty aircraft suspension wires. Safety cables lock directly into internal structural gussets, ensuring complete public safety in seismic or high-vibration zones.
Electronics Hardening: Conformal Coating Protection Against Humidity and Dust
Built with standard HDMI, VGA ports, the monitor interfaces smoothly with commercial media players, PCs, and video controllers. Audio integration is enabled via a Audio Socket (3.5mm). The internal power supply operates from AC 100V~240V (50/60Hz), drawing ≤ 45w during active operation. The hardware is certified for continuous operation across below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Energy-efficient backlight drivers regulate power flow dynamically based on content brightness, trimming power consumption while maintaining peak visual punch for advertising assets.
Energy-conserving standby modes reduce power consumption to less than one watt during off-hours, allowing automated facility management systems to power down screens overnight effortlessly.
Universal OS Flexibility for Turnkey Commercial Integration
Tailor your visual display precisely to your software workflow. Equipped with standard HDMI inputs, this commercial monitor effortlessly displays output from external Windows workstations, Android media players, and Linux industrial engines. Integrators enjoy the complete freedom to deploy preferred signage CMS engines, custom interactive kiosk scripts, or real-time data visualizers without proprietary barriers.
Realized Applications: Corporate Entrances, Transit Cabins, and Control Rooms
The 25.2-inch stretched bar LCD monitor meets the demands of high-traffic commercial environments. It is deployed along retail shelving for dynamic promotional pricing, within transit vehicles for passenger route alerts, in data centers for equipment telemetry, and in commercial lobbies for building directories.
Museums and interactive exhibition pavilions utilize this linear display on exhibit pedestals and showcase fascias. Curators deliver rich multimedia storytelling, historical timelines, and artifact context alongside delicate physical exhibits.
Sports arenas and entertainment venues deploy the display above concession stands to showcase live score feeds and food specials simultaneously, keeping fans engaged while driving food and beverage revenue.
Turnkey and Modular Supply: Helping International Partners Scale Deployments
ZXT delivers factory-direct manufacturing for commercial stretched bar displays, offering competitive pricing, in-stock tooling, and 3-day sample turnaround. We provide complete technical support, including 2D/3D CAD models and modular SKD delivery to optimize international tariffs.
We partner with system integrators to build long-term commercial relationships, offering transparent volume-tiered pricing structures and dedicated account management for enterprise digital signage initiatives.
Procurement & Integration FAQ
**Q1: Does this display generate fan noise during operation?**
No. The monitor utilizes a 100% passive fanless conduction cooling architecture that dissipates heat naturally through the metallic chassis, operating in total acoustic silence while preventing internal dust accumulation.
**Q2: Are touch screen options available for this stretched format?**
Yes. We offer optional projected capacitive (PCAP) 10-point multi-touch overlays with Morse 7 explosion-proof tempered glass and optical bonding, as well as infrared (IR) touch frames for specialized kiosk builds.
**Q3: Can overseas partners order this monitor in SKD or CKD format?**
Yes. To help international contractors reduce customs tariffs and air freight expenses, ZXT supplies complete knocked-down (CKD) or semi-knocked-down (SKD) kits including tested LCD panels, driver boards, and raw casings.
Initiate Custom Hardware Scoping and Sample Dispatch

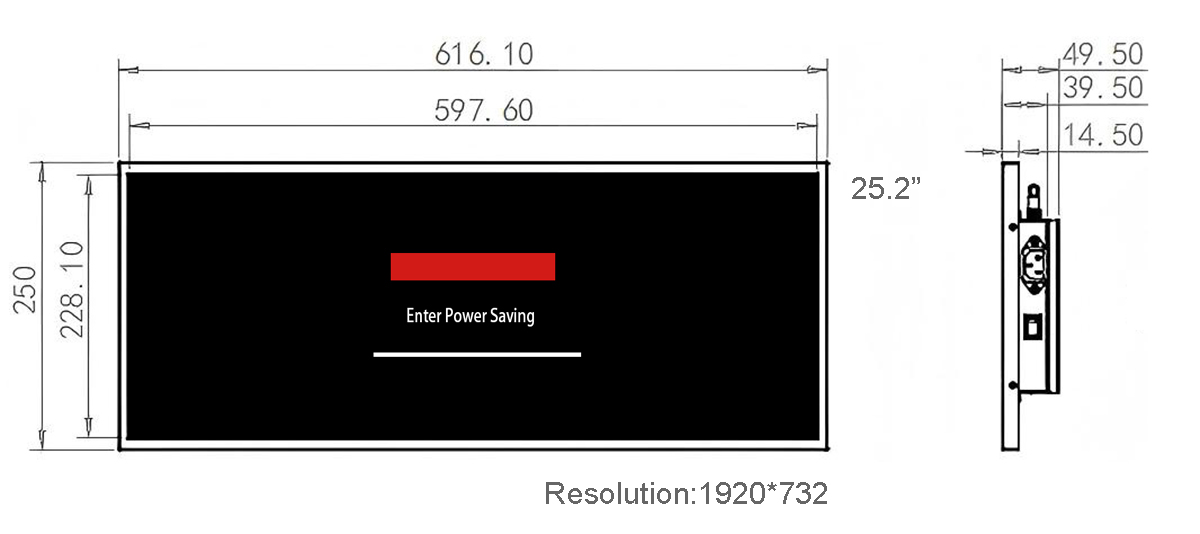

Request a quote or order an evaluation sample for the 25.2-inch commercial stretched bar LCD monitor by contacting our Shenzhen manufacturing team today. We provide full 2D dimensional sheets, 3D STEP CAD files, and volume-discounted price schedules. Contact our technical sales desk with your project details to receive a detailed engineering proposal within two hours.
