Shelf Edge Bar Monitor – 24 Inch Ultra-Wide Display for Supermarkets
Factory-direct 24 inch industrial sheet metal bar monitor with 1920*360 panoramic display and 300~700 cd/㎡ luminance. Designed for linear spaces with zero vertical waste. Available in assembled units or modular SKD/CKD formats with 3-day sample lead time.
Specifications
- Screen Size
- 24 Inch
- Resolution
- 1920*360
- Brightness
- 300~700 cd/㎡
- Interface
- HDMI / VGA
24 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 24 inch | |
Resolution | 1920*360 | |
Brightness | 300~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89(U/D/L/R) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Maximizing Visual Sightlines: Re-Engineering Display Ratios for Linear Margins
Modern public infrastructure demands streamlined visual integration. The 24-inch panoramic display is engineered to overcome vertical mounting constraints, delivering 1920*360 resolution across an elongated 24-inch viewing area. It offers system integrators a reliable way to deploy dynamic digital content in tight architectural slots without visual compromise.
In smart retail environments, dynamic price changes and seasonal campaigns can be scheduled automatically. This operational flexibility eliminates manual re-labeling labor and ensures pricing accuracy across multi-store chains.
In public service environments such as healthcare intake desks and civic service counters, compact horizontal displays keep waiting citizens informed while preserving clear verbal and visual communication with desk staff.
Optical Performance Under Harsh Commercial and Ambient Lighting Conditions
With an active display area delivering 1920*360 resolution, the 24-inch stretched monitor provides crisp panoramic visuals. Calibrated to 300~700 cd/㎡ with a 1000:1 contrast ratio, it ensures strong visual impact in well-lit retail and transit spaces. Symmetrical symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours backlight rating provide reliable long-term performance.
High static contrast ensures that fine text fonts stand out distinctly against dark backgrounds, maximizing information legibility for dynamic route maps and transportation schedules.
Even luminance distribution across the elongated horizontal raster prevents localized hot spots, ensuring that scrolling promotional text and flight arrival lists maintain uniform visual intensity from end to end.
Solid-State Mechanical Layout: Preventing Dust Intake in Public Venues
The 24-inch industrial display features a heavy-gauge sheet steel chassis designed for challenging operating conditions. Its rigid galvanized steel body provides high shock tolerance and electromagnetic shielding for factory automation consoles.
Engineered for durability, the unit features a passive cooling design that eliminates internal fans and associated maintenance requirements. The chassis provides standard VESA rear mounting points and lateral mounting channels for rapid integration into retail and transit fixtures.
For cleanroom and pharmaceutical applications, the enclosure features smooth, screw-less front surfaces and non-porous powder coatings that withstand daily wipe-down with sanitizing alcohol and chemical detergents.
Interfacing Standards: Audio Output Jack and Industrial Video Scaling Logic
The display includes HDMI, VGA video interfaces for plug-and-play integration with media players and industrial systems. Audio output is supported via a Audio Socket (3.5mm). Built to accept universal AC 100V~240V (50/60Hz) power with an efficient draw of ≤ 45w, it is rated for environmental conditions of below10℃ ~ +50℃ and ≤ 85%RH.
Low standby power consumption complies with international commercial energy efficiency standards, helping enterprise clients meet corporate sustainability and green building certification goals.
Universal mains power compatibility simplifies worldwide distribution, allowing global retail brands to deploy the identical hardware model across North American, European, and Asian locations seamlessly.
Universal Video Ingestion Across Leading Operating Systems

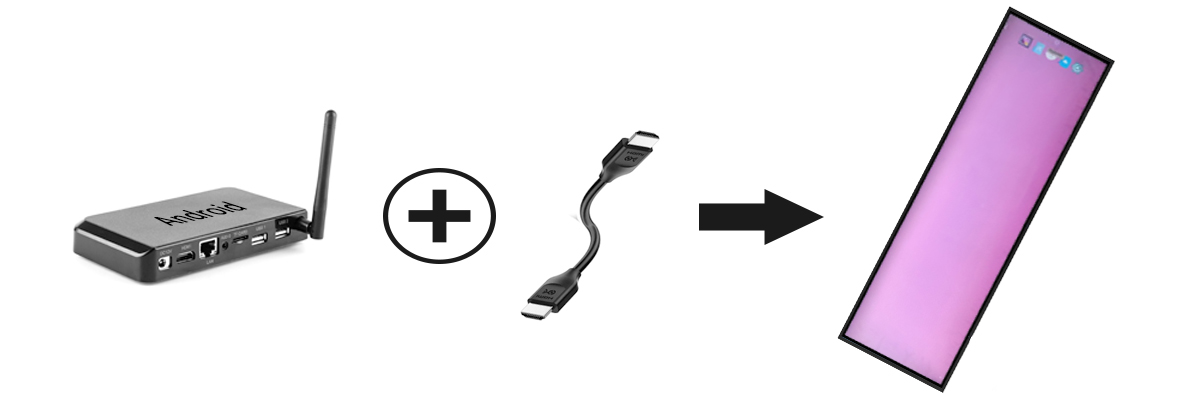

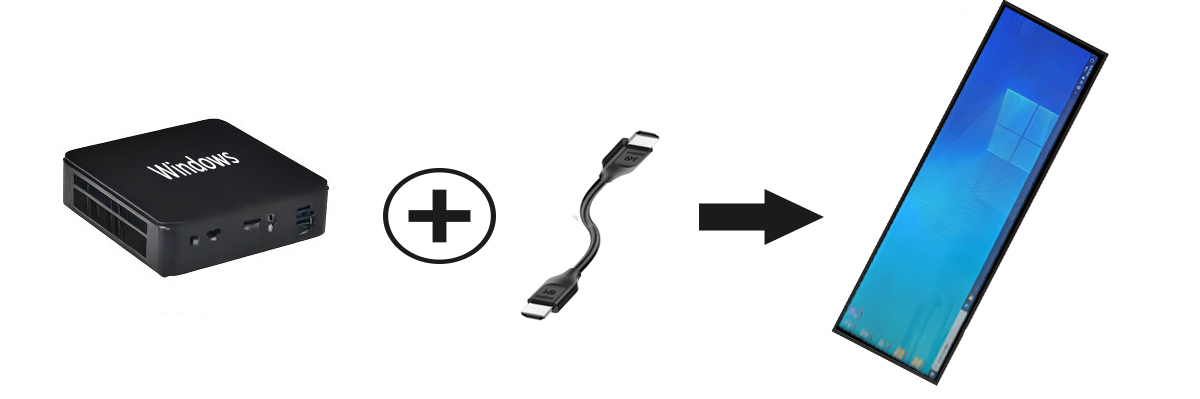

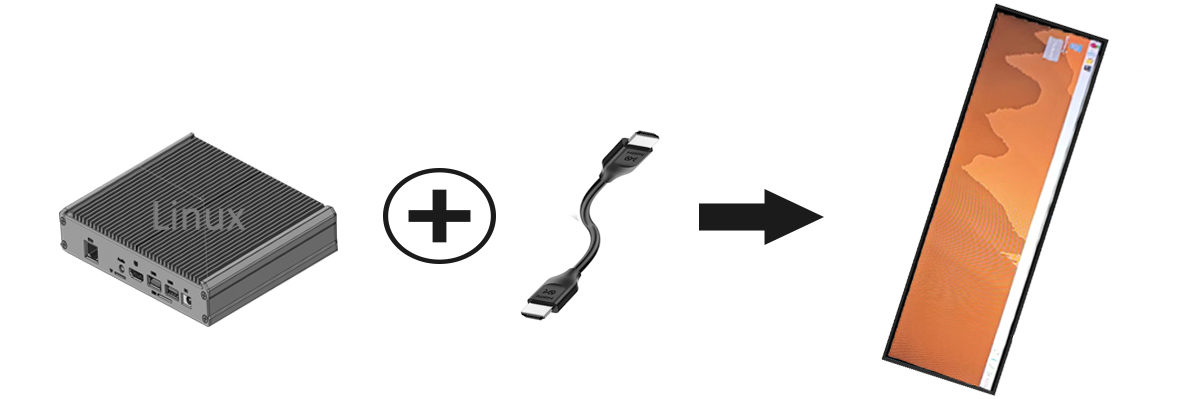

This display adopts a clean, open hardware topology that welcomes external video input from Windows, Android, and Linux compute engines alike. A single HDMI connection delivers seamless pixel mapping and audio-video pass-through, giving digital signage operators and kiosk engineers the latitude to implement custom CMS platforms, automated queue software, or industrial SCADA consoles without artificial hardware constraints.
Application Spectrum: From Smart Supermarkets to Public Transportation
The panoramic geometry of the 24-inch stretched display delivers outstanding visual utility across high-traffic commercial environments: 1. Supermarket Shelf-Edge Merchandising: Installed along grocery gondola headers to present eye-level video ads, brand storytelling, and dynamic sales banners at the point of purchase. 2. Quick-Service Restaurant Menu Boards: Mounted above order counters in fast-food chains and coffee shops to display panoramic combo menus and pricing in narrow horizontal bands. 3. Public Bus & Tram Passenger Information: Installed on interior vehicle ceiling ribs to deliver real-time stop updates, route progress bars, and transfer alerts. 4. Elevator Transom & Lobby Signage: Positioned horizontally across elevator door headers for building tenant directories, commercial notices, and property updates.
For passenger railway and metro operators, installing this display format inside train carriages improves route comprehension and transit safety. Dynamic graphic route maps display real-time line progress, upcoming interchange connections, and bilingual station advisories, ensuring daily commuters and tourists navigate complex transit networks with ease.
In municipal transit deployments, overhead route mapping displays significantly reduce passenger boarding confusion. Commuters boarding crowded subway cars can immediately verify their direction of travel and upcoming transfer hubs, improving passenger boarding efficiency during rush hours.
Manufacturing Agility: 3-Day Sample Turnaround and Custom Enclosure Tooling
Working with ZXT ensures direct access to manufacturing authority and extensive production capacity. With nearly a decade of display manufacturing experience and more than 300 international commercial deployments, we maintain comprehensive inventories of standard extrusion casings and chassis stampings. This established infrastructure allows our clients to initiate volume rollouts without tooling delays or custom mold expenses, supported by fast 3-day sample dispatch. We offer flexible supply models tailored to your supply chain requirements. Whether you require complete retail-ready monitors in custom packaging, open-frame chassis for integration into self-service kiosks, or CKD/SKD component kits for domestic final assembly, ZXT delivers fully tested, quality-certified hardware. Our engineering team provides comprehensive technical documentation, including 2D dimensional drawings, 3D STEP models, connector wiring schematics, and firmware customization.
We offer complete technical documentation, including 3D STEP mechanical models, connector pinout diagrams, and power dissipation tables, enabling mechanical and electrical engineers to integrate our hardware seamlessly.
Technical Consultation FAQ
**Q1: Does this display support Linux industrial distributions?**
Yes. The display works seamlessly with Ubuntu, Debian, RedHat, and embedded Linux kernels via standard HDMI video interfacing, with zero need for specialized proprietary display driver packages.
**Q2: What measures prevent image sticking during static content display?**
The industrial-grade liquid crystal cell features advanced pixel anti-burn-in properties, allowing continuous display of static price tags and route maps without visual retention or ghosting artifacts.
**Q3: Can ZXT customize the front bezel thickness or shape?**
Yes. Our in-house engineering and tooling department can modify bezel dimensions, add custom mounting flanges, or integrate flush-mount bezels to match specialized architectural and fixture requirements.
Contact Our International Display Engineering Desk
Connect directly with ZXT's display engineering specialists to review specifications, request 2D/3D CAD blueprints, or schedule a sample dispatch for the 24-inch stretched bar LCD monitor. Provide your target application details, interface requirements, and volume goals, and our factory team will provide a comprehensive proposal and competitive commercial quotation within two hours.
