24 Inch Low Power Intelligent Split Screen Stretched Bar LCD Screen Factory Direct Supply
24 Inch Metal Stretched Bar LCD Screen Display area：597.6*112mm Resolution：1920*360 Touch style：G+G Capacitive Touch screen Material：Metal
24 Inch Low Power Intelligent Split Screen Stretched Bar LCD Screen Factory Direct Supply
Landscape Bar LCD for Smart Retail, Healthcare, and Shopping Mall Digital Signage Systems
The 24 Inch customize Totem High Brightness Touch Screen Shelf Advertising landscape bar lcd is a compact and interactive digital signage solution designed for modern commercial environments. As a professional landscape bar lcd, it combines high brightness display technology, touch interaction, and ultra-wide format design to deliver strong visual communication in retail, healthcare, and public service spaces.
This model is widely used in the USA, Europe, and Middle East markets where smart signage systems are replacing traditional printed displays.
Hospital LCD Information Display for Medical Environments
The hospital lcd information display is widely used in healthcare systems for real-time communication.
Typical applications include:
- Patient guidance and navigation
- Department information display
- Medical announcements and alerts
- Queue management systems
This improves hospital operational efficiency and patient experience.
Pharmacy Shelf LCD Display for Healthcare Retail
The pharmacy shelf lcd display is an important tool in modern pharmacy retail environments.
Key uses include:
- Medicine promotion and health product advertising
- OTC product information display
- Customer education and guidance
- Seasonal healthcare campaigns
This increases product visibility and improves customer decision-making.
24 Inch Stretched LCD(Metal) | ||
Display Specifications | ||
Screen Size | 24 inch | |
Resolution | 1920*360 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Application Scenarios
The 24-inch landscape bar LCD is widely used in:
🏥 Hospitals
Information display and patient guidance systems.
🛒 Supermarkets
Shelf advertising and product promotion.
🏬 Shopping Malls
Digital advertising and brand communication.
💊 Pharmacies
Health product marketing and education.
🏢 Commercial Buildings
Wayfinding and information display systems.
Why Choose Us
We are a professional manufacturer of stretched LCD display systems.
Our strengths include:
- Strong OEM/ODM engineering capability
- Competitive factory pricing
- Stable global supply chain
- Export experience in USA, Europe, Middle East
- Long-term technical support and spare parts supply
We support both small retail deployments and large-scale international projects.

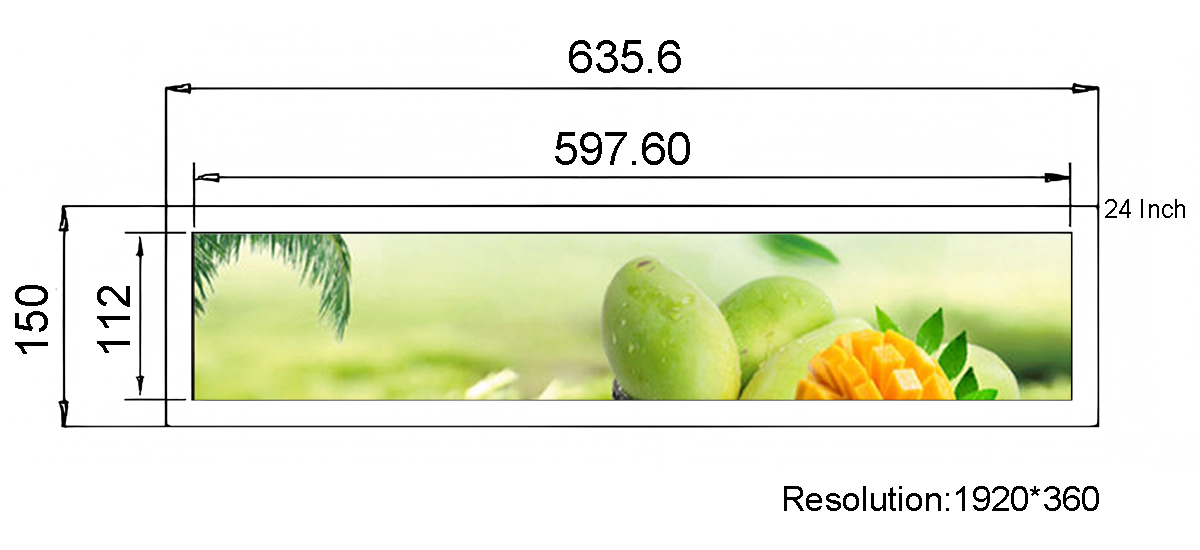

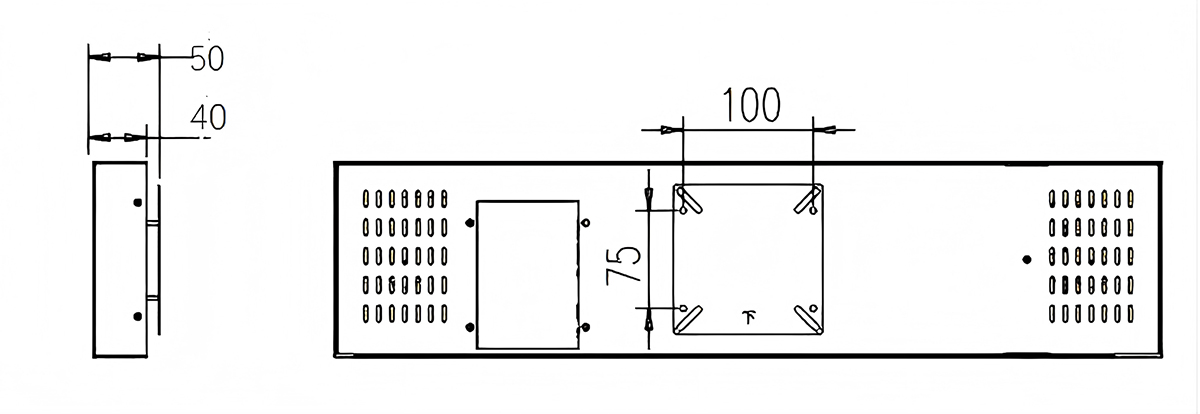

Product Dimension as follows:
FAQ
Q1: What is a landscape bar lcd used for?
It is used for retail advertising, healthcare information systems, and shopping mall signage.
Q2: Can it be used in hospitals?
Yes, it is widely used as a hospital lcd information display.
Q3: Do you support pharmacy applications?
Yes, it is used as a pharmacy shelf lcd display.
Q4: Is it suitable for supermarkets?
Yes, it supports stretched lcd display for supermarket applications.
Q5: Do you provide customization?
Yes, we offer full OEM and ODM customization services.
Conclusion & Inquiry
The 24 Inch Landscape Bar LCD High Brightness Touch Screen is a powerful solution for hospitals, pharmacies, supermarkets, and shopping malls. With factory-direct pricing, OEM customization, and interactive display capabilities, it is ideal for modern digital signage deployment worldwide.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
