Non-touchscreen
24 Inch High Resolution Ultra Wide Shelf Edge Double-Sided Stretched Bar LCD Display
The jewelry counter's 24-inch stretched bar LCD display can be linked to a high-definition macro camera. When a customer picks up a piece of jewelry, the screen simultaneously displays a detailed image magnified 30 times. The facets and brilliance of diamonds, the texture and structure of jade, and the workings of a watch movement are clearly visible. This allows customers to fully appreciate the craftsmanship of the products, enhancing their sense of value for high-end items and boosting their
Specifications
- Screen Size
- 24 inch
- Resolution
- 1920*360/3840*720
- Display area
- 597.60*112.05mm
24 Inch High Resolution Ultra Wide Shelf Edge Double-Sided Stretched Bar LCD Display
Advanced 24 Inch Shelf Edge Double-Sided Stretched LCD Display for Smart Retail
The 24 Inch High Resolution Ultra-Wide Shelf Edge Double-Sided Stretched Bar LCD Display is a compact and highly efficient digital signage solution designed for modern retail environments such as supermarkets, convenience stores, pharmacies, shopping malls, and brand retail chains.
Built with an ultra-wide form factor and dual-sided display structure, this Shelf Edge Stretched LCD Display delivers dynamic content visibility from both directions, making it ideal for aisle-based retail advertising and shelf-level digital communication.
At the core of this display is a high-performance stretched LCD panel, engineered to deliver consistent brightness, wide viewing angles, and stable 24/7 commercial operation. As a factory-direct LCD display manufacturer, ZXTLCD provides full OEM and ODM customization services for global digital signage projects.
24 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 24 inch | |
Resolution | 1920*360/3840*720 | |
Brightness | 350~7000 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Built with Advanced Stretched LCD Panel Technology
This display utilizes a professional-grade stretched LCD panel, specifically designed for ultra-wide digital signage applications where traditional 16:9 screens are not suitable.
Compared with conventional LCD panels, a stretched LCD panel offers:
- Ultra-wide aspect ratio optimized for shelf and narrow spaces
- Higher visual impact in retail environments
- Better space utilization on shelves and product displays
- Improved content segmentation for advertising and pricing
- Seamless integration into retail shelving systems
This makes it a preferred solution for smart retail shelf edge displays and in-store digital advertising systems.
Double-Sided Shelf Edge Design for Maximum Exposure
The 24 Inch Double-Sided Stretched LCD Display allows content to be shown on both sides simultaneously, ensuring maximum visibility for customers approaching from different directions.
Typical applications include:
- Supermarket shelf edge advertising
- Retail aisle promotions
- Product pricing and dynamic updates
- Brand marketing campaigns
- Convenience store product highlights
- Pharmacy product information displays
- Beverage and FMCG promotions
- Smart retail shelving systems
Double-sided shelf displays are increasingly used in modern retail environments because they significantly increase advertising exposure while maintaining a compact installation footprint.

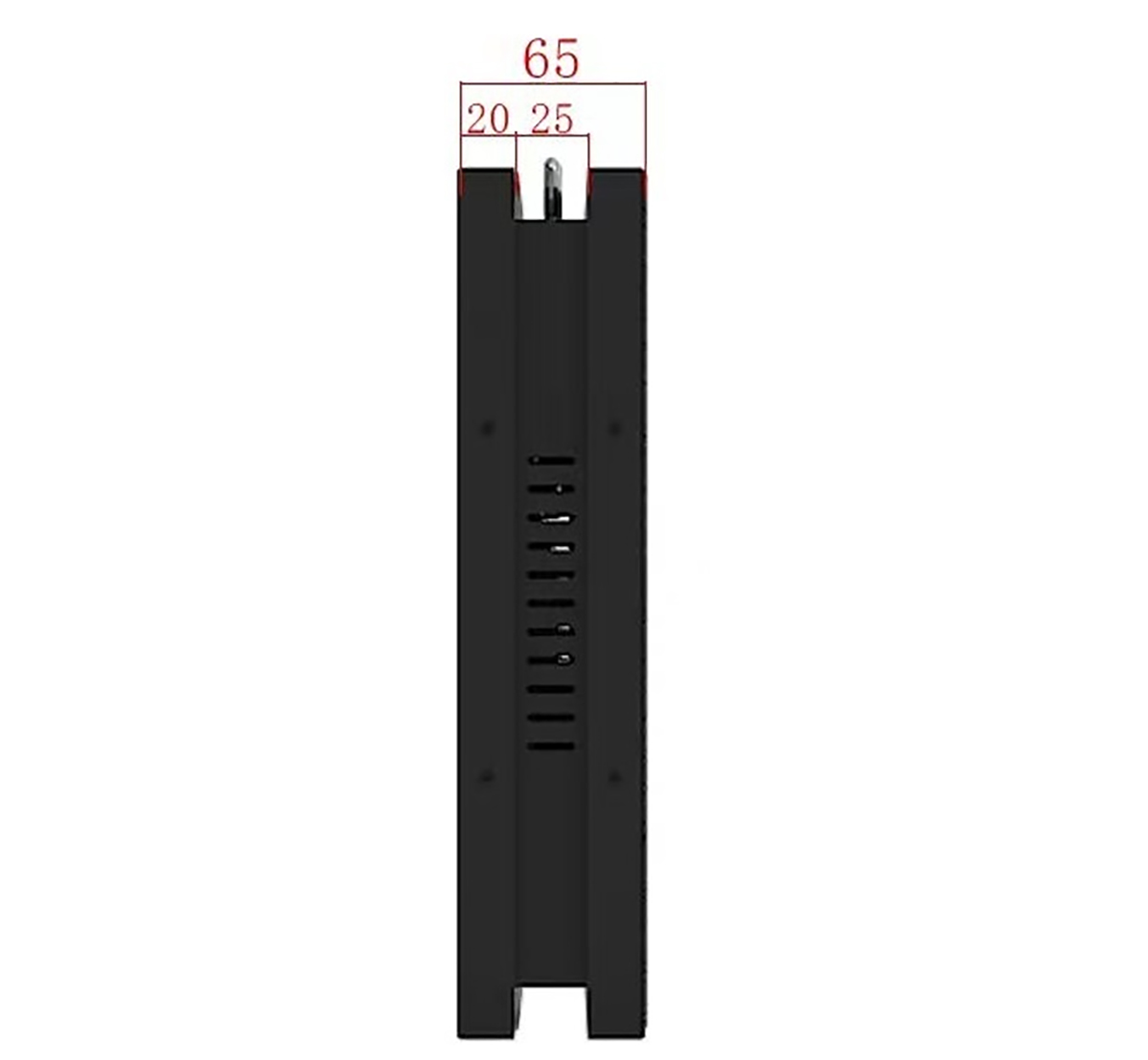

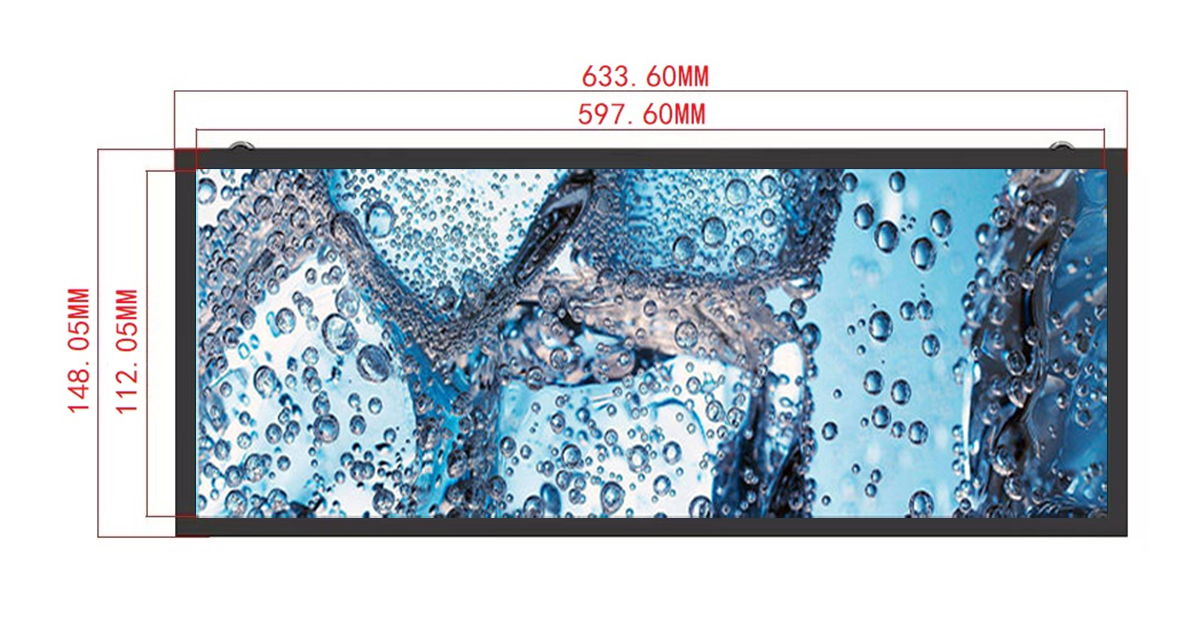

Product Dimension as follows:
Partner with a Trusted Stretched LCD Panel Manufacturer
If you are looking for a reliable Stretched LCD Panel Manufacturer, Shelf Edge Digital Signage Supplier, Retail LCD Display Factory, or OEM Smart Retail Display Partner, ZXTLCD provides complete solutions tailored to your business needs.
From hardware customization and embedded software development to branding and global logistics, we help customers build high-performance retail display systems that improve engagement and increase sales conversion.
Contact ZXTLCD today for OEM/ODM customization or project quotation.
Frequently Asked Questions
What is a stretched LCD panel?
A stretched LCD panel is an ultra-wide display panel designed for narrow or elongated spaces such as retail shelves, transportation systems, and digital signage applications.
Is this display suitable for supermarkets?
Yes. It is specifically designed for shelf-edge advertising and retail promotion environments.
Does it support remote content management?
Yes. The Android version supports cloud CMS for remote content updates.
Can it operate 24/7?
Yes. It is designed for continuous commercial operation.
Do you support OEM customization?
Yes. We provide full OEM and ODM services including branding, hardware, software, and packaging customization.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
