Non-touchscreen

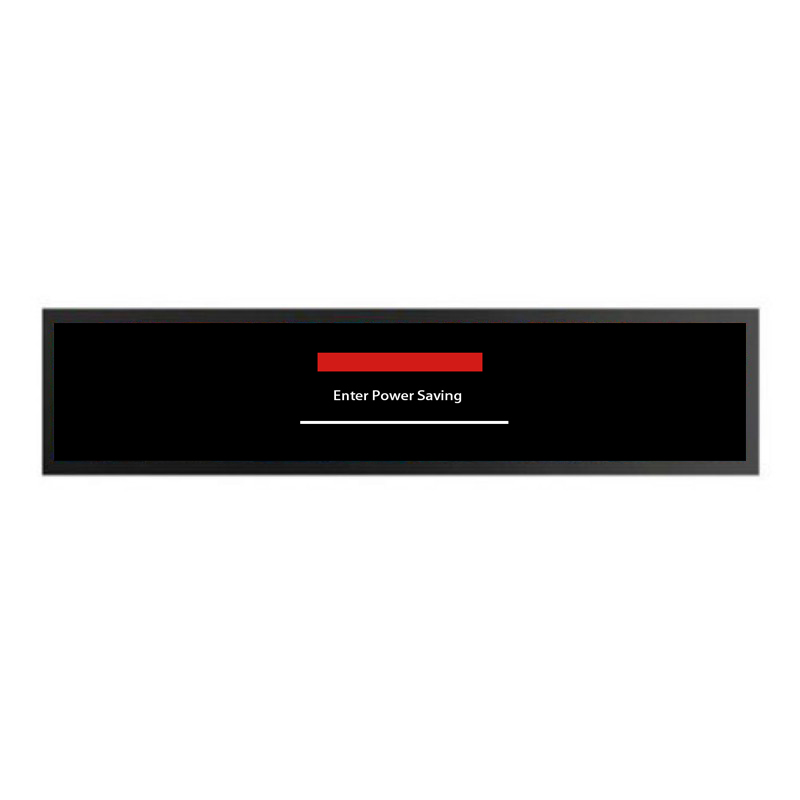

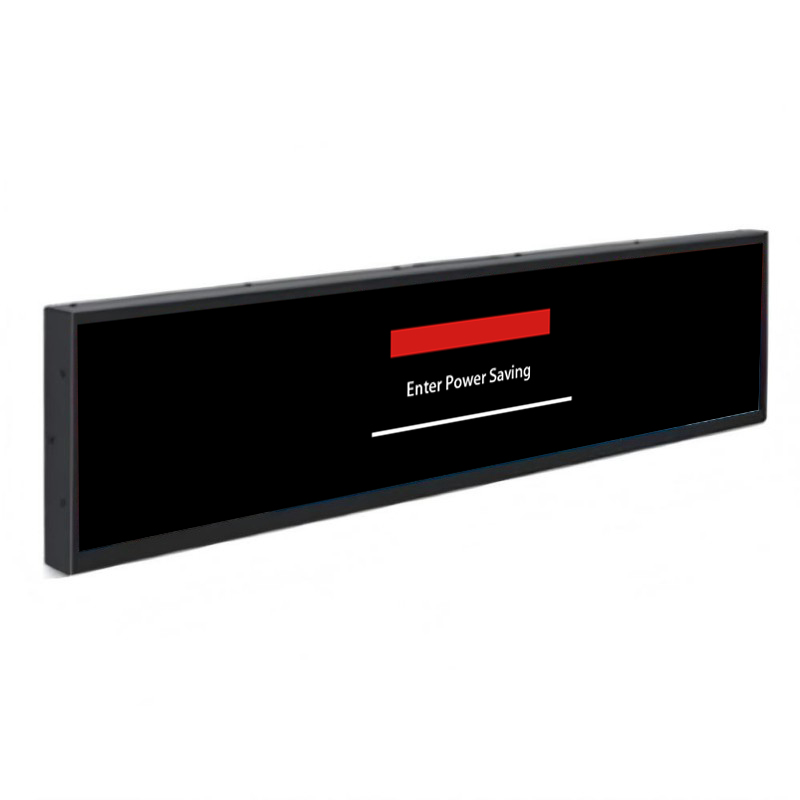

Compact 24 Inch Stretched LCD Display with Aluminum Profile
Factory-direct 24 inch aluminum profile stretched display delivering 1920*360 panoramic display resolution and 250 cd/㎡ brightness. Fanless solid-state cooling for silent, dust-free operation in demanding commercial environments.
Specifications
- Screen Size
- 24 Inch
- Resolution
- 1920*360
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
24 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 24 inch | |
Resolution | 1920*360 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
The Architectural Case for Stretched Displays: Minimizing Dead Visual Zones
Eliminating physical clutter while delivering high-impact visual data is the central purpose of the 24-inch stretched display. Rather than forcing oversized standard screens into narrow architectural margins, operators can install this sleek 24-inch unit delivering native 1920*360 resolution. It converts dormant shelf headers and transit door transoms into valuable digital real estate without requiring structural renovations.
Facilities running round-the-clock public operations require signage hardware that operates reliably with minimal human intervention. These stretched screens provide consistent, continuous operation, ensuring uninterrupted visual communication.
Operating within restricted physical envelopes without generating localized heat pockets is critical for equipment longevity. The streamlined geometry facilitates natural airflow across rear thermal conduction planes.
Display Quality: Sharp Typography, Fine Graphic Detail, and Vibrant Colors
The 24-inch ultra-wide display offers 1920*360 native resolution, paired with a 250 cd/㎡ brightness output and a 1000:1 contrast ratio. The IPS optical layer provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, ensuring consistent visual clarity for viewers positioned at various angles, while the commercial backlight is rated for over 60,000 hours of continuous 24/7 commercial duty of duty.
The display's wide viewing angle architecture ensures that passenger information tickers and pricing tables remain clearly legible to pedestrians walking past at rapid speeds from various approach vectors.
Carefully tuned gamma correction curves produce balanced shadow detail and smooth color gradations, allowing intricate advertising graphics and photographic assets to reproduce with true-to-life vibrancy.
Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels
The 24-inch aluminum profile housing is designed for flush shelf-edge mounting in modern retail spaces. Its slender bezel and lightweight alloy build allow quick, secure integration into existing store shelving tracks.

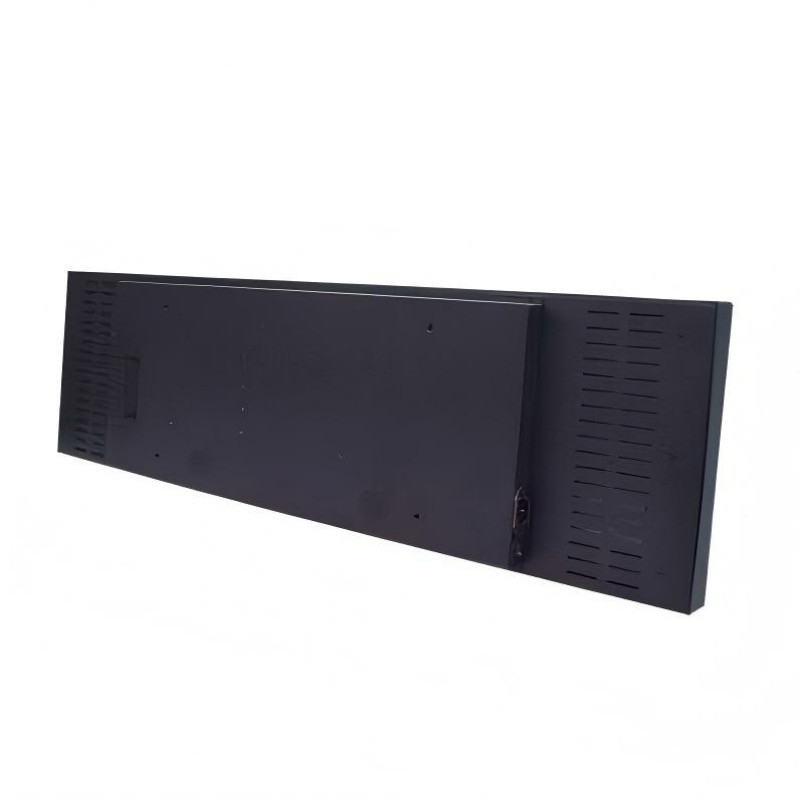

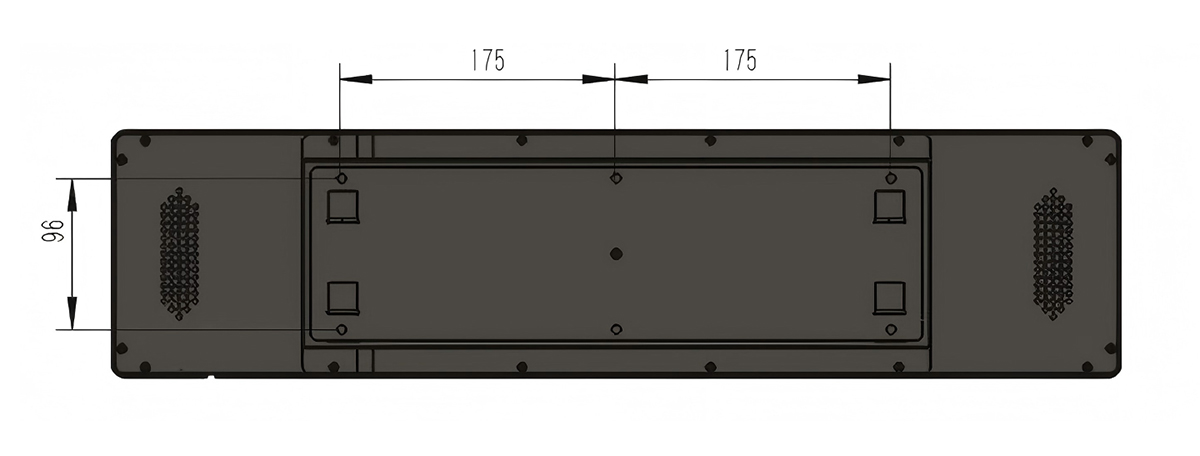

The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Interfacing Standards: Audio Output Jack and Industrial Video Scaling Logic
The display includes HDMI, VGA video interfaces for plug-and-play integration with media players and industrial systems. Audio output is supported via a Audio Socket (3.5mm). Built to accept universal AC 100V~240V (50/60Hz) power with an efficient draw of ≤ 45w, it is rated for environmental conditions of below10℃ ~ +50℃ and ≤ 85%RH.
Low standby power consumption complies with international commercial energy efficiency standards, helping enterprise clients meet corporate sustainability and green building certification goals.
Universal mains power compatibility simplifies worldwide distribution, allowing global retail brands to deploy the identical hardware model across North American, European, and Asian locations seamlessly.
Seamless Multi-OS Switching via HDMI (Windows / Android / Linux)
Engineered as an open-architecture commercial display without proprietary hardware lock-in. By simply connecting an external Windows PC box, Android media player, or Linux industrial controller via a standard HDMI cable, you can achieve effortless operating system switching tailored to your digital signage CMS, interactive software, or industrial monitoring platform.
Implementation Case Studies: Transforming In-Store and In-Vehicle Wayfinding
With commanding panoramic visibility, the 24-inch stretched display is engineered for high-throughput public transportation and retail infrastructure: 1. Rail Transit Metro Carriage Headers: Suspended above train doors and central aisles to display dynamic panoramic transit routes, bilingual station alerts, and safety notices. 2. Airport Concourse Wayfinding: Positioned above baggage carousels, customs lanes, and security checkpoints to provide continuous multi-lingual passenger guidance. 3. Flagship Retail Shopfront Ribbons: Built into luxury retail fascias and boutique feature walls for continuous panoramic fashion runway and brand video displays. 4. Industrial Production Line Tickers: Mounted in manufacturing plants to broadcast real-time production targets, safety metrics, and operational KPIs across broad factory spans.
In corporate data centers and industrial control rooms, the horizontal screen provides a continuous telemetry window without obstructing primary workstation monitors. Network engineers and equipment operators monitor real-time server loads, network traffic spikes, and manufacturing line metrics across a dedicated panoramic display strip.
Control room operators utilizing this display as a dedicated auxiliary telemetry ribbon report improved situational awareness. By dedicating the horizontal screen to continuous server load metrics and multi-camera status feeds, operators keep their primary workstation monitors clutter-free.
In-House Engineering Support: 2D/3D CAD Models and Technical Collaboration
Direct sourcing from ZXT gives your enterprise a competitive advantage in display hardware quality, cost efficiency, and lead-time reliability. With over nine years of specialized R&D and hundreds of commercial implementations worldwide, we maintain a complete catalog of in-stock profile tooling. This allows system integrators to deploy customized stretched bar hardware without incurring custom mold fees, with evaluation samples dispatched in as little as three days. We offer adaptable fulfillment options to streamline international logistics. Clients can order fully certified finished monitors, open-frame assemblies ready for enclosure drop-in, or complete SKD/CKD component shipments that allow overseas partners to assemble locally and minimize import duties. Our in-house R&D staff collaborates directly with client engineers, providing full 2D and 3D CAD modeling data and custom firmware support.
Dedicated international sales engineers provide prompt technical support, returning detailed commercial proposals, dimensional drawings, and technical feasibility reviews within two business hours.
Technical Selection & System Integration FAQ
**Q1: How do we switch between different operating systems on this display?**
Switching operating systems is frictionless: simply connect your chosen host computer (Windows PC, Android box, or Linux controller) via HDMI. The display adapts instantly without requiring internal firmware reconfiguration.
**Q2: What is the expected backlight service lifespan?**
The industrial-grade solid-state LED backlight is rated for an operational lifespan exceeding 60,000 hours, ensuring consistent chromatic performance and high luminance across multi-year commercial deployments.
**Q3: Does ZXT provide 2D and 3D CAD models for pre-engineering?**
Yes. Our engineering department supplies comprehensive 2D dimensional PDF drawings and 3D STEP CAD files to assist your mechanical team with structural fixture and cabinet integration.
Technical Consultation and Custom Bracket Inquiries
Inquire today for factory-direct pricing, 3D STEP CAD models, or evaluation sample units of the 24-inch commercial stretched bar display. Our engineering staff is ready to assist with custom hardware scoping within two hours.
