Non-touchscreen
Commercial Display Signage: 24.8 Inch Ultra-Wide Bar LCD Monitor
Commercial-grade 24.8 inch standard bar monitor delivering 1920*643 resolution and 250 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 24.8 Inch
- Resolution
- 1920*643
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
24.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 24.8 inch | |
Resolution | 1920*643 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Compact Geometry: Transforming Narrow Overhead Lintels into Information Corridors
Installing dynamic video signage in space-constrained commercial settings requires hardware engineered for narrow margins. The 24.8-inch stretched bar monitor delivers 1920*643 resolution across an active 24.8-inch diagonal, allowing enterprise clients to deploy high-impact digital messaging in locations where standard displays cannot be mounted.
Modern architectural interiors prioritize minimalist, uncluttered design. Panoramic stretched monitors align perfectly with contemporary linear aesthetics, providing high-tech visual delivery in an understated package.
Industrial automation facilities require high-density status visualization that does not block machine operators' view of the production floor. This low-profile monitor delivers comprehensive line telemetry in an unobtrusive format.
Visual Precision: Eliminating Distortion Across Ultra-Wide Active Areas
Engineered for commercial visibility, the 24.8-inch stretched bar screen delivers 1920*643 resolution and 250 cd/㎡ calibrated luminance. A 1000:1 contrast ratio ensures rich image depth, supported by symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours commercial backlight service rating.
Solid-state LED illumination provides instantaneous full-brightness startup, ensuring that commercial displays resume vivid visual operation immediately following scheduled power cycles.
Instantaneous solid-state power-on response ensures that display networks resume vibrant visual broadcasting immediately following automated overnight power cycles or utility power restoration.
Thermal Dissipation Engineering: Silent Conduction Without Moving Parts
Engineered with a low-profile commercial housing, the 24.8-inch display combines structural stiffness with a contemporary bezel design. The corrosion-treated exterior maintains a pristine finish across years of commercial duty.

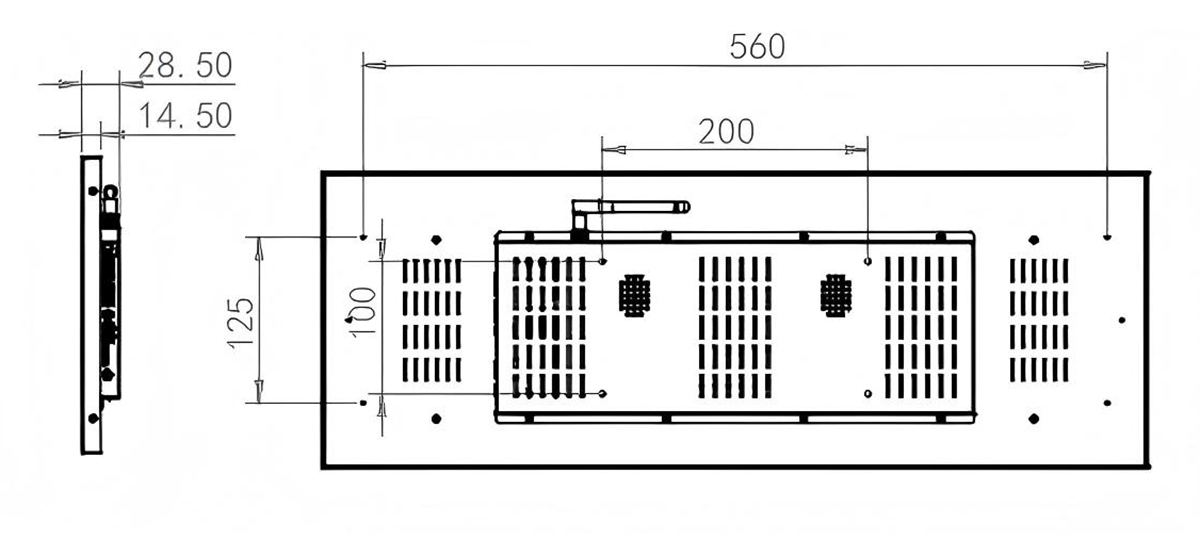

Engineered for continuous commercial operation, the display utilizes a fanless thermal architecture that dissipates heat naturally through its metal chassis. This design prevents mechanical failure and internal dust contamination, ensuring silent, reliable performance in retail and transportation settings. Mounting options include standard rear VESA patterns and versatile lateral mounting slots.
Integrated structural slide channels along the top and bottom edges permit tool-free adjustment when mounting multiple screens in a continuous horizontal line. This modular mechanical rail system cuts field installation labor by up to forty percent for large retail fit-outs.
Power Management: Minimizing Wattage Draw Across Multi-Screen Deployments
The display incorporates HDMI, VGA video inputs for immediate compatibility with external digital signage players and embedded PCs. Video signals are scaled accurately without distortion. Audio output is provided via a Audio Socket (3.5mm), while the universal power supply supports global 100~240V line voltage at 50/60Hz with an energy-efficient draw of ≤ 45w. Environmental ratings cover temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
The video processing engine features adaptive edge-smoothing algorithms that scale standard video resolutions cleanly across the ultra-wide aspect ratio without introducing pixel distortion or visual artifacts.
Automatic video signal recovery firmware monitors input signal integrity continuously, instantly re-establishing video synchronization following external player reboots or signal switching events.
Decoupled Open-Architecture Display for Multi-OS Environments
Experience complete operational freedom with a display engineered for universal HDMI video integration. Unencumbered by proprietary player restrictions, it interfaces smoothly with external Windows computers, Android network players, and Linux automation devices. This architecture allows venues to easily upgrade media player hardware or switch digital signage CMS software over time without replacing the display itself.
Deployment Analysis: Where Panoramic Display Form Factors Deliver Peak Value
Deploying the 24.8-inch panoramic display enables venues to present dynamic video messaging in previously inaccessible spaces. Key applications include retail grocery shelf signage, commuter train door route maps, corporate elevator transom directories, and manufacturing facility production status banners.
Corporate office towers mount this screen across elevator door lintels and common hallway corridors. Building managers broadcast tenant announcements, weather alerts, and corporate communications in an unobtrusive, contemporary format.
Museum curators praise the display's ability to deliver rich historical context alongside delicate artifacts. The low-profile screen fits neatly into exhibit vitrines and pedestals without distracting visitors from the physical collection.
Manufacturing Scale: In-House Stamping, Extrusion Tooling, and Rapid Sampling
Choosing ZXT connects your project team directly to our manufacturing facility. We maintain permanent tooling inventories, provide evaluation samples in three days, and support overseas partners with turnkey displays, open-frame kits, and custom engineering assistance.
From prototype validation through high-volume mass production, ZXT delivers consistent manufacturing quality that has earned the trust of over 1,000 commercial display clients in more than 50 countries.
Commercial Buyer FAQ & Technical Inquiries
**Q1: How does the display handle custom ultra-wide resolution timings?**
The onboard industrial A/D scalar automatically locks onto native ultra-wide timings via standard EDID handshakes, ensuring uncompressed pixel-for-pixel rendering without horizontal stretching or letterbox bars.
**Q2: What is the sample dispatch lead time for evaluation units?**
Because ZXT maintains in-stock inventories of standard aluminum extrusion profiles and stamping tooling, evaluation samples can be fully calibrated, burned-in, and dispatched within three working days.
**Q3: What video input interfaces are provided on this monitor?**
The standard configuration includes industrial HDMI and VGA video ports alongside a 3.5mm independent audio socket, allowing immediate plug-and-play connection to PCs, media sticks, and sound systems.
Engineering Collaboration and Volume Pricing Assessment
Contact ZXT's international sales engineering group to discuss volume pricing, custom bracket options, or evaluation sample units for the 24.8-inch ultra-wide stretched display. Share your target installation parameters, interface needs, and expected delivery dates, and our technical specialists will prepare a comprehensive engineering proposal and quotation within two business hours.
