Non-touchscreen

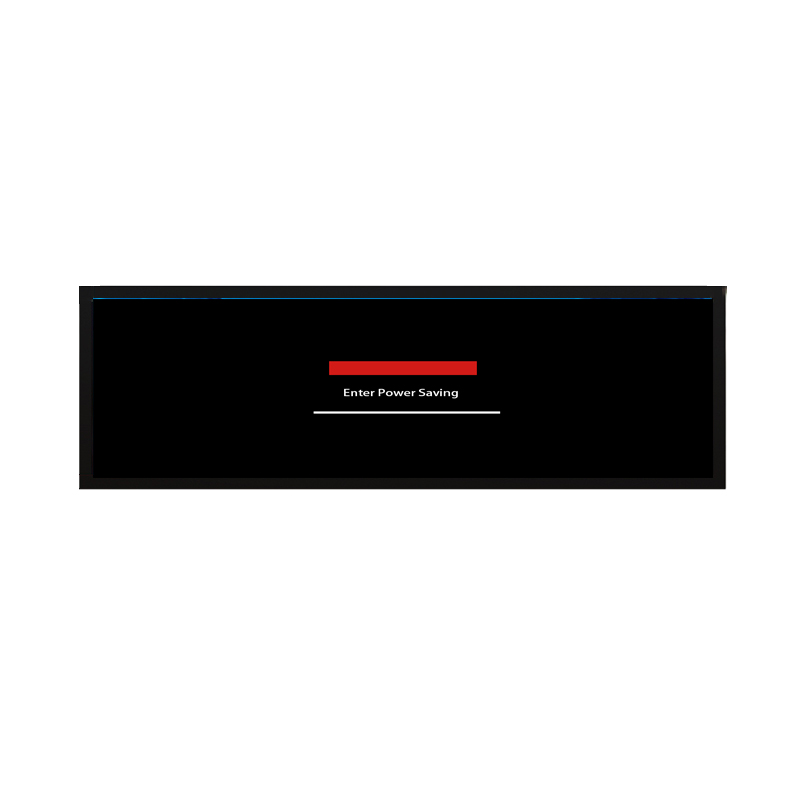

Industrial 24.5 Inch Bar Type Monitor Display with Rugged Sheet Metal
High-resolution 24.5 inch industrial sheet metal bar monitor with 1920*540 active matrix and 300~700 cd/㎡ brightness. Designed for smart retail, rolling stock transit, and industrial server racks. Backed by 9+ years of specialized display manufacturing.
Specifications
- Screen Size
- 24.5 Inch
- Resolution
- 1920*540
- Brightness
- 300~700 cd/㎡
- Interface
- HDMI / VGA
24.5 Inch Stretched LCD(Metal) | ||
Display Specifications | ||
Screen Size | 24.5 inch | |
Resolution | 1920*540 | |
Brightness | 300~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89(U/D/L/R) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Overcoming Installation Bottlenecks Along Linear Commercial Surface Headers
When installation height is restricted to narrow horizontal strips, standard monitors waste space and disrupt interior design. The 24.5-inch stretched bar LCD monitor provides a compact, purpose-built solution, presenting 1920*540 resolution across an active 24.5-inch diagonal. It allows retailers, transit authorities, and industrial plants to broadcast high-definition media without sacrificing clearance.
Passenger transport operators require displays that deliver clear information without obstructing carriage sightlines. These low-profile monitors fit neatly above doorways, ensuring passengers stay informed throughout their journeys.
Store fixture builders benefit from standardized mounting dimensions that speed up initial assembly. The display drops cleanly into pre-formed cabinet openings, reducing workshop labor and speeding up store opening schedules.
Luminescence Engineering: Balancing Brightness Output with Thermal Efficiency
Designed for demanding commercial applications, the 24.5-inch stretched screen features 1920*540 resolution and a 300~700 cd/㎡ luminance rating. With a 1000:1 contrast ratio, it renders sharp details and vivid colors. IPS technology delivers CR≥10 wide-angle IPS optical alignment viewing angles, backed by a solid-state LED backlight rated for more than 60,000 hours of maintenance-free illumination.
Intelligent thermal heat spreaders behind the LED arrays prevent localized backlight hotspots, ensuring that luminance remains uniform from edge to edge across the entire panoramic canvas.
The display matrix features high optical transmittance, allowing the backlight to operate at optimal efficiency while generating minimal internal heat, extending the operating life of surrounding driver electronics.
Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels
Constructed from high-tensile cold-rolled steel, the 24.5-inch monitor casing delivers outstanding mechanical durability. The galvanized metal enclosure provides robust impact resistance and internal component protection in heavy-duty commercial and transit applications.
The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Electronic Longevity: High-Grade Industrial Capacitors and Protective Circuits
Featuring HDMI, VGA video connections, the monitor ensures broad compatibility with commercial computing hardware. An integrated Audio Socket (3.5mm) facilitates audio connectivity. The unit runs on universal global 100~240V line voltage at 50/60Hz power, drawing ≤ 45w, and operates stably across temperature ranges of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
The mainboard firmware includes intelligent watchdog monitoring that automatically recovers video synchronization in the event of external signal interruptions, eliminating manual service calls.
The display's low thermal footprint reduces the cooling burden in enclosed kiosk cabinets, allowing system builders to design tighter, more compact self-service enclosures without auxiliary fans.
Open-Platform Display Flexibility: Zero Vendor Entanglement
Built specifically for professional system integrators who demand flexibility, this monitor operates without proprietary software locks or mandatory subscription ecosystems. By linking any standard Windows industrial PC, Android signage appliance, or Linux embedded computer through an HDMI connection, clients gain immediate access to an open-canvas display ready to run any specialized commercial or industrial software suite.
Sector Deployment Profiles: High-Footfall Commercial and Public Venues
The unique compact proportions of the 24.5-inch stretched bar monitor make it exceptionally versatile across tight commercial footprints: 1. Smart Retail Shelf Strips: Mounted on cosmetic counters, liquor shelving, and pharmacy displays to showcase real-time digital pricing, product benefits, and QR promotions. 2. Workstation & PC Secondary Telemetry: Positioned beneath primary monitors on gaming and creator desks for real-time CPU/GPU telemetry, chat streams, and audio timelines. 3. 1U/2U Server Rack & Industrial Consoles: Integrated into standard equipment racks and CNC machine panels to provide continuous system status and telemetry feeds. 4. Service Counter & Queue Indicators: Installed at bank teller counters and hospital intake stations to present queue ticket numbers and service status updates.
In smart grocery retail chains, this display format streamlines shelf-edge marketing by replacing static paper shelf tags with dynamic video loops. Supermarket category managers can schedule price changes, promote brand stories, and push limited-time discounts right at the point of decision, driving noticeable increases in retail basket size and impulse item turnover.
Field performance data demonstrates that integrating dynamic panoramic video loops into supermarket shelf headers drives measurable sales lift across featured product categories. Shoppers browsing grocery aisles spend more time engaging with product selections when dynamic pricing and brand storytelling are presented at eye level.
Factory Direct Capabilities: Rapid Prototyping and Modular Assembly Formats
ZXT operates as an authentic source manufacturer of industrial commercial displays, eliminating third-party trading intermediaries to provide direct engineering collaboration and transparent factory pricing. Over nine years of research, development, and production have yielded an extensive library of proven tooling designs. For our clients, this means zero tooling costs on standard sizes and expedited sample delivery within three business days. To accommodate diverse global import regulations and assembly preferences, we deliver hardware in turnkey finished packages or modular SKD/CKD formats. Supplying matched panel cells, pre-configured driver motherboards, wiring harnesses, and chassis components allows international partners to assemble locally, dramatically cutting air freight expenses and tariff burdens. Our design engineers work directly with your technical personnel, providing 3D CAD modeling files, structural tolerance consultations, and customized interface configurations.
Maintaining extensive raw glass cell inventories and pre-machined aluminum extrusions enables our factory to fulfill volume orders with rapid turnaround, minimizing project schedule risks for international contractors.
Buyer & Integrator FAQ
**Q1: Does the display support multi-zone content splitting?**
Yes. The native panoramic resolution provides ample horizontal canvas for digital signage software to partition the display into multiple discrete zones, such as simultaneous video playback, static prices, and tickers.
**Q2: How quickly can replacement parts or expansion units be provided?**
Because ZXT maintains active tooling and standardized component inventories, spare parts, replacement driver boards, and expansion units can be prepared and dispatched with industry-leading lead times.
**Q3: Can we obtain customized packaging for retail distribution?**
Yes. We offer custom-branded master export cartons, individualized retail packaging, and reinforced high-density palletization engineered to survive long-distance international ocean and air freight.
Direct Commercial Inquiry and Specification Review
Initiate your project consultation for the 24.5-inch stretched bar display by contacting our international technical sales team. We are prepared to provide 2D/3D mechanical drawings, verify electrical interfaces, and expedite 3-day evaluation samples for your team. Submit your project scope and quantities today for a prompt factory quotation within two business hours.
