Non-touchscreen

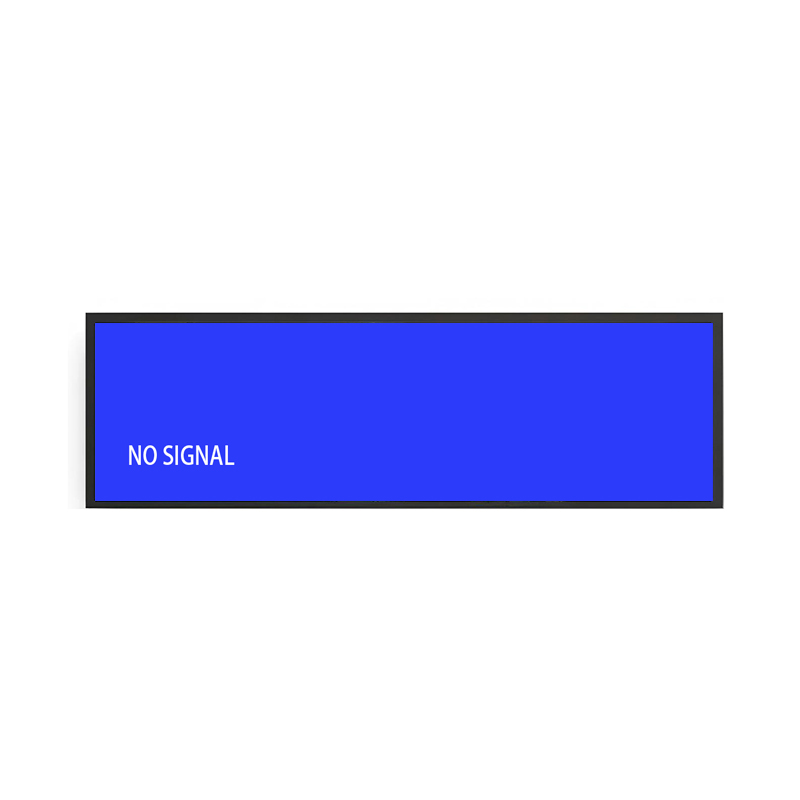

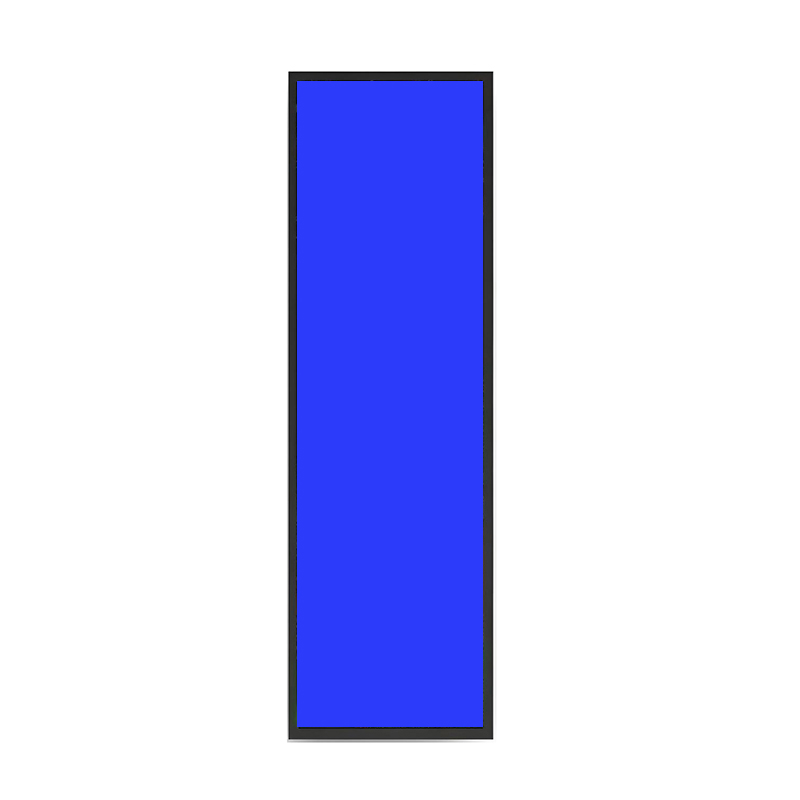

Stretched Bar LCD Monitor – 24.3 Inch High-Definition Commercial Screen
Factory-direct 24.3 inch industrial sheet metal bar monitor with 1920*508 panoramic display and 250 cd/㎡ luminance. Designed for linear spaces with zero vertical waste. Available in assembled units or modular SKD/CKD formats with 3-day sample lead time.
Specifications
- Screen Size
- 24.3 Inch
- Resolution
- 1920*508
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
24.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 24.3 inch | |
Resolution | 1920*508 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Engineering: Unlocking Underutilized Architectural Perimeters

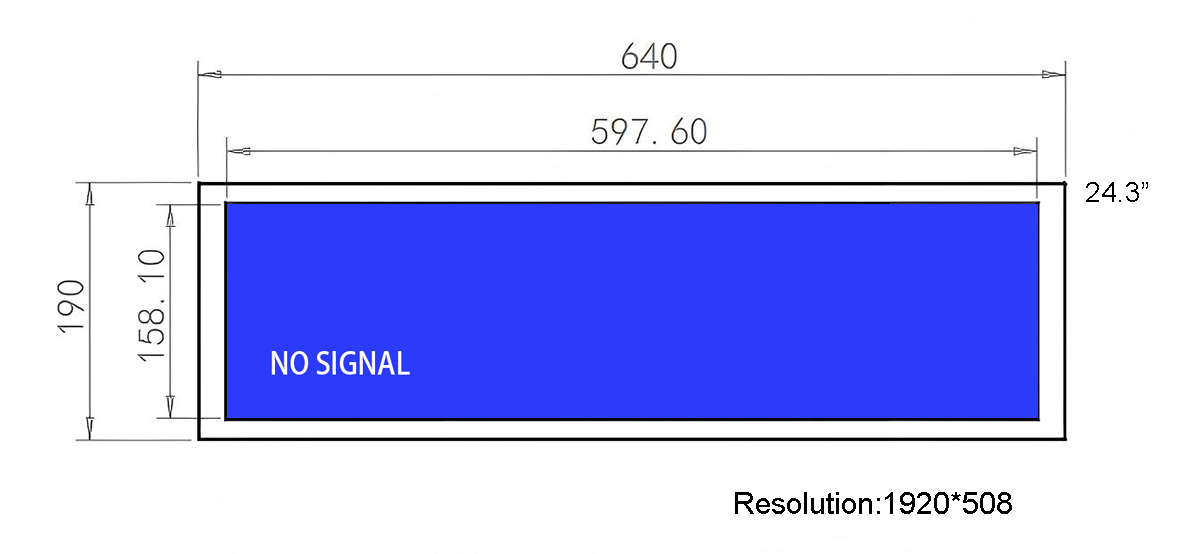

Retail merchandising and passenger transit environments demand specialized displays designed for narrow linear perimeters. The 24.3-inch stretched LCD monitor satisfies this requirement by providing 1920*508 native resolution across an active 24.3-inch diagonal, maximizing horizontal display area while preserving valuable vertical clearance.
The specialized cut-bar aspect ratio allows software developers to design multi-zone split-screen layouts. Static brand banners can run alongside animated promotional videos, maximizing screen utility within a single fixture.
The horizontal display geometry aligns naturally with human horizontal glance paths, ensuring that dynamic price callouts and route stops catch attention without requiring shoppers or commuters to look away from their primary path.
Optical Clarity at Scale: Active Matrix Performance in Panoramic Ratios
The 24.3-inch display features an industrial LCD panel offering 1920*508 resolution, 250 cd/㎡ brightness, and a 1000:1 contrast ratio. IPS wide-angle technology ensures CR≥10 wide-angle IPS optical alignment visibility, while the energy-efficient LED backlight provides an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
The anti-reflective surface treatment diffuses harsh ambient light sources, enabling viewers to comfortably read detailed pricing and route information without squinting or shifting positions.
Constant-current driving topology guarantees zero perceptible high-frequency flicker, providing a comfortable viewing experience for retail cashiers, office workers, and transit passengers alike.
Chassis Architecture: Shock Absorption, Shielding, and Mounting Versatility
Housed in an industrial cold-rolled steel enclosure, the 24.3-inch monitor delivers high structural durability for demanding plant and transit environments. The corrosion-treated steel casing provides robust impact protection, shielding internal A/D boards and power converters from workshop debris and mechanical shocks.

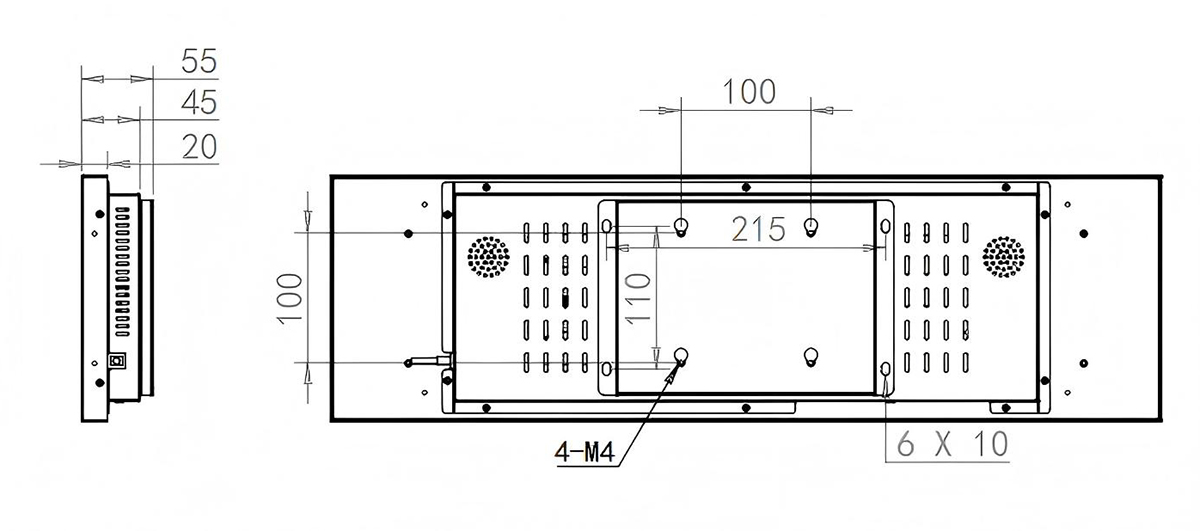

The mechanical enclosure incorporates solid-state passive thermal dissipation, transferring heat away from internal components through high-conductivity internal heat spreaders. By eliminating mechanical fans, the unit operates in complete silence and prevents dust buildup inside the chassis. The rear casing includes standard VESA mounting points and adjustable side mounting channels for flexible installation on walls, poles, or custom fixtures.
Engineered for rapid field deployment, the chassis includes adjustable side-mounting flange ears that secure the display into custom metal cabinetry or wooden millwork. Vibration-damped rubber grommets isolate the display structure from external mechanical shocks in heavy machinery setups.
Audio-Visual Processing: Audio Socket Provision and Pixel-to-Pixel Mapping
Featuring standard HDMI, VGA video interfaces, the display connects directly to commercial media players and industrial computing hardware. Automatic video timing synchronization ensures accurate pixel mapping. An integrated Audio Socket (3.5mm) supports external audio connectivity, while the power module accepts standard 110V to 240V AC power input with power consumption rated at ≤ 45w. The monitor operates reliably across temperatures of below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Universal mains power input simplifies international deployment, allowing system builders to install the same hardware globally without requiring external voltage transformers or specialized power adapters.
Standardized video connector placement and reinforced cable strain-relief points ensure that HDMI and VGA cables remain securely anchored, even when deployed in vibrating buses or rail vehicles.
Plug-and-Play Multi-OS Freedom via Standard HDMI Input
Rather than forcing users into a proprietary, non-upgradeable smart OS, this display serves as a pure, high-performance visual surface ready for any external compute platform. Connect a Windows PC, Android media box, or Linux controller via HDMI to immediately drive dynamic promotional banners, automated menu boards, or plant monitoring telemetry with complete operating system freedom.
Sector Implementation: Passenger Route Displays and Shelf-Edge Video Banners
The 24.3-inch stretched monitor delivers high visual authority in narrow mounting footprints. It is widely utilized for supermarket shelf-edge branding, rail transit passenger information systems, server room equipment monitoring, and QSR restaurant menu displays, providing reliable performance across demanding commercial settings.
Interactive self-service kiosks and automated parcel lockers embed this horizontal display in top fascias. Intuitive visual prompts and animated status bars guide users through transaction steps, speeding up user checkout and package pickup cycles.
Commercial office towers utilizing panoramic displays above elevator transoms report positive tenant feedback. Dynamic building notices, public transit alerts, and local weather updates are broadcast in an unobtrusive, contemporary format.
Direct Factory Sourcing: Reducing Procurement Costs and Engineering Lead Times
ZXT provides source-factory manufacturing for commercial stretched displays, eliminating third-party markups. Our in-stock tooling ensures zero mold charges on standard sizes, supported by fast 3-day sample dispatch and modular SKD shipping options for international clients.
Factory-direct warranty coverage is backed by responsive technical assistance and available spare parts kits, ensuring that deployed displays maintain continuous commercial service year after year.
Frequently Asked Questions (FAQ)
**Q1: Can this display be driven by our existing digital signage software?**
Yes. Engineered with an open hardware architecture, the display accepts standard HDMI and VGA signals from any external Windows, Android, or Linux player running your preferred CMS platform without proprietary software lock-in.
**Q2: Is this monitor certified for continuous 24/7 commercial operation?**
Absolutely. The display incorporates an industrial-grade A-grade liquid crystal cell and solid-state LED backlight rated for over 60,000 hours of continuous operation, supported by a fanless passive cooling design.
**Q3: Can ZXT provide customized mounting brackets or enclosure finishes?**
Yes. As a direct source manufacturer, we offer comprehensive OEM/ODM customization, including custom powder-coat colors, specialized shelf-edge mounting brackets, open-frame configurations, and modular SKD/CKD supply.
Request Technical Blueprints and Factory Direct Quotation
Ready to deploy the 24.3-inch panoramic stretched bar monitor in your next commercial project? Contact our engineering sales team today to request comprehensive 3D CAD drawings, verify connector pinouts, or arrange a 3-day evaluation sample. Send us your project specifications and delivery timelines, and our technical staff will return an official factory-direct proposal within two hours.
